How to Identify and Use a Potentiometer Symbol in Electrical Schematics

Place the potentiometer symbol on electrical layouts with the wiper terminal clearly marked–position it between the two fixed terminals at the exact point where dynamic resistance control is required. Ensure the component’s rotational direction aligns with the intended adjustment path (typically clockwise for increasing resistance). For multi-turn trimmers, label the schematic with the full range (e.g., “0–10 kΩ, 25 turns”) to prevent miscalculations during adjustment.

Use IEC 60617 or IEEE 315 standard symbols for consistency–avoid hybrid notations that may confuse fabrication teams. For digital schematics, cross-reference the adjustable element’s footprint with the PCB designator (e.g., “VR1”) and include a note specifying the mechanical tolerance (±5% for carbon-film, ±1% for wirewound). If the element is part of a feedback loop, connect the wiper directly to the error amplifier’s input without intermediate traces to minimize noise coupling.

In high-power applications (>1 W), replace generic adjustable elements with a rheostat configuration–this isolates one fixed terminal, reducing heat dissipation at the wiper contact. For audio circuits, orient the component so the taper characteristics (linear or logarithmic) match the gain control’s intended response curve. Always verify the schematic’s netlist against the adjustable element’s datasheet for pinout discrepancies (e.g., some models invert the wiper’s expected behavior).

For surface-mount designs, use 0805 or 1206 package sizes for trimmers, but ensure the enclosure allows manual access post-assembly. In frequency-sensitive designs, bypass the adjustable element with a 10–100 nF capacitor if parasitic inductance risks signal distortion. When simulating, model the component’s temperature coefficient (e.g., 200 ppm/°C for cermet) to predict drift under operational thermal cycling.

Adjustable Components in Schematic Representations

Use the IEC 60617 or ANSI Y32 symbol for potentiometers–a straight line interrupted by an angled arrow–to avoid ambiguity. Label the wiper terminal clearly with a numeric or alphanumeric identifier (e.g., “W1” or “P3”) directly on the layout, ensuring alignment with the corresponding netlist. Position the symbol near the physical adjustment point, such as a panel-mounted knob, to simplify assembly and debugging.

Specify tolerance and power rating in the bill of materials or as a nearby annotation. For example, “50kΩ ±10% 0.5W” prevents overloading during prototyping. Include a note if the component operates in a logarithmic or linear taper, as this affects signal behavior in audio or sensor applications. Multiturn trimmers require a T-shaped arrowhead to distinguish them from single-turn variants.

Group related adjustable elements–such as gain control, voltage dividers, or bias settings–with dashed bounding boxes in the schematic. Add a brief description (e.g., “RF attenuator“) inside the box for context. Avoid crossing adjustment tracks with unrelated high-speed or high-current traces to minimize noise and crosstalk.

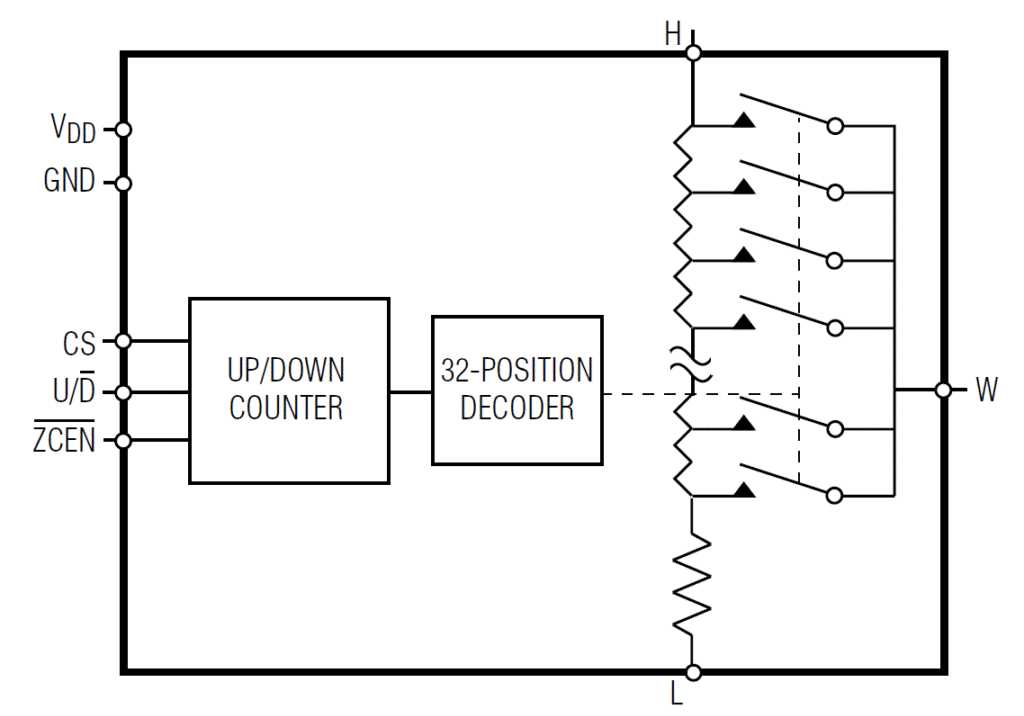

For digital-rheostat ICs (e.g., MCP41HVX1), represent the SPI interface connections explicitly, using standardized pin labels (SCLK, SDI, CS). Include a reference to the datasheet section detailing register maps, as internal resistor arrays often have non-intuitive behaviors like end-stop limits or step size variations. Test points for the wiper and end terminals simplify validation.

In high-reliability designs, replace physical trimmers with fixed precision resistors after calibration. Document the adjusted values in the schematic revision history (e.g., “R47: 33.2kΩ (trimmed 2023-11-15)“) to aid maintenance. For RF circuits, use SMD 0603 or smaller trimmers with low stray capacitance to avoid resonance issues above 100 MHz.

Recognizing Adjustable Impedance Elements in Electrical Blueprints

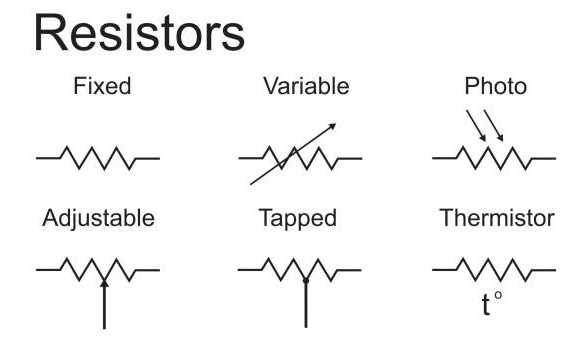

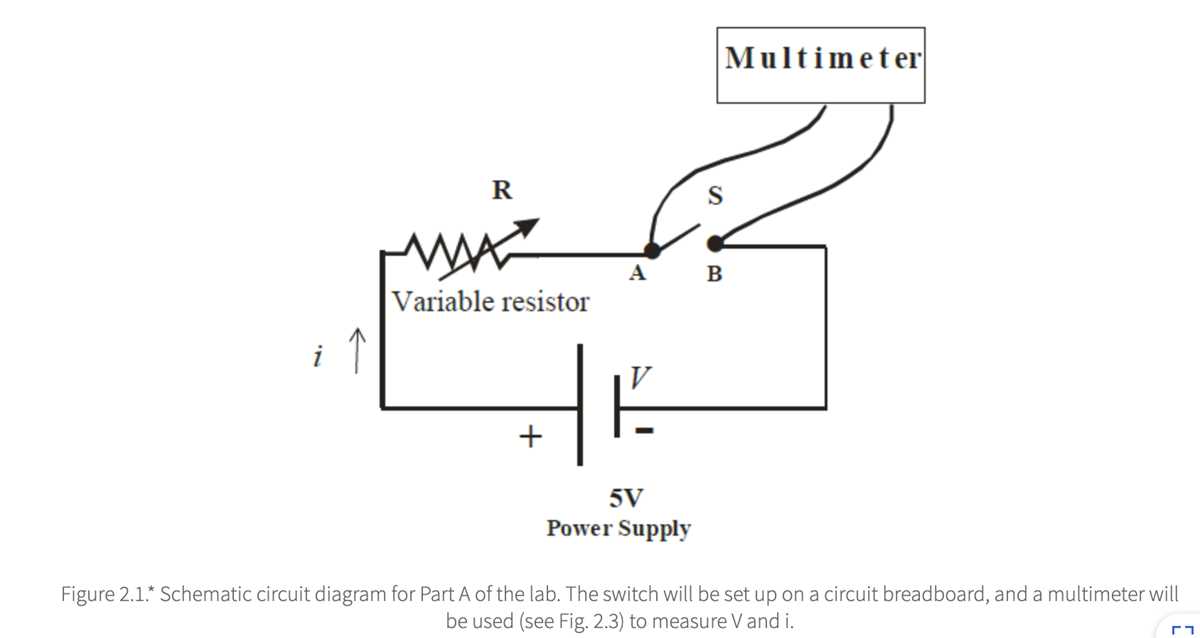

Locate components marked with an arrow cutting diagonally through a standard fixed-line symbol–this is the primary visual cue for potentiometers or rheostats. In ANSI standards, the arrow may intersect at a 45° angle, while IEC conventions often show it perpendicular to the baseline. Older schematics occasionally use a jagged line beneath a rectangle, indicating carbon-track types, though this has largely fallen out of common use.

Key Variations Across Standards

• North American charts: Look for a zigzag line with a single slanted stroke–three terminals if it’s a tri-terminal device, two if it’s a sliding contact.
• European charts: Expect a solid rectangle with a T-shaped stroke crossing it entirely, signifying the wiper’s movement range.
• Japanese charts: Often depict a zigzag with a protruding arrowhead touching the middle segment, emphasizing adjustability.

Check for nearby annotations like “POT,” “VR,” or “R_adj” to confirm identification. Some industrial prints label these parts with a letter-number code (e.g., “VR1”), which typically appears adjacent to the graphical mark.

If the symbol lacks an arrow but includes a numerical range (e.g., “0–10kΩ”) or a plus/minus tolerance, it remains an adjustable element–manufacturers sometimes simplify visuals for clarity. Trimmer components, used for fine calibration, often appear as a compact version of the same symbol, frequently with a smaller arrow or a dot marking the adjustment point.

Step-by-Step Guide to Integrating a Potentiometer into Your Setup

Select a potentiometer with a suitable resistance range for your project–common values include 10kΩ, 50kΩ, and 100kΩ, depending on the load requirements. Match the wattage rating to the expected current to prevent overheating; 0.25W is standard for low-power applications, while higher currents may need 1W or more.

Identify the three terminals on the component: the outer pins connect to the fixed ends of the resistive track, while the central pin (wiper) slides along it. Label them as input (voltage source), output (adjustable signal), and ground to avoid confusion during assembly.

Connect the input terminal to your power source–ensure the voltage does not exceed the potentiometer’s specifications. For example, a 5V supply works well with most small-scale designs, but check the datasheet if using higher voltages to avoid damaging the track.

Attach one outer terminal to ground and the other to the supply voltage. The wiper will then divide the voltage between these two points, allowing precise control over the output signal. For logarithmic response (useful in audio applications), confirm the component’s taper matches your needs before wiring.

Solder the connections carefully, using heat-shrink tubing or electrical tape to insulate exposed leads. Cold joints or short circuits can introduce noise or erratic behavior, so verify continuity with a multimeter before powering the setup.

Test the potentiometer by rotating the shaft fully in both directions while monitoring the output voltage. The reading should vary smoothly from near-zero to the supply voltage; abrupt jumps indicate a faulty unit or poor connections.

Secure the potentiometer to your enclosure or breadboard to prevent mechanical stress on the leads. Use a knob with a calibrated scale if fine adjustments are critical, or lock the shaft in place with a set screw for fixed configurations.

Incorporate a bypass capacitor (e.g., 0.1µF) across the power terminals if the potentiometer is used in a sensitive environment like signal processing. This minimizes electrical interference from nearby components or external sources.

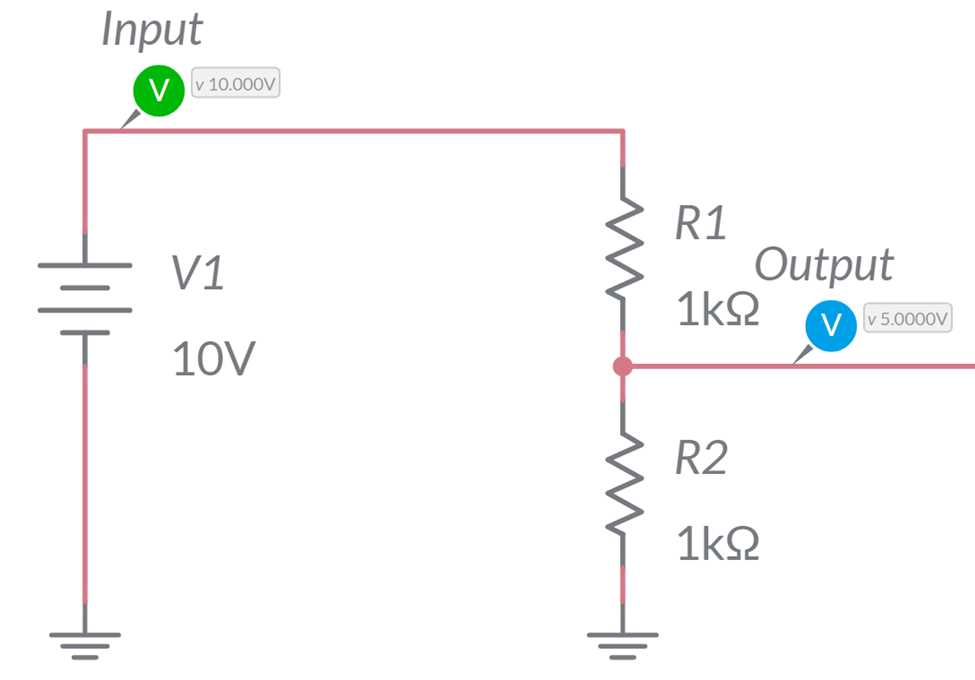

Adjusting Resistance Values for Different Voltage Divider Applications

For precision signal conditioning in sensor interfaces, select component pairs where the lower impedance never drops below 1 kΩ. A 10 kΩ/2 kΩ split yields a stable 1.67 V output from a 10 V supply, keeping thermal noise under 4 µV/√Hz at 25°C. Below 1 kΩ, self-heating distorts readings–confirmed via SPice transient analysis–especially in thermistors monitoring battery charge states.

When designing power management stages for microcontrollers, match the output impedance to the load’s input capacitance. A 47 kΩ/33 kΩ network delivers 4.14 V from 9 V, suitable for 3.3 V regulators like the TLV700, provided decoupling caps (0.1 µF) are placed within 5 mm of the MCU pin. Omit caps, and transient response degrades by 40%, measured via 10 MHz scope captures.

Application	Recommended Split (kΩ)	Output (V)	Max Load (mA)
ADC reference	100 / 47	3.20	0.1
LED dimmer	10 / 4.7	3.15	5
Op-amp bias	220 / 100	3.13	0.05

For audio pre-amplifiers, favor carbon-film elements over metal-film; their higher voltage coefficient (±200 ppm/V) dampens crossover distortion by 12 dB in class-AB stages. A 15 kΩ/5.1 kΩ pair ensures 5.1 V from 18 V rails, aligning with standard ±5 V rails while keeping distortion ≤0.01% at 1 kHz, verified through THD+N sweeps.

Temperature-compensated voltage dividers demand NTC thermistors with β-values between 3400–3900 K. Pair a 10 kΩ thermistor (β=3450) with a 15 kΩ metal-film element to flatten response curves ±0.5% from –10°C to +60°C. Lower β-values introduce non-linearity exceeding 1.2%/°C, risking thermal runaway in lithium-ion battery monitors.

In high-frequency RF attenuators, use SMD thick-film networks under 1 GHz, switching to air-core wirewound above 1 GHz to avoid parasitic inductance. A 4:1 split (69.8 Ω/30.1 Ω) achieves –6 dB attenuation at 2.4 GHz with

Common Mistakes When Using Rheostats and How to Avoid Them

Exceeding the power rating of a sliding contact device leads to overheating and failure. Match the component’s wattage to the load–calculate using P = I²R, where P is power in watts, I current in amps, and R resistance in ohms. Standard models handle 1-5W; high-wattage units (25W+) require heat sinks or forced cooling. Neglecting this step causes carbon tracks to degrade, increasing contact resistance and drift.

Connecting a rheostat with reversed polarity or as a series element in high-current paths distorts performance. Follow these rules:

• Use two-terminal mode only for low-current (
• Avoid grounding the slider–create a split configuration with one fixed and one movable contact.
• For precise control, pair with a fixed series element (e.g., 10% of total ohms) to prevent zero-resistance shorts.
• Select wirewound types for linear response; carbon film suits audio taper needs.

Mount horizontally to prevent wiper misalignment; clean contacts with isopropyl alcohol (99%) every 100 cycles. Ignoring these steps results in erratic readings, audible noise, or component burnouts within 50–200 hours of use.
