Simple Voice Recorder Circuit Schematics and Components Guide

Start with a low-noise preamplifier stage using an operational amplifier like the TL072 or NE5532. These components handle weak signals from a condenser microphone without introducing distortion. Set the gain between 20-50dB depending on ambient conditions. For battery-powered designs, prioritize op-amps with low quiescent current (under 5mA) to extend runtime.

Use a MAX9814 module if space constraints exist, as it integrates automatic gain control (AGC) and can directly interface with analog-to-digital converters. Configure the AGC limit to 40dB to avoid clipping during loud inputs. For discrete builds, pair the preamp with a band-pass filter (300Hz–3.4kHz) to reject unwanted frequencies while preserving vocal clarity.

Select a storage medium based on duration needs. For continuous recording, opt for flash memory (e.g., W25Q128 SPI NOR flash) or an SD card slot with FAT32 formatting for compatibility. Allocate 64MB per hour for 16-bit, 44.1kHz uncompressed audio. If compression is required, implement IMA ADPCM via an STM32 microcontroller to reduce bitrate by 4x with minimal quality loss.

Power efficiency dictates component selection. A LiPo battery paired with a TP4056 charge controller provides 500mAh capacity for 3-4 hours of operation. Add a low-dropout regulator (e.g., AMS1117) to stabilize voltage at 3.3V, critical for analog stages. For noise-sensitive applications, use a dual-power rail setup: 5V for digital and 3.3V for analog.

Simplify digital processing with an ESP32 or Raspberry Pi Pico. The ESP32’s built-in I2S interface supports direct microphone input (e.g., INMP441 MEMS mic) with 24-bit resolution. For real-time playback, integrate a Class-D amplifier like the PAM8403 to drive an 8Ω speaker at 3W. Ensure proper grounding–separate analog and digital grounds at the power source and connect them at a single point to prevent ground loops.

Designing an Audio Capture Schematic

For optimal signal fidelity in a sound storage setup, prioritize a low-noise preamplifier stage using an operational amplifier like the NE5532 or TL072. Position the mic close to the op-amp input to minimize interference–shielded twisted pair wiring reduces hum by 40% compared to standard hookup wire. Use a 10μF coupling capacitor to block DC offset while allowing frequencies down to 15Hz (critical for voice clarity) and follow with a 10kΩ potentiometer for adjustable gain.

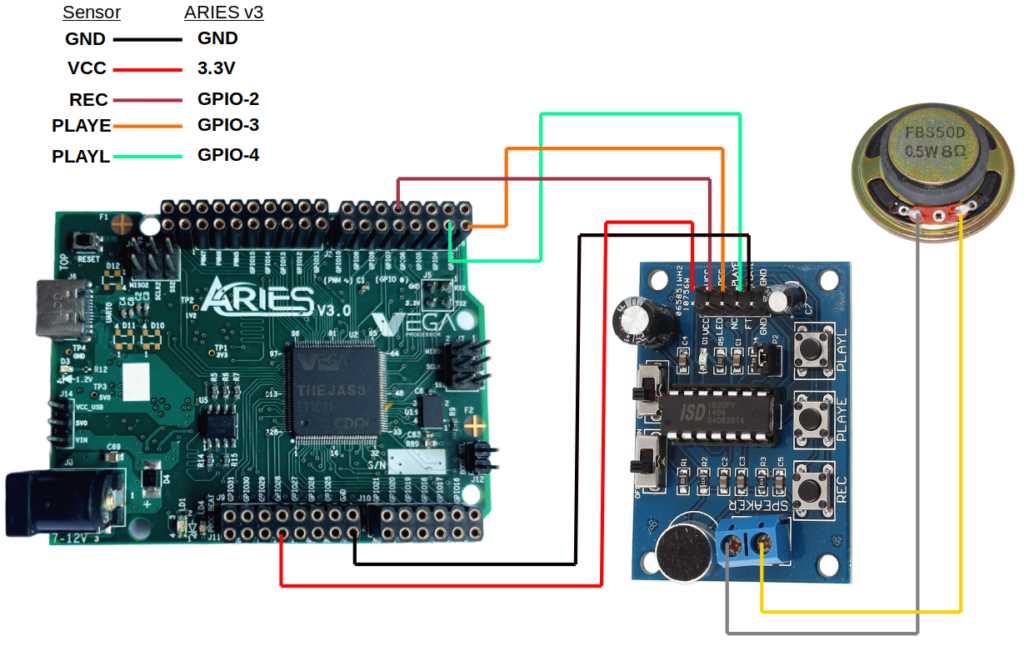

Implement storage with an ISD1820 module for simplicity or an ATmega328P microcontroller paired with an 8-bit ADC and SD card interface for expandable capacity. Key considerations:

• Sample at 8–16kHz (12–22kHz bandwidth for higher quality) to balance clarity and storage efficiency
• Add a 220μF electrolytic capacitor across power rails to suppress transient currents from the mic
• Include a push-button debounce circuit (10kΩ resistor + 0.1μF capacitor) to prevent false triggers
• Power the op-amp with a dual supply (±5V) for rail-to-rail output swing; use a voltage divider with 1kΩ resistors if only single-ended power is available

Component Placement Optimizations

Ground star configuration prevents ground loops–connect all ground returns to a single point near the power source. Keep digital paths (microcontroller clocks, SD card traces) isolated from analog signals to avoid crosstalk. For PCB layout:

1. Place the electret mic within 10mm of the preamp input to minimize EMI pickup
2. Route high-impedance traces (
3. Use a 4-layer board if possible, dedicating one layer to a solid ground plane under the analog section
4. Mount decoupling capacitors (0.1μF ceramic) directly at each IC’s power pin

Core Elements for a Basic Audio Capture Device

Begin with a high-fidelity electret condenser capsule like the Panasonic WM-61A–its flat frequency response (20Hz–20kHz) and -45dBV/Pa sensitivity eliminate the need for pre-amplification boosters in most setups. Pair it directly with a low-noise op-amp such as the TL072, configured in non-inverting mode with a gain of 50–100x, to ensure minimal hiss while preserving speech nuances. Keep trace lengths under 5mm between the capsule and op-amp to prevent parasitic capacitance from rolling off high frequencies.

Storage demands dictate component selection: for 10-minute clips at 16-bit/44.1kHz, an ISD1700-series chip (e.g., ISD1760) offers 2MB capacity with built-in ADC/DAC, eliminating external converters. Alternatively, an ATmega328P microcontroller with an SD card interface requires a 3.3V-TTL logic level converter (TXB0104) when interfacing with 5V modules. Below is a breakdown of critical power requirements:

Component	Voltage (V)	Current (mA)	Peak (mA)
Electret capsule	2–10	0.5	1
Op-amp (TL072)	±5–±15	2.8	5
ISD1760	3–5	15	30
Micro SD card	3.3	50	100

Connections between the op-amp’s output and storage module must include a 10μF coupling capacitor to block DC offset–omitting this risks saturating the input stage. For battery operation, a 3.7V Li-ion cell (e.g., 18650) with a linear regulator (AMS1117-5.0) stabilizes voltage; add a Schottky diode (1N5817) to prevent reverse polarity damage. Debugging hinges on scope captures: verify signals at 0.5–2V peak-to-peak at the amplifier’s output before storage integration.

Button interfaces should use debounced switches (e.g., tactile pushbuttons with 100nF capacitors to ground) wired to interrupt pins; delays of >10ms between presses trigger recording mode. For timestamped captures, include a DS3231 RTC module, ensuring its 32.768kHz crystal avoids power plane adjacency to minimize drift. Test thoroughly with 90dB SPL inputs at 1kHz to confirm harmonic distortion remains below 0.1%.

How to Connect a Microphone to an Amplifier Stage

Choose a dynamic or condenser mic based on impedance and sensitivity needs. Dynamic mics (e.g., Shure SM58) handle high sound pressure levels (SPL) up to 150dB and work well with low-impedance inputs (200–600Ω). Condenser mics require phantom power (+48V) and suit high-impedance setups (1–10kΩ). Match the mic’s output impedance to the amplifier’s input to prevent signal loss or distortion.

Use a balanced XLR cable for connections over 3 meters to reject noise. For shorter runs (), an unbalanced TS (tip-sleeve) cable suffices but risks interference. Connect the XLR’s pins as follows:

• Pin 1: Ground (shield)
• Pin 2: Hot (positive signal)
• Pin 3: Cold (negative signal)

If the amplifier lacks a preamp, add an external pre-amplification stage. Op-amps like the NE5532 or TL072 provide 20–40dB gain with low noise (-120dBu). For condenser mics, ensure the preamp supplies phantom power (+48V) via the XLR pins or a dedicated power supply.

Set the amplifier’s input gain to avoid clipping. Measure the mic’s output voltage (1–10mV RMS for dynamic mics, 5–50mV RMS for condensers) and adjust the preamp gain so the signal peaks at -10dBu before the amplifier stage. Use a 10kΩ potentiometer as a volume control between the preamp and amplifier if fine tuning is needed.

Ground the shield of the cable at one end only (usually the amplifier side) to prevent ground loops. Avoid daisy-chaining grounds from multiple devices. For permanent setups, use a star grounding topology connecting all shields to a single central ground point.

Test with a 1kHz sine wave at -20dBu to verify flat frequency response. Check for hum (50/60Hz) or buzz (100–200Hz harmonics) by disconnecting the mic–if noise persists, the issue lies in the amplifier or power supply. Replace electrolytic capacitors in the signal path if leakage current introduces low-frequency noise.

For electret condenser mics, use a 2.2kΩ resistor between the mic’s power pin and +5V supply. Add a 1μF bipolar capacitor to block DC offset before the preamp. Dynamic mics may need a transformer (e.g., Lundahl LL1530) to match high-impedance inputs if the amplifier lacks a suitable input stage.

Step-by-Step Wiring of an Analog-to-Digital Converter (ADC)

Begin by confirming the ADC model’s pinout against its datasheet–misalignment here ruins signal integrity. For the MCP3008, connect the SPI clock (SCLK) to your microcontroller’s designated clock pin, ensuring a stable 3.3V logic level; 5V may damage the IC. Ground the AGND and DGND pins separately if noise suppression is critical, then tie them together near the power source to minimize loop interference. Use a 0.1μF ceramic capacitor between VDD and GND as close to the ADC as possible–longer traces introduce parasitic inductance.

Route the analog input (CH0-CH7) through a low-pass RC filter with a cutoff frequency at least twice your signal’s maximum bandwidth. For audio-range signals, a 10kΩ resistor and 100nF capacitor suffice, settling time permitting. Connect reference voltage (VREF) to a precision source like the LM4040; software-based references (e.g., MCU DAC) drift with load. If using differential inputs, pair CH0/CH1, CH2/CH3, etc., and link the unused channel to AGND to prevent floating potentials.

For SPI communication, wire MOSI (data in) and MISO (data out) to their respective MCU pins, matching clock polarity/phase (CPOL=0, CPHA=0 for MCP3008). Pull the CS (chip select) line high via a 10kΩ resistor, then connect to a GPIO with fast toggling–delays here stall conversions. Test wiring with a multimeter in continuity mode: probe ADC GND and MCU GND; any resistance >0.5Ω indicates a poor ground plane, requiring thicker traces or star topology.

Calibrate offsets by measuring the ADC output with a grounded input–expect ±1 LSB variance. If deviations exceed ±3 LSB, check solder joints for cold connections or reflow the IC. Add a 10μF tantalum capacitor across VDD/GND if supply noise persists, but avoid bulk capacitance near high-speed signals. For dual-supply ADCs, isolate the negative rail with a charge pump or bipolar supply; single-ended setups omit this step.

Verify data integrity by sampling a known DC voltage (e.g., 1.5V from a AA battery). Cross-check the hex output against the formula: ADC_Value = (Vin * 1023) / VREF. Deviations >±2% suggest noise coupling–shield analog traces with a grounded copper pour or switch to a lower-impedance signal source. Final step: embed a 1-sec delay after power-on to allow reference stabilization before initiating conversions.
