Understanding Voltmeter Circuit Design and Core Components Layout
Begin by examining a basic analog gauge layout where a moving-coil mechanism serves as the foundation. A permanent magnet creates a steady magnetic field, and when current flows through the coil, it generates torque proportional to the input signal. Ensure the coil resistance remains low–typically under 50Ω–for high sensitivity, but account for temperature drift in applications requiring precision. Include a series resistor to extend measurement range without damaging the coil, selecting its value based on the maximum expected voltage.
For digital variants, prioritize the analog-to-digital converter (ADC) configuration. A dual-slope ADC offers noise immunity but trades speed for accuracy, making it ideal for low-frequency signals. Use a precision reference voltage–often 2.5V or 4.096V–to maintain consistency across readings. If isolating the input is necessary, opt for an optocoupler or transformer-based isolation front end, though this increases complexity and potential signal degradation.
Shunt resistors play a critical role in high-current measurements. Choose a manganin or constantan shunt with a low temperature coefficient of resistance (TCR) to minimize errors from self-heating. For example, a 0.01Ω shunt with a 10A current produces a 100mV drop, which can be amplified using an instrumentation amplifier with a gain of 100 to match the ADC’s input range. Avoid common-mode noise by placing the shunt and amplifier close together and using a Kelvin (4-wire) connection.
Calibration is non-negotiable. Use a known reference source–a precision voltage calibrator or a stable battery–to adjust gain and offset errors. Store calibration data in non-volatile memory if the design includes a microcontroller. For multi-range tools, implement auto-ranging logic to dynamically switch input attenuators or amplifier gains, but ensure settling time is accounted for to prevent erroneous readings during transitions.
Avoid ground loops by isolating the measurement path from the power supply. If the device shares a ground with the system under test, use a differential input stage to reject common-mode interference. For AC measurements, add a true-RMS converter to handle non-sinusoidal waveforms, but note that its bandwidth and crest factor limitations may require oversampling for accurate results.
Understanding the Schematic of Measurement Instruments
Begin by examining the sensing element in analog devices: a moving-coil mechanism paired with a calibrated resistor network. The coil’s resistance typically ranges from 50 to 200 ohms, depending on scale sensitivity, while the series resistor (often 10 kΩ to 1 MΩ) ensures measurable current without disrupting the tested system. For precision, select resistors with a tolerance of ±0.1% or better to minimize errors in low-voltage readings.
Modern variants frequently integrate an operational amplifier (op-amp) before the display to boost input impedance beyond 10 MΩ, critical for high-resistance sources. A common configuration uses a non-inverting amplifier with a gain of 1 to preserve signal integrity. Ensure the op-amp’s input bias current remains below 1 nA to prevent offset errors in sub-millivolt ranges.
For digital implementations, an analog-to-digital converter (ADC) replaces the coil and needle. A successive approximation register (SAR) ADC with 12-bit resolution or higher delivers sufficient granularity for most applications. Connect the ADC’s reference voltage to a stable source, such as a temperature-compensated zener diode (e.g., 2.5V or 4.096V), to maintain accuracy across environmental shifts.
Power supply decoupling is non-negotiable. Place a 0.1 µF ceramic capacitor within 5 mm of the op-amp’s positive and negative rails, followed by a 10 µF electrolytic capacitor for low-frequency stability. This setup suppresses high-frequency noise from switching regulators or fluctuating loads, which can distort readings by up to 5% if unaddressed.
In portable designs, consider a low-power microcontroller (e.g., MSP430 or STM32L) with an embedded ADC to reduce component count. Configure the ADC’s sampling rate at 10x the highest expected signal frequency–typically below 1 kHz–to avoid aliasing while conserving energy. Use interrupt-driven sampling to free the CPU for additional tasks like display updates or wireless transmission.
Calibration requires a two-point adjustment: first, zero the device by shorting the inputs (adjusting offset trimpots or software compensation), then apply a known reference voltage (e.g., 1.000V or 5.000V) to set the gain. Repeat this process across temperature variations if the device operates in harsh conditions, as resistor drift can introduce errors exceeding ±0.5% per 10°C change.
For specialized applications, add input protection using a pair of back-to-back TVS diodes (e.g., P6KE6.8CA) with a breakdown voltage 10% above the maximum expected input. This safeguards against transient spikes without affecting normal operation. Avoid excessive protection, as it can degrade the instrument’s input impedance, leading to loading effects on high-impedance sources.
Key Components of a Basic Analog Measuring Instrument for Voltage
Select a high-sensitivity moving-coil movement as the core sensing element. A 50 µA full-scale deflection meter provides optimal balance between resolution and power consumption. Ensure the coil resistance remains below 2 kΩ to minimize loading effects on measured systems.
Incorporate a series multiplier resistor to extend the measurement range. Calculate the required value using the formula R = (V_max / I_fs) - R_m, where V_max is the maximum voltage, I_fs is full-scale current, and R_m is meter resistance. For a 10 V range with a 50 µA movement, this yields approximately 198 kΩ.
Add a zero-adjust mechanism consisting of a 10 kΩ potentiometer in parallel with the movement. This compensates for manufacturing tolerances in the coil and permits calibration against reference standards. Position the adjustment screw on the instrument’s front panel for easy access without case disassembly.
| Component | Typical Value | Tolerance (%) | Note |
|---|---|---|---|
| Moving coil | 50 µA | ±2 | Full-scale deflection |
| Multiplier resistor | 198 kΩ | ±1 | 10 V range |
| Potentiometer | 10 kΩ | ±5 | Zero adjust |
Choose metal-film resistors with 1% tolerance for the multiplier network. These exhibit 50 ppm/°C temperature coefficients, reducing drift to less than 0.2% over a 20–50 °C operating range. Avoid carbon composition types due to their 1000 ppm/°C instability.
Install damping magnets near the coil assembly to prevent pointer oscillation. Opt for Alnico V magnets with a flux density between 800–1200 Gauss. Position them at 90° relative to the permanent magnet’s field axis to achieve critical damping without introducing hysteresis errors.
Connect test leads through binding posts rated for 10 A continuous current. Use 22 AWG silicone-insulated wire for flexibility and 200 °C temperature resistance. Terminate ends with banana plugs for secure, corrosion-resistant connections to measurement points.
Calibration Procedure
Verify accuracy by applying a precision 1 V source from a 6½-digit DMM. Adjust the 10 kΩ potentiometer until the meter reads exactly 1.00 V. Repeat at 20% and 80% of full scale for linearity validation. Record calibration data in a log with ambient temperature noted; recalibrate if drift exceeds ±0.3% of reading.
How a D’Arsonval Movement Operates in Precision Measurement Tools
Select a meter with a moving coil assembly rated for at least 50 μA full-scale deflection to ensure sensitivity without sacrificing durability. The coil, typically wound with 20-50 turns of fine copper wire (≈40 AWG), is suspended between jewelled pivot points or taut bands to minimise friction, allowing rotation with torque as low as 0.1 μNm. Verify the magnetic flux density of the permanent magnet–rare-earth alloys like Alnico V or samarium-cobalt provide 0.8-1.2 T, critical for linear response and minimal hysteresis across the 90° arc of motion.
Ensure the restoring mechanism uses a spiral spring or torsion ribbon with a consistent torque gradient, ideally ≤0.05% per degree, to prevent non-linear readings. The spring’s material–usually beryllium copper or phosphor bronze–must resist fatigue after 106 cycles; deviations beyond 0.2% signal degradation warrant replacement. Adjust the air gap between coil and pole pieces to 0.5–1.0 mm: narrower gaps increase sensitivity but risk contact, while wider gaps reduce torque and require stronger magnets.
Calibrate the meter by applying a known DC signal (e.g., 100 mV) and adjusting the pointer’s position via the hairspring’s preload screw. The deflection angle follows α = (N·B·A·I)/k, where N (turns) × B (flux density) × A (coil area) defines sensitivity, and k is the spring constant. For AC measurements, add a rectifier bridge; half-wave circuits halve sensitivity, while full-wave designs retain ≥95% of DC performance at frequencies up to 1 kHz.
Shield the assembly with a mu-metal enclosure to block stray fields ≥10 μT, which can induce 1–3% errors. Clean pivot points every 500 operating hours using isopropyl alcohol; contaminants increase stiction, causing pointer “sticking” at

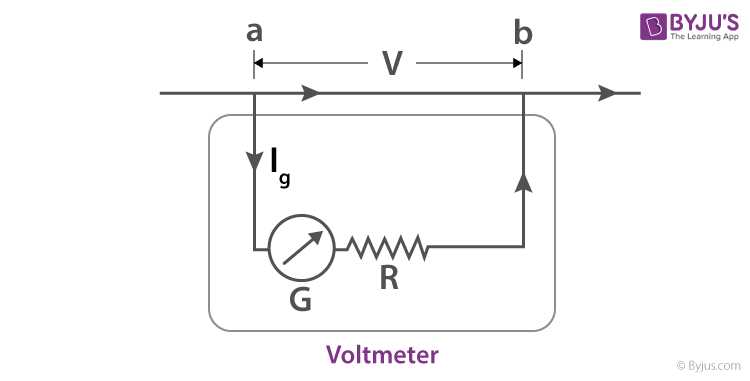

Step-by-Step Wiring of a Series Multiplier Resistor
Select a resistor with a tolerance of 1% or better–precision matters for accurate readings. Use a metal-film resistor rated for at least 0.25W to handle current without overheating. Calculate the required resistance using the formula:
R = (V_max / I_fsd) - R_m
, where V_max is the maximum voltage range, I_fsd is the full-scale deflection current, and R_m is the meter’s coil resistance.
Disconnect power before wiring. Identify the meter’s positive and negative terminals–typically marked with “+” and “-” or red/black leads. Attach the multiplier resistor in series with the positive lead of the measuring instrument. Ensure the connection is secure; solder joints with rosin-core flux for stability.
For multimeters, verify the resistor’s value with a calibration tool. A 10% deviation from calculated resistance can distort readings by ±2%. If the device lacks a built-in fuse, add a 100mA fast-blow fuse in series to protect against overloads. This prevents coil burnout if the test leads contact higher-than-intended voltages.
Common multiplier resistor values for standard 50µA meters:
- 1V range: 20kΩ
- 10V range: 200kΩ
- 50V range: 1MΩ
- 250V range: 5MΩ
For high-voltage applications (above 100V), use a resistor rated for at least double the expected peak voltage. Example: A 5MΩ resistor for a 250V scale should withstand 500V transients. Wire-wound resistors dissipate heat better than film types but may introduce inductance, affecting AC measurements. Test with a known voltage source (e.g., a 9V battery) before relying on the setup.
Troubleshooting Mismatched Readings
If readings drift, check for loose connections or oxidization on terminals. Clean contacts with isopropyl alcohol and a lint-free cloth. Confirm the resistor’s value hasn’t drifted using a DMM in ohmmeter mode. For persistent inaccuracies, recalculate using the meter’s actual coil resistance–some analog devices have coil resistances as high as 2kΩ.
Avoid bypassing the multiplier resistor, even for low-voltage tests. Directly exposing the coil to potentials above its V_fsd will degrade the movement. For adjustable ranges, use a rotary switch to swap resistors instead of manual rewiring–this minimizes error from repeated handling.
Post-assembly, encapsulate the resistor and connections in heat-shrink tubing or conformal coating. This prevents moisture ingress, which can alter resistance by forming conductive paths. Store the device with test leads disconnected to avoid parasitic discharge through the multiplier resistor.
