Understanding Schematic Diagrams Key Concepts and Practical Uses

Use abstract visual layouts to break down electrical, mechanical, or process-based systems before investing time in physical prototypes. A single glance at a properly designed chart reveals component relationships, signal flow, and critical paths–details that paragraphs of text often obscure. Focus on hierarchy: place primary elements at the top or center, branching secondary components outward to maintain clarity. Limit interconnecting lines to horizontal or vertical paths; diagonal connections introduce unnecessary ambiguity.

Select symbols that align with industry standards–ANSI/IEEE for electronics, ISO for mechanical schematics–to avoid misinterpretation. Labels must be concise yet descriptive; “R1” carries more weight than “resistor” when paired with a value like “10kΩ.” Color should serve a functional purpose: red for power, blue for ground, green for control signals. Avoid decorative palettes that distract from the core purpose of the representation.

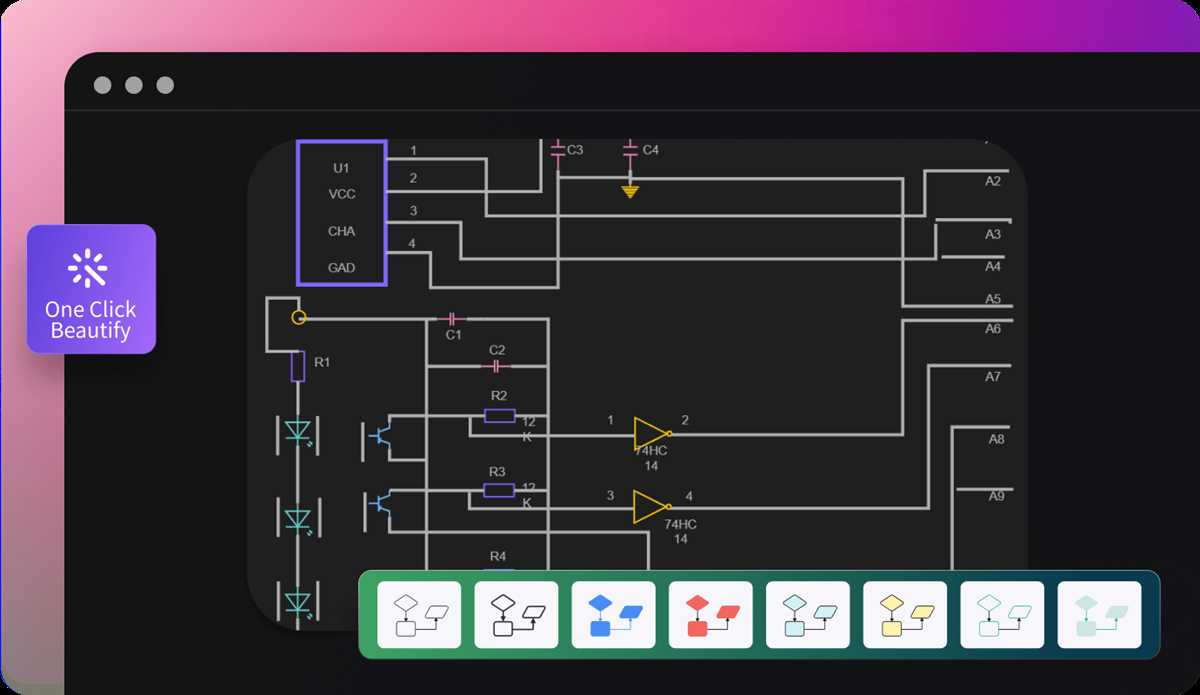

Digitize these layouts using vector-based tools like KiCad, Altium, or even drafting software with layer support. Vector formats preserve precision when scaling, preventing pixelation in printed manuals or high-resolution panels. Export in SVG or PDF for cross-platform compatibility; avoid raster formats like JPEG or PNG unless resolution is fixed. Embed metadata directly into the file–part numbers, references, and revision dates–to streamline updates.

Validate the layout by simulating its function or tracing the logic flow on paper. If the visual fails to guide someone unfamiliar with the project toward the correct assembly steps within three minutes, refine it. Remove redundant elements; every extra node or crossing line increases cognitive load and error potential during implementation.

Store these representations alongside documentation, not as isolated files. Link them to bills of materials, assembly instructions, or testing procedures to create a self-explanatory system. Include a legend if symbols deviate from universal conventions–custom icons for proprietary components, for example. Version control is non-negotiable; label revisions clearly (“Rev 2.1 – Added overcurrent protection”) and archive obsolete iterations to prevent confusion.

Understanding Circuit Representations

Begin by identifying components with standardized symbols–resistors use a zigzag line, capacitors show parallel plates, and transistors appear as intersecting circles with three leads. Use IEC or ANSI symbols consistently; mixing them leads to misinterpretation. Label every part with clear alphanumeric codes (R1, C2, Q3) and values (ohms, farads, volts) directly on the drawing. Avoid clutter by grouping related elements–power rails at the top, ground at the bottom, and signal paths flowing left to right. For integrated circuits, list pin numbers alongside functions (e.g., “5: VCC, 12: GND”) to eliminate guesswork during assembly.

Keep signal paths uncrossed where possible; reroute traces logically to prevent confusion. Use thicker lines for power rails to distinguish them from data lines. Add concise notes for non-obvious details–polarity indicators for diodes, orientation marks for ICs, or non-default values (e.g., “R4: 10k 1%”). Before finalizing, verify against the datasheet for each component; errors here cascade into prototype failures. Save the file in a vector format (SVG, PDF) to maintain scalability and avoid pixelation during print or zoom.

Decoding Symbols in Electrical Blueprints

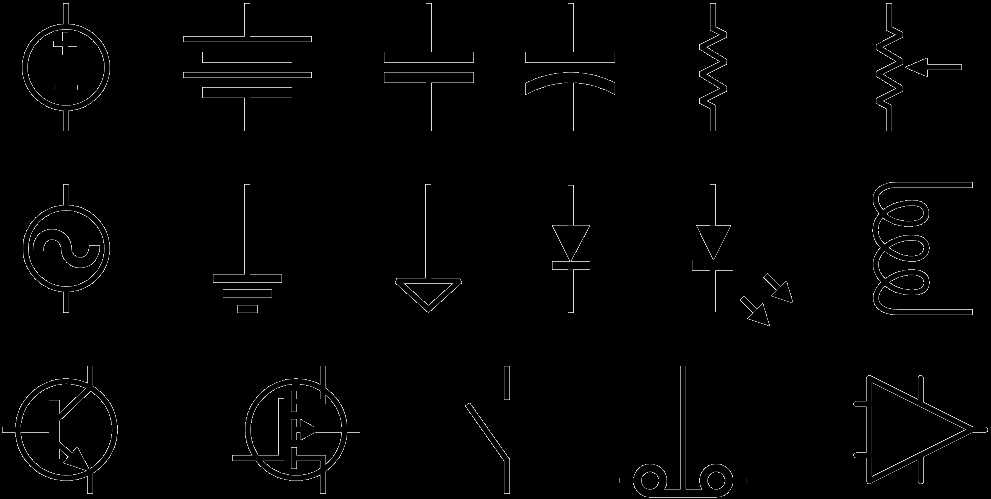

Memorize core glyphs first: resistors are jagged lines, capacitors show parallel plates, inductors curl into loops, and power sources split into short thick (positive) and long thin (negative) bars. IEC standards label them R, C, L, and V/I symbols respectively, but ANSI common variants swap capacitor plates to curved lines or omit inductor curls entirely–always cross-check the legend.

Trace signal flow before analyzing components. Ground symbols (downward triangles or three stacked lines) function as zero-voltage reference points; any line intersecting here carries no potential. Solid lines denote direct connections, dashed imply control signals, and dotted often mark shields or reference planes. Branches form nodes–count junctions where three+ lines meet to verify current splits against Kirchhoff’s laws.

Glyph	IEC Label	ANSI Variant	Behavior
Zigzag	R	Same	Resists current; dissipates energy as heat
Parallel plates	C	Curved plates	Blocks DC, passes AC; stores charge
Spiral	L	Straight line	Opposes changes in current; stores magnetic energy
Short/long bars	V/I	Same	Provides fixed voltage or current; polarity critical

Key Components Commonly Found in Circuit Blueprints

Begin by identifying resistors marked with an R prefix and a numeric value–e.g., R1 (1kΩ) or R2 (10kΩ). These regulate current flow and divide voltages; mislabeling them disrupts calculated outputs. Always cross-reference values with datasheets to avoid errors in power dissipation ratings, especially for precision circuits handling low signals or high frequencies.

Active Elements: Transistors and ICs

Bipolar junction transistors (Q) and field-effect variants (T) require clear pin assignments. Label emitter/base/collector or source/gate/drain explicitly, as swapping pins burns components. Integrated modules (U), like op-amps (U1: LM741) or microcontrollers (U2: ATmega328), demand decoupling capacitors (C1: 0.1µF) placed within 2mm of power pins to suppress noise. Omitting these leads to erratic behavior or latch-up.

• Switches and connectors: Use standardized symbols (SW1 for tactile, J1 for headers). Incorrect polarity markings on connectors (+5V/GND/DATA) cause shorts. Verify pinouts with a multimeter before soldering.
• Inductors (L) and transformers: Specify core material (ferrite, air) and winding direction for coupled coils. Air-core types (L1: 10µH) tolerate higher frequencies but radiate interference; shield them if near sensitive traces.
• Diodes: Differentiate rectifiers (D1: 1N4007), Zener regulators (D2: 5.1V), and LEDs (LED1). Reverse bias errors blow parts instantly–add current-limiting resistors for LEDs.

Power rails must show clear labeling (VCC, GND, Vbat) with consistent net names across sheets. Mixed grounds (analog/digital) deserve separate symbols to prevent crosstalk. Use thick traces (35µm+) for high-current paths; narrow traces (

1. Annotate test points (TP1) at critical nodes–oscilloscope probes need >0.8mm pads for reliable contact.
2. Avoid ambiguous symbols: Distinct icons differentiate momentary switches (NO/NC) from latching types.
3. Thermal considerations: Add heatsink annotations for linear regulators (TO-220) or MOSFETs (TO-247); neglecting this risks thermal runaway.
4. Document trace widths/clearances per IPC-2221 (e.g., 10mil clearance for 100V, 8oz copper for 10A).

Step-by-Step Guide to Creating a Basic Circuit Blueprint

Start by listing all components with their standard symbols: resistors (zigzag line), capacitors (parallel lines), batteries (uneven parallel lines), and switches (gap with a diagonal line). Label each part with its value–use “R1 10kΩ” for a resistor or “C1 100µF” for a capacitor–to avoid confusion later. Keep symbols consistent; ANSI standards simplify recognition.

Use graph paper or a dedicated tool like KiCad for precision. Draw power rails first–vertical lines at the edges for positive and ground–and place components between them. Align symbols horizontally or vertically to reduce crossings; diagonals create visual clutter. Leave 0.5–1 cm gaps between adjacent parts for clarity.

Connect components with straight lines, avoiding right angles unless necessary. Use dots at junctions to indicate connections; unmarked crossings imply no contact. For multi-pin ICs, label each pin numerically and place the part above the connections to resemble physical pin numbering (counterclockwise from the top-left).

Add net labels (e.g., “VCC,” “GND,” “SIG_OUT”) to nodes with multiple connections. Use uppercase for signals and lowercase for local nets to differentiate scope. Verify all paths with a continuity check: trace each line from source to endpoint without lifting the virtual “pen.”

Annotate critical details: include component footprints (e.g., “0805” for SMD resistors), power ratings, and tolerance values if relevant. For AC circuits, mark phase lines or transformer windings with arrows. Color-code wires if hand-drawing: red for power, black for ground, blue for signals.

Finalize with a title block in the bottom-right corner: project name, revision, date, and designer initials. Export as PDF or print at 100% scale for fabrication. Store the file with a clear naming convention: “Amplifier_v2_20240515.pdf” avoids versioning errors.

When to Use Block Layouts vs. Precision Drawings

Opt for high-level block layouts during early concept stages when comparing multiple system architectures. These simplify complex assemblies into functional units, allowing rapid evaluation of trade-offs–such as power distribution, signal flow, or modular integration–without getting bogged down in component specs. Use them to present design alternatives to stakeholders or align cross-functional teams (mechanical, software, firmware) on system partitioning before committing to detailed work. Example: A power supply designer might compare buck vs. flyback topologies using blocks, while a PCB team sketches microcontroller core subsystems to validate I/O requirements.

• Initial system trade-offs (e.g., efficiency vs. cost)
• Cross-discipline alignment (hardware, software, thermal)
• Presentation to non-technical stakeholders
• Preliminary failure-mode analysis
• Space claims or thermal zone mapping

Switch to precision drawings when:

Lock in exact component values, trace routing, or mechanical clearances. Detailed illustrations are mandatory for EDA tools (KiCad, Altium), regulatory submissions (CE, FCC, UL), and manufacturing handoffs. They capture parasite capacitance, thermal vias, or impedance-controlled traces–elements invisible in block layouts. Example: A board designer must specify every decoupling capacitor’s package, via stack, and exact placement relative to a BGA’s power pins to meet EMI/RFI standards. Documentation at this stage also serves as the single source of truth for assembly, test fixture creation, and field service manuals.

1. Component-level procurement (BOM accuracy)
2. SPICE simulations needing net parasitics
3. DFM/DFT checks (stencil apertures, fiducial marks)
4. Regulatory testing compliance (IEC 61000)
5. Repair & maintenance procedures

Reserve mixed-mode layouts for hybrid scenarios like test fixtures or assembly jigs. Here, blocks denote off-the-shelf modules (e.g., Raspberry Compute Module) while precision lines detail custom interposer boards or harness connectors. This dual approach reduces CAD hours yet maintains critical tolerances for high-volume production.
