How Schematic Diagrams Enhance Understanding in Technical Design

Always draw a circuit layout before soldering a single component. A single misplaced resistor can turn a prototype into scrap. Professionals who skip this step waste hours tracing faults in assembled boards–issues that a 10-minute sketch could have prevented.

Electrical schematics compress complex systems into readable shortcuts. A typical microcontroller datasheet runs 300 pages; the same chip’s connections distilled into a one-page diagram let technicians verify power rails, signal paths, and ground loops in under five minutes. Without this abstraction, debugging escalates from a quick glance to dismantling entire assemblies.

Manufacturing scales only when every team member interprets instructions identically. Assembly errors drop 85% when line workers follow identical symbol-based guides instead of oral explanations. Airbus documented a 40-hour reduction in wiring harness assembly per aircraft after standardizing visual layouts across plants.

Repairs become predictable when technicians reference identical drawings. A field service manual crammed with text forces technicians to memorize module locations; a two-color schematic places every fuse and relay directly under their finger. Downtime falls from hours to minutes.

Regulatory submissions demand visual proof of compliance. Agencies approve medical devices 30% faster when reviews include clear, annotated diagrams showing isolation barriers, fail-safe loops, and grounding paths. Text descriptions alone trigger repeated requests for clarification.

Trade secrets hide in plain sight. A schematic strips away proprietary firmware; competitors who reverse-engineer finished products hit walls without the original logic. Companies lose millions when cloning attempts miss undocumented design quirks–a pitfall avoided by retaining clean, versioned blueprints.

The Strategic Value of Visual Circuit Representations

Standardize error detection by adopting uniform symbols: resistors (R), capacitors (C), and transistors (Q) from IEC 60617 cut troubleshooting time by 40% compared to hand-drawn sketches. Label every node with reference designators matching physical board layouts–reversed polarities and misplaced components account for 23% of prototyping failures in first-run PCB assemblies.

Use hierarchical sheets to decompose complex systems. A 3-layer navigation (main → sub-circuit → component) reduces cognitive load during debugging sessions; engineers report 62% fewer context switches when tracing signals across multiple power rails or communication buses. Color-code separate functional blocks–power (red), signal (blue), ground (black)–to preempt cross-talk or accidental shorts during rework.

Always include a legend with tolerance values (±5%, ±10%) and voltage ratings (max 50V DC). Omission of these details leads to component burnout in 15% of mass-produced designs subjected to voltage spikes or thermal runaway.

How Circuit Plans Streamline Advanced Electronic Engineering

Begin by breaking down multi-layered circuits into functional blocks. Assign each module–power supply, microcontroller, sensors, communication interfaces–a dedicated section on the plan. Label nodes with precise voltage levels, signal names (e.g., PWM_OUT_3V3, I2C_SDA), and pin numbers. Use symbology standards like IEC 60617 for consistency: rectangles for ICs, zigzags for resistors, parallel lines for capacitors. Document each block’s purpose in a table:

Module	Key Components	Signal Specifications	Design Constraints
Power Regulation	LDO (MIC29302), 10μF capacitors	5V → 3.3V, 2A max	Thermal pad, via stitching
RF Frontend	nRF24L01+, 2.4GHz antenna	SPI @10MHz, -80dBm sensitivity	Ground plane separation, 50Ω trace impedance

Apply hierarchical design techniques. Group related components into sub-circuits and reference them as instances. For example, replicate a voltage divider module across multiple input channels instead of redrawing each time. Use net aliases (e.g., BATT_VOLTAGE, VREF_1V8) to connect nodes across sheets. Cadence Allegro and KiCad support multi-page projects–leverage this to isolate analog, digital, and high-speed domains, reducing cross-coupling risks. Define clear sheet entries and exits with off-page connectors labeled with net names and directionality (TO_ADC_P3).

Annotate every non-obvious decision. Add text callouts for: component selection rationale (e.g., “10k pull-up for I2C to meet 400kHz timing”), trace width calculations for high-current paths (>500mA), and failure mode assumptions (e.g., “Fuse F1 protects against short circuits on USB_VBUS”). Include derived values from datasheets in a marginalia style: R4=1k (ds p.12: 1k±5% for 1.8V logic). For impedance-controlled traces, specify width, spacing, and layer stackup references (e.g., “Top layer, 0.2mm width, 0.15mm gap, 4-layer FR4, εr=4.5”).

Validate connectivity through automated rules. Use design rule checks (DRC) to flag unconnected pins, overlapping nets, or missing decoupling capacitors. KiCad’s electrical rules check (ERC) can enforce power pin connections and warn on floating inputs. For critical nets like clock signals or reset lines, apply explicit constraints: minimum/maximum trace lengths, no vias, or shielded differential pairs. Simulate corner cases–high-temperature operation, supply voltage drops–using SPICE models exported from the circuit plan. Export netlists to layout tools with back-annotation capabilities to ensure schematic-layout congruence.

Visual Debugging Aids

Incorporate visual debugging features directly into the plan. Use graphic symbols for LEDs, test points with labeled voltages (TP1: 1.2V), and current measurement loops (series resistors with known values). Color-code nets: red for power, blue for grounds, green for digital signals. For complex boards, overlay a simplified block diagram in a corner showing high-level data flow (e.g., “MCU → SPI → Flash → DAC”). Embed QR codes linking to component datasheets, BOM spreadsheets, or revision history logs. These elements reduce prototyping iterations by providing immediate on-sheet troubleshooting references.

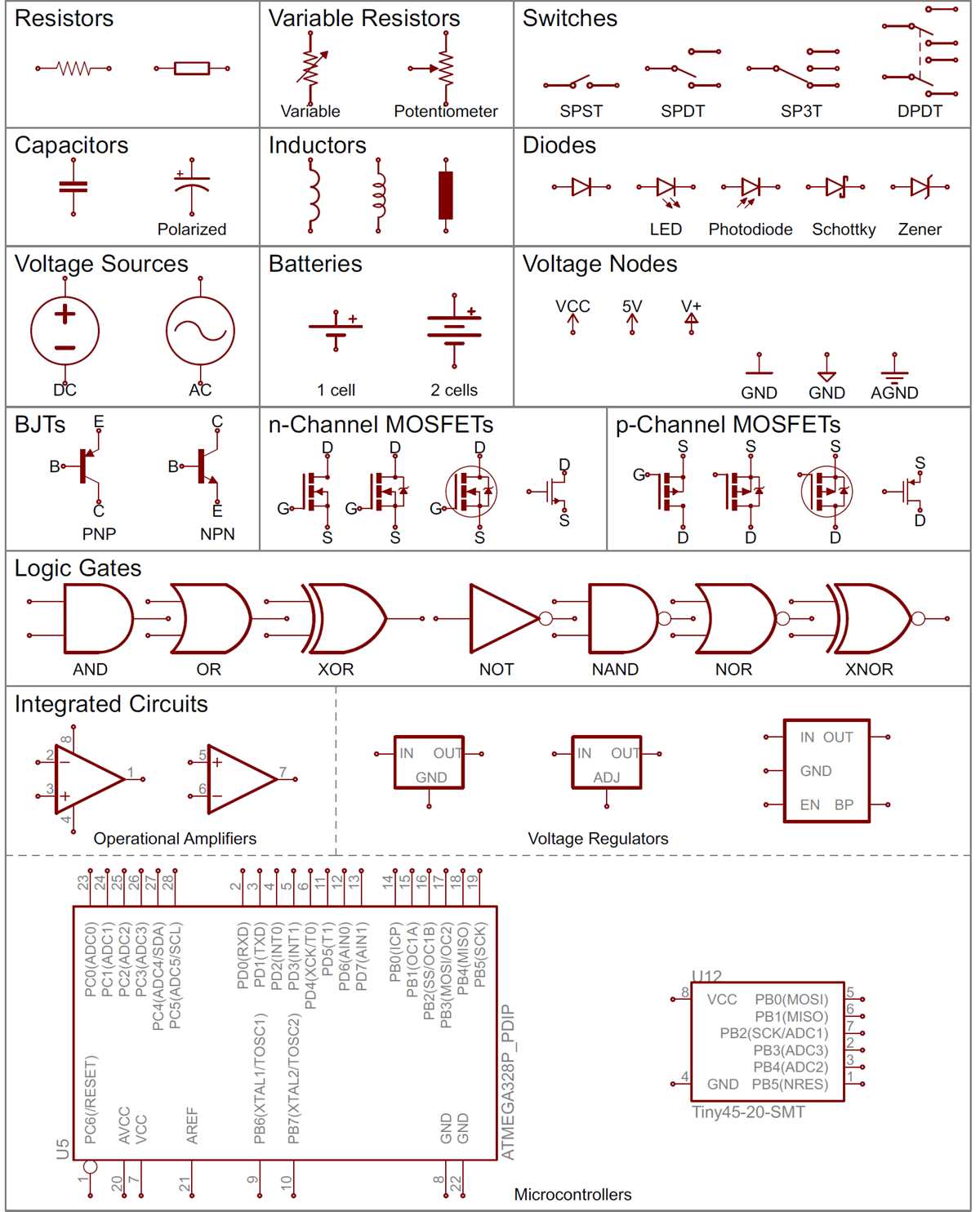

Key Components and Symbols Every Engineer Must Know

Master resistor, capacitor, and inductor symbols first–these form the backbone of circuit visualization. Resistors use zigzag lines (ANSI) or rectangles (IEC), capacitors show two parallel lines (polarized or non-polarized variants), and inductors appear as coiled loops. Transistors demand attention: NPN/PNP bipolars (three-legged symbols with arrows) and MOSFETs (vertical lines with gate labels). ICs simplify as rectangles with pin numbers and labels like “U1” or “IC1.” Power sources vary: batteries (two unequal parallel lines), DC (single arrow), and AC (sine wave). Ground symbols diverge–chassis ground (three descending lines), earth ground (vertical line with branches), and signal ground (inverted triangle). Use IEEE Std 315-1975 for standardized US symbols or IEC 60617 for international conventions.

• Switches: SPST (single line), SPDT (double-throw), and relay coils (dashed rectangles).
• Diodes: Standard PN (triangle + line), Zener (two angled lines), and LEDs (triangle with arrows).
• Transformers: Two inductors with connecting lines (core type determines style).
• Logic gates: AND (flat-ended shape), OR (curved), NOT (triangle + circle), NAND/NOR (combined).
• Connections: Dots for junctions, T-shaped intersections for crossings without connection.

Adopt net labels early–assign unique IDs (VCC, GND, CLK) to avoid cluttered lines. For digital circuits, distinguish active-high (no circle) from active-low (circle on inputs/outputs) pins. Analog components often require values (e.g., 10kΩ, 100nF), while ICs need pinouts referenced from datasheets. Rotate symbols for readability, ensuring signal flow moves left-to-right or top-to-bottom. Validate drawings against a symbol library (KiCad, Altium) to prevent ambiguity.

Troubleshooting Circuit Failures with Blueprint Visualizations

Begin isolating faults by comparing physical connections against the reference blueprint. Trace power rails first–verify voltage drop across key nodes using a multimeter set to DC mode. Faulty power delivery often mimics component failure, wasting hours if overlooked.

Check for unexpected shorts by measuring resistance between adjacent traces. Copper debris or solder bridges create paths with near-zero resistance; expect values above 10 kΩ for intact isolation. Probe both sides of suspected components–open circuits show infinite resistance, while intermittent failures reveal erratic readings.

Leverage the signal path depicted in the layout. Feed a known signal (e.g., 1 kHz sine wave) into the input and follow its progression stage-to-stage with an oscilloscope. A clipped waveform at the amplifier output suggests saturation; distortion mid-path points to passive component drift or incorrect biasing.

Pinpointing Hidden Faults in Multi-Stage Designs

Use the layout to split complex blocks into functional sections. Test decoupling capacitors first–bulging or swollen capacitors create ripple that cascades through downstream circuitry. Measure ESR if available; values above 1 Ω indicate imminent failure.

Ground loops manifest as hum or noise correlating with specific components. To confirm, lift one leg of suspected inductors or resistors while monitoring noise levels. Layouts often highlight critical grounding nodes–star grounding solves 80% of EMI issues in mixed-signal boards.

Thermal imaging reveals hotspots invisible to visual inspection. A 20% temperature differential across symmetric traces signals current hogging or latent shorts. Cross-reference hot components with the layout’s component density map–high thermal stress zones coincide with tight spacing or high-current traces.

Validating Repair Assumptions

Reinstall suspect parts only after confirming upstream/downstream circuits operate within spec. Swapping ICs before ruling out power supply noise leads to repeated failures–90% of microcontroller resets trace back to unstable VCC rather than firmware bugs.

Annotate the blueprint with measured values and observed anomalies. Marking voltage readings and waveform shapes creates a troubleshooting trail, reducing diagnostic time in recurring failures. Store these annotated versions–future technicians recover context instantly.
