Building a DIY Wireless Charging Circuit Step-by-Step Guide

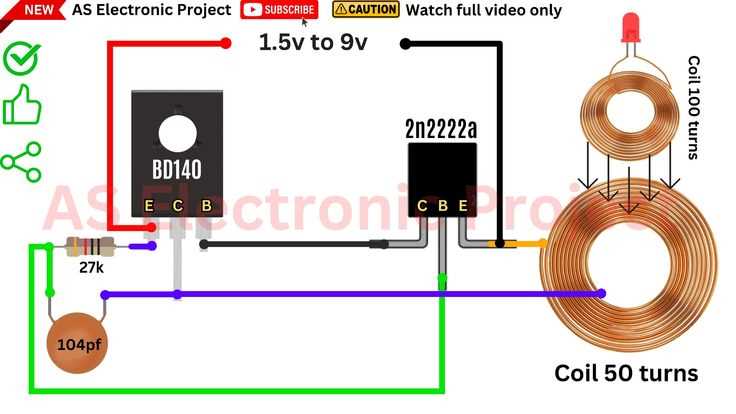

Start with a resonant inductive coupling design using a half-bridge inverter topology. Select a MOSFET pair (e.g., IRF640N) for switching at 100-200 kHz to minimize losses. The transmitter coil should use Litz wire (10-15 turns, 50 mm diameter) with a ferrite plate backing to focus magnetic flux. On the receiver side, match the coil geometry but reduce turns to 8-10 for 5V output. Add a series capacitor (resonance at 150 kHz) to both coils for efficiency.
Regulate voltage with a schottky diode (1N5817) and a low-dropout linear regulator (AP2112K) for stable output. For overcurrent protection, integrate a shunt resistor (0.1Ω) with an op-amp comparator (LM358) to cut power at 1.5A. Ensure the PCB traces handling high-frequency currents are at least 2mm wide to prevent overheating. Ground planes should be solid beneath the inverter stage to suppress noise.
Test coil alignment with a Hall-effect sensor (DRV5053) to detect mispositioning before full power delivery. Use polyimide flex PCBs for receiver coils in compact devices–these handle thermal stress better than rigid boards. For 10W+ designs, switch to a full-bridge inverter (e.g., FAN7388) and add synchronous rectification on the receiver to cut losses by 12-15%.
Optimize air gap tolerance by fine-tuning the resonance frequency with trimmer capacitors (10-100pF). For safety, include a thermal fuse (rated 85°C) near the receiver coil–inefficient power transfer generates excessive heat. Log circuit behavior during load changes (0.1A to 2A) using an oscilloscope on the gate drive lines; ringing here indicates improper damping.
Designing an Inductive Power Transfer System

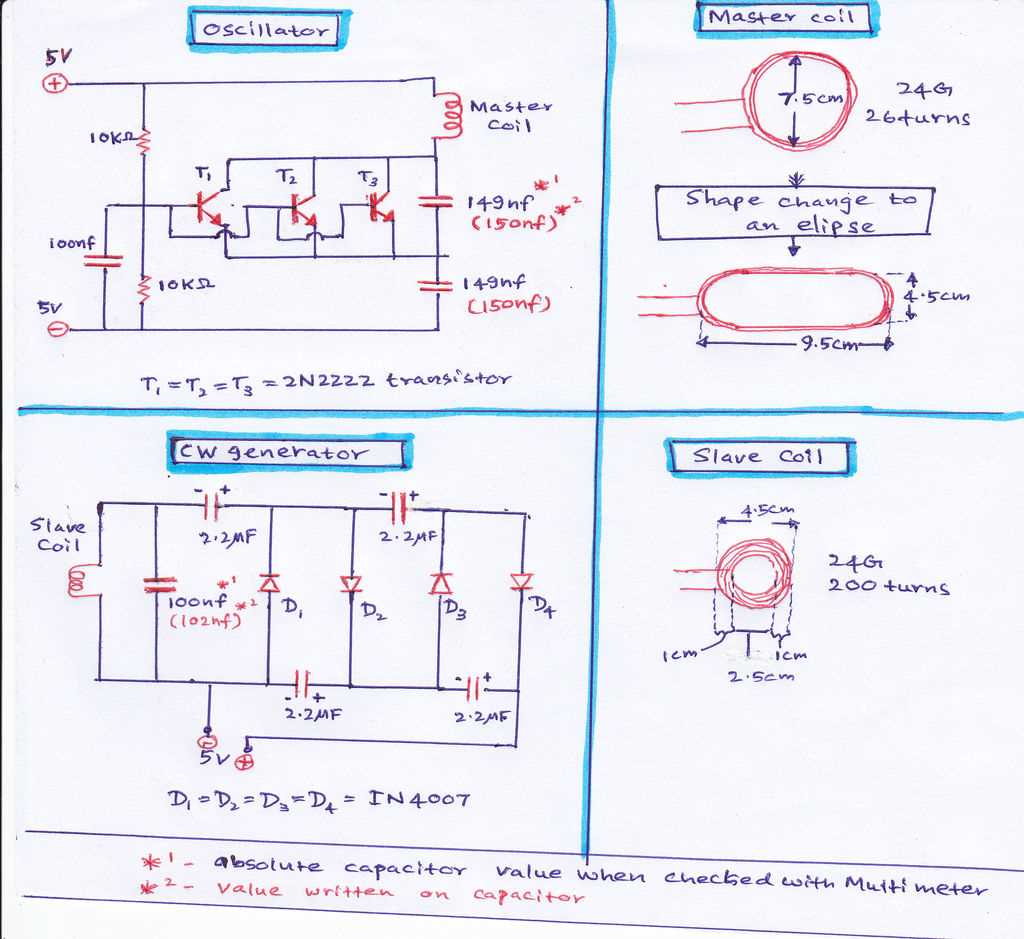

Begin with a resonant half-bridge topology using two MOSFETs (e.g., IRF3205) driven by a 555 timer IC in astable mode at 100–200 kHz. This frequency range optimizes coupling efficiency while minimizing eddy current losses in receiver coils. Select capacitors (47 nF polypropylene) in series with the primary coil to form a resonant tank, reducing switching noise and improving energy transfer.
Wind the transmitter coil using 0.5 mm Litz wire, 20 turns, 60 mm diameter–this balances inductance (≈30 µH) and stray capacitance. Ensure spacing between turns equals wire diameter to prevent parasitic coupling. Use ferrite sheets (3C90 material, 1 mm thickness) beneath the coil to redirect magnetic flux and shield conductive surfaces like metal casings.
For the receiver, match the coil specifications but reduce turns to 15 for lower inductance (≈15 µH). Add a full-wave rectifier (1N5822 Schottky diodes) with a bypass capacitor (100 µF, 16V) to smooth DC output. Include a linear regulator (LD1117V33) if precise 3.3V output is required, though this drops efficiency by 5–8%.
Key Component Selection Criteria
Prioritize MOSFETs with sub-50 mΩ RDS(on) and >200V breakdown voltage (e.g., STP22NM60N). Gate drivers (TC4427A) must deliver 1A peak current to prevent shoot-through. Replace electrolytic capacitors with ceramic variants (X7R dielectric) in high-current paths to avoid ESR-related heating. Verify coil Q-factor (>50) with an LCR meter at operating frequency for minimal energy dissipation.
Thermal management dictates placement–mount power components on 2 oz copper PCBs with 10 mm2 pad areas. Use thermal vias (0.3 mm diameter) under MOSFETs to sink heat to an aluminum backing plate. Test coupling coefficient (k > 0.4) at 5 mm gap between coils; adjust ferrite alignment if k drops below this threshold.
Implement overcurrent protection via a current-sense resistor (0.01 Ω, 1% tolerance) in the MOSFET source leg. Feed the signal to an op-amp comparator (LM358) triggering a latch (74HC74) to disable the gate driver during faults. Add a 10 ms delay on startup to avoid false trips from inrush currents.
For foreign object detection, include an auxiliary coil (3 turns) beneath the transmitter to measure reflected impedance. Compare phase angle shifts against a baseline using a microcontroller (STM32F030). Exceeding 15° phase deviation or 20% impedance drop indicates metallic objects–shut down power within 50 ms to meet IEC 62368-1 safety requirements.

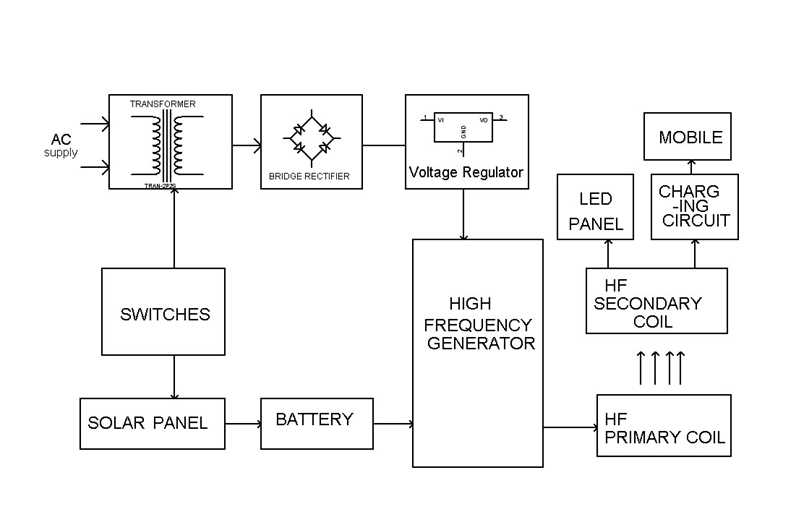

Core Elements for Inductive Power Transfer Systems
Begin with a transmitting coil rated for at least 20 μH inductance and capable of handling 1A RMS current continuously. Ferrite cores improve efficiency by focusing magnetic flux; choose N87 or PC40 material for frequencies between 100–200 kHz. Copper wire gauge should be AWG 28–32, with Litz wire preferred to minimize skin effect losses at higher frequencies.
The receiver coil must match the transmitter’s inductance within 10% for optimal coupling. Use identical core material and wire specifications. Air gaps above 5 mm degrade performance exponentially; empirical testing shows efficiency drops by 12% per additional millimeter. Shielding with a thin aluminum layer (0.1–0.2 mm) reduces EMI by up to 30%.
Power management begins with a full-bridge or half-bridge inverter. MOSFETs like Infineon BSC057N08NS3 (80V, 5.7mΩ) handle 5W–15W loads reliably. Gate drivers such as TI’s UCC27211 isolate and switch at 300 kHz with 1.5A peak current. Decoupling capacitors (10 μF X7R ceramics) stabilize voltage rails near switching nodes.
Rectification on the secondary side demands Schottky diodes or synchronous switches. The STMicroelectronics STPS2L60U (2A, 60V) recovers energy with 0.45V forward drop. For higher efficiency, N-channel MOSFETs (e.g., Vishay SiSS45DN) replace diodes in synchronous designs but require precise timing control via a microcontroller or dedicated IC like the Texas Instruments bq51013B.
Voltage regulation necessitates low-dropout regulators or buck converters. The Analog Devices LT3045 delivers 500 mA with 0.8 μV RMS noise, critical for sensitive loads. Input capacitance should be 20 μF or greater, split between bulk (electrolytic or tantalum) and high-frequency bypass (ceramic) capacitors. Output capacitance follows the rule of 1 μF per 100 mA of load current.
Communication between receiver and transmitter prevents overheating and optimizes power delivery. Frequency-shift keying (FSK) modulates the load at 1–2 kHz, detectable by the transmitter’s current sense amplifier. Dedicated ICs such as NXP’s NCN51510 handle encoding/decoding without additional microcontroller overhead. Without feedback, efficiency degrades below 60% under misalignment.
Thermal management dictates PCB layout and component selection. Copper pours under coils act as heatsinks; 2 oz copper thickness improves heat dissipation by 25%. Thermal vias (0.3 mm diameter, spaced 1.5 mm apart) conduct heat to inner layers. Temperature sensors like the Microchip MCP9700 (output 10 mV/°C) trigger shutdown at 85°C.
| Component | Part Example | Key Specification | Typical Range |
|---|---|---|---|
| Transmit Coil | Würth 760308101 | Inductance | 18–22 μH |
| MOSFET | Infineon BSC057N08NS3 | On-Resistance | 5.7 mΩ |
| Schottky Diode | STPS2L60U | Forward Voltage | 0.45 V |
| LDO | LT3045 | Output Noise | 0.8 μV RMS |
| Thermal Sensor | MCP9700 | Output Voltage | 10 mV/°C |
Assembling a 5W Energy Transfer Pad: Full Procedure
Begin by securing a 5V/1A power supply with a micro-USB or USB-C connector–most phone adapters meet these specs. Verify the output voltage with a multimeter; deviations above 5.2V risk overheating the coil. For reliable operation, use a regulated switch-mode supply instead of linear adapters.
Mount the transmitter coil (20–30 mm diameter) on a 0.8–1.2 mm thick PCB or acrylic base using double-sided adhesive. Align it precisely with the receiver pad’s expected position. Secure leads with 28–30 AWG silicone wire, stripping 5 mm for solder connections. Keep wire lengths under 10 cm to minimize resistance loss.
Solder the TX module–a Qi-compliant IC like the BQ51013 or a discrete LC tank–directly to the coil leads. Connect a 10 µF/16V ceramic capacitor in parallel to stabilize the resonant frequency (100–200 kHz). Add a 1N4007 diode across the supply input to prevent reverse polarity damage. Test continuity before powering.
Enclose the assembly in a non-metallic housing–plastic or wood–thicker than 2 mm to avoid shielding interference. Position a 5 mm acrylic spacer between the coil and surface to maintain coupling efficiency. Hot-glue edges to prevent misalignment during use.
Final checks: Activate the unit and place a compatible device atop the pad. Measure output at the receiver (4.8–5.2V) with a multimeter. If voltage sags, increase the supply current to 1.2A or recheck coil spacing–optimal gap ranges 2–5 mm. Secure all connections with heat-shrink tubing for durability.
Troubleshooting Energy Transfer Systems: Key Pitfalls and Solutions
Measure coil inductance first–misaligned values outside the 10–50 μH range often cause inefficiency. Use an LCR meter at 100 kHz to verify; small deviations (±5%) can drop coupling efficiency below 70%. If readings fluctuate, check for improper winding spacing or core material degradation in ferrite layers. Replace damaged cores immediately–even minor cracks reduce magnetic flux density by 15–20%.
Overheating frequently stems from mismatched resonant frequencies between transmitter and receiver pads. Test with a frequency sweep from 80–200 kHz; peak transfer should occur within ±10 kHz of the designed frequency (typically 100–150 kHz). If heat exceeds 45°C on the PCB, examine capacitor ESR–values above 50 mΩ indicate failed or low-quality components. Swap high-ESR capacitors first; they dissipate 3x more power under load.
- Inspect solder joints under 10x magnification–cold joints create resistive losses (0.1–0.5 Ω per joint) that skew measurements.
- Validate rectifier diodes–Schottky types (e.g., 1N5822) should have
- Check EMI shielding–ferrite sheets must cover at least 80% of the coil area; gaps cause eddy current losses up to 30%.
Erratic power delivery often traces to unstable input voltage. Test the supply under load–ripple above 50 mVpp at 5V input disrupts regulation. Insert a 22 μF ceramic capacitor at the power entry point; this filters high-frequency noise that confuses control ICs (e.g., BQ51013). If instability persists, probe the feedback loop–resistors must hold ±1% tolerance; drift causes output swings of ±1.2V.
Debugging Intermittent Connections
Use an oscilloscope to monitor the receiver’s output–missing pulses indicate poor alignment. Adjust the pad gap to 2–5 mm; wider gaps increase leakage inductance by 40%. If waveforms show ringing (amplitude >20% of signal), add a snubber network (10 Ω + 1 nF) across the coil terminals to dampen oscillations. For resonant tanks, ensure capacitor values match the coil’s calculated frequency (
- Confirm ground planes–star grounding prevents loop currents that degrade efficiency by 10–15%.
- Test under load–some systems fail only at >3W; use a dummy load (5 Ω resistor) to simulate real-world conditions.
- Inspect thermal pads–missing vias on power ICs cause localized heating; add thermal adhesive if junction temps exceed 125°C.
Foreign object detection (FOD) errors usually tie to incorrect coil sensing thresholds. Calibrate the FOD circuit by placing a 2 mm steel plate on the pad–amperage should spike by 200–300 mA within 50 ms. If not, adjust the current sense resistor (±20% tolerance) or recalibrate the detection IC (e.g., STWBC). For Qi-compatible designs, verify the ASK modulation amplitude remains within 2.5–5% of the carrier signal; deviations trigger false negatives.
