Complete Guide to Installing a 30 Amp RV Outlet Wiring Diagram Step by Step

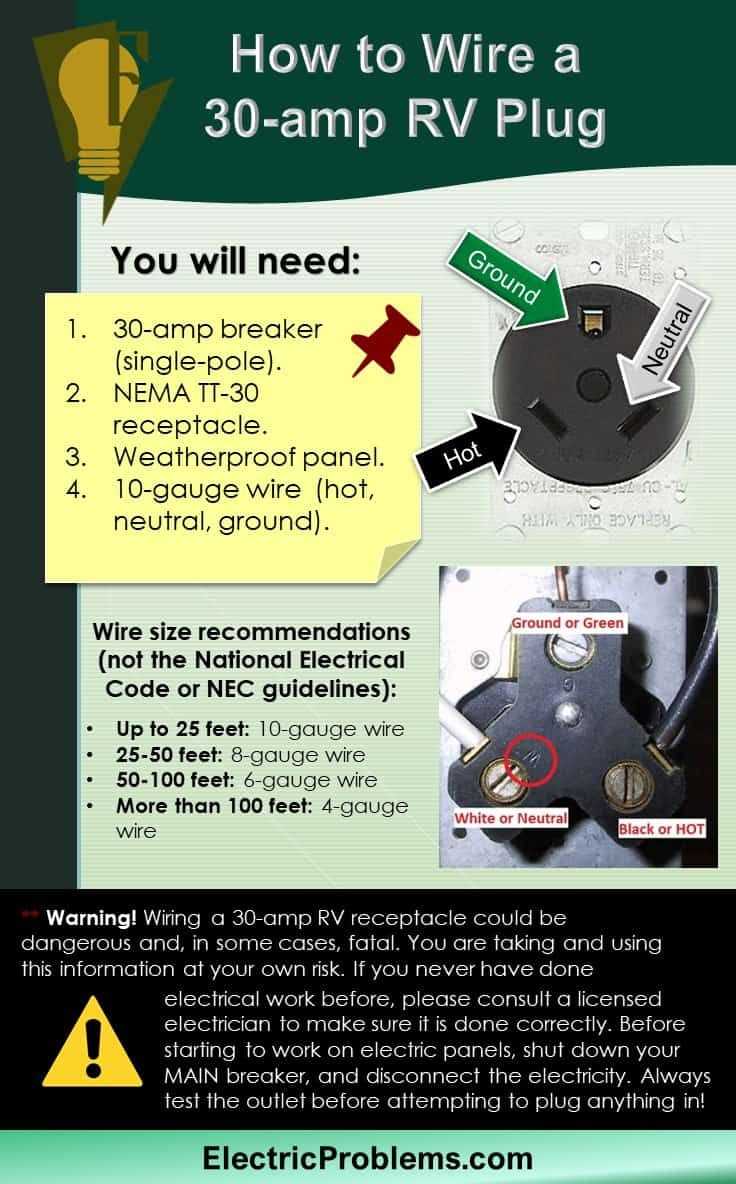

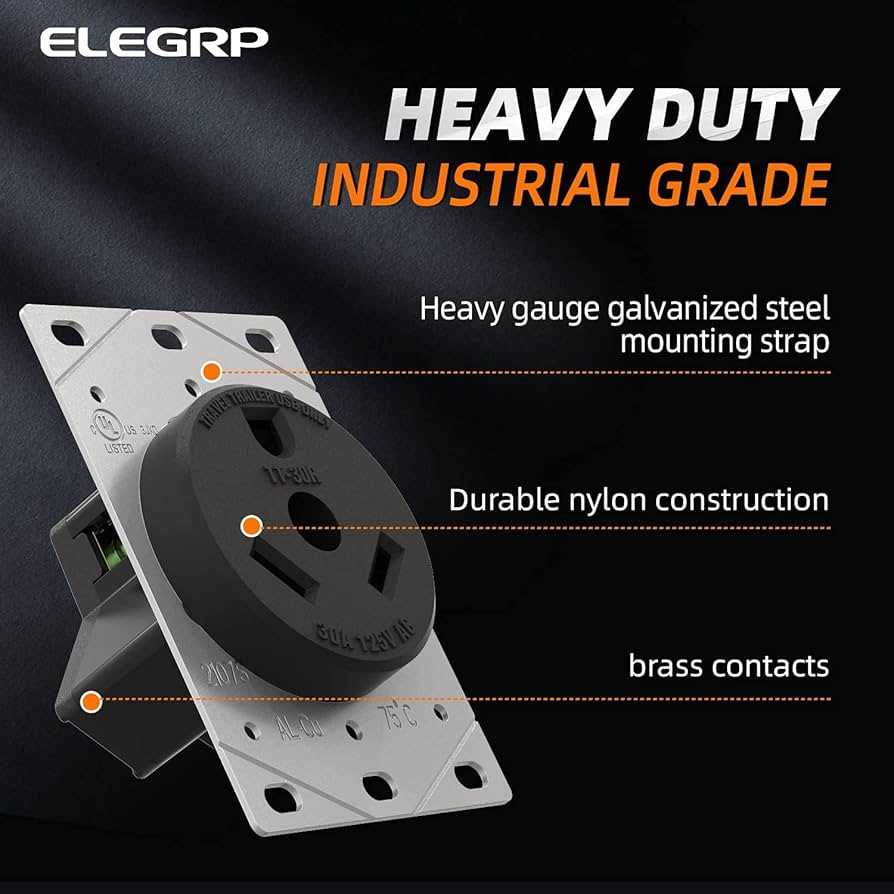

Start with a 10-gauge copper conductor rated for 30-service to handle the 7,200-watt load at 240 volts. Connect the black hot wire to the brass terminal on a NEMA TT-30 receptacle, matching the L-shaped slot for proper polarization. Secure the white neutral wire to the silver terminal and bond the green grounding wire to the chassis screw or ground bus bar in the panel–never skip this step, as improper grounding creates a lethal shock risk.
Use a 30-thermal-magnetic circuit breaker in the main service panel; anything larger risks overheating the 10-gauge wire. Test continuity with a multimeter before energizing–readings should show near-zero ohms between hot and neutral and infinite resistance between hot and ground. Apply anti-oxidant paste to aluminum connections if retrofitting older systems to prevent corrosion-induced voltage drop.
Route conductors through liquid-tight conduit where exposed to weather, sealing each junction box with waterproof duct seal. Label every wire at both ends–hot, neutral, and ground–using heat-shrink tubing for clarity during future inspections. Verify torque settings on terminal screws with a calibrated screwdriver to meet NEC Table 110.14(D) specifications and prevent loosening under vibration.
After completing the connection, perform a live-voltage test: 120 volts between hot and neutral, 0 volts between neutral and ground, and 120 volts between hot and ground. De-energize the circuit immediately if readings deviate. Store the installation schematic inside the access panel door for servicing reference, including wire gauge, breaker rating, and date of installation.
Connecting a 30-Amp Recreational Vehicle Power Point Safely
Use a 10 AWG copper conductor for all circuit paths–hot (black or red), neutral (white), and ground (green or bare). Confirm the breaker rating matches the wire gauge by verifying a 30-amp double-pole breaker feeds the installation; anything larger risks overheating without tripping. Position the box so the receptacle faceplate sits at least 18 inches above finished grade to prevent water ingress during heavy rain. Secure cables inside IMC or Schedule 80 PVC conduit if the run exceeds 6 feet outdoors–rigid metal conduit is preferred but EMT suffices if terminated with proper bushings.
Terminal Connections & Polarity Verification
| Component | Screw Color | Torque (lb-in) | Circuit Role |
|---|---|---|---|
| Hot Lug | Brass | 10–12 | L1 (120V) |
| Neutral Lug | Silver | 10–12 | Return |
| Ground Lug | Green | 15–20 | Fault Path |
After tightening each terminal, tug the conductor to ensure a mechanical lock–loose strands cause arcing. Test polarity with a non-contact voltage detector before energizing; hot should register only on the brass screw, neutral only on silver, and ground should be dead. Label the panel directory with the RV service identifier and include a date-of-installation tag on the conduit body to comply with NEC 408.4.
Essential Gear for Installing a 30-Amp Recreational Vehicle Connection Point
Begin with a non-contact voltage detector to ensure circuits are de-energized before handling conductors. Models with a visible LED and audible alert, like the Klein Tools NCVT-3, offer dual confirmation for safety, reducing false negatives during pre-installation checks.
A heavy-duty wire stripper/crimper rated for 8-10 AWG copper conductors is mandatory. Look for one with integrated bolt cutters, such as the Knipex 12 42 200, to eliminate the need for separate tools when trimming conduit or adjusting ground rods.

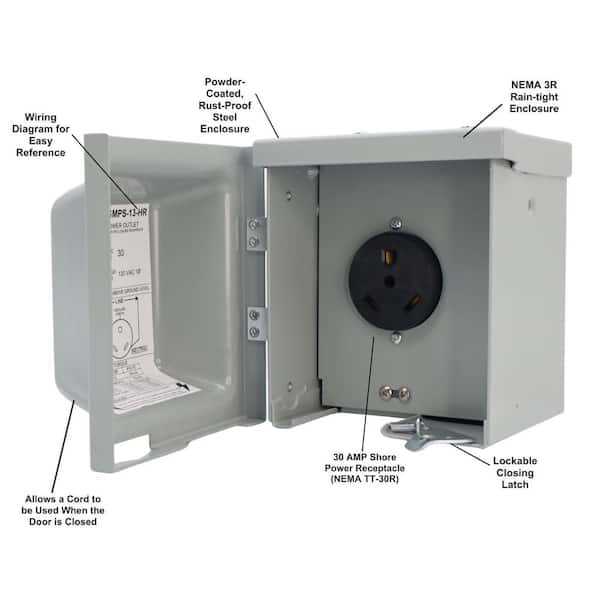

Secure marine-grade outdoor-rated electrical box with a locking gasket and NEMA 3R certification. The Hubbell 30-amp plug housing (HBL5831) includes stainless steel mounting hardware resistant to corrosion from salt spray or road chemicals, ensuring longevity in exposed environments.
Use stranded THHN/THWN-2 conductors in 8 AWG for current-carrying lines and 10 AWG for grounding. Southwire’s premium grade wire withstands 90°C wet conditions, critical for minimizing voltage drop over extended runs–calculate resistance losses at 3% maximum for ideal performance.
A digital multimeter with true RMS functionality, such as the Fluke 117, is required to verify line voltage, continuity, and proper grounding post-installation. Configure it to measure 0-600V AC/DC ranges with a minimum resolution of 0.1V for accurate diagnostics.
Include a torque screwdriver to comply with NEC 110.14(D) specifications, ensuring terminal connections are tightened to manufacturer-specified inch-pounds. The Wiha 72717 model provides preset torque settings (12-20 in-lbs) for consistent, code-compliant terminations.
Select weatherproof conduit in schedule 40 PVC or liquid-tight flexible metal (LFMC), sized 1/2” for 8 AWG conductors. Use Raco 232 or equivalent conduit bodies at bends to simplify pulling and future maintenance–avoid sharp angles exceeding 22.5° to prevent wire stress.
Equip the installation with a double-pole, 30-amp circuit breaker featuring GFCI protection if serving outdoor or wet-location connections. Siemens Q230GFI meets UL 943 standards, providing 5mA trip sensitivity for ground fault scenarios common in RV parks with inconsistent pedestal integrity.
Step-by-Step Guide to Connecting a 30-Amp Recreation Vehicle Connector to Your Electrical Box
First, verify the main breaker in your electrical box is turned off to prevent electrocution or fire hazards. Use a non-contact voltage tester to confirm all conductors feeding the new circuit are dead.
Select a dedicated 30-amp double-pole breaker rated for your panel type–typically 240 volts, compatible with Square D, Siemens, or Eaton models. Match the breaker’s amperage to the gauge of the copper wire: 10 AWG for 30-amp circuits, capable of handling up to 35 amps safely under NEC guidelines.
Route the cable from the breaker to the installation site, avoiding sharp edges, heat sources, or high-traffic areas. Secure the cable every 4.5 feet using insulated staples or conduit straps, ensuring no more than ½ inch of slack between fixings. If running through walls or attics, use schedule 80 PVC conduit or flexible metal tubing for added protection.

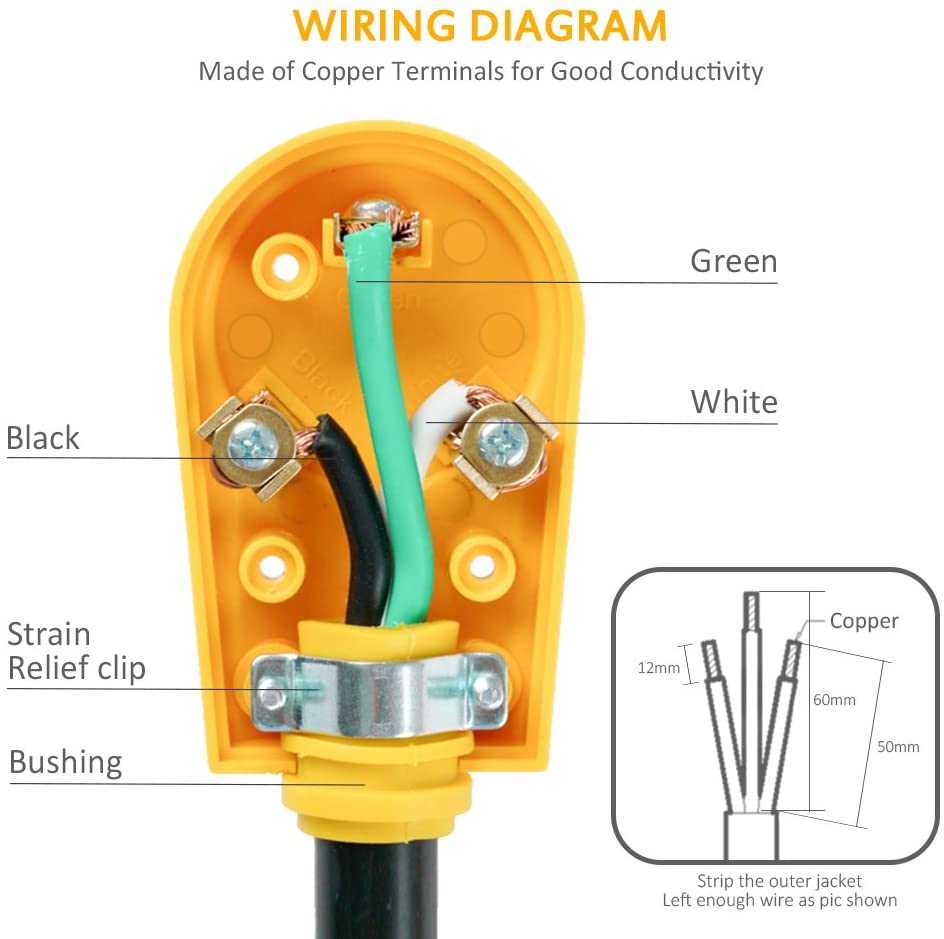

At the termination point, strip ¾ inch of insulation from the end of each conductor using wire strippers. For a 30-amp RV connector, use a NEMA TT-30P plug, which requires:
- One hot wire (black or red)
- One neutral wire (white)
- One grounding wire (green or bare copper)
Connect these to the corresponding screw terminals on the plug, tightening each screw to 12–15 inch-pounds of torque with a torque screwdriver to prevent loose connections.
Before energizing the circuit, perform a continuity test with a multimeter:
- Set the meter to ohms (Ω) and probe the hot and neutral terminals–readings should show near zero resistance.
- Probe the hot and ground terminals–no continuity should be present.
- Verify the grounding conductor shows continuity to the panel’s grounding bus bar.
Once testing is complete, reattach the cover to the electrical box and the plug’s housing. Turn the main breaker back on, then the new 30-amp breaker. Test the outlet with a plug-in circuit analyzer to confirm proper polarity, voltage (240V between hots, 120V from hot to neutral), and grounding integrity.
Label the breaker in the panel with indelible ink as “RV Power” and record the installation date. Include a note of the wire gauge, breaker capacity, and connector type used for future reference or inspections.
For outdoor installations, apply dielectric grease to the plug and receptacle contacts to prevent corrosion. Store a spare TT-30P plug on-site for emergencies, along with a list of local codes governing temporary or permanent RV hookups in your jurisdiction.
Selecting Proper Conductor Sizes for 30-Ampere Electrical Pathways
Use 10 AWG copper conductors for any 30-A install running up to 80 feet. Beyond this distance voltage drop surpasses 3% even with full 120 V input. Aluminum 8 AWG matches copper 10 AWG carrying capacity but requires anti-corrosion compound on terminals. Verify local codes–some jurisdictions mandate copper regardless of distance.
For 240 V split-phase circuits–common in recreational vehicle hookups–10 AWG copper supports the full 30 A load without derating across 50-foot runs. Overcurrent protection must be placed within 12 inches of the disconnect; exceeding this risks exceeding manufacturer ratings on breakers or fuses. Never substitute stranded wire for solid unless strain relief clamps prevent loosening.
Load Specific Adjustments
Continuous loads demand derated conductor sizing. A 24-A sustained draw (80% of 30 A) necessitates upsizing to 8 AWG copper for installations longer than 50 feet. Air conditioners and microwaves often qualify; calculate exact wattage before sizing. NEC Article 310.15(B)(7) permits 15% derating for dwelling units but excludes RV installations–always default to full 30 A capacity.
Underground feeds require direct burial conductors rated for wet locations. Type UF-B 10 AWG handles 90 °C dry or 60 °C wet; code permits 30 A for copper at this gauge. Locate burial depth per NEC Table 300.5–minimum 18 inches under driveways, 24 inches elsewhere. Use ground fault protection on all exterior 30 A feeds.
Common Mistakes to Avoid When Installing a 30-Amp Recreational Vehicle Connection
Skipping voltage verification before installation can lead to irreversible damage. Use a multimeter to confirm the power source delivers 120 volts within a ±5% tolerance. Many assume the circuit matches the rating without testing, resulting in overheated components or tripped breakers. A single misread can void warranties or fry onboard systems.
Undersizing the circuit breaker is a frequent error. The protective device must match the receptacle’s 30-unit capacity–never substitute with a 20-unit or lower model. Even temporary overloading risks melted insulation, while a breaker too large won’t trip in time to prevent hazards. Check the manufacturer’s specs for exact breaker compatibility.
Neglecting to secure all connections tightly invites corrosion and arcing. Loose terminals cause intermittent power loss or fires, especially in outdoor installations exposed to moisture. Use a torque screwdriver calibrated to the terminal’s Nm rating–typically 12–15 inch-pounds for standard recreational vehicle plugs. Recheck tightness after 24 hours of use.
Using incorrect cable gauge invites overheating. For a 30-unit setup, minimum requirements are:
- 10 AWG copper for runs under 50 feet
- 8 AWG copper for longer distances or high ambient heat
Aluminum conductors require one size larger and antioxidant paste at connections. Never compromise gauge for cost–thinner wire degrades performance and safety.
Ignoring local codes often results in failed inspections. Grounding requirements vary: some regions mandate a separate ground rod, others permit bonded neutral-ground systems. Verify whether GFCI protection is required–especially for outdoor or wet-location installations. Non-compliance can lead to legal penalties or insurance claim denials.
Omitting strain relief on conduit entries allows cable movement to loosen connections. Secure conduit with weatherproof clamps and seal entries with silicone or approved duct seal. Unprotected cables risk abrasion, rodent damage, or water ingress, especially at points of flex. For flexible conduit, use liquid-tight fittings to maintain ingress protection.
Proceeding without a polarity test can damage appliances. Reverse polarity–detectable with a simple plug tester–forces 120 volts into neutral circuits, frying electronics. Test after installation and periodically thereafter, as vibrations or corrosion can shift connections. Correct polarity ensures surge protectors and converters function as designed.
