Complete Guide to Wiring a 7 Pin Trailer Connector Diagram Step by Step
Start with verifying terminal assignments before installation. The standard heavy-duty trailer interface uses seven distinct contacts, each serving a specific electrical function. Contact one (typically marked in white) delivers power for clearance and marker lamps–ensure a minimum 2.0mm² cross-section wire is used to handle up to 20 amps. Contact two (black) carries auxiliary power, often fused at 30 amps, supporting winches, refrigeration, or additional lighting. Confirm the wiring harness can sustain this load without voltage drop over lengths exceeding 5 meters.
Ground contact (third position, green) demands meticulous attention. Corrosion-resistant terminals (tin-plated copper) are non-negotiable–oxidation here disrupts all downstream signals. Solder or crimp connections firmly, then apply dielectric grease to prevent moisture ingress. Incorrect grounding is the primary cause of intermittent failures in brake controllers and anti-lock braking systems (ABS). Test continuity with a multimeter; resistance should not exceed 0.5 ohms.
The fourth post (brown) handles tail, license plate, and side-marker illumination–commonly 14-16 AWG wire suffices unless LED clusters demand thicker gauge for current spike protection. Fifth (blue) is reserved for electric brakes; connect only through a proportional brake controller to avoid premature lining wear or overheating. Sixth (red, purple, or yellow) activates reverse lights on trailers–confirm polarity matches before splicing to avoid backfeeding into the auxiliary circuit.
Label every wire at both ends during assembly. Use heat shrink tubing or adhesive tags to prevent misconnections during maintenance. For corrosion-prone environments (marine, road salt), upgrade to SAE J560 compliant plugs with integrated weather seals. Avoid generic connectors–faulty mating surfaces account for 60% of trailer-related electrical issues, often misdiagnosed as wiring problems.
Understanding 7-Way Trailer Electrical Schematics
Connect the 12V power circuit to the center post (typically labeled as terminal 1) to provide continuous battery charging for trailer electronics. Use 10-gauge copper wire for this link to handle current draw up to 30 amps without voltage drop over distances under 15 feet. Verify polarity before securing connections with crimp terminals and heat-shrink tubing to prevent corrosion in wet conditions.
Assign the ground return path to the flat contact opposite the power input. This terminal grounds the entire assembly through the trailer frame–ensure bare metal contact at both the mounting surface and frame connection points. Use star washers or serrated ring terminals to maintain conductivity after paint or rust development.
Signal and Lighting Assignments
Route left and right turn signals to the designated contacts using existing vehicle harness outputs. Test each circuit with a 12V test lamp before final attachment–bulbs should flash at 60-120 cycles per minute. For LED trailer lights, insert a load resistor (6-ohm, 50-watt) in parallel to prevent hyper-flashing caused by low current draw.
The electric brake output connects to the sacrificial post near the turn signal inputs. Wire this through a breakaway switch rated for at least 30 amps, with a direct line to the trailer battery if equipped. Confirm brake controller settings match the trailer’s required voltage (typically 10-14V) using a multimeter before towing.
| Terminal Position | Function | Wire Gauge | Color Code (SAE) |
|---|---|---|---|
| Center | 12V Power | 10 AWG | Yellow |
| Bottom Left | Left Turn/Brake | 14 AWG | Yellow/Black |
| Bottom Right | Right Turn/Brake | 14 AWG | Green/Black |
| Top Left | Tail Lights | 16 AWG | Brown |
| Top Right | Reverse Lights | 16 AWG | Purple |
| Sacrificial Post | Electric Brakes | 12 AWG | Blue |
| Flat Contact | Ground | 10 AWG | White |
Use dielectric grease when assembling the male and female halves to repel moisture and dirt. Align the keyway before pressing together–forced misalignment can damage contacts. For trailers without brakes, cap the electric brake terminal with a rubber boot to prevent short circuits.
After installation, verify all functions with a trailer light tester or second vehicle. Check for proper brightness and synchronization between tow and trailer signals. If dimming occurs, inspect for loose connections or insufficient wire gauge. Replace any corroded terminals to maintain reliable operation.

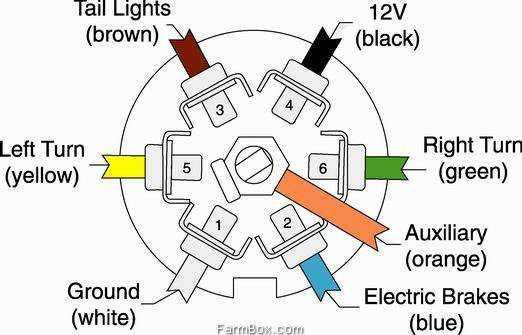

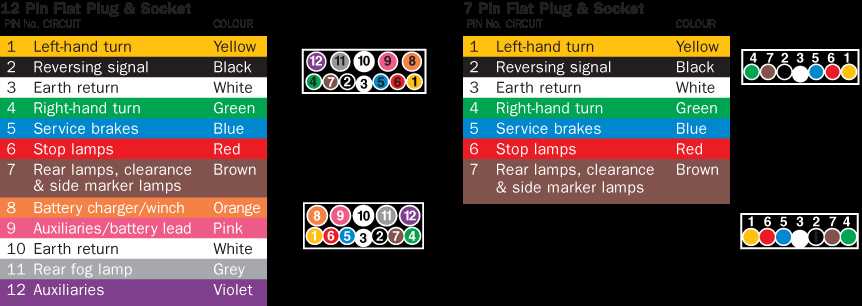

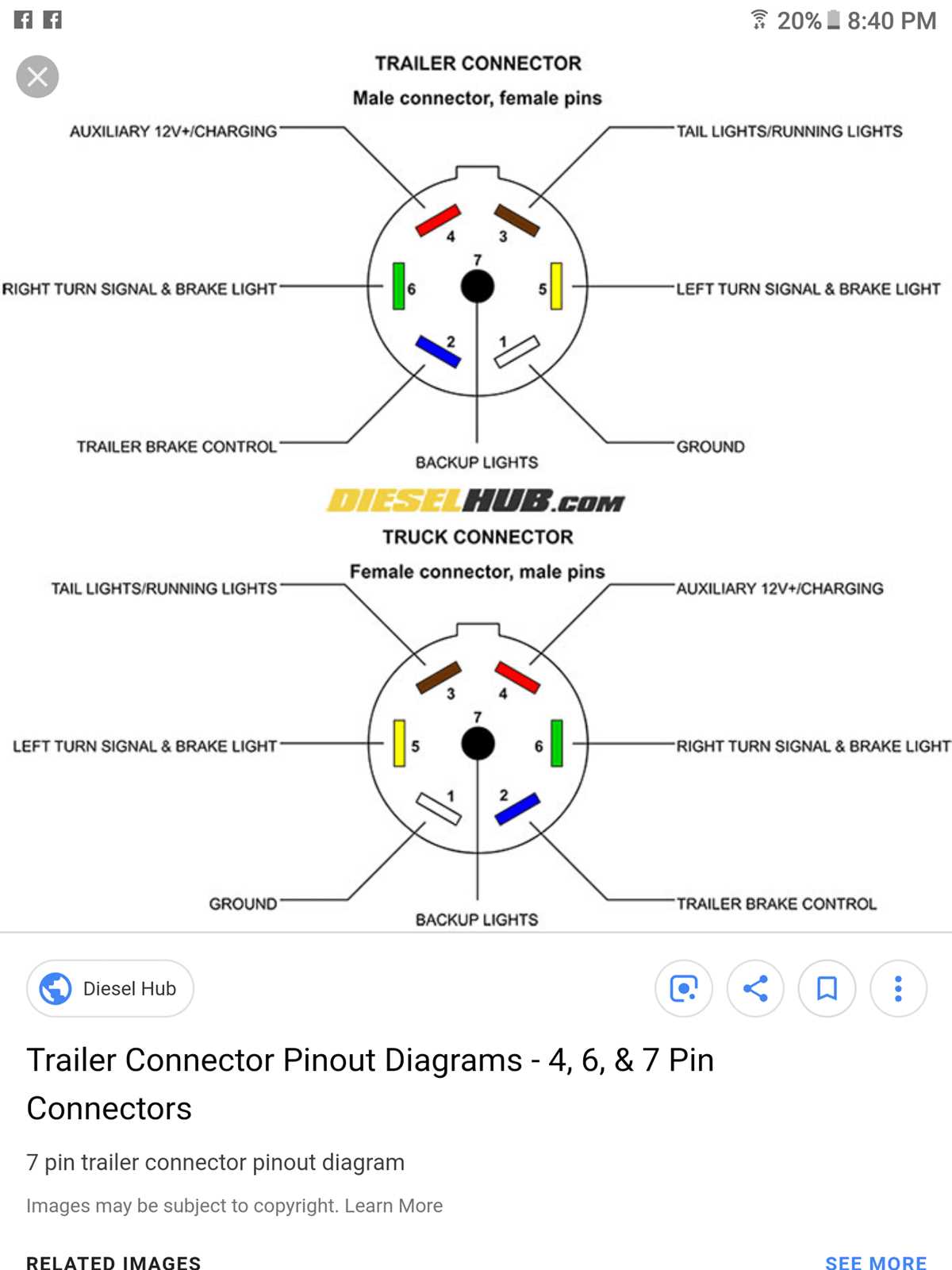

Standard Terminal Layout and Color Schemes for 7-Way Trailer Sockets
Assign the central contact (typically slot 1 or “C”) for the main 12V power feed using a thick, yellow-coated cable–this ensures minimal voltage drop under load. Ground should occupy the broadest available terminal (usually slot 7) with a green or bare wire rated for at least 12 AWG to handle peak currents. Auxiliary circuits benefit from distinct colors: brown (running lights), red (brake signal), blue (electric brake output), and black (battery charge line for trailers with onboard power). Verify polarity with a multimeter before finalizing connections to prevent reverse voltage damage to LED clusters or controller modules.
North American vs. European Layout Variations
North American configurations follow SAE J560, placing the brake controller output (blue) in position 5 and the reverse signal (purple) in slot 6, while European 7-pole systems swap these functions–consult the trailer manufacturer’s specifications for exact voltage and amperage limits, especially if integrating trailers from multiple regions. Color coding diverges significantly: EU standards often use a black-and-white striped cable for ground, whereas US/Canadian setups prefer solid green. Adapters are available but add resistance–opt for direct terminal mapping when retrofitting older trailers.
Label each cable at both ends with heat-shrink tubing or adhesive sleeves to streamline future diagnostics. For trailers equipped with hydraulic surge brakes, dedicate the unused purple terminal to a brake light override switch, pairing it with a 10A fuse to isolate potential shorts. Keep cable runs tight against the chassis to prevent abrasion, and seal all termination points with dielectric grease to block moisture ingress, particularly in salt-spray environments.
Step-by-Step Guide to Testing Circuit Paths in a 7-Way Plug
Gather a multimeter set to continuity mode before starting. Verify the device’s battery is charged–weak power leads to false readings. Remove the plug from any attached harness to avoid interference from connected components.
Identify each terminal by its standard position:
- Position 1: Roadside marker or clearance lights (often yellow)
- Position 2: Left brake/turn signal (typically green)
- Position 3: Right brake/turn signal (usually brown)
- Position 4: Ground (white wire)
- Position 5: Electric brake output (red)
- Position 6: Auxiliary power (blue)
- Position 7: Reverse lights (black or purple)
Mark each terminal with tape if colors fade or wear is present.
Attach one probe to the ground terminal–position 4 in most setups. Touch the second probe to each metal contact sequentially. Listen for the multimeter’s audible tone or watch for a resistance value below 1 ohm. No tone or readings above 5 ohms indicate an open path needing further inspection.
Swap probes if testing fails–ground probes sometimes collect oxidation. Lightly scrape contacts with a wire brush if corrosion is visible. Recheck with the multimeter after cleaning. Pay extra attention to position 5; electric brake circuits often show intermittent failures under load.
Test between non-ground contacts in pairs if issues persist. Example: probe position 2 and 3 for turn signal cross-talk. A closed path between these suggests a short in the harness. Isolate by disconnecting one end at a time–trailer or tow vehicle side–until the faulty segment is identified.
Check the plug housing for moisture ingress. Water intrusion frequently causes sporadic opens. Dry thoroughly with compressed air and re-seal using dielectric grease on each terminal before reassembly. Avoid silicone spray–it attracts dust over time.
Repeat the entire process with the trailer connected if initial tests pass but functionality remains intermittent. Mechanical vibration can expose hidden breaks not detectable when stationary. Wiggle cables gently while probing; sudden tone loss reveals a brittle conductor core.
Document all readings and repairs. Create a reference table listing:
- Date of test
- Terminal pair tested
- Resistance observed
- Actions taken
- Outcome
Retain records for future diagnostics–patterns emerge across multiple tests revealing degradation trends before complete failure occurs.
Preventing and Correcting Mistakes in 7-Way Plug Configurations
Reverse the power feed if auxiliary functions fail while basic lighting works. Check voltage at terminal H–it should deliver 12V when the vehicle’s ignition is on. If missing, trace the circuit to the fuse box; a blown 10A fuse often cuts power to this circuit. Replace the fuse only after verifying no shorts exist in the cable harness, especially near sharp edges or abrasive points under the chassis.
Misaligned ground paths cause intermittent failures. Ensure the white lead (terminal E) connects directly to bare metal, not painted surfaces. Scrape corrosion from the mounting point and apply dielectric grease to prevent future oxidation. If multiple accessories share this path, split the ground to avoid voltage drops exceeding 0.5V during high-load conditions like trailer brakes engaging.
Confusing the brake and tail-light circuits leads to incorrect signaling. Terminal Y (left turn/brake) and terminal G (right turn/brake) must match the tow vehicle’s separate brake and marker functions. Use a test lamp: illuminate both brake lamps when pressing the pedal, then verify only the corresponding side lights during turns. Swap connections at the socket if mismatched.
Excessive current through thin wires melts insulation. Check the brown lead (terminal B)–it carries all marker lamps; verify wire gauge meets SAE J2863 standards (minimum 16 AWG for 15A loads). Replace undersized wires with tinned copper strands to handle heat buildup during prolonged use. Secure splices with soldered joints, not crimped connectors, to prevent resistance-related failures.
Water ingress causes corrosion inside the plug. Disassemble the housing every six months; clean contacts with a wire brush and reapply conductive lubricant. If pins are pitted, replace the entire socket–do not reuse compromised terminals. Ensure the rubber gasket seals completely; missing or cracked seals allow moisture into the rear chamber, accelerating decay.
Incorrect tension on spring-loaded contacts leads to poor connections. Test each terminal by gently pulling the wire–it should resist removal with 5-8 lbs of force. Adjust loose crimps by compressing the metal sleeve with pliers, not by bending the pin itself. Replace damaged springs; stretched or broken springs reduce contact pressure, causing sporadic electrical dropout under vibration.
