Step-by-Step Backup Camera Wiring Diagram and Connection Guide

Connect the reverse signal feed from the vehicle’s transmission control module directly to the monitor’s power input. Use 18-gauge stranded copper wire for this link to handle transient voltage spikes during reverse gear engagement. Splice into the existing backup light circuit at the tail lamp harness–identify the correct wire using a multimeter set to 12V DC continuity mode to avoid damaging sensitive components.

Ground the system’s video transmitter and display unit to the vehicle’s chassis using 14-gauge wire terminated with a crimped ring connector. Locate a factory ground point near the rear bumper or frame rail; clean the surface with 120-grit sandpaper before securing the connection to prevent intermittent signal loss. Avoid relying on bolt-on grounds shared with other high-current devices like fuel pumps or electric actuators.

Route the composite video cable along the driver-side door threshold gasket or beneath the carpeted interior trim. Use braided shielded cable with a minimum impedance of 75 ohms to minimize electromagnetic interference from ignition systems, alternators, or aftermarket audio equipment. Secure the wiring every 12 inches with high-temperature nylon ties rated for automotive use.

Test the system before final assembly by engaging reverse gear–verify the monitor powers on within 2 seconds and displays a clear image. If the feed flickers or distorts, recheck the ground connection, isolate signal wires from power lines, and confirm the coaxial shield isn’t damaged. For vehicles with adaptive cruise control or parking sensors, ensure the video feed remains stable when these systems activate.

Electrical Connection Guide for Rear View Visual Systems

Start by identifying the power source on your vehicle’s reverse light circuit, typically operating at 12V DC. Locate the positive and negative terminals–these often connect via a white or yellow cable (positive) and black or brown (ground). Use a multimeter to confirm voltage presence when the gear is shifted into reverse. If readings fluctuate, inspect the fuse box for blown units.

For installation, splice the visual unit’s red lead into the reverse light’s live terminal using a waterproof butt connector. Avoid twisting wires–this weakens connections and invites corrosion. Secure all splices with heat-shrink tubing, ensuring insulation integrity before sealing. Ground the black lead to a clean, unpainted metal surface near the mounting location to prevent signal interference.

Route the video signal cable (usually an RCA-type connector) through the vehicle’s existing harness channels. Avoid sharp edges or moving components like hinges, as friction can degrade shielding over time. If the system includes a monitor, connect its power to a fused ignition-switched circuit to prevent battery drain when the vehicle is off.

Common pitfalls include incorrect polarity, poor grounding, and insufficient cable protection. Symptoms like flickering images, no signal, or intermittent function often trace back to these issues. Double-check all connections against the vehicle’s manual–some models require a relay for stable power delivery.

Key Components to Verify

• Power in: 12V DC from reverse light circuit (momentary live).
• Signal out: Coaxial, RCA, or proprietary connector to display.
• Ground: Direct to chassis; avoid shared grounds with high-draw systems.
• Fuse rating: Match the visual unit’s amperage specs (typically 3-5A).
• Cable routing: Keep away from ignition coils, alternators, or high-voltage lines.

If the system integrates with an existing infotainment setup, confirm compatibility with the manufacturer’s pinout. Some vehicles require a dedicated interface module to translate signals correctly. For aftermarket displays, ensure the input voltage matches (usually 5V or 12V) to avoid damaging the screen.

Testing should include multiple reverse cycles to verify consistent activation. If the image appears inverted, check the orientation setting in the system’s menu or adjust the mount. For color distortion, re-seat the video connector–loose pins cause signal degradation. If resolution is poor, inspect the cable for kinks or compression; coaxial variants are particularly sensitive to bends.

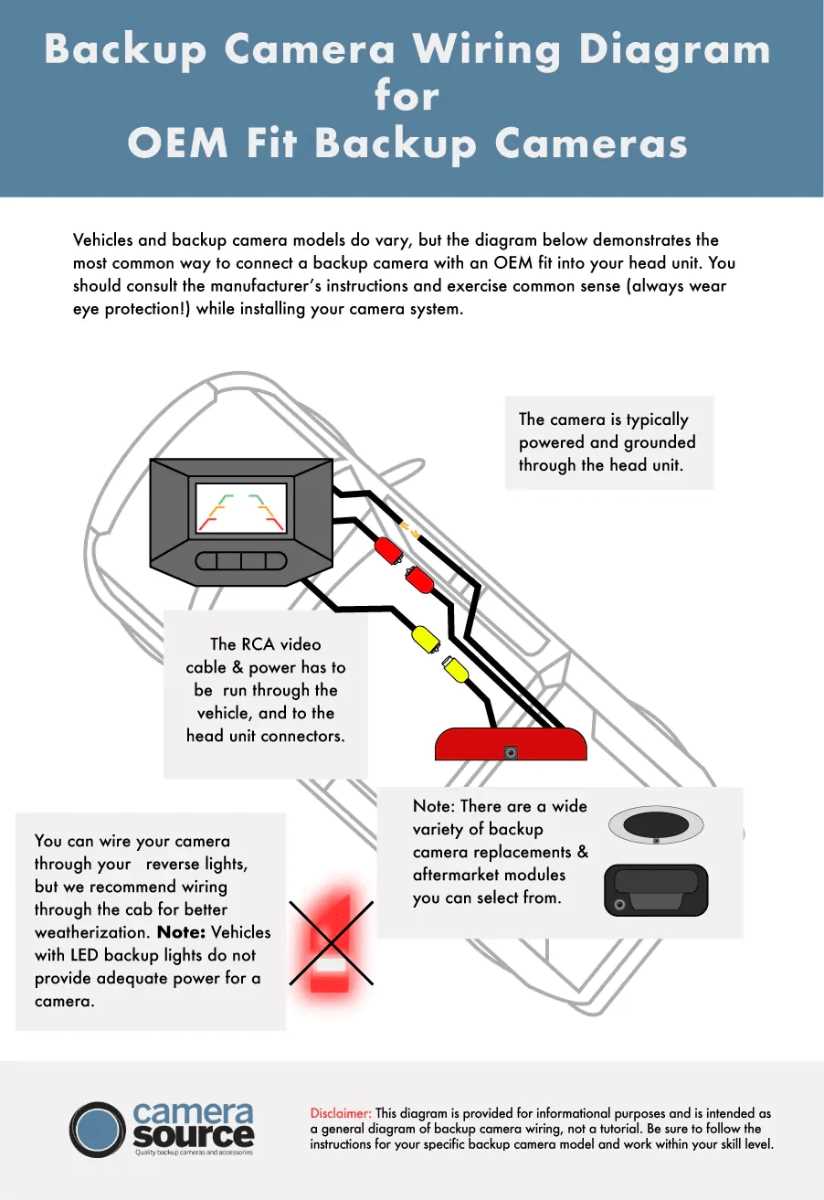

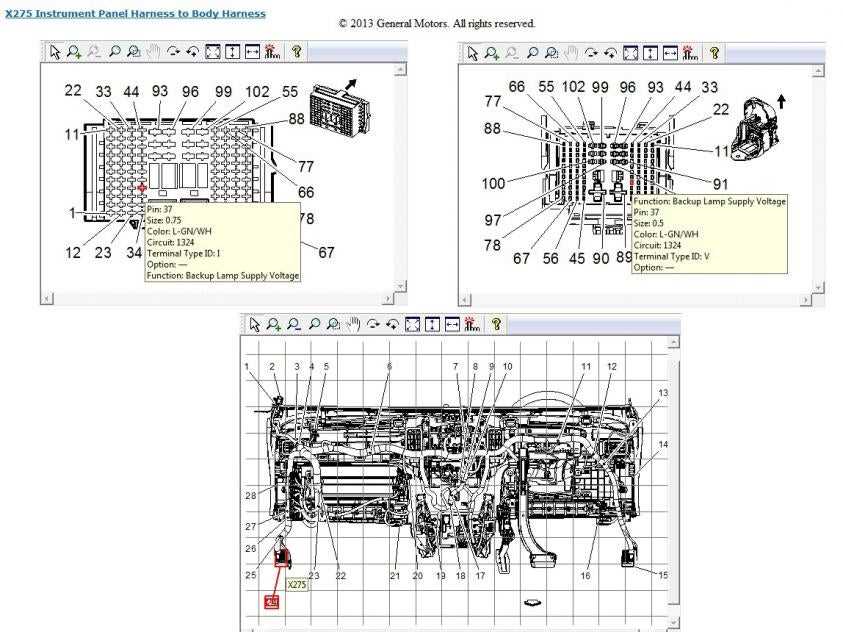

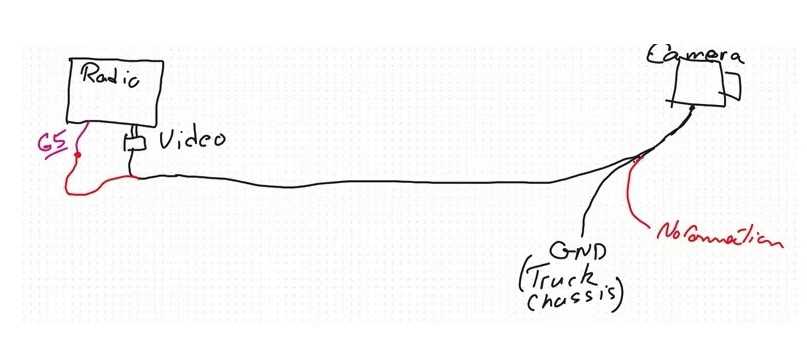

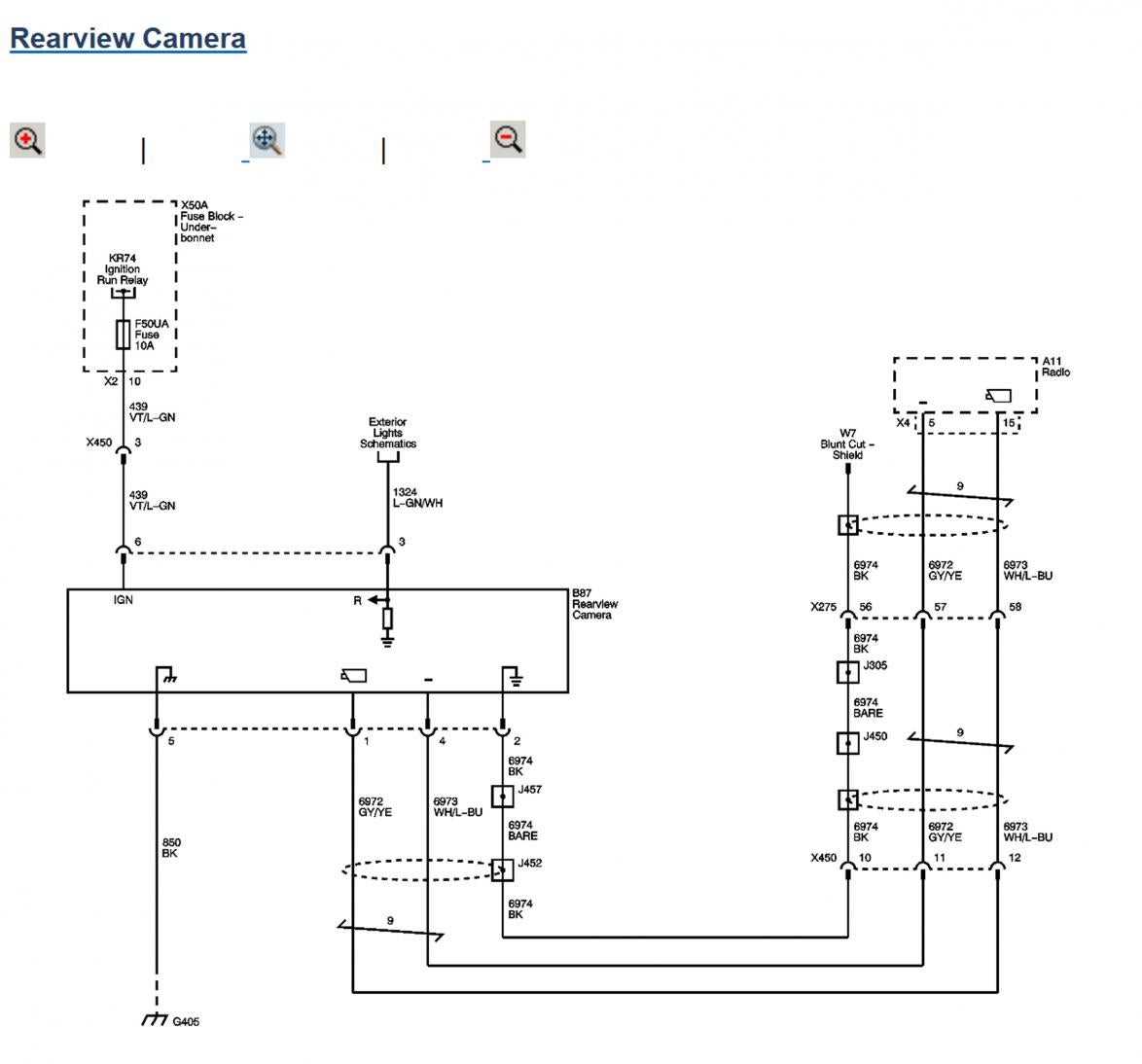

For OEM retrofits, consult the vehicle’s electrical schematics to identify factory connectors. Some models use CAN bus networks to transmit rear-view data–interference here can disrupt other systems like parking sensors. Use a load resistor if the visual unit lacks sufficient draw, preventing false error codes in the vehicle’s computer.

Critical Elements for Rear View Monitor Installation

Begin by securing a power source directly linked to the vehicle’s reverse signal circuit. This connection ensures the monitor activates precisely when the transmission shifts into reverse, eliminating reliance on manual switches. Use a relay for high-current demands, particularly if integrating additional lighting or sensors, to prevent voltage drops that degrade image quality. Verify fuse ratings–typically 7.5A to 15A–to match the system’s load without risking overheating.

Coaxial cabling remains the optimal choice for video transmission, with RG59 or RG6 variants offering the best balance between signal clarity and durability. Avoid unshielded twisted pair alternatives, as they introduce interference, especially in environments with strong electromagnetic fields from the engine or aftermarket electronics. Connector integrity is non-negotiable: use gold-plated RCA or BNC plugs to resist corrosion and maintain low-resistance connections over time. Trim excess cable length during installation–every additional meter increases signal attenuation, leading to pixelation or lag.

Grounding strategy dictates system stability. Attach the monitor’s ground wire to a bare metal point on the vehicle’s chassis, as close to the device as possible. Paint, undercoating, or rust act as insulators; sand the contact area to expose raw metal if necessary. For composite systems (e.g., radar or ultrasonic sensors), dedicate separate ground paths to prevent noise coupling between components. Incorrect grounding manifests as flickering displays or erratic sensor behavior, often misdiagnosed as faulty hardware.

Polarity-sensitive components, like LED illumination rings or infrared emitters, require strict adherence to color-coding conventions. Swapping the positive and negative leads–even momentarily–can permanently damage sensitive circuitry. Test continuity with a multimeter before finalizing connections, focusing on pinouts for custom harnesses where manufacturers deviate from industry standards (e.g., Toyota’s 6-pin connectors vs. Ford’s 4-pin layouts). Keep a splice-free path for power and video lines; every junction introduces potential failure points, particularly in high-vibration areas near the vehicle’s frame.

Voltage regulators or buck converters are mandatory when adapting systems to vehicles with non-standard electrical architectures (e.g., 24V commercial trucks or retrofitted electric platforms). A 12V-to-12V isolator prevents voltage spikes from frying delicate CMOS sensors, common in aftermarket units. For vehicles with start-stop functionality, buffer capacitors (220μF minimum) smooth out transient drops that occur during engine cranking. Document every modification with photographs before insulating connections; this accelerates troubleshooting if errors surface later.

Step-by-Step Guide to Connecting Power Leads to a Reverse Light System

Locate the vehicle’s rear light assembly first. Use a trim removal tool to pry off the interior panel covering the reverse light bulb housing–avoid forcing clips to prevent damage. Disconnect the bulb socket by twisting it counterclockwise; this exposes the contact points for splicing.

Identify the positive (+) and ground (-) terminals on the reverse light circuit. The positive wire typically uses a solid color (e.g., green, purple) or a stripe pattern, while the ground is often white or black. Verify with a multimeter: set to 12V DC, probe the contacts–voltage should appear only when the transmission is in reverse.

Cut two sections of 18-gauge wire, each 12 inches long–one for power, one for ground. Strip ¼ inch of insulation from both ends. Crimp a female spade connector onto one end of each wire for a secure connection. Solder the opposite ends to the reverse light’s positive and ground terminals, then insulate with heat-shrink tubing. Avoid twisting wires loosely–poor contact causes intermittent failures.

Testing the Connection

Reattach the bulb socket and shift the vehicle into reverse. Use the multimeter to check voltage at the spade connectors–12V confirms proper splicing. If voltage fluctuates or drops below 11V, inspect crimps for cold solder joints or corroded terminals. Ground wires must attach to bare metal; paint or undercoating weakens conductivity.

Route the new leads through existing loom pathways to prevent pinching. Secure them with zip ties every 6 inches, avoiding sharp edges or moving components. Connect the opposite ends to the monitor’s power input, matching positive to positive. Test operation before reassembling panels. If the screen fails to activate, recheck polarity–reversing polarity can permanently damage electronics.

Diagnosing Faults in Rear-View Video Feed Connections

Check power delivery first–measure voltage at the connector’s input pin while the ignition is on. A reading below 12V indicates a dropped circuit; inspect fuse integrity, relay contacts, or corroded terminals in the harness. Replace blown fuses under load to confirm a temporary spike versus chronic overcurrent.

Signal loss often stems from improper shielding or ground loops. Verify the coaxial cable’s continuity with a multimeter–resistance should read near zero ohms. If the reading fluctuates, re-terminate connectors with solder and heat-shrink tubing, ensuring the shielding braid connects directly to chassis ground at a single point.

Pinpointing Intermittent Glitches

Intermittent outages frequently trace back to loose or oxidized connectors. Apply dielectric grease to pins after cleaning with contact cleaner–avoid abrasives that remove protective plating. For modular plugs, crimp fresh terminals with a ratcheting tool and secure strain relief around the cable entry point.

Voltage drop across splices can degrade performance. Test each joint by back-probing with a voltmeter while the system operates; readings should match input voltage. Re-solder problematic junctions using lead-free flux and a temperature-controlled iron to prevent cold joints.

Addressing Noise and Artifacts

Electromagnetic interference from adjacent circuits can distort the feed. Route cables away from high-current lines–maintain minimum 10cm separation from power conductors. Add ferrite beads at both ends of the cable if rerouting isn’t feasible, ensuring they clamp onto the entire outer jacket for broadband attenuation.

Grounding inadequacies manifest as ghosting or color shifts. Confirm the reference point connects to the vehicle’s chassis with a dedicated 10-gauge wire–avoid daisy-chaining through body panels. Scrub paint or plating at the attachment site to expose bare metal, then secure with a star washer and torque to 15 Nm.

Static discharges corrupt signals during wet conditions or when pins lack proper insulation. Replace any cracked housing around connectors with IP67-rated assemblies, sealing grommets with silicone. For aftermarket units, disable any built-in parasitic drain by removing the “+ACC” lead if the system powers separately from the ignition.
