Step-by-Step Cat 5 Ethernet Cable Wiring Guide and Color Code Explanation
Begin by stripping 1.5 inches of the outer jacket from the twisted-pair cable, taking care not to nick the internal conductors. Arrange the eight individual strands in the following sequence according to EIA/TIA-568B for straight-through connections: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. This arrangement maximizes signal integrity by maintaining consistent pair positioning across both ends of the link. For crossover setups–typically required when connecting two switches or similar active devices–reverse pins 1 with 3 and 2 with 6 on one end only, preserving the remaining pairs unchanged.
Use solid-core conductors for permanent installations and stranded variants for patch cords; solid copper yields superior performance over long runs due to lower attenuation. Crimp connectors firmly, ensuring each wire extends fully into the contact point–insufficient insertion often results in intermittent faults under 100 MHz testing. Verify continuity with a cable tester immediately after termination; even a single misaligned strand can degrade throughput by 30% or trigger negotiation failures at gigabit speeds.
Keep untwisted length at the connector tip under 0.5 inches to comply with ANSI/TIA-568-C.2 specifications–exceeding this threshold increases crosstalk by up to 40% in Category 5e cables. Avoid sharp bends tighter than four times the cable diameter to prevent impedance mismatches. For Power over Ethernet deployments, adhere strictly to the pinout above; swapping pairs can damage equipment or create safety hazards.
Test each link with a TDR-based analyzer after installation. A verified Category 5 cable should exhibit near-end crosstalk below -35 dB at 100 MHz and return loss exceeding -16 dB. Replace any segment failing these benchmarks–manufacturing defects or improper termination are the primary causes of non-compliance.
Standard Connections for Ethernet 5 Pair Cabling

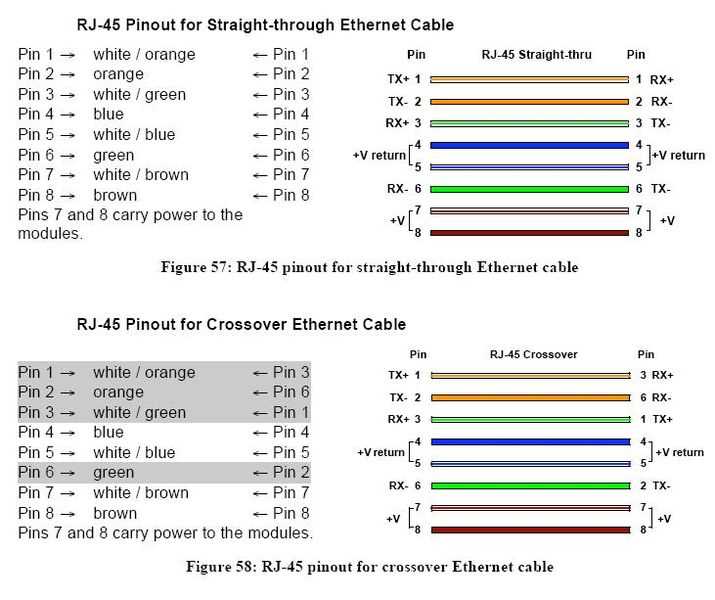

For reliable network performance, follow T568A or T568B termination standards–both work, but mixing them causes faults. T568B is more common in commercial setups: pin 1 (orange-white), 2 (orange), 3 (green-white), 6 (green), 4 (blue), 5 (blue-white), 7 (brown-white), 8 (brown). Maintain this sequence at both ends for straight-through links. For crossover setups (device-to-device), swap pins 1-3 and 2-6 at one end.
- Strip only 0.5–0.75 inches of jacket–excess exposed wire risks signal interference.
- Untwist pairs no more than 0.5 inches to preserve signal integrity.
- Crimp connectors with consistent pressure; incomplete clicks create intermittent failures.
Test continuity with a basic cable tester before deployment. Check each pin individually–broken circuits often show as “open” or “short.” For gigabit speeds, ensure all eight conductors function; Fast Ethernet (100 Mbps) only uses pins 1, 2, 3, and 6, but the remaining pairs must still terminate correctly to avoid crosstalk.
For PoE (Power over Ethernet), verify the blue (4/5) and brown (7/8) pairs handle current without overheating–poor crimps melt insulation. AWG 24 is standard; thinner gauges increase resistance under load. Keep runs under 100 meters (328 feet) per segment; exceeding this drops speed or disconnects entirely.
Essential Equipment and Supplies for Ethernet Cable Installation
Begin with a high-quality crimping tool rated for RJ45 connectors–avoid generic models that fail under tension. Look for versions with a built-in cutter and stripper, such as the Klein Tools VDV226-110, which ensures clean terminations without damaging conductors. Cheaper alternatives often misalign pins, leading to intermittent connectivity.
Select solid-core Category 5e cables for fixed installations; stranded variants suit patch cords due to flexibility. Use 24 AWG conductors for runs under 90 meters, but switch to 23 AWG for longer spans to reduce signal attenuation. Avoid plenum-rated cables unless required by local fire codes–they cost 30% more and offer no performance benefit in standard environments.
A precision wire stripper, like the Jonard TOL-2203, removes outer jackets without nicking internal wires. Adjustable blades accommodate different cable gauges; test on scrap segments first. Avoid utility knives or scissors–they create uneven edges that hinder proper connector seating. For mass terminations, a punch-down tool with 110 blades, such as the IDEAL 30-695, speeds up keystone jack installations.
RJ45 connectors with gold-plated contacts resist corrosion and maintain signal integrity over time. Clear connectors let you verify pin alignment before crimping, reducing errors. For outdoor runs, use gel-filled connectors or shielded variants (STP) to prevent moisture ingress–standard connectors degrade within months when exposed to humidity. Test each termination with a cable tester set to continuity mode before finalizing connections.
Velcro ties secure bundled cables without deforming conductors, unlike zip ties which can compress insulation. Space ties every 12–18 inches to prevent sagging; tighter spacing restricts airflow in high-density installations. For wall-mounted runs, use conduit or raceways rated for Cat 5e–PVC conduits add cost but simplify future upgrades. Avoid routing near power lines (maintain 6-inch separation) to prevent crosstalk.
Label both ends of each segment immediately after termination to avoid downstream confusion. Use heat-shrink tubing or pre-printed labels resistant to smudging–handwritten tags fade within months. Colors should follow a standard scheme (e.g., T568A/B) but prioritize consistency over aesthetics. Verify labels with a tone generator and probe before sealing walls or ceilings.
For troubleshooting, keep a handheld network analyzer like the Fluke Networks CIQ-100 on hand. It detects wire map errors, split pairs, and excessive crosstalk in seconds–errors missed during visual inspection often cause intermittent failures. Replace any cable exhibiting resistance values above 10 Ω or impedance deviations beyond 100 ±15 Ω; these indicate invisible damage from kinks or excessive bending.
Step-by-Step Guide to T568A and T568B Connector Pinouts
Begin by stripping 2–2.5 cm of the outer jacket from the cable, exposing the twisted pairs. Avoid nicking the internal conductors–use a precision cutter or scissors designed for Ethernet sheaths. Unwind each pair just enough to straighten the wires for sorting, but keep twisting intact near the jacket to maintain signal integrity.
For T568A, arrange the conductors left to right in this sequence: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown. Press each wire into a modular jack or RJ45 plug, ensuring they reach the end of the connector without crossing. The green pair swaps position with the orange pair compared to T568B, a distinction critical for legacy phone systems and cross-connects.

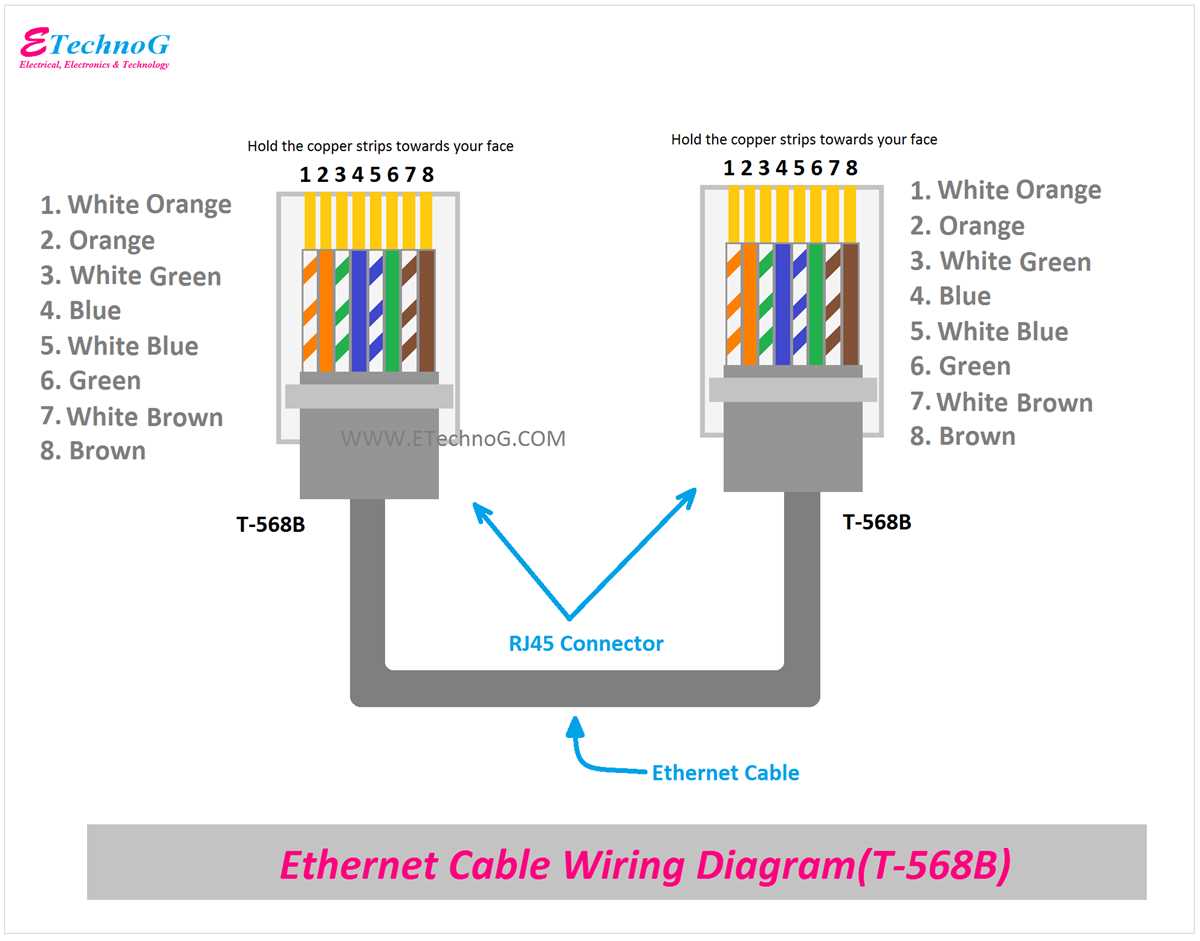

For T568B, the order changes to: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. This layout is dominant in North American installations and aligns with most pre-terminated patch panels. Verify the color coding against the connector pins–mismatches will cause link failure. Use a continuity tester to confirm correct mapping before crimping.
When terminating to a keystone jack, insert each conductor into its designated slot following the same color order. Apply downward pressure until the wire seats fully–most jacks have a plastic retention clip that clicks into place. Trim excess wire flush to prevent short circuits. For plugs, insert the wires until they extend just beyond the gold contacts, then crimp with a ratcheted tool to pierce the insulation and establish connection.
Critical Differences and When to Use Each
T568A is mandatory for U.S. government projects and residential telephony, where backward compatibility with older wiring schemes matters. T568B suits most commercial networks, particularly when interfacing with switches and routers pre-configured for this standard. Never mix standards on the same link–doing so creates a crossover cable, useful only for direct device connections like switch-to-switch or PC-to-PC.
After termination, test each link with a cable analyzer. Measure insertion loss, crosstalk, and return loss across all four pairs. A properly assembled T568A or T568B connection should deliver full-duplex Gigabit speeds with less than 0.2 dB of signal degradation at 100 MHz. Store unused connectors in electrostatic-proof bags–gold contacts oxidize within weeks if left exposed.
Proper Techniques for Preparing and Terminating Ethernet Cables
Use a stripping tool calibrated for 1.5–2 cm of jacket removal to avoid damaging inner conductors. Rotate the tool once around the cable, apply light pressure, then pull the severed outer layer off in one motion. Verify no nicks appear on the twisted pairs–even minor cuts reduce signal integrity by up to 3 dB per affected pair.
Untwist only the length necessary for termination, typically 12 mm (0.5 in) for T568A/B standards. Excess untwisting increases crosstalk; maintain twists within 3 mm of the connector for optimal performance. Arrange conductors in the correct sequence before cutting–uneven alignment causes miswires, degrading speeds by 40–60% in Gigabit applications.

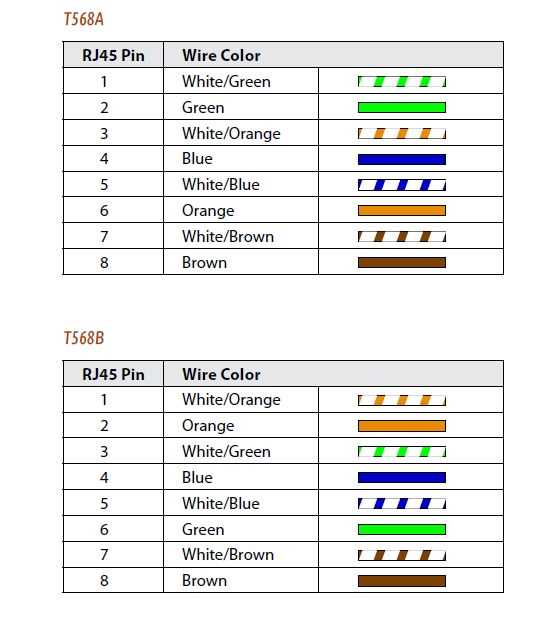

| Pin | T568A | T568B | Function |
|---|---|---|---|
| 1 | White/Green | White/Orange | TX+ |
| 2 | Green | Orange | TX– |
| 3 | White/Orange | White/Green | RX+ |
| 4 | Blue | Blue | Bi–Directional |
| 5 | White/Blue | White/Blue | Bi–Directional |
| 6 | Orange | Green | RX– |
| 7 | White/Brown | White/Brown | Reserved |
| 8 | Brown | Brown | Reserved |
Trim conductors to 10–11 mm (0.4 in) using flush-cutting pliers. Jagged ends prevent proper seating in the connector, causing intermittent failures. Align the cut edges against a flat surface to ensure uniformity–deviations greater than 0.5 mm can prevent contact with the connector’s gold-plated pins.
Insert conductors fully into the RJ45 connector until the jacket snaps into the strain-relief barbs. Verify each wire reaches the front of the connector through the transparent housing–partial insertion leads to weak or absent connections. Use a magnifying glass if necessary to confirm all eight conductors touch the terminal ends.
Select a ratcheting crimper with a force range of 30–50 lbs (13.6–22.7 kg). Position the connector in the crimp die so the blade aligns with the strain-relief barbs–misalignment damages the jacket or leaves the connector under-crimped. Squeeze handles firmly until the ratchet releases, ensuring all contacts pierce through the conductor insulation.
Test terminations immediately using a cable analyzer with TDR functionality. A pass requires less than 100 Ω resistance per pair and no split pairs. If failures occur, recheck conductor alignment–cutting back 2–3 mm and re-terminating often resolves issues. Avoid pulling on the cable during testing; stress above 25 N can weaken crimp integrity.
Dress the cable by securing the jacket 6–8 mm behind the connector using heat-shrink tubing or zip ties. This prevents jacket slippage, which pulls conductors out of the connector over time. For high-flex environments (e.g., robotic arms), use shielded cabling and ground the drain wire to the connector’s metal housing to prevent noise interference.
Label both ends with unique identifiers (e.g., “Patch Rm1-A1 to SW-3-24”) and document termination dates. Replace terminations every 3–5 years in standard environments, or annually in high-temperature or humid conditions where oxidation accelerates contact degradation.
