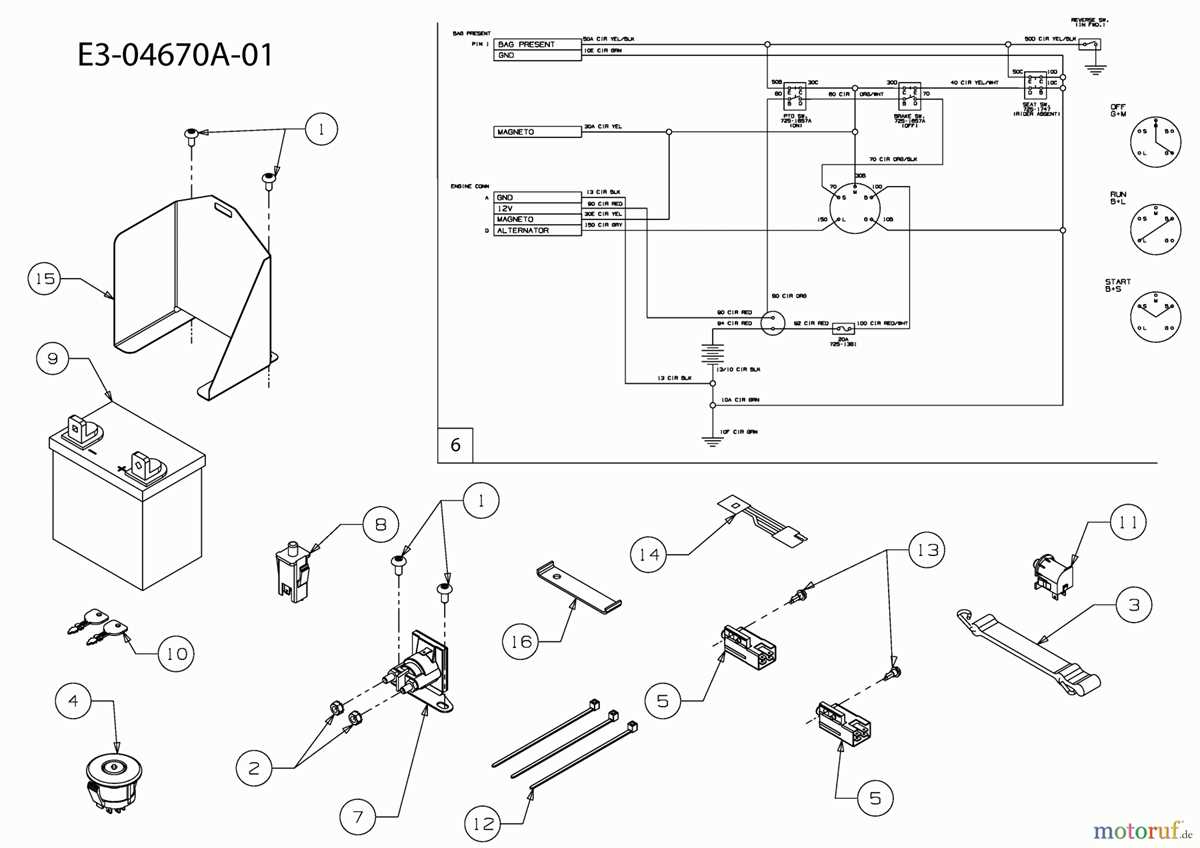

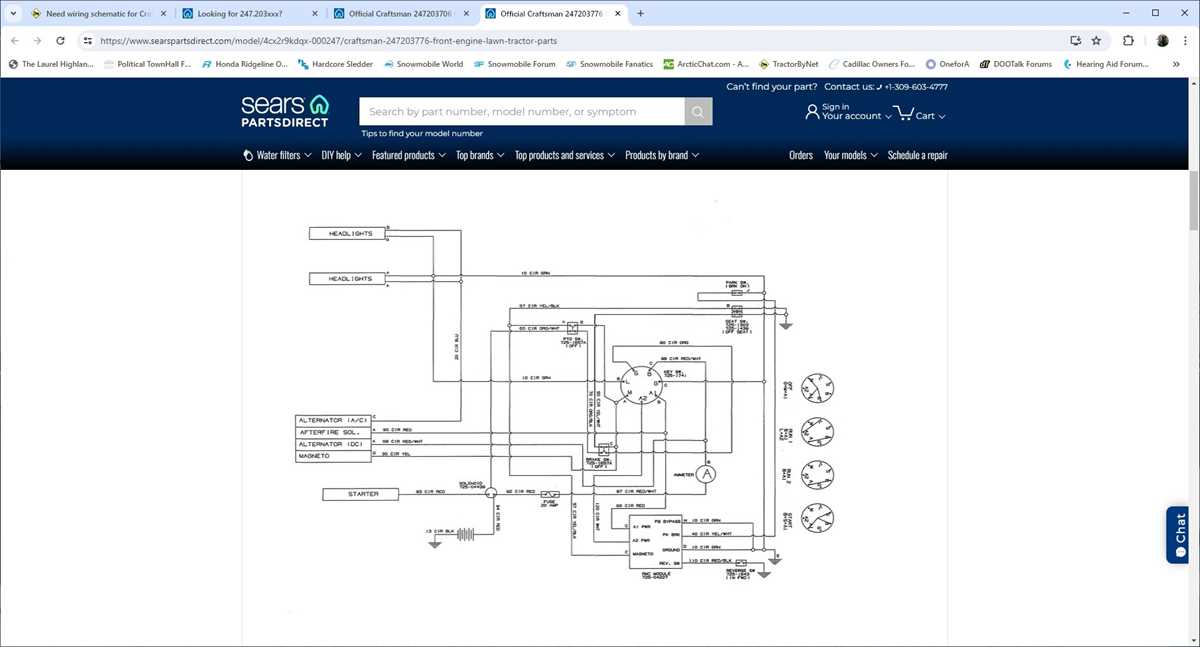

Complete Wiring Diagram Guide for Craftsman Lawn Tractor Models
Start by tracing the primary power feed from the battery’s positive terminal–typically a thick red cable–to the main fuse or ignition switch. If the engine cranks but won’t start, check the 30-amp fuse inline with this circuit; corrosion here mimics a dead battery. Locate the solenoid near the starter; the smaller spade terminal should show 12 volts when the key is turned to “start.” No voltage means a faulty ignition switch or broken wire, often hidden under the dash where rodents chew insulation.
Follow the color-coded harness behind the instrument panel. The yellow-striped wire carries 12 volts from the ignition to the hour meter; if it’s missing, the gauge won’t register runtime. Downstream, the brown-striped wire splits to the PTO clutch–verify continuity with a multimeter set to ohms; infinite resistance means an open coil and a burned-out clutch. The purple-striped wire runs to the seat safety switch; bypassing it can leave the mower running unattended, but expect fines in residential zones.
Inspect the ground paths next. The frame-mounted battery negative should connect to the engine block via a braided strap; loose bolts here cause intermittent stalls. The white-striped wire grounds the headlights–dim or flickering beams point to a corroded connection at the bulb socket or frame. For 2005-2012 models, the gray-striped wire bypasses the ignition during electric start; if your unit won’t shut off with the key, this is the first circuit to isolate. Tag every connector before disassembly; the flimsy plastic tabs snap with age.
Use a 5-amp circuit tester to probe the blade engagement wire (light blue-striped) at the PTO switch. The voltage should drop to near zero when the switch is flipped on; anything above 0.5 volts indicates a partial short, often inside the deck housing where wires chafe against the pulley cover. Replace the entire harness if more than three wires show insulation damage–patch jobs degrade within a season. Keep a spare set of bullet connectors rated for 20 amps; crimp-on types fail under vibration.
Final check: the voltage regulator’s red wire (from the stator) should spike to 14.2 volts at 3000 RPM; anything below 13.8 means a failing stator or loose flywheel key. Clean the rectifier’s heat sink–dirt buildup leads to overcharging and boiled electrolyte in the battery. Secure all zip ties every 6 inches; mice nest in loose bundles, severing circuits overnight.
Mastering Electrical Schematics for Your Garden Machine: A Hands-On Approach
Locate the ignition switch harness under the dashboard’s right panel–pin 1 (red wire) carries 12V from the battery, while pin 3 (yellow) grounds the solenoid. Use a multimeter to verify continuity between the starter motor’s B+ terminal and the solenoid’s input; readings below 0.5 Ohms indicate corrosion requiring immediate cleaning or wire replacement. For models with PTO (power take-off), note the 3-position toggle wiring: neutral connects to the white lead, engaged runs through the blue, and disengaged routes via black–swap leads if the mower engages unpredictably, as misaligned connections cause voltage drops up to 2V under load.
| Component | Color Code | Typical Voltage (Key On) | Failure Sign |
|---|---|---|---|
| Battery positive | Red | 12.6V | Dim lights, slow crank |
| Solenoid input | Yellow/Stripe | 12.2V | Clicking without starter engagement |
| Horn relay coil | Brown | 8-10V | No sound when button pressed |
| Headlight bulb | White | 13.8V (alternator output) | Flickering or failure to illuminate |
Inspect the voltage regulator’s heat sink–models with external rectifiers show burn marks when diodes fail, usually resulting in overcharging (above 14.5V) or undercharging (below 13V). Disconnect the 20-amp fuse linking the ammeter to the regulator; if voltage stabilizes, replace the rectifier assembly. For safety switch circuits: bypass the seat switch (momentarily) if the engine stalls when engaging blades–test continuity across the switch’s contacts while seated, normal resistance should be under 0.2 Ohms. Always crimp connectors with heat-shrink tubing for waterproofing; solder alone fails under vibration.
Finding Key Electrical Link Points on Your Garden Utility Vehicle
Begin beneath the operator’s seat–remove the plastic cover to expose the central electrical bundle. This primary harness typically splits into three main segments: the ignition system (thick red or yellow leads), lighting circuits (smaller brown or black wires), and the charging module (often a fused pair with a blue or white stripe). Trace each branch from its origin at the 12-pin connector to verify continuity before disassembly.
Under the engine hood, inspect the rear right corner near the battery tray. The alternator’s output cable (usually 8-10 gauge) connects via a ring terminal to the solenoid, while a thinner lead bridges to the voltage regulator. Use a multimeter set to 20V DC–probes on the battery posts should read 13.8–14.2V when the engine runs at half throttle. If readings drop below 13V, check the rectifier diodes for heat damage.
- Seat area: 12-pin junction (fuel shutoff, PTO relay, hour meter)
- Steering column: headlight switch (two 18-gauge wires, bullet connectors)
- Rear fender: tail light cluster (four-pin molex, polarity marked)
- Transmission housing: ground strap (bare copper, 6-gauge)
Testing and Reconnection Protocol
Label each harness segment with masking tape before detachment–note connector orientation (asymmetric tabs prevent reversed insertion). For intermittent faults, wiggle-test wires while monitoring voltage: a drop exceeding 0.2V indicates corrosion or a loose terminal. Replace push-in connectors with solder-and-heat-shrink joints if recurring issues persist. Aftermarket harnesses often lack fusible links–install inline fuses (10A for lights, 30A for ignition) within 6 inches of the power source.
Decoding Electrical Color Standards in Garden Equipment Blueprints
Begin by isolating the ignition circuit–commonly marked with red leads for power feed from the battery terminal. Verify continuity with a multimeter before connecting to solenoid or starter components, as intermittent corrosion on 10-gauge strands often disrupts current flow in older models. Brown or orange-striped cables typically denote charging system outputs; trace these directly to the voltage regulator and alternator housing to rule out voltage drops exceeding 0.3V under load.
Ground paths use black or yellow/black-striped conductors, which must terminate to unpainted metal brackets near the engine block–never rely on sheet metal flanges, as oxidation compromises conductivity over time. For safety interlocks, yellow leads handle seat switches while purple triggers blade disengagement solenoids; splice repairs require crimp connectors rated for 600V minimum to prevent arcing under vibration. Always route auxiliary circuits (lights, accessories) through light blue or grey wires paired with 5A fuses inline to avoid overload.
When interpreting schematics for PTO clutch circuits, note dark green feeds carry 12V activation signals–test these at the harness plug using a 5W bulb to confirm proper relay engagement before replacing solenoid units. For fuel shutdown valves, pink/black wiring shows momentary switch inputs; bypassing this path risks engine flooding during emergency stops. Document each color-to-component pairing in heat-shrink labeled sleeves for rapid diagnostics later.
Verifying and Swapping the Engine Activation Component Using the Schematic
Begin by locating the electrical key assembly near the operator’s seat. Disconnect the battery’s negative terminal to prevent accidental shorts–this step is non-negotiable. Using a multimeter set to continuity mode, probe the terminals marked “B” (battery) and “S” (starter solenoid) on the switch’s connector while turning the key to the “start” position. If no continuity is detected, the component has failed and must be replaced.
To remove the faulty unit, release the retaining clip securing it to the dash panel–typically accessed by removing a small trim cover. Note the orientation of the wires before disconnecting them; mismatching connections during reinstallation can damage the charging system. If the replacement part lacks pre-attached connectors, splice the original wires directly to the new switch using insulated crimp terminals, ensuring each connection is solder-free but mechanically secure.
Key-Specific Resistance Values
Measure resistance across the ignition switch terminals in the “off” position: “B” to “M” (magneto) should read infinite ohms, while “B” to “G” (ground) should show near-zero resistance. Deviations indicate internal corrosion or a broken circuit, requiring immediate attention. For models with a safety interlock (e.g., seat switch), verify the interlock circuit’s integrity by testing continuity between the switch and the safety module–interruptions here mimic ignition failure.
Reattach the battery and test the new assembly by cycling the key through all positions. Listen for the solenoid’s sharp click; absence of sound suggests a wiring error or faulty solenoid. If the engine still fails to turn over, inspect the fuse block for blown 10A-15A fuses–these protect the circuit and will blow repeatedly if a short exists downstream of the switch.
Troubleshooting Electrical Failures in Garden Riding Equipment
Start by inspecting the ignition switch for corroded terminals. Disconnect the battery first, then use a multimeter set to ohms to test continuity between the switch terminals. If resistance exceeds 0.5 ohms, replace the switch–oxidized contacts create voltage drops that prevent proper engine cranking. For models with safety interlocks, check the seat switch by pressing it manually while observing the dashboard lights; intermittent illumination indicates worn internal contacts requiring bypass temporarily for testing.
Examine the solenoid if the starter motor clicks but doesn’t engage. Connect a jumper wire directly from the battery’s positive terminal to the solenoid’s starter-side post–if the motor turns, the solenoid is faulty. On units with electronic fuel injection, inspect the main relay: locate it near the fuse box (often marked with a red or yellow cover), remove it, and shake–audible rattling confirms a failed internal diode, causing erratic power delivery to the fuel pump or ignition coils. For persistent charging issues, measure voltage at the battery with the engine running–readings below 13.8V signal a failing alternator, which can be tested by disconnecting the field wire and checking for resistance (should be 2.4–3.4 ohms).
Bypass faulty PTO switches by identifying the purple and orange wires (on most 2015–2020 models) leading from the switch to the clutch. Connect these wires directly with a 15-amp fuse inline–this forces clutch engagement for blade operation but disables safety features, so use only for diagnostics. If the engine stalls when releasing the brake, check the brake pedal switch: remove the pedal cover, press the switch plunge, and listen for an audible click. No click means the switch is defective; replace it or temporarily bridge the contacts with a paperclip to verify before ordering parts. Always trace ground wires–loose or corroded grounds near the engine block are the leading cause of intermittent electrical gremlins in ride-on machines.
