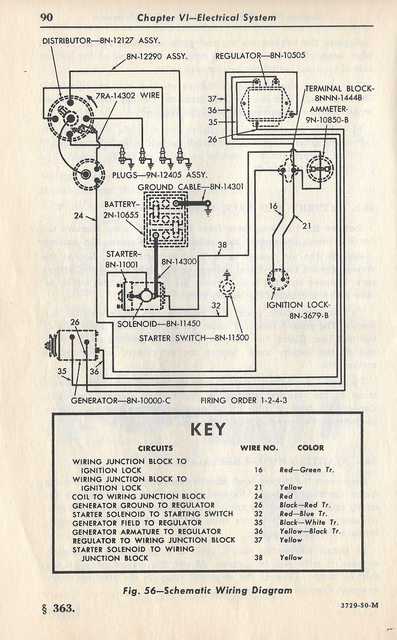

Complete 8N Ford Tractor Wiring Schematic and Troubleshooting Guide
The 8N utility vehicle’s ignition system requires precise cable routing to avoid voltage drops. Connect the battery positive terminal directly to the starter solenoid using a 10-gauge red cable, ensuring minimal resistance. The solenoid’s “S” terminal must link to the ignition switch via a yellow 14-gauge wire–any deviation risks intermittent starting failures. Ground the battery negative terminal to the engine block with a braided 6-gauge strap; avoid chassis grounds, as corrosion can disrupt current flow over time.
Lighting circuits demand dedicated pathways. Route headlamps through a fused 12-amp circuit, splitting power from the ignition switch to the left and right bulbs using separate 16-gauge green wires. Tail and brake lights share a common brown 18-gauge feed, but insert a diode near the brake pedal switch to prevent backfeed. For work lamps, use a relay-controlled circuit to handle the higher amperage, sourcing power from the alternator’s output terminal instead of the battery to reduce voltage sag.
Charging system maintenance hinges on correct alternator wiring. The alternator’s “A” terminal connects to the voltage regulator via a heavy-duty 12-gauge orange wire, while the “F” terminal links to the ignition switch through a smaller 16-gauge purple wire. Verify the regulator’s ground with a multimeter–readings should stabilize at 13.8–14.2 volts under load. If voltage drifts outside this range, inspect the brushes and replace the regulator before assuming alternator failure.
Fuse placement must match the original schematic precisely. The 8N uses a central fuse block near the steering column, with 8-amp fuses protecting the ignition and lighting circuits. Replace any blown fuse with the exact same rating–higher amperage risks melting insulation on the 14-gauge wires. For auxiliary components, like a hydraulic pump motor, add an in-line 20-amp fuse directly at the battery positive terminal to isolate faults.
Diagnosing intermittent faults requires systematic testing. Start by checking for voltage at the ignition coil positive terminal–it should match battery voltage when the key is engaged. If readings fluctuate, inspect the ballast resistor and coil connections for oxidation. For lights that flicker, probe the taillight socket ground with a test light; a dim glow indicates a poor ground, often resolved by sanding the mounting surface to bare metal.
Electrical Schematic Reference for 8N Series Agricultural Machine
Start troubleshooting by locating the ignition switch terminal connections: red/yellow (battery), black (ground), and green/red (starter solenoid). Disconnect the battery before probing to prevent short circuits–use a 10-amp multimeter set to continuity mode to verify connections between components. Fahlo 1952 manuals specify a 6-volt system; later models (post-1953) may use 12-volt, requiring resistor adjustments for lights and gauges.
Examine the instrument cluster wiring with these pin assignments:
| Wire Color | Terminal | Component |
|---|---|---|
| White/Black | A | Ammeter input |
| Brown | B | Light switch |
| Yellow/Red | C | Oil pressure sender |
| Blue/Red | D | Temperature sender |
Inspect the generator field terminal (marked “F”) for proper grounding–corrosion here causes charging failures. Clean contacts with 600-grit sandpaper, then apply dielectric grease. Replace frayed leads with 12-gauge wire, maintaining the original braided shielding to reduce interference. Original schematics label the voltage regulator base plate as terminal “A”; confirm continuity between it and the generator armature (“ARM”).
Headlight circuits require specific bulb types: 6-volt models use #1156 bulbs (21 watts), while 12-volt systems need #1157 (dual filament for brake/turn). Trace the light switch output (terminal “L”) to the dimmer switch–intermittent operation often stems from a worn floorboard-mounted plunger. Bypass the switch temporarily with a jumper wire to isolate the fault. For turn signals, the flasher unit (mounted under the dash) must match the system voltage; incorrect voltage causes rapid flashing or non-operation.
Check solenoid engagement by bypassing the ignition switch: connect a screwdriver between the battery terminal and the small “S” terminal– the starter should crank immediately. If not, test solenoid windings with an ohmmeter (resistance should read 0.2–0.5 ohms). Replace bent starter drive gears or worn brushes (standard brush length: 0.375″). Distributor wiring follows this sequence: black (coil “-” to points), green (coil “+” to ignition switch), and black/white (tachometer sender, if equipped).
Grounding Points Critical to Operation
Verify these key grounding locations with a wire brush and anti-seize compound:
1. Battery negative terminal to tractor frame (10-gauge cable).
2. Engine block to frame (behind starter motor, 8-gauge strap).
3. Dash panel to firewall (bare copper wire, 6-gauge).
4. Light housing to fender (14-gauge wire with ring terminal).
5. Hood latch mechanism (for accessory lights, if installed).
Isolate ground faults by connecting a temporary 12-gauge jumper wire directly from the suspected component to the battery negative terminal. If operation restores, clean the original grounding point or relocate it to an unpainted surface. For persistent issues, add a secondary ground path using star washers to penetrate paint layers. Original schematics show the ammeter should deflect consistently during charging– erratic needle movement indicates a weak alternator or faulty voltage regulator.
Identifying Critical Parts in the 8N Electrical Blueprint
Begin troubleshooting by inspecting the voltage regulator–mounted on the firewall, left of the steering column–marked with a rectangular metal casing and typically three terminals: “B” (battery), “A” (armature), and “F” (field). Verify resistance between terminals using a multimeter: “B” to “A” should read 15–25 ohms, while “F” to ground should measure 2–5 ohms. If readings deviate, replace the unit immediately to prevent battery overcharge or alternator failure.
Trace the ignition coil–cylindrical, positioned near the distributor–by following the thick primary wire from the ignition switch. Disconnect the coil wire from the distributor cap and attach a test light between the coil terminal and ground; crank the engine–if the light flickers, the coil is functional, if not, replace it. Additional components to locate include:
- The starter solenoid (attached to the starter motor, below the battery tray), recognizable by its two large terminals and a smaller “S” terminal–test by bridging the large terminals with a screwdriver; if the engine cranks, the solenoid is defective.
- The distributor (centered on the engine block), where the rotor should spin clockwise during cranking–inspect the points gap (0.020 inches) and condenser condition if spark is weak.
- The ammeter (dashboard gauge with “+” and “–” terminals), ensuring the battery lead connects to the “+” side to monitor charging current accurately.
For ground connections, focus on the engine block near the starter–clean the bare metal surface with a wire brush to ensure proper pathway for battery return current. Loose or corroded grounds are a primary cause of intermittent electrical failures.
How to Interpret the Electrical Blueprint of Your Vintage 8N Model
Locate the main fuse block first–it’s mounted on the dashboard’s right side, beneath the instrument cluster. Remove the cover by pressing the release tabs; three blade-type fuses protect critical circuits. Check amperage ratings: 5A for lighting, 10A for ignition, 15A for accessories. Replace blown units only with identical values–higher ratings risk burning delicate wiring insulation.
Identify the positive (+) bus bar, a horizontal red strip running along the firewall’s upper edge. Trace each cable from this strip to its destination terminal: headlights, taillights, generator regulator, and starter solenoid. Label every connection with numbered flags–use painter’s tape if working solo. Misrouting here causes voltage drops that mimic alternator failure.
Examine the ground network next. All braided straps bolt directly to painted metal; rust prevents conduction. Clean mounting points until bare metal shows–sandpaper or a wire brush works. Secure each strap with star washers; plain washers trap moisture and accelerate corrosion. Tighten bolts to 12-15 ft-lbs–overtorquing cracks the cast bosses on older frames.
Decode the ignition switch markings. Five positions are silk-screened:
- OFF opens the coil circuit.
- R starts the engine but bypasses the resistor.
- ACC powers accessories without energizing the charging system.
- ON engages the coil and fuel pump.
- START cranks the engine, then automatically returns to ON.
Misalignment damages the switch wafer; if engagement feels gritty, replace the entire unit.
Follow the charging system path. The voltage regulator sits atop the generator; three spade terminals (marked A, F, B) correspond to armature, field, and battery circuits. Measure voltage between B+ and chassis while idling:
- 12.2–12.8V means normal operation.
- Above 14V indicates a stuck cutout relay.
- Below 11.5V points to worn brushes or shorted field coil.
Always replace regulator and generator together–old brushes wear the commutator, shortening new regulator lifespan.
Test each bulb socket with a multimeter. Set to continuity mode; probe the center terminal and outer shell. Resistance should read 0-2 ohms–higher values mean oxidized sockets. Coat sockets with dielectric grease before reinstalling bulbs to prevent future corrosion. Polarity matters: center contacts must be positive; reversing causes flicker or dead lights.
Finally, verify centrifugal advance mechanism integrity. Remove distributor cap; turn rotor while watching points gap–the advance weights must swing freely. Apply light machine oil to pivot points every 50 hours; dirty weights stall timing advance, resulting in backfires and poor fuel economy.
