Step-by-Step Pioneer Stereo Wiring Guide for Car Audio Installation
Connecting a Pioneer head unit starts with identifying the pinout configuration. Most models follow a standardized color-coded scheme where yellow (B+) delivers constant 12V power, red (ACC) engages with the ignition, and black serves as ground. Verify these before proceeding–crossing these wires will damage the unit or blow a fuse. Check the manual for your specific model, as older DEH series use slightly different mappings than newer FH or DMH lines.
Speaker outputs on Pioneer systems use a consistent pattern: gray (front right +), gray/black (front right –), white (front left +), white/black (front left –), purple (rear right +), purple/black (rear right –), green (rear left +), and green/black (rear left –). If your vehicle’s harness doesn’t match these colors, cut and splice directly to the door or speaker wires, ensuring proper polarity. Incorrect pairing leads to phase cancellation, weakening bass and midrange output.
Grounding issues are the most common cause of poor performance or whining noises. Use a dedicated grounding point on the vehicle’s chassis, away from paint or corrosion. A 10-gauge or thicker wire is optimal–avoid daisy-chaining grounds through factory harnesses. If interference persists, add a noise filter or isolate the head unit’s power source with a capacitor rated at 15,000 µF or higher.
For amplifier integration, Pioneer head units provide RCA outputs (usually three pairs: front, rear, and subwoofer). Match these to your amp’s input voltages–most Pioneer decks output 2V, while aftermarket amplifiers often expect 4V or higher. Use shielded RCA cables to prevent signal degradation, and route them away from power wires to avoid cross-talk. If your setup lacks RCA jacks, some Pioneer models support high-level inputs–use the speaker wires directly, but ensure the amp’s impedance (typically 4–8 ohms) aligns with the head unit’s output.
Antenna connections require a single blue wire (power antenna or amplifier turn-on). This wire triggers the antenna motor or sends a signal to the amplifier when the unit powers on. Factory antennas often use a coaxial plug, while aftermarket antennas may need an adapter. If the antenna fails to extend, check the fuse or test for 12V on the blue wire when the system is active.
Installation Guide for Pioneer Audio Connectivity
Begin by matching the color-coded cables from your vehicle’s harness to the Pioneer unit’s connectors using the official pinout reference. Pioneer models typically use a 16-pin ISO connector, but verify your specific head unit model (e.g., DEH-S4220BT, AVH-120BT) for deviations–some older variants may have proprietary plugs.
For power, locate the yellow (constant 12V) and red (switched 12V) wires. Connect the yellow to the vehicle’s fused battery line to retain memory settings, while the red should link to an ignition-controlled source to prevent battery drain. The black wire (ground) must attach to a clean, bare metal surface–sand down paint if necessary–to avoid signal interference or intermittent power loss.
Speaker outputs follow this standard color scheme, but double-check impedance compatibility (typically 4 ohms) to prevent amp overload:
- Front Left: White (+), White/Black (-)
- Front Right: Gray (+), Gray/Black (-)
- Rear Left: Green (+), Green/Black (-)
- Rear Right: Purple (+), Purple/Black (-)
Antenna adapters vary by vehicle. If your Pioneer unit includes an external amp control (blue/white wire), connect it to the factory amplifier’s remote turn-on lead or use a dedicated relay for aftermarket systems. Failure to do this may result in no audio output despite correct speaker connections.
Troubleshooting Common Issues
If the display flickers or the unit resets randomly:
- Recheck the ground connection for corrosion or loose terminals.
- Verify fuse ratings (usually 10–15A) on both the head unit and inline harness.
- Ensure the yellow wire bypasses switches or relays that could introduce voltage drops.
For steering wheel control integration, use a compatible interface module (e.g., PAC RP4-PIONEER or iDatalink Maestro). Avoid splicing directly into OEM wires–this can trigger error codes in modern vehicles. Always disconnect the negative battery terminal before starting work to prevent short circuits or airbag deployment.
Final Validation Steps
After securing all connections, power on the system to test:
- Volume consistency across all channels (no distortion at high levels).
- USB/auxiliary inputs (if applicable) for functional data transfer.
- Bluetooth pairing (if equipped) with stable connectivity.
- Reverse camera input (if included) for proper signal routing.
If any feature malfunctions, re-examine the corresponding wire harness section–cross-contamination between power and signal lines is a frequent culprit.
Decoding Color Codes in Pioneer Audio Connector Cables

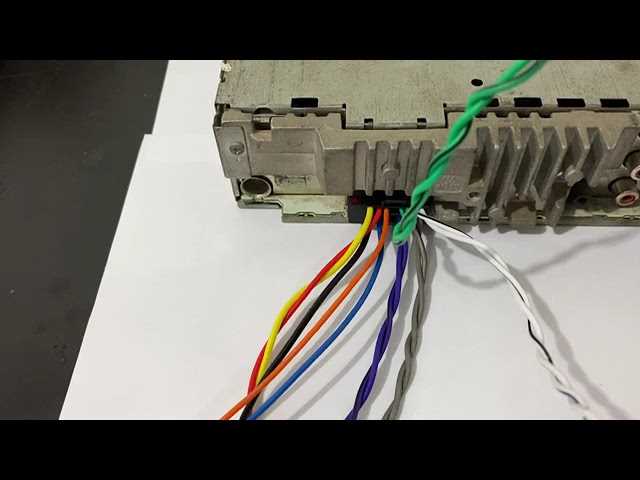

Begin by locating the 16-pin connector on the back of your Pioneer head unit–this is the primary interface for vehicle integration. The yellow cable is always the constant 12V power supply, delivering current from the battery to maintain memory settings for radio presets and clock function. Cutting or splicing this line without a relay will drain the battery within days. Pair it with a red accessory wire, which only energizes when the ignition is turned on, ensuring the system powers down with the vehicle. Use a multimeter to verify both lines read 12V; fluctuations outside 11–14V indicate a faulty connection or weak battery.
Speaker outputs follow an industry-standard color scheme but vary slightly by model year. The white and white/black pair delivers front left channel output, while gray and gray/black handle the front right. Rear left uses green and green/black, with purple and purple/black for the rear right. Polarity matters–match solid colors to positive terminals and striped versions to negative. Swapping these can degrade soundstage imaging or cause phase cancellation, especially in bass-heavy tracks. For aftermarket amplifiers, tap into these lines before they reach factory speakers to avoid voltage drop across thin OEM leads.
Grounding is critical–connect the black wire directly to bare metal on the chassis, sanding away paint or rust for optimal conductivity. A poor ground manifests as engine noise (whining or static) through the audio system, often mistaken for alternator whine. For vehicles with rear-seat entertainment or subwoofer outputs, Pioneer typically adds a brown cable for remote turn-on and a blue/white line for amplifier triggers. The latter sends a 12V signal when the head unit powers on, activating external devices like powered subwoofers. Splice this wire to a relay if connecting multiple amps to prevent overloading the trigger circuit.
Exception Cases and Rare Color Variations
| Model Series | Non-Standard Wire | Function | Verification Method |
|---|---|---|---|
| AVH-X/P series | Light blue | Steering wheel control input | Check continuity with SWC module; 1k–5k ohm resistance across terminals |
| DEH-2200 | Orange/white | Illumination dimmer (+) | Voltage drops to 0–2V when headlights are on; constant 12V with lights off |
| MVH-S21 | Pink | USB power (non-standard) | 5V output with multimeter; paired with black USB ground |
Test any unfamiliar cables with a multimeter before connecting–some older European models use orange for speed-sensor inputs, which can fry modern GPS modules if miswired. For fiber-optic MOST systems (e.g., Pioneer NEX units), look for a transparent red cable–this carries digital audio signals and requires a special adapter (PAC RP4-CH11) to interface with standard RCA outputs. Never assume continuity; factory harnesses often include empty pins or repurposed colors for regional variants. Always cross-reference the pinout in the manual’s appendix, as even minor revisions (e.g., AVH-120BT vs. AVH-130BT) alter auxiliary functions.
For parking brake safety circuits, the light green wire detects engagement–bypassing it will disable video playback while driving in compliant models. Use a resistor (330–560 ohms) between this line and ground to simulate engagement, but note that this may violate local regulations. On models with navigation, a beige wire carries GPS antenna power; disconnecting it will disable real-time traffic updates. When installing reverse-camera inputs, the purple/white cable triggers a 6V signal during reverse gear–route this along the vehicle’s factory wiring loom to avoid interference with taillight circuits.
Troubleshooting Common Mismatches
If the head unit fails to power on despite verified connections, check the red/white cable–some Asian-market models repurpose it as a second constant power source. For vehicles with factory amplified systems (e.g., Bose, JBL), the pink/black wire serves as a speaker-level output for subwoofer channels; tap into it with a line-output converter (LOC) to retain bass management. Static distortion often traces back to the brown ground interference; reroute it away from power cables and use shielded twisted-pair RCA for amplifier connections. Remember: Pioneer’s proprietary iDatalink harnesses reverse colors for CAN bus modules–consult the Maestro RR adapter manual for model-specific mappings.
Step-by-Step Connection Guide for Aftermarket Pioneer Head Units
Begin by disconnecting the vehicle’s battery terminal to prevent short circuits during installation. Use a 10mm wrench to loosen the negative clamp–this ensures no residual power flows through the system while handling electrical interfaces.
Remove the factory dashboard trim using plastic pry tools to avoid scratching surfaces. Most trim panels snap into place, but some may require unscrewing hidden fasteners–check behind switches or vents for concealed screws.
Locate the OEM harness adapter matching your vehicle’s make and model. Pioneer’s universal adapters often include color-coded pins, but verify compatibility with the car’s existing plug layout to prevent mismatched connections.
Key Power and Audio Linkages
Identify the constant 12V (yellow), ignition-switched 12V (red), and ground (black) leads on the harness. Crimp or solder these to the vehicle’s corresponding wires–yellow to battery-positive, red to accessory power, and black to chassis ground. Use a multimeter to confirm 12.6V readings before finalizing connections.
Attach speaker cables following the polarity rule: positive leads (typically thicker or striped) connect to corresponding speaker outputs, while negative leads pair with solid-color wires. Cross-check with the aftermarket unit’s manual to avoid phase cancellation–reversed polarity can degrade sound clarity.
For amplified systems, route the remote turn-on lead (blue/white) to the amplifier’s trigger input. Without this signal, the amp may fail to activate, leaving the system silent. If the vehicle lacks an amp, cap this wire with electrical tape to prevent shorts.
Final Checks and Test Run
Reconnect the battery and power on the head unit. Verify display illumination, volume control, and source switching. Test all speakers individually–listen for distortion or imbalance, which may indicate incorrect wiring. If static persists, re-examine ground connections and ensure shielding integrity.
Secure all cables with zip ties to prevent rattling or disconnection from vibration. Reassemble the trim panels, ensuring no wires are pinched under plastic clips. For vehicles with steering wheel controls, integrate an adapter module now–adjust button functions via the head unit’s settings menu.
