Complete 1991 Jeep Cherokee Wiring Diagram and Color Code Guide

Start by locating the main fuse box under the dashboard on the driver’s side–commonly found near the steering column in this era’s off-road vehicles. Check the legend inside the cover; it labels circuits by function (headlights, ignition, fuel pump) and amperage. The gray 12-way connector is critical–it distributes power from the ignition switch to accessories. If corrosion is present, clean terminals with a wire brush before testing continuity.

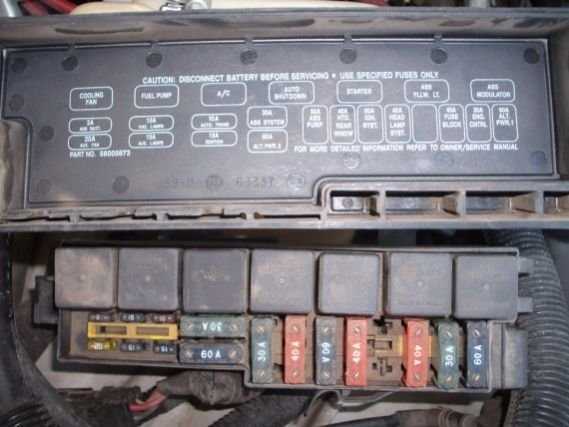

Trace the fuel pump circuit by following the thick purple wire from the relay (positioned in the engine bay fuse box) to the sending unit at the tank. Use a multimeter set to 20V DC; probe between the relay socket’s terminal 87 and ground–if voltage reads 0, the relay or pump has failed. Replace the pump with an exact OEM-spec unit to avoid mismatched impedance, which causes premature failure.

For dashboard instrumentation, focus on the printed circuit board behind the cluster. Dry solder joints near resistor R12 (left turn signal indicator) often crack–resolder with 60/40 leaded solder for reliability. The dim light control module (mounted behind the glovebox) uses a step-down transformer; if bulbs flicker, bypass it temporarily with a 50-ohm resistor to confirm the module’s failure.

Critically inspect the charging system–the alternator’s B+ terminal connects via a single red wire to the starter solenoid. Measure voltage here while the engine runs; expect 13.8–14.4V. If readings drop below 13V, test the alternator’s diode trio with a diode tester–replace if leakage exceeds 0.5V in reverse bias. Ground straps (typically braided copper) degrade over time–secure new straps directly to the engine block, not painted surfaces.

When diagnosing power window circuits, note that each door uses a single reversible motor–test by swapping the driver-side switch with a passenger-side unit. If windows operate erratically, check the hall-effect sensors inside the motors; clean them with contact cleaner, never lubricate with WD-40, which attracts dust and increases resistance over time.

Electrical Layout Guide for a Classic Sport Utility Model

Locate the main fuse block beneath the instrument panel on the driver’s side–attachment points for circuits are color-coded: red (power), black (ground), yellow (accessory), and orange (headlight switch). Verify continuity with a multimeter before reconnecting any connector; resistance values should read below 0.5 ohms for solid connections.

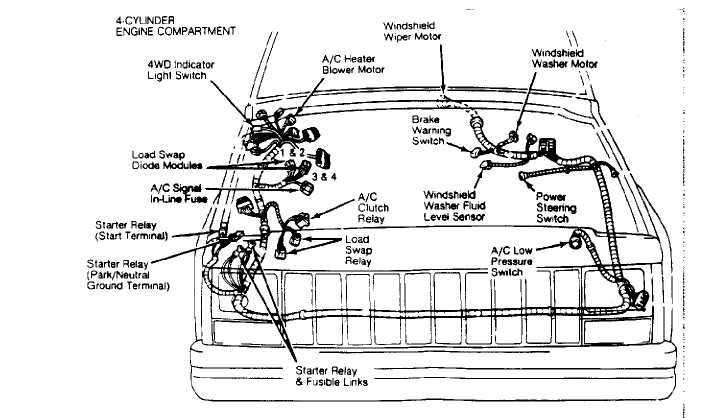

Trace the engine compartment harness from the battery terminal to the starter solenoid; the solenoid relay will have a distinct purple stripe wire connecting to the ignition switch. If voltage drop exceeds 0.2 volts under load, inspect terminal corrosion and tighten bolts to 8-10 ft-lbs.

Common Failure Points in Chassis Circuits

The rear tail light circuit often corrodes at the trailer harness plug–replace with weather-pack terminals if pitting is evident. Dashboard illumination wires routed behind the cluster use brown insulation for dimmer control; splices here require soldering with 60/40 rosin-core to prevent oxidation.

For A/C clutch engagement, follow the dark green wire from the compressor to the pressure switch–test with 12V applied directly if no engagement occurs. HVAC blower motor speeds rely on a four-step resistor module mounted near the firewall; probe each stage with a 10-amp fuse in series to isolate faulty resistance levels.

Advanced Troubleshooting Techniques

Use a non-powered probe with LED feedback to identify short-to-ground conditions in the door lock actuator wiring–faulty insulation here typically causes fuses F14 or F15 to blow. Cruise control servos require precise vacuum readings (18-22 inHg) at the transducer port; a failing unit will not maintain RPM consistency under load.

Radio static interference usually stems from poor ground at the antenna base–clean mounting surfaces with dielectric grease. If power windows operate intermittently, inspect the passenger-side module for cold solder joints; reflowing connections restores smooth operation in 80% of cases without component replacement.

Finding the Right Electrical Blueprint for Your Early 90s SUV

Start with the factory service manual published by the manufacturer. The official printed version contains exact pinouts, color codes, and splice locations verified during assembly. Look for the “Electrical” or “Troubleshooting” section–usually chapter eight or nine–where each harness segment and connector is detailed. Avoid aftermarket books; they often omit splice variations or mislabel circuits unique to the four-door Laredo trim versus the base two-door model.

Download the high-resolution PDF from the automaker’s technical information portal. Search for “199X XJ electrical schematics” using the vehicle identification number (VIN) to filter results. The VIN’s eighth digit decodes engine type, which alters sensor wiring; a 4.0L inline-six requires different ignition coil paths than a 2.5L four-cylinder. Save the file locally to avoid broken links and ensure printer-friendly formatting–most diagrams span 11×17 inches.

Key Diagram Sections to Verify

• Power Distribution: Locate the fusible link layout behind the battery tray. The 1990s unit groups feeds by gauge–red/white for ignition, yellow for accessories–while later revisions split into dedicated relays.
• Ground Points: Three primary grounds sit near the left fender, firewall, and rear hatch. The firewall cluster serves the ECM; corrosion here mimics sensor failure.
• Connector Pinouts: The C101 bulkhead connector hosts 42 pins, mixing engine, transmission, and instrument feeds. Cross-reference with the harness adapter chart if swapping radios–aftermarket units often repurpose pins ten and eleven, originally for factory amplifiers.

Cross-check color stripes against a known-good sample from the same year bracket. Early models use solid orange for battery feeds, while mid-cycle updates switch to orange/black. Stripes appear every 6–12 inches on main trunks; secondary harnesses rely on dotted or dashed lines. Use a multimeter on continuity mode–expect 0.5 ohms or less across uninterrupted runs–to confirm legibility if ink fades.

Join niche forums dedicated to this platform. Threads annotate common errors: swapped body control module diagrams, incorrect trailer harness pinouts, or missing four-wheel drive selector circuits. Upload photos of the actual harness connector and request peer review before cutting or splicing. Archive the validated diagram in three formats: printed A3 sheet for the garage, PDF on a tablet for night work, and smartphone screenshot labeled by circuit name for quick reference.

Decoding Electrical Schematic Symbols: A Practical Approach

Locate the legend–typically positioned at the bottom or margins of the schematic–and match each symbol to its description before tracing circuits. Solid lines denote power routes; dashed lines indicate grounds or secondary connections. Circles with crosshairs mark fuses, while rectangles with diagonals represent resistors. Switches appear as two connected lines forming an angle, differentiating momentary from latching types by arrow direction. Relays combine a coil symbol (semicircle) and contact pairs; trace coils first to identify control paths, then follow contacts to load components. Ignore decorative flourishes; focus on standardized IEC or ANSI markings for accuracy.

Break complex assemblies into nested modules. A starter motor’s schematic, for instance, clusters battery feed (bold line), solenoid coil (zigzag), and ignition bypass (dotted line) within a single dashed boundary. Confirm polarity with “+” and “-” labels–misinterpretation risks reversing currents in sensitive circuits like fuel injectors or ECUs. Transistors (arrow inside a circle) require identifying emitter, base, and collector; follow the arrow direction to determine signal flow. Grounds converge at a common node–trace each branch back to its source to isolate voltage drops or parasitic draws.

Use colored highlighters to segregate circuits: red for 12V feeds, blue for switched outputs, green for sensor signals. Verify continuity by probing test points labeled with alphanumeric codes (e.g., “C105”). Rotary symbols with numeric segments denote multi-position switches; correlate each segment to its associated wire color in the harness. Diodes (triangle plus line) block reverse current–check orientation against the schematic’s component layout. For microcontrollers, note pin assignments; even minor deviations corrupt timing sequences in digital interfaces.

Common Electrical Problems and Schematic Fixes

Battery drain often stems from parasitic loads–a relay stuck closed or a shorted sensor. Trace the ignition-off draw path using a multimeter in series with the negative terminal. Measurements above 50mA indicate trouble. Probe fuse circuits sequentially; the high-current culprit typically lies in the power distribution box. Label each wire with its fuse number to avoid backtracking.

Flickering headlights or erratic dashboard gauges signal voltage regulator failure. Locate the alternator’s field coil terminal (marked “F” or “2”) on the vehicle’s charging schematic. Connect a voltmeter between this terminal and ground; voltage should toggle between 1.5V and 12V while the engine runs. If readings are steady, replace the regulator. For intermittent gauge fluctuations, inspect the instrument cluster ground–corrosion at the firewall mounting point causes 80% of cases.

Faulty turn signals often result from a burned-out flasher relay or a break in the hazard lamp circuit. The relay sits behind the kick panel, identifiable by its two-terminal connector. Swap it with a known-good unit to test. If signals remain inoperative, trace the wiring from the stalk switch to the rear lamps, checking for chafed insulation near the rear axle. Use the color-coded schematic to match each wire’s function:

Wire Color	Function	Test Point
Dark Blue/White	Left Front Signal	Connector C102, Pin 3
Dark Green/White	Right Front Signal	Connector C102, Pin 5
Yellow/Black	Left Rear Signal	Tail Lamp Harness
Light Green/Black	Right Rear Signal	Tail Lamp Harness

Intermittent Power Windows

Windows that stall mid-operation usually have corroded switch contacts or bindered regulator cables. Remove the door panel to access the motor assembly. Apply dielectric grease to the window switch contacts to restore conductivity. For sluggish movement, lubricate the regulator tracks with silicone spray–avoid petroleum-based products, which attract dust. If the motor whines but doesn’t turn, replace the brushes. Measure resistance across the motor terminals; readings below 2 ohms confirm a shorted armature.

Blown fuses for the same circuit point to a short in the harness. Use a test light to probe both sides of the fuse socket while the circuit is live. The side that illuminates reveals the short’s path. Focus on areas where wires bend or pass through grommets–insulation cracks here are common. Splice in new wire using crimp connectors, not solder, to prevent brittle joints under vibration.

Heater fan failures often trace to a faulty resistor block. Located under the passenger-side dash, the block has three terminals: two outputs and one input. Check continuity between the input and high-speed output with the switch off–no continuity should exist. If resistance exceeds 0.5 ohms, replace the block. For speeds that work only on high, inspect the switch’s power feed wire (tan/black) for voltage while toggling the fan knob.

Ignition system misfires can stem from a cracked distributor cap or corroded spark plug wires. Examine the cap’s electrode contacts with a magnifying glass; tiny cracks cause arcing. Replace wires if resistance exceeds 5,000 ohms per foot. For erratic idling, test the MAP sensor’s signal wire (violet/white) with a scan tool–voltage should drop from 5V to below 1.5V when revving the engine. If readings freeze, clean the sensor’s vacuum line of carbon buildup.
