Complete Boat Trailer Light Wiring Guide for Safe Towing

Begin by verifying the voltage compatibility of your vehicle’s power source and the lighting fixtures. Most standard automotive and marine transport solutions operate on 12V DC, but older models or specialized equipment may require 24V. Check the manufacturer’s specifications for both the tow vehicle and the attached cargo carrier to avoid mismatches that could lead to flickering, overheating, or complete system failure. A multimeter should be used to confirm voltage levels at the connection points before proceeding.

Use waterproof connectors rated for marine environments, such as heat-shrink butt splices or waterproof crimp terminals. These components prevent corrosion from moisture, saltwater exposure, and road debris–common issues that degrade standard automotive wiring over time. Avoid twist-and-tape methods; they provide temporary fixes but fail under prolonged stress. For added protection, apply dielectric grease to all terminal connections to repel water and resist oxidation.

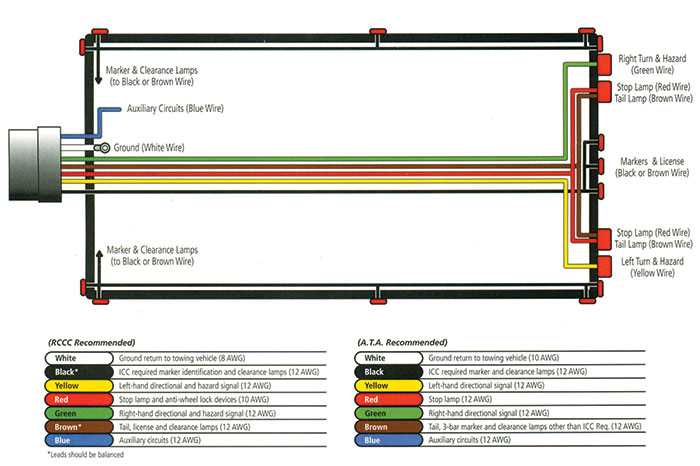

Follow a color-coded scheme consistent with industry standards to simplify troubleshooting. The standard for auxiliary transport includes:

• Brown – running lamps (side markers, clearance lights)
• Yellow – left turn/brake signal
• Green – right turn/brake signal
• White – ground connection
• Blue (optional) – electric brake control or auxiliary functions

Connect corresponding colors from the tow vehicle’s harness to the cargo carrier’s plug, ensuring no cross-wiring that could disrupt signal transmission.

Install a dedicated fuse or circuit breaker rated for the total amperage draw of all fixtures. A typical setup with LED clearance lamps and signals consumes under 5 amps, but incandescent bulbs may draw up to 20 amps. Overloading the circuit risks melting insulation or tripping the vehicle’s fuse box, leaving the system inoperable. Route all cables through conduit tubing or loom protectors to shield them from abrasion against the transport frame or cargo.

Test each function prior to final assembly. Activate the brake pedal, turn signals, and running lamps separately while observing the cargo carrier’s response. If a lamp fails, use a circuit tester to trace the fault–beginning at the fixture and working backward to the power source. Inspect for loose connections, broken wires, or blown fuses, rectifying issues before sealing the system. For long-term reliability, perform seasonal checks, especially after exposure to harsh conditions or prolonged storage.

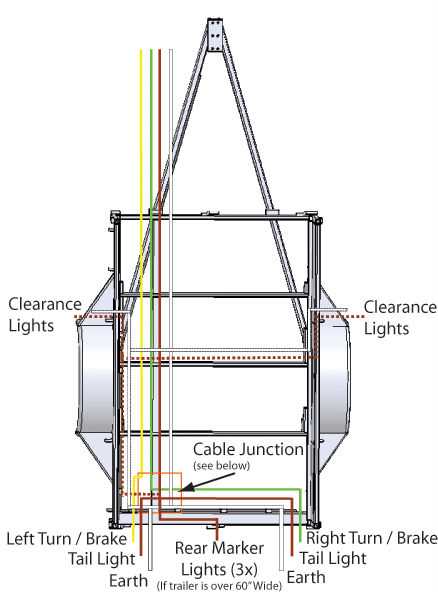

Electrical Schematic for Marine Towing Signal Setup

Begin with a 4-pin flat connector to ensure compatibility with standard towing vehicles. Connect the brown conductor to the running illumination terminals on both sides–this maintains steady output at 12V. Route the yellow lead to the left rear signal cluster, and the green to the right, ensuring each branch passes through a 3-amp inline fuse to prevent overload during sudden voltage spikes. Use waterproof butt splices for all joints, crimped and sealed with heat-shrink tubing rated for submersible environments; avoid twist-and-tape methods entirely. Ground each light fixture directly to the frame at the nearest unpainted metal point, bypassing any chassis paint or corrosion to guarantee consistent conductivity.

For extended trailers exceeding 8 feet, integrate a separate 5-pin system: use the blue circuit for electric brake activation, spaced at least 18 inches from the lighting circuits to minimize interference. Test continuity with a multimeter before first water launch–verify each function (steady burn, turn indicators, brake pulses) activates within 0.2 seconds of vehicle input. Replace any corroded connectors immediately; zinc-plated terminals last 30% longer than standard copper in saltwater exposure tests.

Selecting Optimal Electrical Kits and Junction Components for Marine Vessel Haulers

Begin with a 4-way flat connector if your rig uses basic illumination–brake signals, running markers, and turn indicators–without auxiliary functions like electric braking systems or reverse alarms. This setup, often labeled “SAE J1128,” handles up to 15 amperes per circuit, sufficient for most single-axle designs under 3,000 pounds. Verify the wire gauge: 18 AWG for short runs under 10 feet, but step up to 16 AWG if exceeding that distance to prevent voltage drop.

For multi-axle platforms or heavier cargo exceeding 5,000 pounds, upgrade to a 5-way or 7-way round connector, compliant with SAE J560. The 7-way variant accommodates an additional 12-volt power source for charging onboard batteries, a critical feature if your hauler includes winches or hydraulic lifts. Ensure the harness incorporates a weatherproof junction box with sealed butt connectors–avoid twisted splices, as marine environments corrode exposed copper within weeks.

Material Specifications for Longevity

Choose tinned copper conductors over bare copper; the tin coating resists saltwater-induced corrosion by up to 70% longer. Polyvinyl chloride (PVC) insulation suffices for freshwater use, but for saltwater exposure, opt for cross-linked polyethylene (XLPE)–it withstands UV degradation and abrasion from road debris. Look for harnesses labeled “submersible” if the rig frequently launches in tidal zones; these use heat-shrunk tubing over all terminals.

Pick connectors with gold-plated pins for low-voltage circuits (under 20 amperes). Gold outperforms nickel or tin in humid conditions, maintaining conductivity for over 1,000 mating cycles. For high-current paths–like brake controllers or heavy-duty lighting–use silver-plated brass terminals, rated for 50 amperes continuous. Always match the connector’s amperage rating to the thickest wire in the circuit; undersized terminals risk overheating under load.

Use dielectric grease sparingly–apply a thin film to male connector pins before assembly to displace moisture, but avoid globbing, which can attract dust and create insulating barriers. Secure the harness to the chassis with nylon cinch straps, never zip ties: UV-resistant nylon lasts years, while standard plastic degrades in 12 months. Route wires away from sharp edges and moving parts, using split convoluted tubing on sections exposed to engine heat or exhaust.

Verification and Testing Protocols

After installation, test each circuit with a 12-volt multimeter, not a simple test light. Probe the connector pins with the tow vehicle’s engine running to confirm voltage matches the battery’s output–expect 13.8 to 14.4 volts. Voltage below 12.6 volts indicates either a corroded ground or undersized conductor. Ground all circuits independently to the hauler’s frame using 12 AWG wire, never daisy-chaining grounds through sheet metal or bearings.

Installation Walkthrough: Linking Signal Components on Utility Haulers

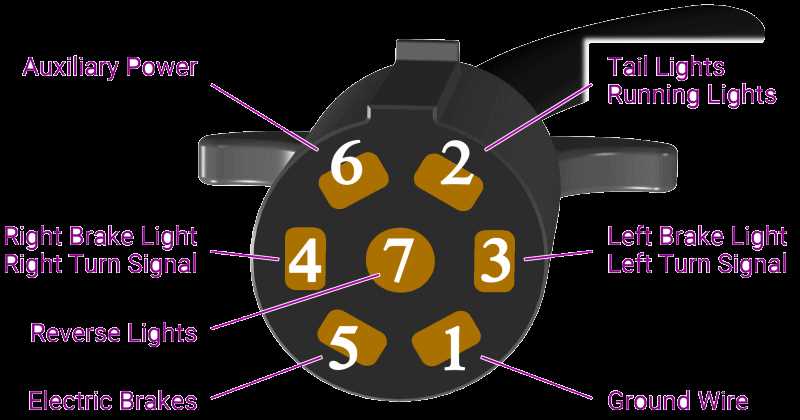

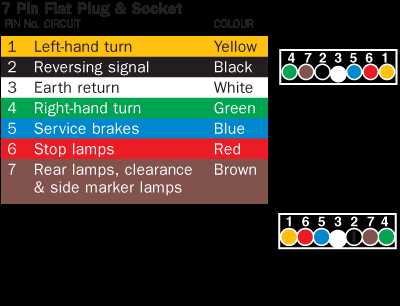

Begin by locating the vehicle’s rear electrical panel. Identify the four primary circuits–stop indicators, signal flashers, steady lamps, and backing illumination. Most modern towing rigs provide a dedicated seven-pin connector pre-wired to these outputs. Match each terminal to its corresponding function using a multimeter: pin 1 (ground), pin 2 (auxiliary), pin 3 (left flasher), pin 4 (stop/steady), pin 5 (right flasher), pin 6 (backing lamp), pin 7 (steady lamps).

Verify ground integrity before proceeding. Attach a test lead from the negative battery post to the hauler’s frame or designated ground point. Inadequate grounding causes intermittent failures–sand any rusted surfaces and secure with a stainless-steel bolt torqued to 25 ft-lbs. If the hauler uses a composite frame, run a 10-gauge jumper directly to the negative post.

Connect the flasher circuits by crimping spade terminals to 16-gauge wire, then snap onto the vehicle’s left and right indicator outputs. Use heat-shrink tubing over each joint to prevent corrosion. Route wires along the hauler’s spine, securing every 18 inches with nylon clamps. Avoid sharp edges; a ½-inch radius bend prevents chafing.

• Stop/steady lamps: combine both functions on a single pin where allowed by local regulations. Splice a 14-gauge wire into the vehicle’s brake light switch and tail lamp circuit, then run to the corresponding hauler socket.
• Backing illumination: use a separate 12-gauge wire if the hauler is equipped with reverse sensors or backup cameras–tap into the transmission’s reverse light switch.

Test each circuit individually. Activate hazards, then left turn, right turn, steady lamps, and reverse while observing the hauler’s lenses. Flickering or dim illumination indicates a voltage drop–trace the run with a voltmeter, ensuring readings remain above 11.8V under load. Replace any wire showing resistance over 0.2 ohms per foot.

Apply dielectric grease generously to the connector interface. This displaces moisture and inhibits oxidation. For marine environments, wrap each splice in self-fusing silicone tape, overlapping layers by 50% for waterproofing. Recheck signals after submerging the hauler’s rear in 12 inches of water for three minutes–no leakage current should exceed 0.1A.

Finalize the harness layout by bundling wires in split loom tubing, secured with UV-resistant zip ties. Route away from exhaust components and suspension travel zones. Label each circuit at both ends with shrink-wrap markers for future troubleshooting.

Document the configuration: photograph terminal assignments, note wire colors, and record multimeter readings. Store this alongside the vehicle’s maintenance log–rebuilding after neglect takes twice as long as initial installation.
