Step-by-Step Wiring Guide for Chevy HEI Distributor Installation

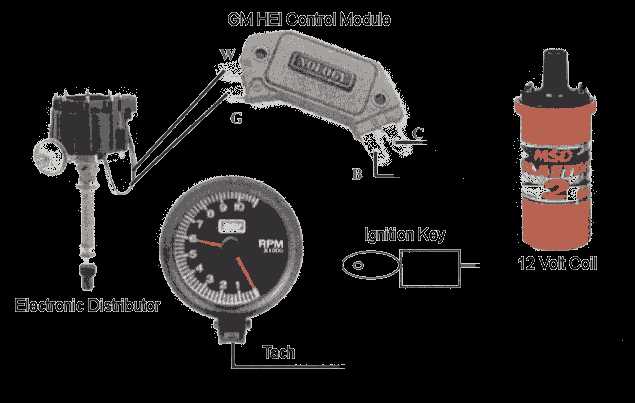

Start by locating the module’s primary terminals–marked BAT (battery feed), TACH (tachometer output), C (coil negative), and GND (ground). THE BAT post accepts a direct 12V supply from the ignition switch or fused circuit; failure here kills spark instantly. Verify voltage at the post with a multimeter–no readings indicate a break in the feed cable or a blown fuse.

Attach the coil’s negative lead to terminal C. A single 16-gauge wire, typically black or purple-striped, suffices; resist splicing additional strands as they introduce resistance spikes. The GND post requires a robust connection to the engine block; paint-scraped metal ensures zero potential drop. Corrosion here mimics a broken ground–clean surfaces with a wire brush before fastening.

For tachometer hookups, route a dedicated 18-gauge wire from terminal TACH straight to the gauge’s signal post. Avoid daisy-chaining through other sensors; each added junction increases inductive noise. If the gauge registers erratic readings, probe the TACH post–consistent 0-12V pulses should mirror coil firing events. Deviations signal a faulty rotor or cracked cap.

Color codes vary by manufacturer but standard GM harnesses follow: red (BAT), black (C), green (TACH), white or bare (GND). Cross-referencing with service manuals for your specific year is mandatory–later models integrated a four-terminal harness while early 70s units used three. Ignoring these distinctions risks back-feeding voltage into sensitive circuits.

Capacitor placement on the module’s exterior isn’t decorative–it stabilizes voltage transients during coil collapse. Mount a 0.01µF ceramic disc directly across BAT and C terminals, securing leads with crimp connectors. Skipping this invites premature module failure; symptoms include random misfires under load.

Connecting GM’s Electronic Ignition: A Straightforward Guide

Start by locating the 12-volt positive terminal on the coil–marked “+” or “BAT” on most GM electronic modules. Run a heavy-gauge wire (10-12 AWG) directly from this terminal to the ignition switch’s “IGN” or “RUN” output, bypassing any ballast resistor. This ensures full voltage reaches the module during cranking and running, preventing erratic spark delivery. Avoid splices near the distributor; heat and vibration degrade connections over time.

Ground the module properly. Attach the negative (“TACH” or “C”) terminal to a clean, bare-metal surface on the engine block using an 8-10 AWG wire. Scrape away paint and corrosion at the attachment point to guarantee a solid path. Poor grounding causes misfires, especially at high RPMs, mimicking fuel delivery or timing issues. For dual-coil setups, ground both module terminals to the same spot for consistency.

Route vacuum advance wires if your unit retains the mechanical advance. Connect the thin purple wire to a manifold-referenced vacuum source, not ported. The gray wire (if present) leads to the advance canister’s retard port; cap it if unused. For computer-controlled timing, disconnect the vacuum advance entirely and connect a 1K-ohm resistor between the purple wire and a 5-volt reference signal from the ECU to prevent fault codes.

Test connections before finalizing. With the ignition on (engine off), use a multimeter: probe the “+” terminal–should read system voltage (13.5-14.5V). Probe the negative terminal–should show less than 0.2V drop from battery negative. Crank the engine–voltage at both terminals must remain stable. If the module clicks but voltage fluctuates, inspect the ignition switch, fusible link, or relay for resistance. Replace wires showing over 0.5 ohms per foot.

Step-by-Step Guide to Connecting Your Electronic Ignition Module

Begin by locating the positive terminal on your vehicle’s ignition coil–marked “+” or “Bat”–and attach the heavy-gauge (10-12 AWG) power lead from the module’s harness here. Ensure the connection is secure with a ring terminal and a locking nut to prevent vibration-induced disconnections. Next, identify the tachometer output (often labeled “Tach” or “RPM”) on the module; this wire typically routes to the instrument cluster or aftermarket gauge sender. Use a 16-18 AWG wire with a soldered or crimped butt connector for this link to maintain signal integrity.

• Grounding: Scrape paint or corrosion from the engine block or chassis where the module’s grounding strap attaches. A poor ground causes erratic spark timing or no-start conditions. Use a star washer under the bolt head to penetrate surface oxidation.
• Trigger Lead: Connect the module’s primary trigger wire (usually purple or violet) to the pickup coil connector inside the housing. Push the male/female connectors together firmly until they click–no soldering required for this internal link.
• Bypass Resistor: Skip the ballast resistor if your setup includes a modern 12V coil; these systems operate at full voltage without spark scatter. Older setups may require a 1.5Ω resistor in-line between the coil and module for voltage regulation.

Test the assembly by cranking the engine while monitoring spark output at one plug wire using an insulated spark tester. If spark is absent, verify the trigger lead continuity with a multimeter (expect 500-900Ω resistance across the pickup coil). For solid-state modules, avoid probing with high-voltage testers, as they can damage internal components. Finalize connections by securing all leads with loom tubing or electrical tape to prevent chafing against sharp edges or hot surfaces.

Locating Proper Connections on GM Electronic Ignition Units

Start by examining the cap’s underside–most models feature four terminal posts arranged in a square pattern, with one additional central post. The peripheral posts correspond to spark plug leads (numbered 1 through 4 for cylinders), while the center post accepts the coil’s high-voltage cable. Verify terminal alignment against cylinder firing order (typically 1-8-4-3-6-5-7-2 for V8 engines) to prevent misfires or backfires during startup.

Identify the low-voltage connectors beneath the cap’s edge: a thin spade lug (marked “BAT” or “+”) for 12V power from the ignition switch, and a second lug (often labeled “TACH” or “-” or “C”) linked to the tachometer output or coil negative. Reverse these connections and the unit will fail to energize. Use a multimeter–continuity between the BAT lug and engine ground should read 0 ohms when the key is turned to “RUN”; the tach lug should show intermittent pulses during cranking.

Terminal Resistance Values

Terminal Pair	Expected Resistance (Ohms)	Condition
BAT to Ground	0	Key ON, engine OFF
TACH to Ground	350–800	Key ON, engine OFF
BAT to TACH	Open circuit	Key OFF

Trace the wiring harness plug–most factory harnesses use a four-pin connector with color-coded wires: pink (constant 12V), purple (ignition-switched 12V), black/white stripe (ground), and tan or gray (tachometer output). Cross-reference these against service manual schematics; substituting purple for pink will cook the module within minutes under sustained voltage. Replace any frayed wires with 16-gauge stranded copper wire to maintain proper current flow.

Check for factory-installed diodes between the ignition switch and BAT terminal–early 1980s models frequently include a single diode to suppress voltage spikes. If missing or failed, install an aftermarket 1N4007 diode across the BAT lug and engine block, cathode toward the lug, to protect the control module from transient voltages during engine shutdown. Reassemble the cap only after confirming each terminal’s function with a spark tester: weak or erratic sparks indicate reversed polarity or corroded connections.

Connecting Power Supply to High-Energy Ignition Setup

Attach the positive battery terminal directly to the ignition coil’s 12V input post using a 10-gauge or thicker wire. Ensure the cable has no fraying, corrosion, or loose connections–current loss here reduces spark efficiency. For vehicles with computer-controlled modules, splice a fused lead (20A max) between the battery and the ignition module’s power terminal; bypassing the factory harness prevents voltage drops under load.

Grounding Critical Components

Secure a dedicated ground strap from the engine block or chassis to the ignition module’s grounding stud. Clean paint, rust, or debris from contact surfaces with a wire brush–poor grounding causes misfires at high RPM. For optimal performance, route the ground cable away from moving parts and high-heat zones, keeping it under 18 inches in length to minimize resistance.

Test connections with a multimeter before startup: probe the coil’s power terminal while cranking–voltage should read 11.5V or higher. If readings drop below 10V, inspect alternator output and battery health. Avoid daisy-chaining power through accessories; a direct line from the battery ensures consistent voltage delivery under all operating conditions.

Grounding Essentials for Optimal Ignition Module Performance

Connect the ignition control unit directly to the engine block using a minimum 10-gauge braided copper strap. Avoid painted or coated surfaces–grind to bare metal at the attachment point. This eliminates voltage drops that cause misfires, especially under load or high RPM.

Route the ground path separately from the battery negative cable. Shared grounding through the chassis or body panels introduces resistance, degrading spark intensity. A dedicated 12-inch strap from the module’s ground terminal to a clean engine stud eliminates interference.

Avoid relying on the original factory ground eyelet–corrosion or loose mounting bolts create inconsistent conductivity. Replace stock eyelets with tinned copper ring terminals crimped and soldered to 8-gauge wire. Heat-shrink the connection to prevent moisture intrusion.

Critical Ground Path Verification

Measure resistance between the ignition module’s ground terminal and battery negative–values above 0.2 ohms indicate problematic connections. Use a digital multimeter set to the lowest ohm scale. Check continuity with the engine running; momentary spikes signal intermittent grounding.

Inspect the engine-to-chassis ground strap. GM vehicles often use a single 6-gauge strap between the block and firewall. Upgrade to a dual-strap setup: one 8-gauge from the block to chassis, another from chassis to battery negative. This stabilizes voltage during cranking and idle.

Secure all connections with stainless steel bolts and star washers. Nylon-lock nuts prevent loosening from vibration. Apply dielectric grease to terminal surfaces before assembly to block oxidation–critical in humid or salty environments.

Test ignition performance under load by monitoring spark output with an inductive timing light while revving the engine to 3,000 RPM. Flickering or dimming sparks confirm poor grounding. Isolate the issue by bypassing each connection temporarily with a jumper cable to a known-good ground.
