Complete Guide to Hayward Super Pump Wiring Diagram Setup and Troubleshooting

Start by identifying the voltage rating on your motor’s label–115V or 230V–before touching any terminals. Most residential setups use 230V, but confirm this to avoid costly mistakes. Locate the wiring compartment on the rear of the unit; it’s marked with labeled screw terminals: L1, L2, Line, Neutral (for 115V) or L1, L2 (for 230V).

For 115V configurations, attach the hot wire (typically black) to Line, the neutral (white) to Neutral, and ensure the ground (green or bare copper) connects to the designated grounding screw. Use 12-gauge wire minimum–thinner cables risk overheating. Tighten terminal screws securely to prevent arcing; torque to 20 in-lbs using a calibrated screwdriver.

In 230V setups, both L1 and L2 require hot leads–usually black (L1) and red (L2). No neutral is needed. Verify the circuit breaker matches the motor’s amperage draw (typically 10–15A for a Super Pump). If replacing an existing motor, trace the old wiring first; mismatched connections can short the windings and void warranties.

Before powering on, use a multimeter to test continuity between L1/L2 and ground. A reading of infinite resistance confirms proper isolation. If values are below 1MΩ, inspect for moisture or damaged insulation. Cap unused wires with wire nuts to prevent accidental contact. Replace the compartment cover tightly–gaps let in debris and corrosion.

For timers or automation, wire a relay between the motor and existing control systems. Hayward’s GoldLine controls integrate directly with these pumps; follow the manufacturer’s voltage specifications strictly. Avoid daisy-chaining power sources–dedicated circuits prevent voltage drops that strain the motor’s capacitor.

Electrical Connection Guide for Hayward Power Unit

Ensure the power supply matches the motor’s voltage rating–either 115V or 230V–to prevent overheating or equipment failure. Locate the label on the motor housing to confirm specifications before proceeding.

For 115V models, connect the black (hot) lead to terminal L1 and the white (neutral) to N. Ground the green wire to the designated screw on the pump’s base. Use copper wire gauges between 14 AWG (minimum) and 12 AWG (recommended) for safe current handling.

230V configurations require linking the black and white wires to L1 and L2, respectively. Unlike 115V setups, neutral connections are unnecessary. Grounding remains critical: attach the green wire to the same grounding point as above. Verify voltage at the terminals with a multimeter before energizing the system.

• Avoid loose connections–tighten terminals to 10–12 inch-pounds torque.
• Cover exposed wires with waterproof conduit or liquid-tight connectors if installed outdoors.
• Replace corroded terminals immediately; Hayward units are not designed for high-resistance joints.

For variable-speed variants, consult the manual for drive controller interfacing. Standard wiring rules apply, but the controller may require additional low-voltage signal cables, typically 18–22 AWG. Label these separately to avoid mixing with main power lines.

Test the installation by running the motor at full speed for 30 seconds. Listen for unusual noises–grinding or humming indicates misalignment or incorrect voltage. If the breaker trips, re-examine wire gauge adequacy and inspect for shorts. Reset the breaker only after resolving the issue.

Common pitfalls include reversed polarity (230V only), ungrounded systems, and mismatched wire ratings. Hayward’s thermal overload protector will activate if these errors persist, but repeated trips risk permanent damage to the winding insulation.

Locating Power Connections on Your Pool Motor

Start by examining the motor’s electrical housing–typically a black or gray rectangular box secured to the side. The topmost terminals, labeled L1 and L2, are for the main power leads; these accept 230V or 115V depending on model variant. Beneath them, a smaller set marked B or BR connects to the bond wire–ensure this ties into the pool’s grounding system, never to live conductors.

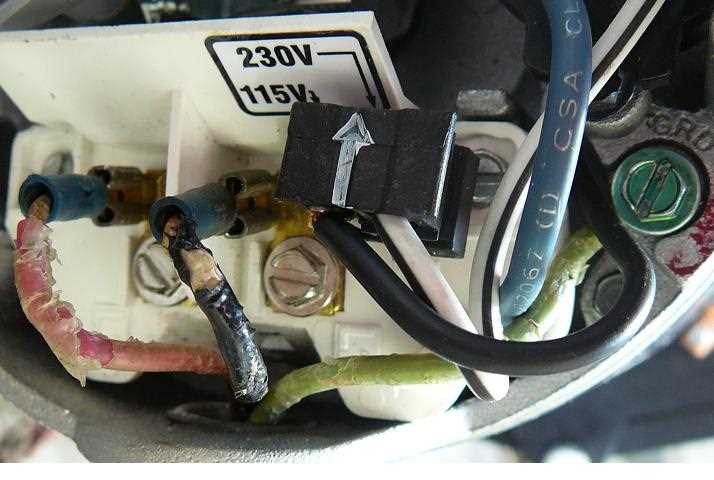

Verify voltage compatibility before attaching cables: older units (pre-2018) often default to 230V, while newer iterations allow dual-voltage switching via a jumper inside the housing. Remove the front cover plate–accessible with a standard ¼” nut driver–to confirm the factory-preset configuration; incorrect settings risk catastrophic motor failure within minutes of startup.

Terminal Variations Across Models

Certain series feature an additional T post adjacent to L1/L2–this serves as a tie-point for pool timers or automation relays. If absent, wire directly into L1/L2 using copper spade connectors, never loose strands; torquing screws to 12–15 in-lbs prevents arcing under load. For capacitor-start motors, a separate cylindrical capacitor nests behind the housing–match its leads to the C and HERM tabs labeled on the motor’s start relay.

Step-by-Step Power Connection Guide for Pool Equipment Motors

Always verify the motor’s voltage rating matches your power source before proceeding. Check the data plate on the unit–most residential models operate at 115V or 230V. Misalignment risks overheating and motor failure. Use a multimeter to confirm the supply voltage at the circuit breaker; fluctuations beyond ±10% require correction before installation.

Disconnect the electrical panel’s main breaker to ensure zero current during setup. Strip 3/8 inch of insulation from the leads of a 12-gauge or 10-gauge THHN copper cable, depending on amperage (10-gauge for 230V, 12-gauge for 115V). Twist exposed strands clockwise to prevent fraying, then crimp terminal connectors tightly–loose connections generate heat and degrade performance.

• For 115V models, attach the hot (black) wire to terminal L1, the neutral (white) to L2, and ground (green/bare) to the grounding screw on the housing.
• For 230V configurations, connect both hot wires (black and red) to L1 and L2, omit the neutral, and secure ground as above.
• Double-check polarity: reversed hot/neutral links in 115V setups cause erratic operation or tripping.

Secure all terminals with a torque screwdriver set to 12–15 in-lbs–over-tightening strips threads, while under-tightening invites arcing. Wrap each terminal with electrical tape to prevent moisture ingress, then position the motor’s capacitor in its bracket, ensuring it doesn’t contact metal edges. If the unit lacks a thermal protector, install an inline fuse holder (15A for 115V, 7.5A for 230V) within 6 inches of the motor.

Re-energize the circuit breaker and test rotation using the start switch. Correct spin direction pulls water into the impeller; reversed flow (pressure gauge drops below 10 PSI) means swapping L1 and L2 for 230V, or hot/neutral for 115V. Listen for abnormal humming or vibration–immediate shutdown and inspection are required if detected. Record the startup amperage (typically 10–14A for 230V, 8–12A for 115V) using a clamp meter; values exceeding these ranges indicate incorrect voltage or internal faults.

Identifying and Correcting Electric Hookup Mistakes in Pool Motor Setups

Ensure the circuit breaker matches the motor’s electrical rating before connecting terminals. A 15-amp breaker suits 115V models, while 20-amp handles 230V units. Mismatches cause overheating or tripping; verify voltage labels on the motor’s nameplate against the breaker size.

Check the neutral and ground connections if the motor hums but doesn’t start. Loose or swapped wires prevent proper rotation. Neutral should attach to the silver screw, ground to the green screw–never interchange them. Use a multimeter to confirm continuity between the ground terminal and the motor housing.

Inspect the capacitor for bulging or leaks if the motor struggles to start under load. Replace it if the capacitance deviates more than 10% from the labeled value (e.g., 40µF ±4µF). A faulty capacitor reduces torque, making the motor spin slower or stall.

Examine the thermal overload protector beneath the motor’s cover if it shuts off unexpectedly. Dust or corrosion on the contacts disrupts the circuit. Clean with fine-grit sandpaper or replace the protector if it fails to reset after cooling (typically 5–10 minutes).

Voltage Supply Verification

Test incoming power at the motor’s terminal block using a multimeter. For 115V models, readings should be 110–125V; 230V models require 220–240V. Voltage drops below 10% of rated value indicate a weak supply line or undersized wiring, which must be upgraded to 12-gauge minimum for 20-amp circuits.

Confirm the timer switch aligns with the motor’s voltage. A 230V motor connected to a 115V timer won’t run, while a 115V motor on a 230V timer risks overheating. Check the timer’s specifications against the motor’s nameplate before energizing the system.

Secure all connections with a torque screwdriver (8–12 in-lbs). Vibration loosens terminals over time, causing arcing. Use anti-oxidant paste on aluminum wires to prevent corrosion, especially in outdoor installations. Tighten straps on conduit runs to eliminate strain on splices.

Essential Equipment and Protective Measures for Electrical Hookup

Turn off the circuit breaker supplying power to the motor before handling any cables. Use a non-contact voltage tester to confirm the absence of current–probes must read zero ohms across each conductor. Failure to verify de-energization risks arc flash, electrical shock, or irreversible damage to the motor windings. Store the tester in a dry, insulated case when not in use to prevent false readings from moisture or debris.

Tool	Specification	Purpose
Wire strippers	10–18 AWG, insulated grips	Removes jacket without nicking conductors
Crimping tool	Ratchet style, 14–10 AWG	Creates airtight terminal connections
Multimeter	Cat III 600V, true RMS	Measures resistance, continuity, voltage
Torque screwdriver	1–10 inch-pounds, interchangeable bits	Prevents over-tightening terminal screws
Insulated gloves	Class 0, 1000V AC rated	Protects against accidental re-energization

Connectors must be UL-listed for outdoor use–avoid generic hardware store varieties; they corrode within months under pool-side humidity. Apply dielectric grease to each terminal before securing wires to block moisture ingress. Tighten terminal screws to 7–9 inch-pounds; over-torque strips threads, under-torque causes arcing. Label each conductor at both ends with heat-shrink tubing to simplify future maintenance.

Ground the motor housing to the bonded grid using 8 AWG solid copper; clamp must bite through corrosion to bare metal–scratch surface with a wire brush if oxidation is visible. Route cables through liquid-tight conduit within 18 inches of the motor; flexible PVC or rigid metal prevents abrasion from vibrations. After hookup, re-energize the circuit, then measure amperage draw–any reading above the nameplate rating indicates incorrect voltage selection or internal fault.
