Complete Murray Riding Lawn Mower Wiring Diagram and Guide

Start by locating the battery terminals–the red (+) and black (-) cables connect directly under the seat or hood. Disconnect the negative terminal first to prevent short circuits when examining connections. Murray tractors typically use a 12-volt system, so verify the battery voltage with a multimeter before troubleshooting; readings below 11.5V indicate charging issues.

Trace the ignition switch harness behind the dash panel. On models like the 635-792 or 42-inch cut, the switch controls power to the solenoid, starter, and safety interlocks. If the engine fails to crank, inspect the solenoid: jump the large terminals with a screwdriver–if the starter engages, the solenoid or ignition switch is faulty. Replace the solenoid if corrosion is visible on the contacts.

Examine the safety interlock circuit next. Murray tractors require the brake pedal, PTO (blade engagement), and seat switches to be engaged simultaneously for the starter to function. Test each switch with a continuity tester: a broken circuit in any switch prevents the mower from starting. For seat switches, check the connector pins under the seat–oxidation here is a common failure point.

For charging issues, check the stator and voltage regulator. Murray models typically use a permanent magnet alternator rated at 15–20 amps. Measure AC voltage at the stator’s two yellow wires (expect ~30V AC at 3600 RPM). If voltage is low, replace the stator or regulator–these components rarely fail together, so test individually. A faulty stator often causes dim headlights or erratic gauge readings on older units.

Blade engagement problems often stem from the PTO switch or clutch. If the blades won’t activate, verify power reaches the PTO solenoid (typically a blue or purple wire); no voltage means a faulty switch or blown fuse. For models with electric clutches, check the clutch gap with a feeler gauge–adjust to 0.012–0.016 inches if necessary. Resistance above 4 ohms in the clutch coil indicates internal failure.

Refer to the color-coded wiring legend printed on the chassis or inside the hood. Murray’s late-90s to 2000s models use:

• Red – Battery positive
• Black – Ground
• White – Ignition feed
• Yellow – Headlight circuit
• Green/Yellow – Safety interlocks

Corrosion at any splice can disrupt the entire system–solder and heat-shrink these junctions to prevent intermittent failures.

Electrical Schematic Guide for Murray Garden Tractor

Locate the ignition switch connector beneath the dashboard panel, marked with terminals B, S, G, and I. Connect B (battery) to the 10A fuse holder using 16-gauge red wire, then route to the solenoid’s large stud. Terminal S (starter) requires a direct 14-gauge yellow wire to the starter motor’s small lug, ensuring no corrosion at the connection point–clean with a wire brush if resistance exceeds 0.2 ohms. The G (ground) terminal grounds to the frame near the seat support, using a ring terminal crimped to 12-gauge black wire; verify continuity with a multimeter before securing.

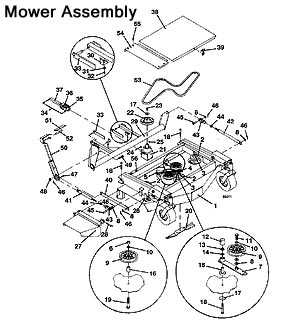

Blade Engagement Circuit

Trace the PTO clutch lead–typically a 12-gauge blue wire–from the switch’s I terminal to the clutch assembly. Insert a 15A fuse in-line within 6 inches of the switch to prevent overheating; use a blade-type fuse holder for secure retention. The clutch’s grounding strap must attach to the deck’s internal rib, not the painted surface; scrape off paint with a file for bare-metal contact. If the circuit fails, bypass the safety interlocks temporarily by jumping the seat switch with a 18-gauge jumper wire–this isolates whether the issue lies in the safety circuit or clutch coil.

Inspect the alternator’s stator coil wires (white and black) for fraying where they exit the engine housing; replace the entire stator if insulation is brittle. Link the white wire to the voltage regulator’s AC terminal, then run the black wire to the battery’s negative post via a 20A fuse. For models with electric lift, the actuator’s two wires (purple and orange) connect to the dashboard switch’s momentary contacts–purple to Up, orange to Down–using 18-gauge wire with waterproof connectors at the actuator end.

Finding the Electrical Schematic on Your Compact Tractor

Check the owner’s manual first–most models include a fold-out page with the full circuit layout near the back. If the guide is missing, locate the original product code stamped on a metal plate under the seat or on the transaxle housing. This alphanumeric sequence directs you to the exact schematic variant.

Visit the manufacturer’s support portal and enter the product code into the search bar. Filter results by “technical documents” to isolate the correct PDF. Look for filenames containing “electrical” or “harness”–these files often include color-coded connectors and terminal designations not found in basic manuals.

Examine the tractor’s components directly if digital files are unavailable. Trace the main fuse block–typically mounted near the battery. Note the wire colors and connection points; this hub often links to the ignition, lights, and safety switches. Use a multimeter to confirm continuity on suspect circuits, matching findings to expected paths.

Refer to the following common schematic identifiers based on model year:

Year Range	Document Code	Key Features
1998-2002	754296MA	Single-cylinder engine, 12V lighting
2003-2007	22345P	Dual fuses, hour meter integration
2008-2012	92347A	Electronic PTO, four-post solenoid

Remove the hood to access the battery compartment and starter motor. Follow the thick red cable from the positive battery terminal; it splits into thinner wires at the solenoid. Snap clear photos of these splits–later models use a modular plug, while older units rely on soldered or crimped joins.

Inspect the hour meter if present. It bridges the ignition circuit and often includes sub-circuit labels for attachments like deck lifts. Cross-reference these labels with the schematic–some variants number wires sequentially, others alphabetically.

Contact local dealers specializing in outdoor power equipment. Provide the product code and request a scanned copy if digital downloads fail. Many brick-and-mortar shops maintain archives of physical service manuals for legacy machines.

Use online forums catering to small-engine mechanics. Search threads with your model’s product code–users frequently post annotated diagram images highlighting common failure points or aftermarket modifications. Save these images for offline reference during repairs.

Pinpointing Critical Parts in the Murray Electrical Blueprint

The ignition switch is the first element to verify in the schematic–locate terminal markings “B” (battery), “S” (starter solenoid), “G” (ground), and “I” (ignition). Cross-reference these with the color-coded leads: red (power), black (ground), yellow (solenoid trigger), and purple (accessory circuit). A mismatch here disables starting or causes intermittent power drops.

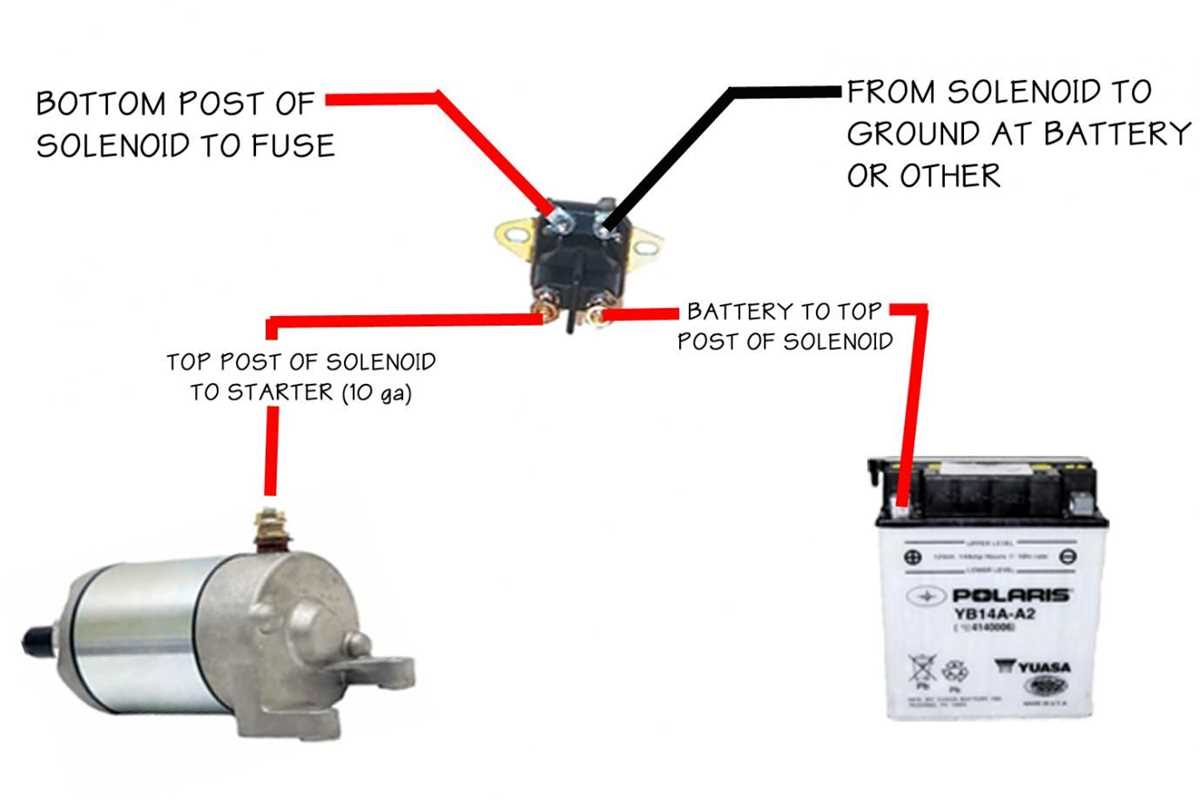

Trace the solenoid relay separately from the ignition path–its two large posts bridge the battery to the starter motor when engaged. Measure resistance between posts (should be

• Battery connections require 10mm terminals–torque to 8-10 Nm to prevent voltage drop.
• Safety interlock switches (seat, PTO, brake) are daisy-chained; test continuity with multimeter set to 200 ohms.
• Fuse ratings: 10A for lights, 20A for accessories, 30A for starter circuits–check for charring at holder contacts.
• Stator output wires (typically white/yellow striped) must show 13.5-14.5V AC at full throttle; lower readings indicate failed charging system.

Examine the hour meter–if present, it taps into the ignition circuit via a 5A inline fuse. Disconnect this fuse if the display fails to power on; a shorted meter can drain the battery overnight. For PTO clutch circuits, confirm the orange wire delivers 12V when engaged; no voltage suggests a faulty switch or broken white ground wire at the deck.

Step-by-Step Guide to Tracing the Ignition Circuit Connections

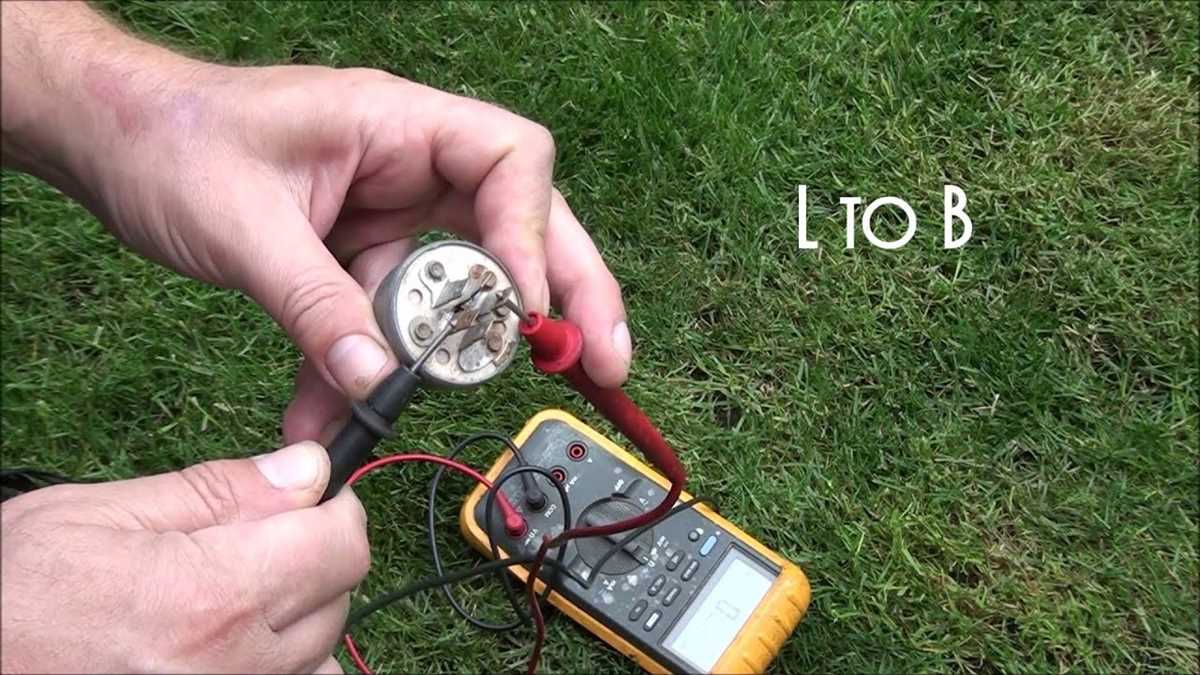

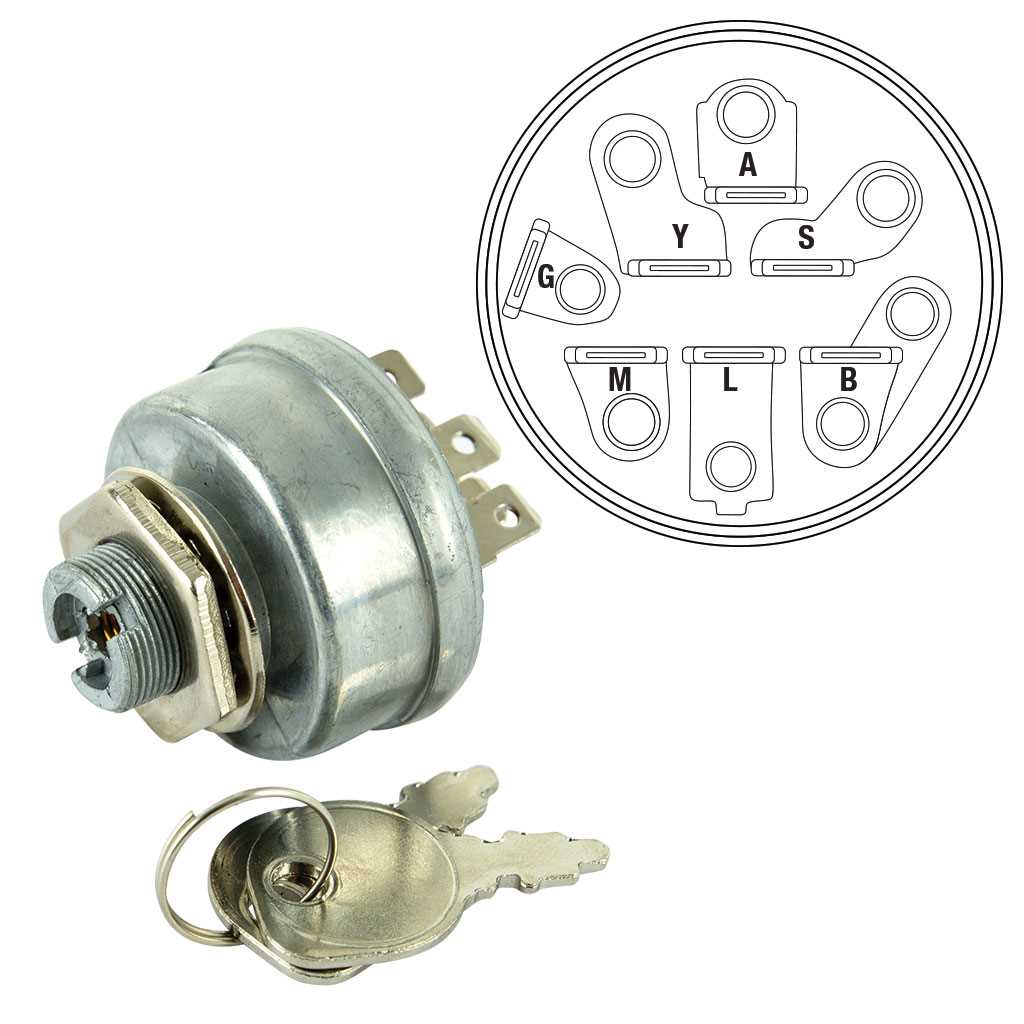

Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Identify the ignition switch–typically a rotary or push-button component mounted on the dashboard–then locate its six terminals: B (battery), S (starter solenoid), I (ignition), A (accessory), G (ground), and M (magneto). Use a multimeter set to continuity mode to probe each terminal while turning the key to the “start” position; a reading of near-zero ohms confirms a closed circuit. Trace the B terminal wire–usually a thick red line–to the solenoid, verifying no breaks or corrosion along its path. The S terminal connects directly to the starter relay; follow this thinner gauge wire, often yellow or purple, ensuring it bypasses any inline fuses that may disrupt current.

Next, inspect the magneto circuit (M terminal) by disconnecting the spark plug and grounding it to the engine block with a screwdriver. Turn the key to “start” and observe for a spark: if absent, trace the wire back to the ignition coil, checking for voltage with the multimeter (~12V). Test the coil’s primary and secondary windings for resistance (0.5–2 ohms primary, 6,000–30,000 ohms secondary). Replace the coil if readings deviate. Finally, confirm the G terminal grounds properly by probing from the switch’s ground lug to the chassis–corrosion here mimics startup failures. Label each connection with masking tape to avoid miswiring during reassembly.
