Step-by-Step Guide to Creating a Switch and Outlet Circuit Diagram

Begin by verifying the circuit breaker is off before handling any conductors. Use a non-contact voltage tester to confirm absence of current near connection points. For standard 120-volt installations, 14-gauge copper wire suffices, but upgrade to 12-gauge if the circuit supports 20 amperes. Secure all connections with wire nuts sized appropriately for the number of conductors–typically red for three wires, yellow for four. Grounding is non-negotiable; attach the bare copper or green-insulated wire to the green screw on both the control device and receptacle housing.

Connect the uninterrupted hot wire (black) directly to the brass terminal of the power receptacle first. Splitting this conductor to serve both the receptacle and control device requires a pigtail splice: strip 6 inches of insulation, twist the ends together, secure with a wire nut, and attach the free end to the appropriate terminal. The neutral (white) follows the same rule–attach it to the silver terminal, ensuring no breaks in continuity. For a half-switched setup, route the red or switched conductor from the control device’s brass terminal to the second brass terminal on the receptacle, isolating the lower half for switched operation.

Avoid daisy-chaining conductors through multiple devices. Instead, use jumper wires to maintain separate paths for load and control. Label each conductor before disconnecting existing configurations, especially in retrofit scenarios. Mark switched legs with red electrical tape near stripped ends to prevent misidentification. When installing dual receptacles, verify tabs between brass or silver terminals are removed if splitting loads. Test each connection with a multimeter set to continuity mode before energizing the circuit.

For GFCI protection, replace standard receptacles with ground-fault models, connecting line-side terminals to incoming power and load-side terminals to downstream devices. Never back-feed a control device from a GFCI’s load terminals–this violates NEC 404.2(C) and risks nuisance tripping. In metal boxes, bond all ground conductors to the enclosure using a ground screw or pigtail. For plastic boxes, ensure the bare copper wire reaches every device. If conduit is present, use it as the grounding path–no additional wire is needed.

Fasten all devices securely to boxes, ensuring no exposed conductors contact box edges or surfaces. Use insulated staples every 4.5 feet (1.37 meters) for cable runs to prevent sagging. In wet locations, install weather-resistant receptacles and ensure outdoor covers are in-use types (UL 514C). When combining dimmers or smart controls, confirm compatibility with LED loads–some require neutral-based models. Always tighten terminal screws to 12 inch-pounds (1.36 N·m) to prevent overheating.

Electrical Connection Guide: Combining Controls with Power Points

First, verify the circuit’s amperage rating matches the intended load. A 15-amp circuit handles most residential needs, but check local codes before proceeding. For a single-pole configuration, use 14-gauge NM-B cable with ground for 15-amp circuits or 12-gauge for 20-amp. Label each conductor at both ends to avoid confusion during installation.

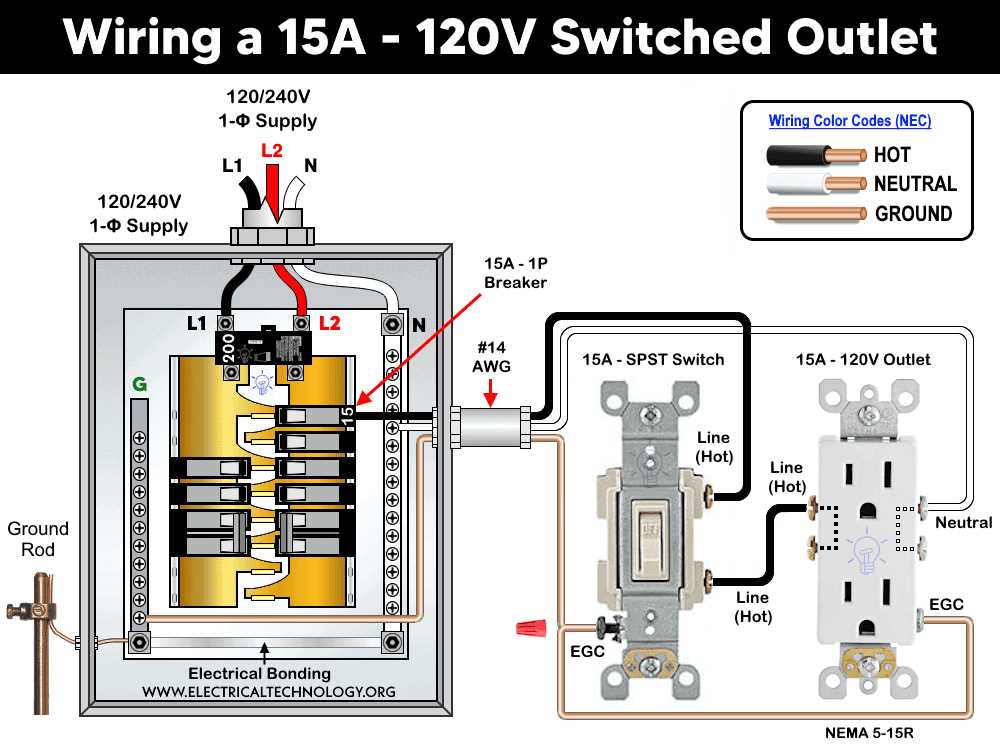

To create a shared power path where the toggle activates the receptacle, follow these steps:

• Connect the black (hot) supply conductor to the brass terminal on the toggle.
• Run a pigtail from the toggle’s second brass terminal to the hot side of the receptacle.
• The white (neutral) wire bypasses the toggle, connecting directly to the silver terminal on the receptacle.
• Ground wires join at a single terminal block, secured to both the toggle and receptacle’s green grounding screws.

For split-circuit applications–where the toggle governs only one half of the receptacle–insert a brass jumper tab between the receptacle’s hot terminals. Break the tab on the neutral side if independently powering downstream devices. This setup allows partial control while maintaining constant power to the second half.

Avoid daisy-chaining multiple connections in a single box. Instead, splice wires with UL-listed wire nuts or push-in connectors, ensuring no bare conductor exceeds 1/8 inch beyond the connector. For boxes deeper than 2.5 inches, use insulating bushings on cable clamps to prevent abrasion.

Test continuity before energizing the circuit. Use a multimeter set to ohms to confirm:

1. Toggle completes the path when closed.
2. Neutral and ground show zero resistance between points.
3. No continuity exists between hot and ground/neutral in any position.

In metal boxes, attach a grounding pigtail to the box’s captive screw before connecting devices. For plastic boxes, a single ground wire suffices if spliced to both the toggle and receptacle. Never rely on the device’s mounting yoke for grounding in metal boxes–this violates NEC 250.148.

When retrofitting older installations with ungrounded circuits, install GFCI receptacles labeled “No Equipment Ground.” These provide shock protection without requiring a ground conductor. However, avoid mixing grounded and ungrounded devices on the same circuit, as this creates unpredictable current paths and potential safety hazards.

Core Equipment for Installing Electrical Controls and Receptacles

Begin with a voltage tester rated for 1000V AC–non-contact models like the Klein NCVT-3 detect live circuits without direct contact, slashing accidental shocks. Pair it with wire strippers featuring a 12-10 AWG gauge range; precision-cut blades prevent nicked conductors, which weaken connections over time. A lineman’s pliers with insulated grips (minimum 1000V rating) handles heavy-gauge conductors and terminations, while needle-nose pliers reach tight junction boxes. Include a multimeter with continuity testing–Fluke 117 offers Audible alerts for miswired neutrals, catching errors before power-up.

Copper conductors demand UL-listed wire nuts sized for the circuit: red for 2x #14 AWG, blue for 3x #12 AWG, and yellow for heavier 3x #10 AWG loads. Romex NM-B cables should match breaker amperage–#14 for 15A, #12 for 20A–while THHN wires need conduit: ½” EMT for 3x #12, ¾” for 4x #10. Grounding rods require #6 solid bare copper, crimped with a hex crimper and sealed with anti-oxidant compound. For box fill compliance, count cubic inches: 18AWG = 2.0, 14AWG = 2.25, 12AWG = 2.5 per conductor.

Secure devices with shallow gang boxes: 4″ square for dual controls, 3.5″ octagonal for single-point light fixtures. Single-pole toggles need side-strap mounts; Decora-style plates tolerate larger wall thicknesses. Use cable clamps for NM-B: plastic bushings for drywall, metal ones for masonry. Torque screws to 12-15 in-lbs–over-tightening cracks plastic housings. Label each conductor at both ends with shrink tubing or wrap-around tags: “L1,” “N,” “GND,” avoiding marker smudges.

Connecting a Basic Toggle Control with a Receptacle: Detailed Walkthrough

Cut power at the circuit breaker before handling any conductors. Verify absence of voltage using a non-contact tester on both terminals of the existing junction box. Identify the incoming hot conductor–typically black or red–and mark it with a small piece of electrical tape. Strip 3/8″ of insulation from each conductor using strippers calibrated for 12 or 14 AWG solid copper wire.

Securely attach the marked hot conductor to the brass screw on the toggle control. Loop the wire clockwise around the screw shank to prevent the loop from loosening when tightened. Torque the screw to 12 in-lbs using a precision screwdriver. Next, connect the receptacle’s brass terminal to the toggle’s other brass screw using a 6″ pre-stripped jumper wire–keep pigtails short to prevent interference with box mounting.

Grounding and Neutral Configuration

Bond all ground conductors–bare or green-insulated–together with a wire nut, then attach a 6″ pigtail to the toggle’s green grounding screw. Fold excess wire neatly into the back of the box. For neutral conductors, cap them with a wire nut if the receptacle requires dedicated neutral; leave them disconnected if powering only the toggle.

Component	Terminal Color	Conductor Color	Torque Specification
Toggle Input	Brass	Black/Red	12 in-lbs
Toggle Output	Brass	Jumper Wire	12 in-lbs
Receptacle Hot	Brass	Black/Red	15 in-lbs
Ground	Green	Bare/Green	N/A

Final Checks Before Energizing

Push all connections to the rear of the junction box, ensuring no conductors touch metal edges. Replace the device cover plate, then restore power. Test conductivity with a plug-in tester: the receptacle should show correct polarity, and the toggle should toggle the connected load on/off reliably. If the receptacle remains dead, recheck jumper continuity with a multimeter set to Ω mode.

Connecting a Dual-Control Device with a Receptacle

Shut off power at the circuit breaker before handling any conductors. Identify the three terminals on the dual-control device: one common (darker screw) and two travelers (brass screws). Strip ¾” of insulation from each conductor. Attach the line hot wire–typically black–to the common terminal. Connect the two traveler wires–usually red and another color–to the brass screws. For the receptacle, link the incoming hot conductor to the brass screw and the neutral (white) to the silver terminal. Ground both components with a bare copper wire wrapped clockwise around the green screw.

Key Steps for Safe Installation

• Verify power is off using a non-contact voltage tester near all conductors and terminals.
• Label all wires before disconnecting any existing setup to avoid confusion.
• Use 12-gauge wire for 20-amp circuits; 14-gauge is only suitable for 15-amp.
• Secure all terminal screws tightly–loose connections create fire hazards.
• Fold wires neatly into the electrical box, ensuring no insulation is pinched under the device yoke.
• After installation, test both the dual-control device and receptacle with a multimeter or plug-in tester before restoring power.
