Wiring Guide for Double Switch Setup with Circuit DiagramsExplained

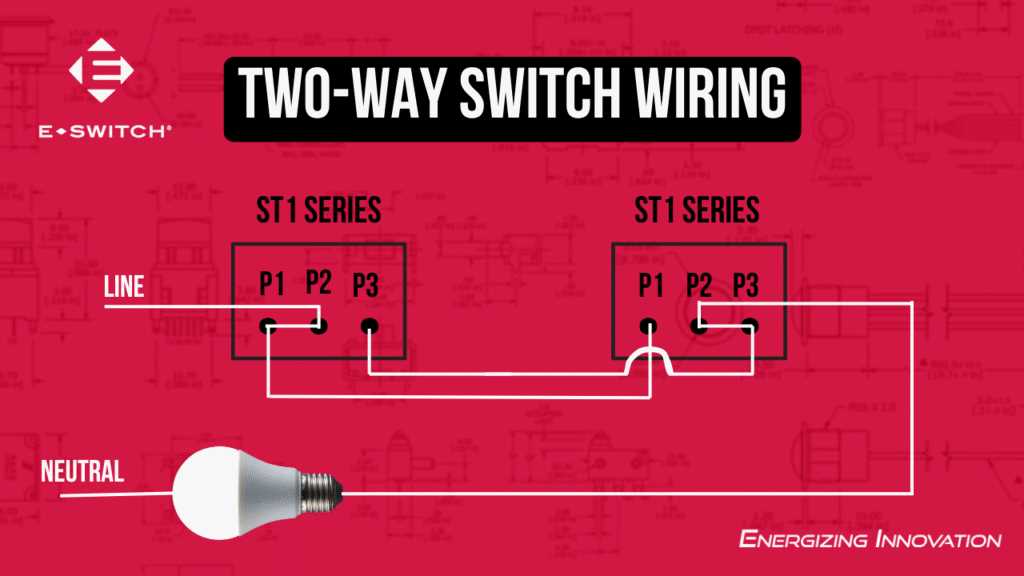

Installing separate controls for a single light source eliminates reliance on a single location. Begin by running a three-wire cable (with ground) from Power Supply to the first control point. Connect the live conductor to the common terminal using 12 or 14 AWG copper wire; secure ground to the metal box with a green grounding screw.
From this initial box, extend another three-wire cable to the second control point. Attach the travelers–conductors carrying alternating current–between matching terminals on each device. The remaining terminal at the first box links to the fixed circuit, while the second device’s common terminal feeds the load. Confirm all connections match manufacturer markings: brass screws for travelers, black or copper for common.
After securing all conductors, cap unused terminals with wire nuts to prevent shorts. Energize the circuit only after verifying continuity with a multimeter across each traveler pair (expect 120V between live and neutral, 0V between travelers when toggled correctly). Failure here typically indicates reversed traveler wiring. Label both boxes with circuit ID to simplify future servicing.
For overhead illumination or hard-to-reach fixtures, substitute standard mechanical toggles with momentary pushbuttons. Feed the toggle output through a relay to maintain the three-way logic without requiring intermediate travelers. Ensure all enclosures meet minimum cubic-inch volume requirements per NEC 314.16–the smallest junction box size for this setup is 4 × 4 × 1 ½ inches.
Dual-Control Circuit Configuration Guide
Begin by connecting a live feed to the common terminal of the first control unit. Use 14-gauge copper conductor for standard 15-amp circuits. Ensure the breaker matches the wire capacity–never exceed 80% of the breaker’s rating for continuous loads. Label the feed wire at both ends before securing connections to prevent misidentification during troubleshooting.
Route travelers between the two units via a three-wire cable, maintaining separation from neutral and ground conductors. Use push-in connectors rated for the wire gauge, or wrap conductors clockwise around screw terminals for reliable contact. Test continuity with a multimeter after securing–resistance should not exceed 0.5 ohms. If installing in metal boxes, bond the ground screw to the box with a grounding pigtail.
Alternative Method: For intermediate installations where space is constrained, parallel the travelers using separate 12-gauge conductors instead of bundled cable. This reduces voltage drop in runs longer than 50 feet. Connect the second unit’s common terminal to the load–ensure the fixture supports the combined wattage of all bulbs. LED-compatible controls require a neutral connection at one unit; verify compatibility before skipping this step.
Verify all connections under load before closing the electrical box. Turn the breaker on and cycle both controls–each should independently toggle the fixture without flicker. If flicker occurs, check for loose terminals or undersized conductors. For smart-enabled controls, follow the manufacturer’s pairing sequence before finalizing the setup.
Label all conductors and controls clearly: “Live,” “Traveler 1,” “Traveler 2,” “Neutral (if used),” and “Load.” Store spare wire inside the box coiled, not stretched, to prevent stress fractures. If retrofitting, photograph the existing layout before disassembly–wrong reconnections risk short circuits or dead loads.
Tools and Components Needed for Installing Paired Control Devices
Use a voltage tester with a non-contact detection range of at least 90–600V AC to confirm circuits are de-energized before handling terminals. Insulated screwdrivers with 2.5mm and 3.5mm flat blades prevent accidental shorts when tightening brass screws on faceplates. Include needle-nose pliers for bending wire loops around screw terminals and a wire stripper calibrated to 12–14 AWG solid copper conductors–verify the gauge matches local building codes before cutting insulation.
Critical Consumables Checklist
| Item | Specification | Quantity |
|---|---|---|
| Wall plates | Standard dual-gang size, thermoplastic | 2 |
| Toggle mechanisms | Single-pole, 15A, 120V AC rating | 2 |
| Romex cable | 12/2 NM-B with ground | Varies (min. 1.5m) |
| Wire nuts | Red, UL-listed for splicing 2–4 wires | 4 |
| Ground pigtails | Bare copper, 12 AWG, 15cm lengths | 2 |
Check junction box depth–minimum 3.25 inches clearance behind drywall–to accommodate pigtailed connections without crowding. Verify toggle color coordination matches existing fixtures; brass-finished screws contrast better on white plates in low-light hallways. Always disconnect the main breaker panel before exposing conductors, even if resetting only one switch pair, to avoid confusion with adjacent circuits sharing the same conduit.

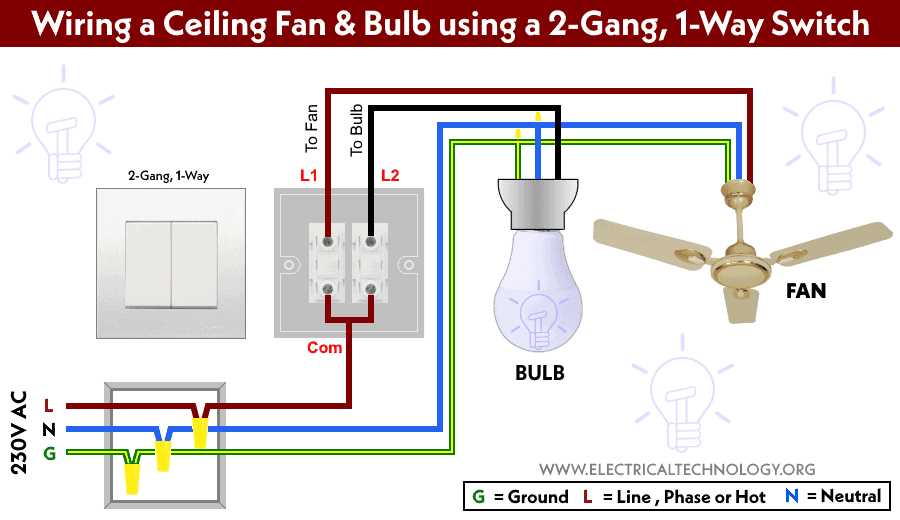

Step-by-Step Installation of Dual Control Devices in One Electrical Housing
Begin by ensuring the power supply is disconnected at the circuit breaker. Verify absence of voltage using a non-contact tester on all conductors within the box. Identify the incoming live conductor–typically black or red–and the neutral, which is usually white. If grounding is present, note the bare copper or green wire.
Prepare the housing by ensuring it can accommodate both devices. Most standard single-gang enclosures accept a pair of controls if they are slim-profile models. If space is tight, consider using shallow-depth units or dimmer variants that require less volume. Remove excess cable sheathing to expose approximately 6 inches of individual conductors for ease of connection.
Connect the incoming live conductor to both common terminals on the controls. This is often the darker screw or labeled “LINE,” “HOT,” or “COM.” Use a short jumper wire (same gauge as the incoming conductor) to bridge the two terminals if direct connection isn’t possible. Secure each connection with a twist-on connector or lever-nut, ensuring no exposed copper extends beyond the clamp.
Attach the load conductors–typically one for each device. These may be identical colors (e.g., both black) or differentiated (one black, one red). If the loads share the same circuit, connect their neutrals together with the incoming neutral inside the box. For separate circuits, keep neutrals isolated and labeled accordingly.
Ground both devices if the enclosure supports it. Attach all grounding conductors to a single point, either using the built-in grounding terminal on the devices or a dedicated grounding pigtail connected to the box. If the housing is non-metallic, grounding may not be required, but confirm with local electrical codes.
Tuck conductors neatly into the enclosure, avoiding sharp edges that could damage insulation. Fold excess wire in a Zig-zag pattern to maximize space. Position the devices in the housing, ensuring no wires are pinched under mounting screws. Secure the controls with provided fasteners, aligning the faceplate flush with the wall surface.
Restore power at the breaker and test each control independently. Use a voltage tester to confirm the load conductors energize only when their respective control is activated. If one device fails to operate, recheck connections for loose terminals, incorrect jumper placement, or reversed load conductors.
For three-way or multi-location configurations, additional travelers must be connected between devices. Identify the travelers–usually yellow or red–and attach them to the designated terminals (often labeled “TRAVELER” or marked with brass screws). Ensure the remote control’s common terminal receives the live conductor, while the local device connects the load to its common terminal.
Determining Live and Functional Conductors for Accurate Control Unit Setup
Start by locating the main feed conductor using a non-contact voltage detector. Hold the probe near each conductor inside the junction box while the circuit remains energized–only the live input will trigger an audible or visual alert. Mark this conductor immediately with colored tape or a labeled tag to prevent confusion during later steps. If multiple conductors react, check for parallel circuits or split feeds; isolate the correct one by testing continuity to the distribution panel.
- Switch off power at the breaker before proceeding.
- Strip 6–8 mm of insulation from each conductor to expose clean copper.
- Verify the live input using a multimeter set to AC voltage (200–600V range). Probe the marked conductor against a known neutral or ground; 110–240V confirms the correct source.
- Identify the return path by connecting a continuity tester between the marked live and each remaining conductor. The one showing continuity when the intended light or device is active is the functional output wire.
Separate neutrals if present–neutral conductors should never be interrupted by control units unless using a specific double-pole configuration. Misidentifying neutrals can lead to short circuits or erratic operation. For installations with smart units, check the manufacturer’s specifications for neutral requirements; some modern designs require a dedicated neutral for proper operation.
Ground conductors must remain unbroken and connected to the metal enclosure of the control unit. Use a 10 AWG or larger bare or green-insulated copper wire for grounding. If the box lacks a ground screw, install one approved for electrical applications–do not rely on painted or rusted surfaces for ground continuity. Test ground integrity by measuring resistance between the ground wire and the neutral; readings above 1 ohm indicate poor connection and require immediate correction.
