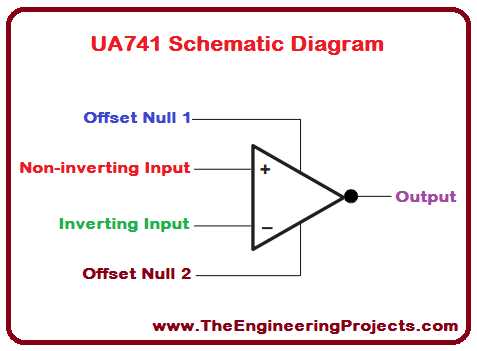

Complete Ua741 Operational Amplifier Circuit Schematic and Analysis Guide

The LM741 remains one of the most widely deployed general-purpose op-amps due to its simplicity, reliability, and predictable behavior. Start by verifying pin assignments: Pin 2 (inverting input), Pin 3 (non-inverting input), Pin 4 (-Vcc), Pin 6 (output), and Pin 7 (+Vcc). Incorrect power supply connections–especially reversed polarity–will immediately destroy the component. Standard dual-supply configurations range from ±5V to ±18V; single-supply setups require a midpoint reference (typically Vcc/2).

For basic inverting amplifier configurations, use a feedback resistor (Rf) between the output (Pin 6) and the inverting input (Pin 2), with an input resistor (Rin) tied to the signal source. Gain equals -Rf/Rin–keep resistor values within 1kΩ to 1MΩ to avoid input bias current errors and slew-rate limitations. Offset null adjustment (Pins 1 and 5) is rarely needed for non-critical applications; short these pins if unused to prevent oscillation.

Avoid these common pitfalls: Capacitive loading on the output causes instability–buffer with a 10Ω to 100Ω series resistor or a discrete buffer stage if driving cables longer than 10cm. Input voltage exceeding supply rails by more than 0.3V triggers latch-up. Ensure decoupling capacitors (0.1μF ceramic) sit within 5mm of power pins to suppress high-frequency noise. For precision work, replace the LM741 with rail-to-rail alternatives like the OPAx340; the 0.5V/μs slew rate of the LM741 limits its use to signals below 50kHz.

Testing configurations on a breadboard? First, measure supply voltages–oscilloscopes reveal clipped outputs or power supply sag faster than multimeters. Use a 1kHz sine wave (1Vpp) as a test signal; expected output should mirror the input waveform with inverted phase and calculated gain. Unexpected DC offsets often stem from unbalanced resistor values or leaked electrolytic capacitors–swap for film types where stability matters.

Operational Amplifier Schematic: Component-Level Analysis

Begin by verifying the input differential pair–Q1 and Q2 in a typical bipolar design–against the datasheet’s emitter current specifications (typically 12–20 µA). Use a precision current source to inject 15 µA into the emitters while measuring the collector voltages; expect a symmetric split (±5 mV) at room temperature. If asymmetry exceeds 10 mV, suspect layout parasitics or degraded beta in one transistor. Replace the offending device with a matched pair (e.g., BC547B) or recalibrate the tail current via R3 (nominally 30 kΩ) to restore balance.

Compensation and Stability Checks

Attach a 10 pF capacitor between the compensation pin (node 8) and ground to simulate the internal Miller effect; probe the open-loop gain at 1 kHz with a 10 mVpp sine wave. A healthy design should yield 90–100 dB gain. If peaking occurs near unity-gain bandwidth (1 MHz), reduce the capacitor to 3–5 pF or add a 1 kΩ series resistor to dampen ringing. For high-impedance loads (>2 kΩ), bypass the output stage with a 0.1 µF ceramic capacitor to prevent HF oscillations induced by PCB trace inductance.

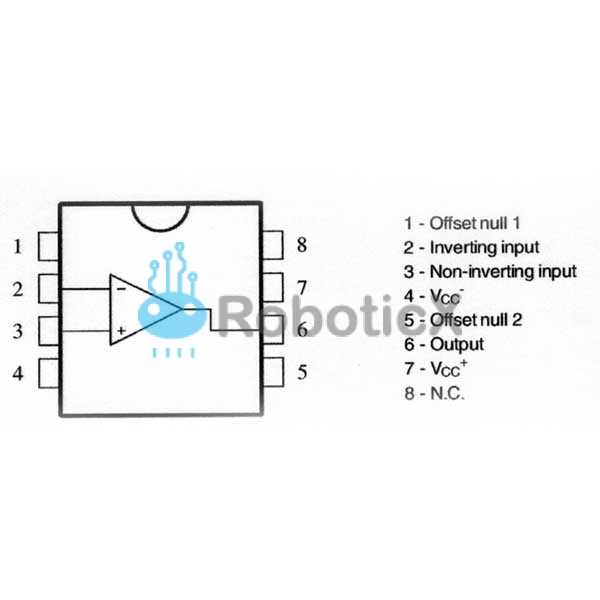

How to Read the Operational Amplifier 741 Pinout Configuration

Start by identifying the notch or dot on the chip’s packaging–this marks pin 1. The standard 8-pin DIP (dual in-line package) layout follows a counterclockwise sequence from this reference point, with pins numbered 1 through 8 on the left side from top to bottom and 9 through 14 (or 16 in some variants) mirrored on the right. Verify the exact pin count against the datasheet for your specific package type, as SOIC, TO-99, and PDIP variants may differ slightly in spacing but retain the same functional order.

The pinout serves distinct roles critical to signal processing:

• Pin 2 (Inverting Input): Apply the input signal here when configuring negative feedback. The voltage here directly opposes the non-inverting input.
• Pin 3 (Non-Inverting Input): Use this terminal for high-impedance signal entry, ideal for buffering or comparator applications.
• Pins 4 & 7 (Power Supply): Connect pin 4 to the negative rail (V_EE) and pin 7 to the positive rail (V_CC), typically ranging from ±5V to ±15V for standard operation. Exceeding ±18V risks permanent damage.
• Pin 6 (Output): The amplified signal exits here, with output impedance typically below 75Ω in open-loop configurations. Shorting this pin directly to either input without feedback may cause excessive current draw.
• Pin 1 & 5 (Offset Null): Adjust DC offset by connecting a 10kΩ potentiometer between these pins, with the wiper tied to the negative rail. This compensates for internal mismatches, critical for precision applications like instrumentation amplifiers.
• Pin 8 (NC/No Connection): Reserved for internal use; leave floating in most designs.

Avoid common pitfalls by cross-referencing the schematic with these practical tips:

1. Always decouple supply pins (4 and 7) with 0.1µF ceramic capacitors to ground, placed as close as possible to the chip. This filters high-frequency noise that can couple into the amplified signal.
2. For single-supply operation, bias the non-inverting input at half the supply voltage (e.g., 2.5V for a 5V rail) using a voltage divider. This centers the output swing and prevents clipping.
3. Test the pinout before soldering: use a breadboard to verify functionality. For example, configure a unity-gain buffer by shorting pin 6 (output) to pin 2 (inverting input), then probe pin 6 with an oscilloscope while feeding a sine wave into pin 3.

Ambiguity in pin numbering often stems from reversed or mirrored views. Confirm orientation by aligning the notch/dot to the upper-left corner of your layout–this orientation is consistent across all DIP variants of the chip. Some datasheets label the bottom-right pin as 1 (TO-99 metal can), but DIP packages universally start numbering at the top-left. Double-check with a multimeter in continuity mode: power pins (4 and 7) will show low resistance to their respective rails, while input/output pins float until the device is powered.

For custom modifications, note these advanced considerations:

• Thermal Management: In high-current applications (e.g., driving low-impedance loads), solder a small heatsink to the chip’s exposed pad (if present in SOIC packages) or mount it on a PCB with thermal vias connected to a ground plane.
• Slew Rate Limitations: The 741’s typical slew rate of 0.5V/µs may distort high-frequency signals (above ~10kHz). For faster responses, consider alternatives like the TL081 or OPA2134, but ensure supply rails meet their minimum requirements (±4V for the TL081).
• Input Protection: Clamp inputs to the rails using 1N4148 diodes to prevent latch-up during transient events. This is especially critical in comparator applications where inputs may exceed supply voltages.

When troubleshooting, systematically rule out hardware issues:

• Measure supply voltages at the pins (not just the rail) to confirm correct polarity and values. A miswired ground can mimic symptoms of a faulty device.
• Check for oscillation by probing the output with a scope set to AC coupling. Add a small capacitor (e.g., 10pF) between the output and inverting input to dampen high-frequency ringing in high-gain configurations.
• Verify the offset null adjustment: Connect the potentiometer as described and monitor the output voltage. If the output doesn’t center near 0V (for dual-supply) or mid-rail (for single-supply), the chip may be damaged.

Constructing a High-Gain Inverting Amplifier with the Classic Operational IC

Set the non-inverting input to ground via a 1kΩ resistor to ensure stable reference voltage. Connect the inverting input through a 10kΩ resistor to the signal source–this dominates the gain configuration where Rf/Rin determines the voltage amplification. For a -10x gain, use a 100kΩ feedback resistor (Rf) paired with the 10kΩ input resistor (Rin), adhering to the formula Av = -Rf/Rin. Bypass the IC’s power pins (±5V to ±15V) with 0.1µF ceramic capacitors placed less than 2mm from the package to suppress high-frequency noise, critical for maintaining a clean output waveform at higher gains. Avoid exceeding the slew rate of 0.5V/µs to prevent signal distortion–input signals above 20kHz will show slew-induced errors if amplitudes exceed 1Vpp.

Test the configuration with a 1kHz sine wave at 0.5Vpp; measure output swing–it should invert and scale to -5Vpp (±0.5V tolerance) without clipping. If phase shifts or ringing appear, reduce gain by 20% or add a 100Ω resistor in series with the output to dampen parasitic oscillations. For DC-coupled applications, AC-couple the input with a 1µF capacitor to block offset voltages from the source; omit this for precision DC amplification. Maintain trace lengths under 10cm between resistors and IC pins to minimize stray capacitance, which degrades bandwidth at gains above -100x.

Non-Inverting Amplifier Setup with LM741: Step-by-Step Wiring

Begin by connecting the inverting input (pin 2) to the output (pin 6) through a feedback resistor Rf (e.g., 100kΩ). The non-inverting input (pin 3) receives the input signal via a resistor Rin (e.g., 10kΩ) tied to ground. Ensure the op-amp’s power supply pins (4 and 7) are connected to ±15V with decoupling capacitors (0.1µF ceramic) placed close to the pins to minimize noise. For stability, add a small capacitor (10-100pF) in parallel with Rf to prevent high-frequency oscillations, especially if the gain exceeds 10.

Component	Value	Purpose
Rin	10kΩ	Input resistor, sets impedance
Rf	100kΩ	Feedback resistor, defines gain (1 + Rf/Rin)
Decoupling caps	0.1µF	Noise suppression on supply lines
Stabilizing cap	10-100pF	Prevents ringing at high gains

Verify the gain by applying a 1kHz sine wave (0.1V peak-to-peak) to the input–output should measure ~1.1V for the values above. Use an oscilloscope to check for clipping; adjust Rf if the waveform distorts. For DC-coupled applications, ensure the input signal is centered at 0V to avoid output saturation. If offset nulling is required, connect a 10kΩ potentiometer between pins 1 and 5, wiper to V- (pin 4), but this is rarely needed for AC signals.
