How to Create and Read a USB Wiring Diagram for Electronic Devices
Begin by identifying the connector type: Type-A, Type-B, Mini, Micro, or Type-C. Each variant demands distinct pin assignments, with Type-A requiring four primary connections–VBUS (5V), D-, D+, and GND–while Type-C introduces additional configuration channels (CC1/CC2) for power negotiation and orientation detection. Use color-coded conductors for clarity: red for VBUS, white for D-, green for D+, and black for GND. Avoid deviations from this standard, as inconsistencies disrupt compatibility.
For power delivery beyond standard 5V, integrate a step-up or step-down converter. Type-C supports up to 20V at 5A, but achieving this requires proper resistor values (Rp/Rd) on CC pins. A 56kΩ pull-up resistor (Rp) on the source side and a 5.1kΩ pull-down resistor (Rd) on the sink side enable basic power negotiation. Omit these resistors, and the device defaults to 500mA, capping performance.
Shielding is non-negotiable. Twist signal pairs (D+/D-) tightly to minimize electromagnetic interference (EMI), and ground the shield at both ends to prevent noise coupling. Exposed wire lengths should not exceed 10cm; longer runs risk signal degradation. For high-speed data (USB 3.0+), add termination resistors (22Ω) at both ends of the D+/D- lines to match impedance and eliminate reflections.
Verify connectivity with a multimeter before applying power. Check continuity between VBUS and GND to ensure no shorts, then measure resistance across CC pins for proper pull-up/pull-down values. A faulty connection here irreversible damages host or device controllers. Test data transfer with a USB protocol analyzer to confirm signal integrity–errors here indicate improper termination or EMI issues.
For dual-role devices (e.g., OTG), include a 10kΩ pull-down resistor on ID pin. Floating ID lines trigger unpredictable behavior. Use Schottky diodes on VBUS to prevent back-powering, which can fry downstream components. If soldering connectors, apply flux to ensure robust joints; cold joints introduce resistance and intermittent failures.
Document every step. Label each wire, connector, and resistor value directly on the schematic. Even minor deviations–like swapping D+ and D–render the interface non-functional. Cross-reference pinouts with the official USB specification for your connector type; manufacturer datasheets often contain errors.
Pinout Guide for Universal Serial Bus Connections

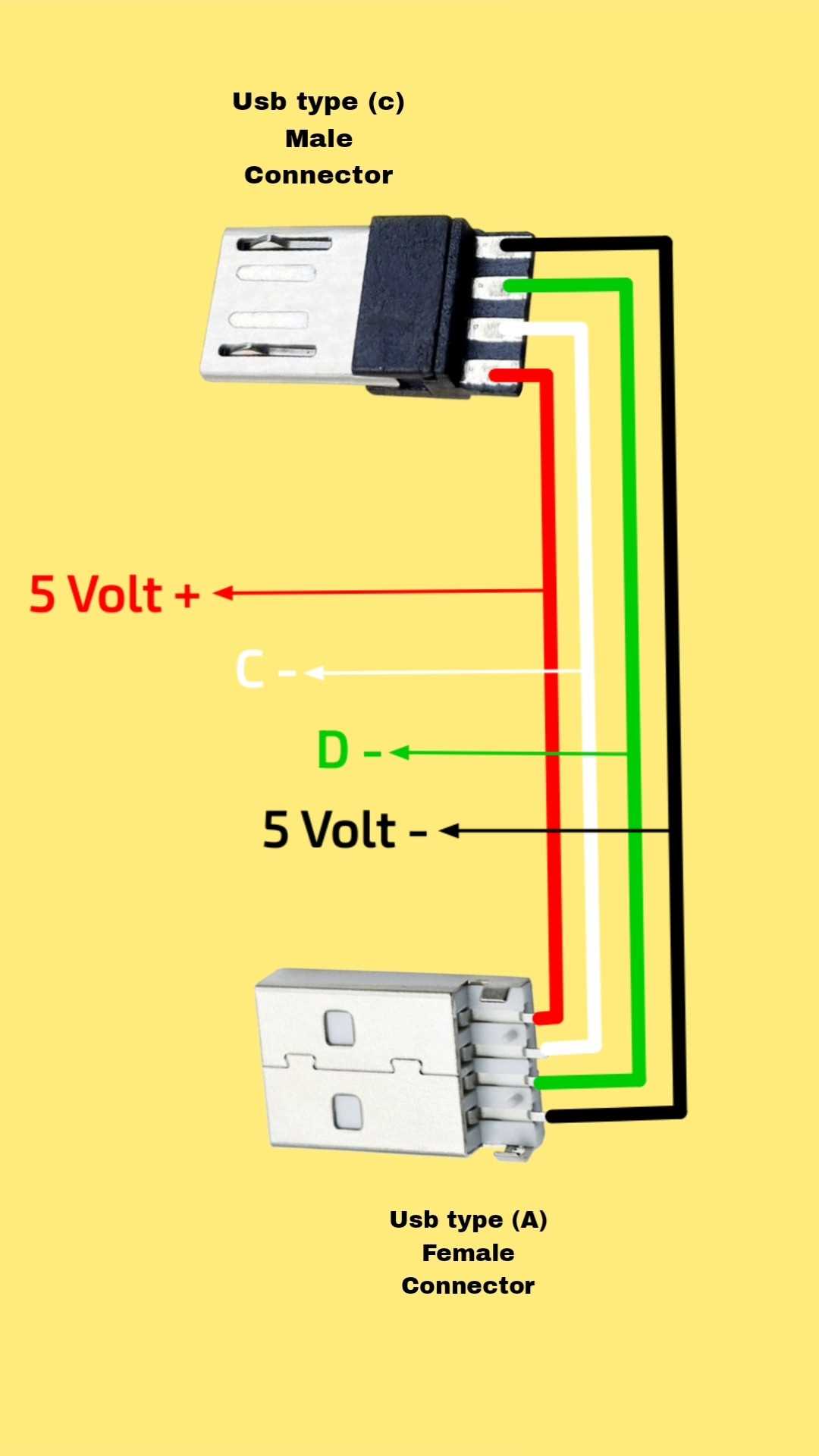

To assemble a proper interface, solder the four core contacts as follows: position 1 (VBUS) carries 5V power–always use a 500mA fuse or PTC resettable fuse to prevent overload; pin 2 (D−) and pin 3 (D+) handle differential data transfer–twist these wires together with a minimal pitch of 3mm to reduce EMI; pin 4 (GND) grounds the circuit–connect it directly to the chassis or a dedicated earth plane for stable operation. For micro or mini connectors, pin numbering flips horizontally; verify with a multimeter before crimping. Shielded cables (typically foil + braid) improve noise immunity–bond the shield to GND at the host end only to avoid ground loops.
Follow this color coding for clarity:
- Red → VBUS (5V)
- White → D−
- Green → D+
- Black → GND
- Bare/aluminum → Shield (optional)
Keep traces under 90mm on PCBs to maintain USB 2.0 signal integrity; impedance should target 90Ω ±15%. For custom assemblies, terminate resistors (15kΩ pull-down on D−/D+, 1.5kΩ pull-up on D+) must comply with Chapter 7 of the USB 2.0 specification to enable proper device recognition. Test each joint with a continuity meter before applying power–shorts between VBUS and data lines will permanently damage ports.
Adapter Variations

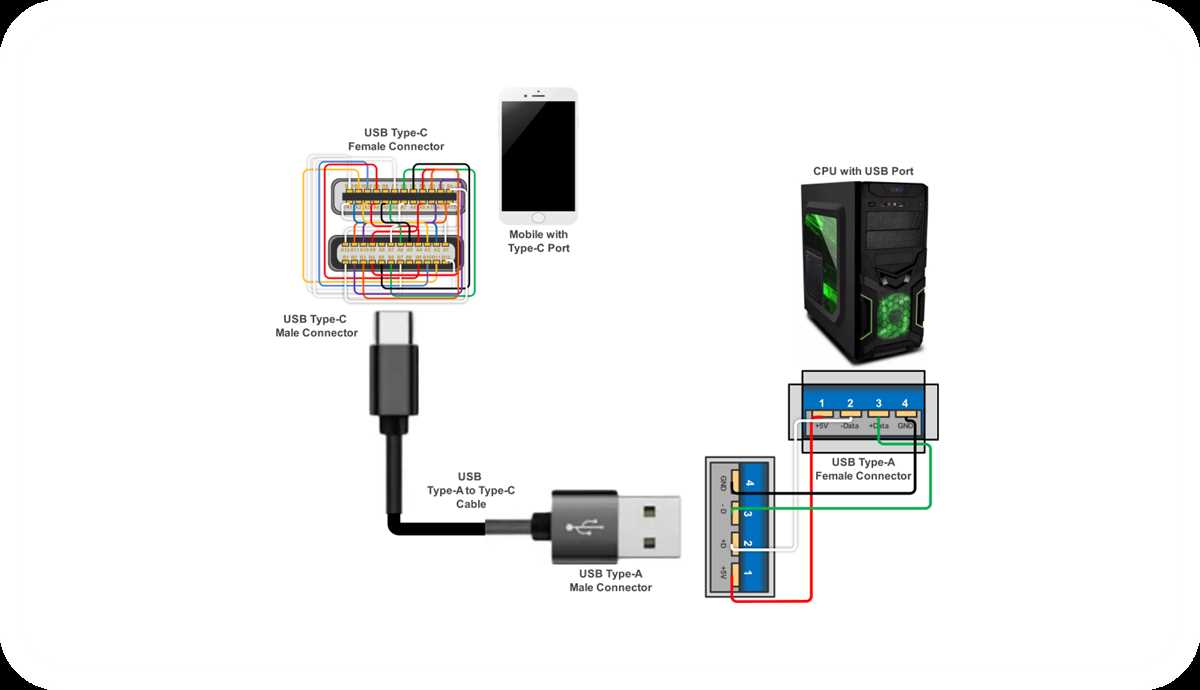

Type-C connectors require a full 24-pin layout but can operate in USB 2.0 mode with only eight pins active: A4 (VBUS), A5 (CC), A6 (D−), A7 (D+), B4 (VBUS), B5 (CC), B6 (D−), B7 (D+). Omit CC pins on legacy adapters, but include a 56kΩ pull-down resistor on each CC line if negotiating power delivery (PD). For OTG compatibility, short ID pin to GND via a 10kΩ resistor on micro-B plugs.
Critical fault prevention:
- Never reverse VBUS and GND–immediate port destruction.
- Data lines must never exceed 3.6V–use series resistors (22Ω) if interfacing with 5V logic.
- Unshielded cables longer than 3m require repeaters or active extenders (USB 2.0 max 5m per segment).
- ESD protection diodes (e.g., PESD5V0S1BA) on all exposed pins save host controllers.
Pinout Configuration of Standard and Miniature Interface Connectors
Always verify cable assignments using a multimeter before energizing any system–mismatched contacts cause irreversible device failure. Type-A receptacles follow this arrangement: Pin 1 delivers +5 VDC (±5%), Pin 2 carries Data– (D–), Pin 3 handles Data+ (D+), and Pin 4 connects to ground. Maintain strict adherence to voltage ratings; deviations above +5.25 VDC risk permanent IC damage.
Mini-B connectors present a staggered pin layout critical for compact device compatibility:
| Contact | Function | Voltage Range |
|---|---|---|
| 1 | VBUS (+5 V max) | +4.75 – +5.25 VDC |
| 2 | D– (Differential Data–) | 0 – 3.3 VDC logic |
| 3 | D+ (Differential Data+) | 0 – 3.3 VDC logic |
| 4 | ID (Host/device identification) | 0 Ω (OTG) / open |
| 5 | Ground (Return) | 0 VDC |
For devices supporting On-The-Go (OTG) functionality, Contact 4 functions as an identifier: shorting to ground designates a host, leaving open configures the device as peripheral. Shield wire should bond directly to chassis ground–neglecting this creates EMI susceptibility. Always twist data pair strands (2-3) at a rate of ≥25 turns per meter to suppress crosstalk during high-speed transfers.
Connecting Data Lines to a PCB: A Practical Soldering Walkthrough
Strip the outer jacket of the cable 8–10 mm back using a precision cutter, exposing the four inner conductors. Identify the signal pairs: Vbus (red) carries 5 V, D− (white) and D+ (green) form the differential pair, and GND (black) grounds the circuit. Confirm color codes match the host board’s silk-screen markings; deviations can cause data corruption.
Apply a small dab of rosin flux to each pad on the printed circuit board to prevent oxidation and improve solder wetting. Position the exposed strands flat against their targets–anchor Vbus first for mechanical stability, then tack GND at the opposite end. Secure D− and D+ last, ensuring no stray strands bridge adjacent pads.
Heat each connection with a 25 W iron for 1–2 seconds, touching the solder tip to the joint, not the iron. Use 0.5 mm solder; excess can short traces spaced at 0.8 mm pitch. After soldering, clip excess wire flush with side-cutters to prevent accidental contact during enclosure assembly.
Insulate bare connections immediately: slide 2 mm shrink tubing over each joint and apply 90 °C heat until snug. Group Vbus and GND tubes together, and keep the differential pair separate to minimize crosstalk. Double-check resistance: Vbus to GND should read 200–500 Ω; open or short circuits indicate poor joints or bridging.
Test the finished assembly with a downstream device before finalizing the enclosure. Plug in a known-good peripheral and verify power delivery (5 V ± 0.25 V) and data transfer speeds–full-speed signals should show clean 3.3 V transitions on an oscilloscope with ≤ ± 300 mV overshoot. Rework any joints that fail this check; cold joints can degrade over time.
Critical Errors in Connecting Data Cables and Preventing Electrical Failures
Reverse the polarity of power lines during assembly, and the device will fail instantly. Standard Type-A and Type-C connectors assign VBUS to pin 1 and GND to pin 4 (or pins 5/6 in Type-C). Swapping these lines creates a direct short, generating currents exceeding 2A before thermal fuses trip. Always verify pin assignments with a multimeter set to continuity mode before soldering; rely on color codes only if the wire gauge matches the spec (typically 28-26 AWG for power, 30-32 AWG for data).
Neglecting shield termination invites noise and intermittent faults. The shield–the outer braided mesh–must connect to the metal shell of the connector, not to GND on the circuit board. Ignoring this step causes radiated emissions exceeding FCC Class B limits, and corroded shields degrade signal integrity within months. Use a crimp terminal or solder the shield to the connector shell with a 30W iron; avoid twisting and taping, as oxidation forms within weeks.
Using incorrect gauge wires leads to voltage drops or burns under load. A 30cm USB lead with 30 AWG power wires drops 0.3V at 1A–acceptable for charging but insufficient for high-power devices. Replace undersized wires with 26 AWG copper; stranded core resists fatigue better than solid. For 5A applications (USB Power Delivery), 22 AWG is the bare minimum, and 7/0.1mm strands prevent brittleness over 100 insertion cycles.
Skipping strain relief causes connector failure. Cheap cables snap at the solder joints after 20-30 bends. Mold the connector junction with hot glue after soldering, or use heat-shrink tubing with an adhesive liner. For panel-mounted ports, reinforce the board with standoffs; side-loaded force (e.g., yanking) shears traces rated at 1N/mm². Embed the connector in epoxy if it’s subjected to vibration (e.g., automotive use).
Misaligning differential pairs (D+ and D-) disrupts high-speed data. The pairs must maintain 90Ω ±10% impedance; mixing AWG sizes or twisting them inconsistently introduces reflections visible on an oscilloscope as overshoot exceeding 0.4V. Use a TDR (time-domain reflectometer) to verify impedance before final assembly. For Micro-B connectors, ensure the D+/D- traces run parallel within 0.1mm; serpentine routing compensates for unequal lengths but adds 1-2ns latency.
Ignoring current ratings destroys connectors. Standard USB 2.0 Type-A ports handle 1.5A continuously, but cheap off-brand connectors melt at 0.8A due to undersized contacts. Upgrade to gold-plated phosphor bronze contacts (1μm minimum thickness) for 2.4A, and avoid tin-plated ones–they corrode at 0.2A over 500 mating cycles. For 3A+ applications, switch to Type-C with PCB-mounted EMI filters; the connector’s thermal resistance drops by 30% with a 1mm copper pour beneath the pads.
Leaving exposed wires after crimping causes shorts. A single strand of 32 AWG copper bridges pads spaced 0.5mm apart under vibration. Trim excess wire flush, then apply liquid electrical tape or UV-cured solder mask to the joints. For board-level connections, pre-tin pads before soldering; cold joints increase resistance by 0.1Ω, enough to drop 0.1V per centimeter under full load. Test every joint with a 5V/1A load before sealing the assembly–latent shorts often surface only under heat or humidity.
