Step-by-Step Whirlpool Dryer Heating Element Wiring Diagram Guide
Start by unplugging the machine from the power source. Locate the access panel–typically at the rear or inside the front door frame–and remove it using a screwdriver. Before touching any components, discharge static electricity by grounding yourself to avoid damaging sensitive parts.
The resistance coil is usually secured behind the drum or near the blower assembly. Identify it by its coiled wire structure and mounting bracket. Disconnect the electrical connectors–often two spade terminals–but first, label each wire with tape to ensure correct reconnection. If the terminals are corroded, clean them with a wire brush before proceeding.
Test the component with a multimeter. A functional coil should read between 8 and 50 ohms–anything outside this range indicates failure. Replace it with an exact OEM match to avoid compatibility issues. Slide the new part into position, securing it with the original screws or clips. Reattach the electrical leads in the reverse order of removal.
Reassemble the panel and run a test cycle on high heat. Monitor the appliance for 10–15 minutes to confirm proper operation. If the unit fails to heat, check the thermal fuse, high-limit thermostat, or control board as secondary culprits. Always reference the model-specific repair manual for voltage specifications and safety precautions.
Use heat-resistant gloves when handling the assembly, as residual warmth from prior cycles can linger. Avoid bending the coil during installation–misalignment can cause shorts or premature burnout. For gas-powered models, never tamper with the burner assembly unless certified to do so.
Store the old component in an antistatic bag if warranty claims or troubleshooting require it later. Keep track of small screws and components to prevent loss during reassembly. If the problem persists after replacement, inspect the cycling thermostat or venting system for obstructions.
Electrical Schematic for Appliance Heat Coil Installation
Locate the thermal fuse first–positioned near the blower housing on most model lines. Verify continuity with a multimeter before proceeding, as a blown fuse requires replacement prior to any electrical work. Standard resistance readings should fall between 0-50 ohms; deviations indicate component failure.
Trace the high-limit thermostat wiring path using the schematic specific to your unit’s serial number group. Models LGX8000 to LGX9500 utilize a single red conductor loop, while earlier variants (pre-2018) incorporate an additional orange jumper wire bridging the coil terminals to the thermal cutoff switch. Misrouting risks overheating the terminal block, leading to meltdown within 45-60 minutes of operation.
- Disconnect power at the circuit breaker–240V lines remain live even when the appliance is off.
- Remove the rear panel using a 1/4″ hex driver; store screws in a magnetic tray to prevent loss.
- Identify the coil cradle beneath the drum–secure mounting tabs often corrode; check torque specifications (12-15 in-lbs) before reassembly.
The cycling thermostat must be reinstalled in its original orientation–fan-side markings denote airflow direction. Swapping polarity here disrupts temperature regulation, causing erratic heating cycles or premature cutoff during the drying phase. Reference the parts manual’s exploded view if markings are obscured by lint accumulation (common in units older than 3 years).
Use crimp connectors rated for 20A minimum–standard wire nuts fail under thermal stress, especially in stacked washer-dryer combos where ambient moisture accelerates oxidation. Apply dielectric grease to terminals 1 and 3 (black/red conductors) to prevent arching; terminals 2 and 4 (neutral) do not require insulation unless retrofitting a European voltage adapter (220V conversion kits alter pinout configurations).
- Test-run in timed dry mode (10-minute cycle) to confirm proper operation.
- Observe drum rotation speed–excessive RPM (>60 sprung revolutions) indicates incorrect belt tensioning; recalibrate per technical sheet TN-4205.
- Monitor exhaust airflow–clogged vents cause backpressure, tripping the thermal cutoff within 8-12 load cycles.
Locating the Precise Model of Your Appliance for Electrical Schematics
Check the data plate attached to the door frame or inside the lint filter compartment–this is the fastest way to obtain model specifics. Most Whirlpool-manufactured units display the identifier as a combination of letters and numbers, typically starting with “W,” “ET,” or “LE” followed by 8–10 digits. If the label is missing or unreadable, inspect the rear panel; some units have the numbers stamped onto the metal chassis near the exhaust vent. Avoid relying on visual similarities between units–different revisions often share identical exteriors but require distinct connection layouts.
Cross-reference the model code with official service manuals or parts databases before attempting repairs. A single digit variation (e.g., WED5600XW vs. WED5600XW1) can mean incompatible voltage ratings, safety cutoffs, or terminal block arrangements. Below is a quick-reference table of common series and their key identifying markers:
| Series Prefix | Typical Location of Label | Notable Electrical Differences | Schematic Variants |
|---|---|---|---|
| WGD | Rear bulkhead or door jamb | Dual-voltage capability (120V/240V) | Separate high-limit thermostat wiring |
| LEC/GW | Inside dryer drum, near blower housing | Single-phase 240V only | Integrated thermal fuse loop |
| ETW/YW | Baseframe behind kick plate | 120V models with inline thermal cutoff | Compact terminal blocks |
| Duet Sport | Top edge of front panel | Bifurcated element circuits | Proprietary multi-connector harness |
For units manufactured after 2018, Whirlpool introduced RFID-enabled service tags embedded beneath the control board cover. Scan the tag with a compatible reader to instantly retrieve the exact revision and associated schematics. If RFID is unavailable, manually trace the power cord entry point–the routing of L1/L2 conductors often reveals whether the assembly uses a 3-wire or 4-wire cord setup, a critical detail for proper reconnection.
Double-check the production date before downloading schematics; appliance manufacturers sometimes update internal components without altering the visible model number. A 2020-built dryer may feature a revised motor relay or element coil configuration, requiring an updated electrical map. Visit the brand’s official repair portal, enter the full identifier, and download the corresponding service sheet–third-party diagrams frequently mislabel legacy models.
When in doubt, measure resistance across the thermal fuse and heater coil terminals–values outside 15–40 ohms indicate either a wrong model match or a defective assembly. Use a multimeter in continuity mode to verify circuit paths align with the downloaded diagram; discrepancies suggest an incorrect revision was referenced.
Handling Discontinued or Hybrid Models
Hybrid models combining features from multiple series often omit identifiers from standard lookup tables. Units like the “Whirlpool Cabrio” share chassis with Maytag Bravo–check both brand databases for compatible schematics. Disassembled views of the control board or drive motor often display secondary serial numbers–cross-reference these through appliance part suppliers for accurate wiring layouts.

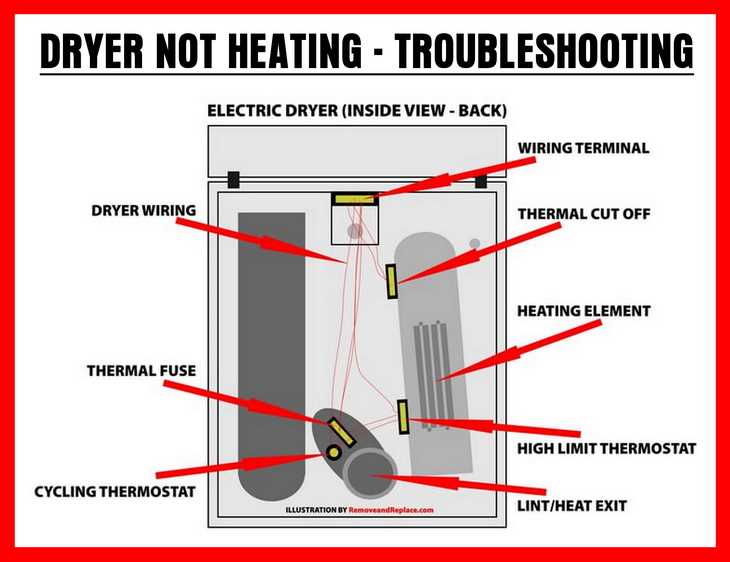

Finding the Core Heat Source and Safety Cutoff in Your Appliance

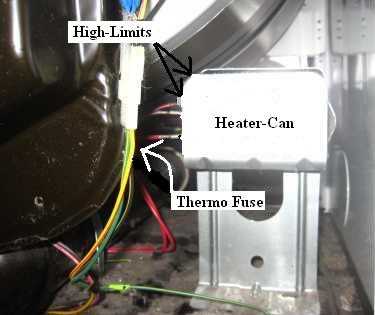

Unplug the machine and pull it away from the wall. Remove the back panel–typically secured by 5–7 screws–and set it aside. The cylindrical metal component with coiled resistance wires is your target; it sits behind a protective metal housing near the blower duct. Look for a rectangular ceramic or metallic fuse clipped directly to the exhaust path or mounted on the blower assembly next to it–Whirlpool models position this safety device within 8–12 inches of the heat source for immediate response.

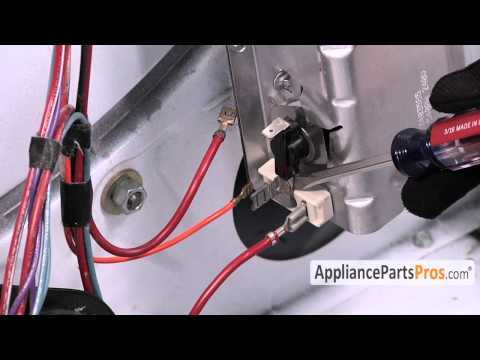

Trace the red high-limit wires exiting the coil to confirm connection points: one terminates at the fuse, another links to the control thermostat. Some variants use a single-use white thermal fuse rated 300–330°F, others feature a resettable bi-metallic disc. Verify the fuse’s continuity with a multimeter–zero ohms indicates functionality; infinite resistance confirms failure, necessitating replacement from the same temperature-rated model (3387134, WP3392519).
Panel Removal Shortcuts
Lift the top lid first if accessing internal parts proves tight. Release the two spring clips hidden under the front lip–slide a putty knife between the top and cabinet, press upward. Disconnect door switch wires before fully removing the front panel; some models integrate the fuse into the drum’s lower front bracket, requiring partial drum removal. Keep screws organized by size–M5 fasteners secure the rear panel, while smaller M3 screws attach control boards.
Inspect both components for discoloration, brittleness, or cracked ceramic. The thermal cutoff fails silently–no visible damage often means a multimeter test is mandatory. Clean the exhaust path while exposed: vacuum lint buildup around the blower wheel and heat chamber to prevent overheating recurrence. Use a brush to clear residue from the fuse’s contacts before reinstalling to ensure a solid connection.
Reassemble in reverse order, verifying all wire harnesses snap securely into place. Run an empty test cycle–temperature should rise within 90 seconds. If heat dissipates prematurely, recheck fuse continuity and coil resistance (10–50 ohms). Match the fuse’s maximum temperature rating to the dryer’s model number (found on the rear panel or inside the door frame) to avoid incorrect replacements.
