Ford Starter Solenoid Wiring Guide Schematic and Troubleshooting Steps

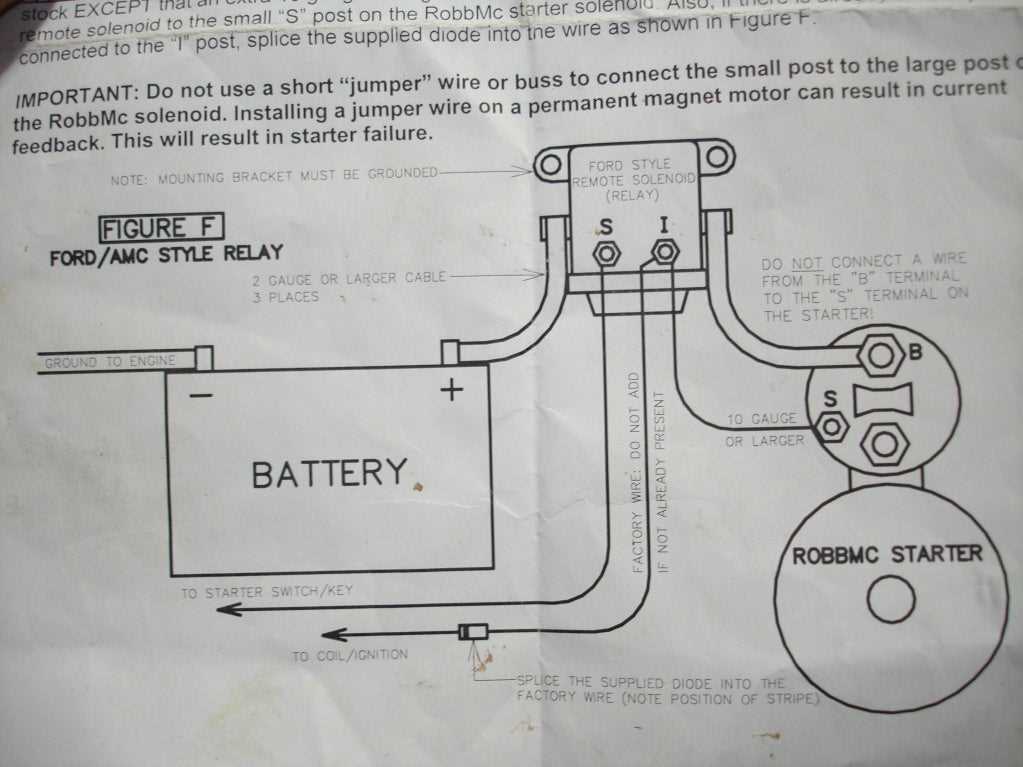

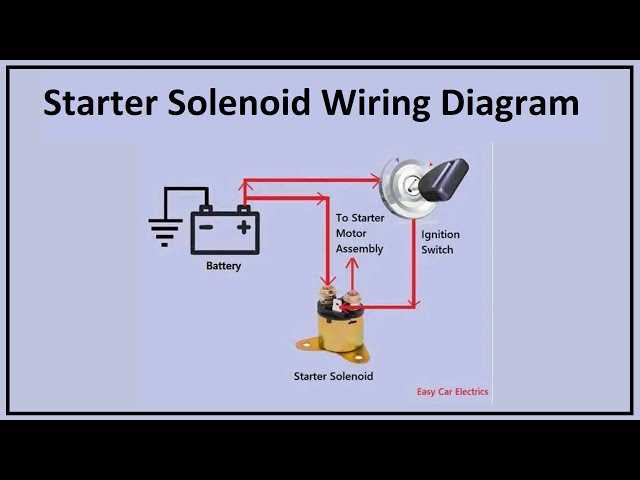

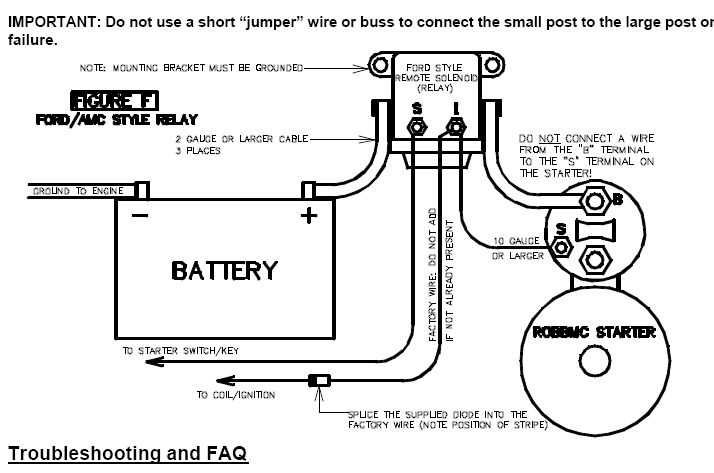

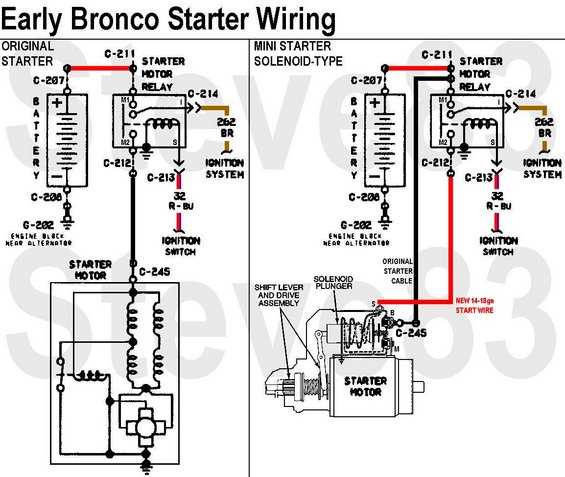

Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Locate the relay or control module near the engine bay–typically housed in a black or dark gray casing marked with terminal numbers. Identify the thick red cable from the battery’s positive post; this is the primary feed line into the circuit. Trace it until it splits into two branches: one routes to the relay, while the other leads to the heavy-duty switch on the side of the motor casing.
Use a multimeter set to continuity mode to verify each connection. Probe the small trigger terminal–often labeled S or 50–which should show a brief 12V pulse when the ignition key turns to the start position. If voltage drops below 10.5V, inspect the wiring harness for frays, corrosion, or loose crimps, especially near the firewall where heat and vibration accelerate wear.
Ensure the ground strap from the motor housing to the chassis is clean and secure. A weak ground can mimic symptoms of a failed relay, causing erratic engagement or complete silence when attempting activation. If the heavy-duty switch clicks but the motor doesn’t spin, suspect a burned contact or internal pitting–test by bridging the B (battery) and M (motor) terminals with a screwdriver (engine off); a healthy unit will crank immediately.
For models with integrated anti-theft or immobilizer modules, confirm the ignition circuit sends a coded signal to the body control module before energizing the relay. Missing this step can trigger false error codes, even if all physical connections appear intact. Replace deteriorated connectors with marine-grade terminals if moisture exposure is common in your climate.
Connecting Electrical Pathways for Vehicle Ignition Activation
Locate the primary control terminal–marked “S” on most configurations–before attaching cables. Ensure the battery’s positive lead connects directly to this point via a 10-gauge or thicker conductor to handle inrush currents without voltage drop. Verify polarity; reversed connections risk frying the relay mechanism or triggering unintended engagement cycles. For pre-1995 models, note the absence of an integrated ignition bypass; manual jumper setup between the “S” post and battery positive may be necessary during bench testing.
Grounding demands attention: secure the relay’s metallic case or designated ground lug to the engine block using a dedicated 8-gauge braided strap. Avoid chassis reliance, as paint, corrosion, or poorly tightened fasteners introduce resistance, leading to intermittent failures. For automatic transmissions, confirm neutral safety switch continuity–misalignment here prevents circuit completion even with correct cable routing.
Handling Auxiliary Circuits with Precision
If the system includes auxiliary features like a remote start or anti-theft immobilizer, trace the secondary trigger wire (often blue or purple) from the relay’s “I” terminal. This path typically feeds into a control module; incorrect splicing risks voltage feedback, damaging sensitive electronics. Use crimp connectors with heat shrink–never twist-and-tape–when modifying factory harnesses to maintain conductivity under vibration.
Ballast resistors in carbureted setups demand separate consideration. Bypass-resistant relay configurations require a direct 12V feed to the ignition coil during cranking; failure here reduces coil saturation, causing weak spark. Measure resistance: standard relays show 50–150 ohms across the hold-in coil, while pull-in coils read near zero ohms when activated. Deviations indicate internal shorts or open circuits.
Post-installation diagnostics involve voltage drop testing under load. With the engine cranking, probe both ends of each circuit segment; readings above 0.5V signal resistance points needing correction. For dual-relay systems (common in diesel or heavy-duty variants), ensure timed engagement–sequential activation prevents current surges from stressing the electrical system.
Final checks include thermal stability: operate the assembly for 10–15 seconds, then verify relay case temperature remains below 140°F. Excessive heat suggests undersized conductors or prolonged engagement periods, necessitating upgrade to larger gauge wire or reduced auxiliary load. Document all modifications with labeled schematics–invisible defects cause recurring failures with costly troubleshooting later.
Identifying the Right Conductors in an Automotive Ignition Relay Assembly
Locate the battery feed line first–this is typically a thick cable, often red or yellow, terminating at the relay’s primary input post. On most American-made vehicles with a V8 or straight-six engine, this lug sits adjacent to a smaller stud, marking the ignition switch input. Verify continuity with a multimeter between this post and the positive battery terminal; resistance should read near zero ohms.
Trace the ignition switch conductor next. This is usually a thin purple or pink wire, sometimes striped, linking the relay to the switch itself. Unlike thicker cables, its gauge ranges from 14 to 18 AWG, designed to handle low-current signals rather than high-amperage loads. If corrosion or heat damage is visible at the relay connection, replace the terminal end rather than splicing, as poor contact can cause intermittent failures.
Check the solenoid activation line–a thinner wire, often green with a yellow stripe, connecting to the outer activation post. This conductor carries the signal from the starter button or ignition switch to energize the relay coil. Improper routing near sharp edges or exhaust manifolds can lead to insulation breakdown; route this wire with a minimum of 50mm clearance from moving parts.
Identify the motor engagement cable–this thick braided or solid wire, usually black or dark green, extends from the relay to the cranking motor itself. Gauge exceeds 6 AWG, engineered for sustained high-current draw. Corrosion at the motor end necessitates disassembly and cleaning with a wire brush; avoid emery cloth, as residual grit can impede electrical flow.
Field coils and ground conductors should be examined separately. Ground straps attach directly to the engine block or chassis, often via a bare copper braid. Measure voltage drop under load–more than 0.2V indicates a high-resistance joint requiring either terminal replacement or chassis re-bonding. Below is a reference for typical conductor properties:
| Cable Function | Color Code Standard | Minimum Gauge (AWG) | Max Current Draw (A) |
|---|---|---|---|
| Battery Feed | Red, Orange | 4 | 200 |
| Ignition Switch | Purple, Pink, Striped | 18 | 10 |
| Solenoid Activation | Green/Yellow, Black/White | 16 | 15 |
| Motor Engagement | Black, Dark Green | 6 | 120 |
| Ground Strap | Bare Copper | 4 or larger | 250 |
Inspect all conductor insulation for brittleness or cracking, particularly near flex points. Silicone-based dielectric grease applied to terminal ends prevents future oxidation; petroleum jelly can degrade rubber seals and should be avoided. Replace any wire showing signs of overheating–discoloration, melted insulation, or a waxy texture indicates imminent failure.
Use a test light or multimeter to confirm circuit operation before reassembly. Connect the light’s clip to the positive battery terminal, then probe each conductor while cycling the ignition. The solenoid activation line should illuminate only when the key is turned, while the battery feed remains live at all times. Any deviation from this sequence indicates either a relay malfunction or incorrect conductor routing.
Step-by-Step Guide to Bypassing the Relay for Direct Motor Checks
Disconnect the battery’s negative terminal first to prevent accidental sparks or shorts. Locate the relay housing–typically a cylindrical or rectangular component near the motor assembly–then identify the two large terminals: the one marked “B” (battery feed) and “M” (motor connection). Use a heavy-gauge jumper wire (minimum 10 AWG) to bridge these terminals directly. Ensure the transmission is in neutral or park before proceeding to avoid unexpected vehicle movement.
Required Tools and Precautions
- Insulated pliers or a screwdriver with a rubber handle
- Voltage tester (to confirm no residual current)
- Jumper cable with alligator clips (10 AWG or thicker)
- Work gloves (for grip and protection)
- Safety glasses (mandatory for flying debris)
Clean both terminals with a wire brush to remove corrosion or oxidation–poor contact will skew results. Attach one end of the jumper wire securely to the battery feed terminal (“B”), then momentarily touch the other end to the motor terminal (“M”). If the motor engages smoothly and spins at full speed, the issue lies within the relay or its control circuit. If no response occurs, the problem may be the motor itself, a faulty ground, or a seized armature.
Troubleshooting No-Start Scenarios
- If the motor turns but the engine doesn’t rotate, check for:
- A damaged pinion gear or flywheel teeth
- Worn bushings causing misalignment
- Excessive engine resistance (e.g., hydrolock)
- If the motor emits a single click but doesn’t spin:
- Test for voltage at the “M” terminal during cranking (should be >10V)
- Inspect for a bad ground strap or corroded engine block connection
- If the motor draws excessive current (smoke, burning smell):
- Disconnect immediately–indicates a shorted field coil or armature
Reconnect the battery’s negative terminal only after confirming the jumper wire is removed. Never bypass the relay while the ignition is in the “start” position–this can damage the ignition switch or trigger unintended engine rotation. For repeated testing, consider fabricating a switch-equipped jumper harness to eliminate repeated terminal contact risk.
