Step-by-Step Guide to Creating a Reliable Ethernet Cable Wiring Diagram

Use the T568A or T568B standard for terminating twisted pairs. T568B is more common in commercial installations, while T568A is often preferred in residential setups. Both layouts ensure compatibility, but never mix both schemes at opposite ends of the same line–this guarantees signal degradation. For gigabit speeds, maintain strict pair alignment: orange/white-orange, green/white-green, blue/white-blue, and brown/white-brown in T568B.

Strip 2.5–3 cm of outer insulation, leaving the inner pairs untwisted no more than 12 mm to prevent crosstalk. Insert wires into the connector fully, with each strand seated securely beneath the gold contact, before crimping. Verify continuity with a tester: solid lights for 1–8 indicate correct mapping, while flickering or missing signals reveal misaligned or broken connections. For PoE (Power over Ethernet), use solid-core conductors; stranded wires may overheat under continuous load.

Cat6 lines require tighter tolerances than Cat5e. Keep bend radius at least four times the diameter of the cable to avoid impairing performance. When running through walls, space Ethernet lines at least 30 cm from power cables to minimize interference. Secure lines with Velcro or soft ties–never use staples or tight zip ties, which can deform pairs.

Patch panels simplify maintenance. Label both ends of every line immediately after termination, using durable tags that resist smudging. For outdoor use, select UV-resistant sheathed lines and seal connectors with gel-filled boots to prevent moisture infiltration. If extending beyond 100 meters, introduce a switch or repeaters to maintain signal integrity–no exceptions.

Standard Pinout Schemes for Ethernet Connections

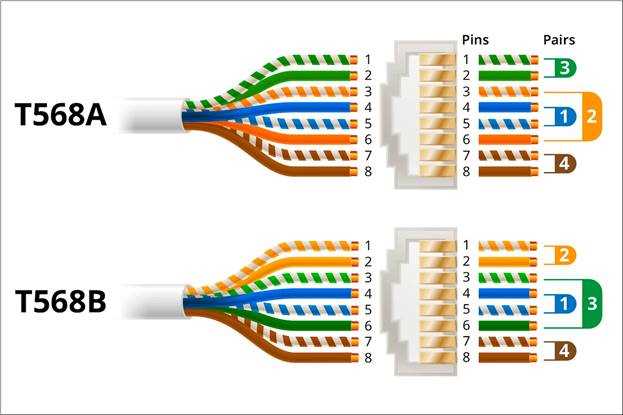

For reliable gigabit speeds, use the T568B arrangement: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. This configuration ensures compatibility with most modern hardware. Straight-through connections suit device-to-switch links, while crossovers work for direct system-to-system transfers. Verify each conductor’s insulation color–faulty crimps often trace back to misaligned striped pairs.

Testing and Troubleshooting

Use a continuity tester with an RJ45 port–probe each pin sequentially to confirm signal flow. Swap suspected bad jacks; intermittent failures often hide in bent contacts. Shielded variants (STP) require proper grounding at both ends–neglecting this step invites interference. For PoE, thicker 24 AWG copper cores handle up to 30W; confirm gauge before sourcing power over the link.

Patch leads shouldn’t exceed 10 meters for Cat6–signal attenuation spikes beyond this length. When splicing, keep untwists under 13 mm to maintain bandwidth. For industrial setups, prioritize stranded conductors to prevent work hardening under vibration. Document each endpoint’s port designation–cable trays full of unlabeled runs waste hours during faults.

Keep termination tools calibrated–misaligned dies create hairpin shorts. Replace rotary punch-down tools every 1,000 terminations; blades dull quickly. Before deployment, capture each link’s NVP (nominal velocity of propagation) with a TDR meter–atypical readings hint at kinked cores or substandard copper.

How to Select Between T568A and T568B Pinout Schemes

Begin by verifying the existing infrastructure in your facility–most North American installations default to T568B, while older or government-managed sites often use T568A. If expanding an established system, match the scheme already in place to avoid signal disruption. For new setups, T568B is preferred due to its broader compatibility with PoE and modern networking hardware, though both standards support Gigabit Ethernet equally.

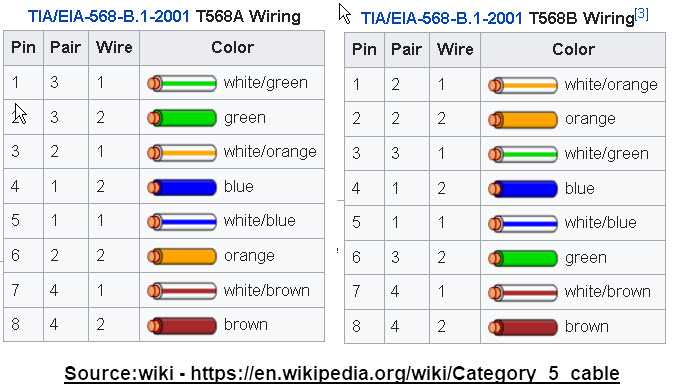

Check device documentation for explicit pinout requirements–some switches, patch panels, or IP cameras mandate one scheme over the other. T568A’s green pair (pins 1-2) and orange pair (pins 3-6) swap positions in T568B, which can interfere with power delivery if misconfigured. Testing continuity with a cable analyzer ensures correct pairing before finalizing terminations.

Consider regional regulations: T568A aligns with ISO/IEC 11801 standards favored in Europe, while T568B dominates in ANSI/TIA-568 compliance zones like the U.S. Mixing schemes in the same installation risks crosstalk–stick to one standard per project. For unrelated runs (e.g., phone vs. data), T568A’s blue pair (pins 4-5) remains consistent for voice circuits in both schemes.

Label terminations clearly–use colored boots or tags corresponding to the chosen standard. T568B’s orange/white, orange, green/white, blue, blue/white, green, brown/white, brown sequence simplifies troubleshooting compared to T568A’s flipped green and orange pairs. Document the scheme in your facility’s wiring records to streamline future modifications.

Step-by-Step Guide to Stripping and Preparing Ethernet Cable Ends

Use a crimping tool with an integrated stripper or a dedicated cable jacket remover–avoid utility knives to prevent damaging internal conductors. Cut precisely 20–25 mm from the end, exposing the twisted pairs while preserving their individual insulation. For Cat5e and above, maintain the factory twists up to the last 12–13 mm to minimize crosstalk; untwisting beyond this threshold degrades signal integrity.

Category	Max Untwist Length	Jacket Removal Length	Pair Separation
Cat5	15 mm	20 mm	Minimal
Cat5e	13 mm	22 mm	Strict
Cat6	12 mm	25 mm	Critical

Sort the conductors by color code–T568A or T568B–using a sequence guide to prevent misalignment. Trim uneven ends with flush-cutting pliers, leaving 10–12 mm of exposed wire beyond the jacket. Ensure no stray strands protrude; even a single loose filament can cause shorts or intermittent connectivity.

Standard Pin Assignments for Direct-Link vs. Switched Connections

Use T568A for straight-pass connections between dissimilar devices (e.g., router to switch, host to hub) and T568B when pairing similar equipment (switch to switch, hub to hub). Pinouts must match on both ends for straight pass-through: Pin 1 → white-orange, Pin 2 → orange, Pin 3 → white-green, Pin 4 → blue, Pin 5 → white-blue, Pin 6 → green, Pin 7 → white-brown, Pin 8 → brown. Swapped links require green and orange pairs to cross: swap pins 1↔3 and 2↔6 to ensure RX meets TX across devices.

Pin 4 (blue) and pin 5 (white-blue) form the center pair, remaining unchanged in both standards, serving as common reference for power-over-ethernet capacity when present.

Essential Gear and Supplies for Accurate Data Line Termination

Begin with a high-quality cutting tool designed for stranded or solid conductors. Diagonal cutters with a precision edge prevent fraying–avoid generic wire snips, as they crush rather than slice. For stripping, use a dedicated jacket remover calibrated to the specific AWG (typically 22-26 for Ethernet conductors). Adjustable blade depth ensures clean cuts without nicking inner insulation, a common cause of signal degradation.

Termination requires reliability; invest in a modular crimping device rated for 8P8C plugs. Budget tools deform contacts, leading to intermittent connections. Verify compatibility with CAT5e through CAT8–some models only handle older standards. For bulk terminations, a punch-down tool with a replaceable blade speeds the process. Choose between impact or spring-loaded variants; the latter reduces user fatigue during prolonged use.

Core Components for Flawless Connections

• Conductive plugs (RJ45): Gold-plated contacts (minimum 50μin) resist corrosion. Avoid tin-plated alternatives–they oxidize within months. Check polarity markings (T568A/B) to match your configuration.
• Shielded twisted pairs: Required in high-interference environments. Foil or braided shielding adds 20-30% cost but prevents alien crosstalk in dense installations (e.g., server rooms).
• Pull tape: Low-friction nylon tape reduces tension during installation. Steel variants damage jackets if over-tightened. Measure run length beforehand–standard rolls cover 100m.
• Cable ties: UV-resistant nylon ties prevent sagging in outdoor runs. Minimum tensile strength: 18 lbs. Velcro straps offer reusability for temporary setups.

Test equipment must include a certifier capable of measuring attenuation, NEXT (near-end crosstalk), and return loss. Entry-level testers merely verify pinout–insufficient for gigabit speeds. For field use, a pocket-sized qualifier with frequency sweep (up to 250 MHz for CAT6) identifies faults like split pairs. Avoid “pass/fail” meters; they miss marginal errors until they cause failures.

Labeling is often overlooked. Use thermal-transfer printers for durable, smudge-proof tags. Pre-printed sleeves save time but limit customization. For surface-mounted jacks, wall plates with modular keystone inserts simplify repairs–avoid fixed-configuration panels. In patch bays, angled adapters improve airflow and reduce bend radius violations (minimum 4x outer diameter for Ethernet standards).

Precision Extras for Specialized Installations

1. Fishing rods: Fiberglass (not steel) rods with flexible tips navigate wall cavities without snagging. Extendable models reach up to 30m.
2. Conduit benders: Spring-type benders prevent kinking in EMT or PVC runs. Measurement markers ensure proper offsets–avoid “eye-balling” angles.
3. Heat-shrink tubing: Dual-wall adhesive-lined tubing seals outdoor terminations. Minimum shrink ratio: 2:1. Polyolefin resists UV; flame-retardant variants meet NEC standards.
4. Anti-static wrist straps: Mandatory for handling PoE (Power over Ethernet) conductors. Grounding cords must include a 1MΩ resistor to prevent ESD damage.

Store excess lengths in a climate-controlled environment. Humidity above 60% accelerates jacket deterioration; temperature swings cause condensation inside jackets. Rotate stock using the FIFO (first-in, first-out) method to prevent aged products from entering installations. For recalls or quality issues, document batch numbers–some manufacturers swap materials without notifying users.
