Complete Honeywell Thermostat Wiring Diagram Guide for HVAC Systems

Before making any connections, verify the voltage requirements of your heating and cooling system. Most modern setups operate on 24V AC, but older models or specialized equipment may use 120V or 240V. Check the labels on your HVAC unit’s control board–mismatched voltage will damage the device or create a fire hazard. If uncertain, measure the voltage at the transformer using a multimeter.

Label every wire before disconnecting the old control unit. Use masking tape or a marker to note each terminal’s function: R (power), C (common), W (heat), Y (cool), G (fan), and O/B (heat pump reversing valve). Skipping this step risks incorrect connections, leading to system malfunctions or short circuits. For advanced setups, note auxiliary functions like E (emergency heat) or L (fault indicator).

Match the new control panel’s terminals precisely. Insert bare copper or green wires into the earth ground slot first–this prevents electrical shock during installation. Connect R and C next to ensure power stability. For dual-fuel systems, attach W2 and Y2 carefully; reversed connections will force the system into unintended modes, wasting energy or causing premature wear. If your unit has a humidifier or dehumidifier, route the HUM or DH wire to the correct terminal–improper placement disrupts moisture control.

Test the setup in manual mode before relying on automated schedules. Activate heat, cool, and fan functions independently, observing the HVAC unit’s response. If the system doesn’t engage, recheck connections for loose strands, crossed wires, or incorrect terminal placement. For smart models, ensure Wi-Fi connectivity and app synchronization–delayed updates or failed commands often trace back to weak signals or misconfigured network settings.

Seal connections with electrical tape or wire nuts to prevent corrosion or accidental disconnections. Secure cables with zip ties if they hang near moving parts or sharp edges. After installation, monitor energy consumption for 24–48 hours–spikes in usage may indicate a failed relay or incorrect thermostat calibration. Adjust settings incrementally; aggressive temperature swings strain the compressor and reduce efficiency.

Connecting Your Climate Control Device: Electrical Layout Guide

Before handling any connections, shut off power at the circuit breaker to prevent short circuits. Identify the labeled terminals on the backplate: R (power), C (common), W (heat), Y (cooling), and G (fan). Match these to your HVAC system’s corresponding wires–typically red (R), white (W), yellow (Y), green (G), and blue or black (C). If your system lacks a C-wire, use an adapter kit or repurpose the G-wire for stable power delivery, ensuring continuous functionality for Wi-Fi models.

Troubleshooting Common Connection Issues

Loose or mismatched wires cause erratic behavior–verify each connection with a multimeter (set to AC voltage) by probing between R and C for 24V. If readings fluctuate or drop below 20V, check for corroded terminals or undersized wiring; replace wires smaller than 18 AWG for sufficient current. For heat pumps, note O/B (reversing valve) polarity–energized in cooling (O) or heating (B) mode varies by manufacturer–and confirm compatibility with your unit’s specifications to avoid compressor damage.

Choosing the Right Climate Control Unit for Your Electrical Setup

Locate the product identification label on the rear panel of the device or beneath the front cover to determine the exact version. Models often include a combination of letters and numbers, such as TH6220D1004 or RTH8580WF. Cross-reference this code with official documentation to confirm compatibility with your heating, ventilation, or cooling system before proceeding with connections.

Check the number of terminals on the unit’s base plate–older mechanical variants typically feature 4 to 5 connection points, while advanced smart controllers may integrate 10 or more. Terminals labeled R, W, Y, G, and C correspond to standard furnace signals; additional ports like O/B indicate compatibility with heat pumps. Verify these labels match the configuration specified in your HVAC system manual.

For multi-stage systems, identify whether the controller supports two-stage heating (W2) or cooling (Y2). Absence of these terminals suggests the unit lacks this capability, requiring an upgrade if your system utilizes separate high- and low-speed outputs. Compatibility extends beyond mere terminal count–voltage handling, typically 24V for residential setups, must align with your system’s transformer rating.

Key Visual Differences Between Series

Round, analog dials with limited settings characterize legacy Pro series controls, while rectangular touchscreen interfaces denote Wi-Fi-enabled VisionPRO or T-series models. If the device includes a backup battery compartment, it likely belongs to the RTH series, which retains programmed settings during power outages. Color displays and menu navigation buttons further distinguish newer generations from basic mechanical versions.

Examine the front branding: silver metallic labels usually mark Pro models, while premium lines feature black glossy or textured finishes. Built-in sensors for humidity or outdoor temperature readings indicate T9 or T10 capability–reserved for high-end installations. Mismatched features, such as a touchscreen paired with only four terminals, signal potential counterfeit or outdated components.

Consult the original packaging or sales receipt if the label is missing or illegible. Retailers’ part numbers often mirror manufacturer codes, simplifying identification. Online databases, including the support portal, allow filtering by product images, dimensions, or specific features like voice control integration. Avoid assuming compatibility based on aesthetics alone–older designs may resemble modern units while lacking critical functionality.

When in doubt, photograph the circuit layout and terminal arrangement, then upload these images to a manufacturer-approved forum for verification. Certified installers can confirm whether the model supports advanced configurations, such as emergency heat (E) or auxiliary cooling (K), before attempting irreversible modifications. Record the serial number alongside the model code for future reference during troubleshooting or warranty claims.

Step-by-Step Guide to Removing the Old Climate Control Unit for Terminal Reconfiguration

First, disconnect power at the circuit breaker to prevent electrical hazards. Identify the breaker labeled for the heating/cooling system or central panel–typically a 15-20 amp switch. Verify shutdown by setting the existing device to call for heat or cooling; no response confirms safe removal conditions. Use a non-contact voltage tester near the mounting plate to double-check for residual current before proceeding.

Remove the cover plate by pulling gently from the bottom or pressing release tabs, depending on the model. Some units snap off, while others require unscrewing 1-2 screws at the base or sides. For adhesive-backed models, apply slight upward pressure while twisting to avoid damaging drywall. Set the plate aside on a clean surface to prevent scratches or losing small components.

Component	Typical Fastener Type	Tool Required
Front cover	Snap tabs / screws	Flathead screwdriver / fingers
Mounting base	Wood screws (2-4)	Phillips #2 screwdriver
Wire connectors	Terminal screws	Small flathead (jeweler’s)

Photograph the existing wire connections with a smartphone–ensure each terminal label (e.g., R, W, C, G) and corresponding wire colors are clearly visible. Create a handwritten diagram if lighting conditions are poor. Misidentifying terminals can cause system malfunctions or damage to HVAC equipment.

Loosen terminal screws with a small screwdriver, turning counterclockwise until wires detach easily. For push-in connectors, press the release tab while pulling the wire straight out. Pull wires slowly to avoid breaking strands; use needle-nose pliers if necessary. Label each wire with masking tape or colored stickers matching your photos to simplify reinstallation.

Remove the mounting base by unscrewing the retaining screws–usually located at the top and bottom. Some models hide screws behind a small cover plate; others use drywall anchors. For anchors, gently twist the base while pulling outward to avoid tearing the wall. Check for exposed low-voltage wiring behind the base and ensure no frayed ends touch adjacent terminals or metal surfaces.

Inspect the wall opening for debris or damaged insulation. Seal gaps around wires with fire-resistant caulk if expansion holes exceed ¼ inch to prevent drafts. If replacing with a larger unit, patch holes with joint compound and sand smooth before proceeding. Store removed components in a labeled bag for disposal or recycling.

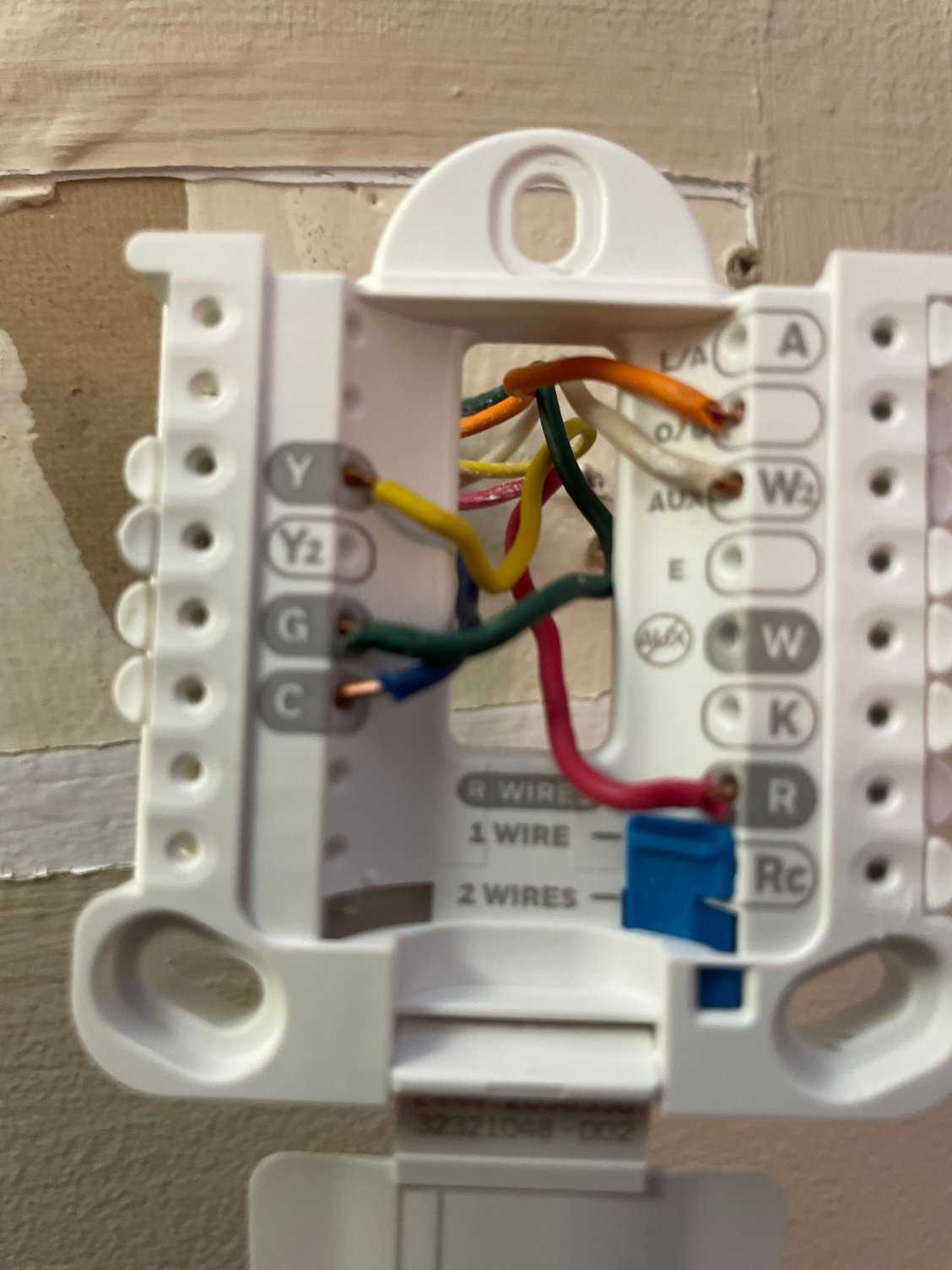

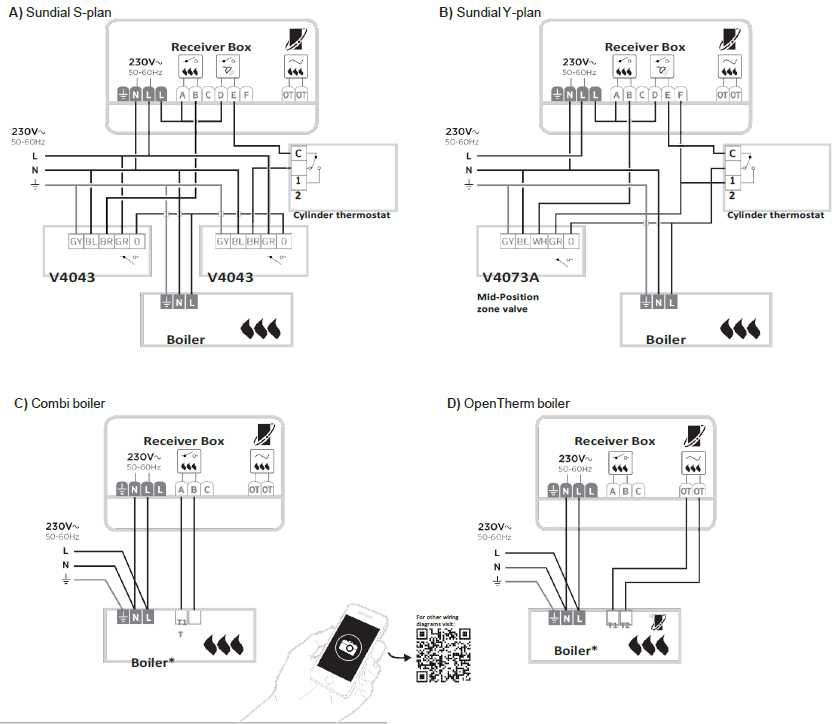

Decoding Terminal Labels and Conductor Hues in Climate Control Units

Match each connection point to its function before attaching conductors. Standard configurations include:

• R (Red): 24V power feed from the heating/cooling transformer. Split into Rc (cooling) and Rh (heating) if dual transformers are present.
• C (Blue or Black): Common wire completing the circuit for smart models requiring continuous power.
• W (White): Activates the heating system; may include sub-labels (W1, W2) for multi-stage furnaces.
• Y (Yellow): Triggers cooling; Y1 for single-stage, Y2 for second-stage compressors.
• G (Green): Controls the fan independently of heating/cooling cycles.
• O/B (Orange/Brown): Reversing valve for heat pumps; O for cooling mode, B for heating mode (varies by manufacturer).
• E (Red or Purple): Emergency heat for heat pumps, bypassing the compressor.

Verify conductor colors against the control panel’s legend–manufacturers may deviate from industry norms. For example:

1. Some systems use brown for O/B instead of orange.
2. Older European models may label C as blue/white striped.
3. High-efficiency units might include auxiliary labels like L (line voltage) or HUM (humidifier control).

Label conductors at both ends before disconnecting old components to prevent misalignment. Strip insulation to expose 5–6mm of copper, ensuring full insertion into terminals without fraying. Twist stranded wires lightly to avoid loose strands causing shorts.

For heat pumps, confirm the O/B terminal’s mode via the unit’s setup menu. Miswiring here can force the system into reversed operation, leading to:

• Cooling output during heating mode.
• Compressor damage from refrigerant flow stress.
• Error codes (e.g., E2 or HP1) on digital displays.

Consult the equipment’s technical manual if conductor hues conflict with standard designations–some installers use purple for E or gray for C. Isolate the circuit breaker during setup to avoid electrical hazards.
