Complete Guide to Electrical Wiring Schematics for Home Lighting Systems
Begin any electrical layout by separating power lines using 14 AWG copper conductors for standard 15-amp installations. A dedicated neutral wire must run alongside each switched leg–isolate them from shared returns to prevent voltage drops across parallel loads. Label each conductor at both ends: line (L), neutral (N), and switch legs (SL) with numeric identifiers for multi-way setups. For dimmable fixtures, pair a neutral with the dimmer’s load terminal; omit this step only in legacy two-wire configurations where flicker is acceptable.
Install a double-pole circuit breaker rated at 20 amps for commercial setups exceeding 1200 watts. Feed 12 AWG THHN wire through ½-inch EMT conduit, maintaining 6-inch separation from low-voltage cables. Ground all metallic enclosures to a common bus bar using green-insulated or bare copper, sized at least one gauge below the current-carrying conductors. For outdoor wet locations, use UF cable buried 24 inches deep or encase in Schedule 40 PVC with watertight connectors at each junction box.
Use three-way switches at stairwells and hallways–connect the common terminal to the power source or load, and travelers to the opposing switch’s brass screws. For four-way configurations, insert auxiliary switches between pairs of travelers without altering polarity. Test continuity with a multimeter before energizing: expect 120V across L-N and 0V across SL-N when switches are off. Replace all push-in backstabs with side-clamp terminals to avoid loose connections under vibration or thermal cycling.
Apply arc-fault circuit interrupters (AFCIs) on bedroom and living-area branch circuits if local codes mandate protection. Combine with ground-fault circuit interrupters (GFCIs) in kitchens, bathrooms, and outdoor areas–place GFCIs upstream of the first outlet in each series. Avoid daisy-chaining more than four devices on a single 15-amp circuit; exceed this limit only with heavier 12 AWG wiring and 20-amp breakers. For LED fixtures, confirm driver compatibility with existing dimmers–some require trailing-edge models, while others perform poorly on leading-edge designs.
Electrical Schematics for Illumination Systems
Begin by connecting the live conductor from the breaker to a single-pole switch using 14 AWG copper wire for 15-amp systems or 12 AWG for 20-amp loads. Attach the switch’s output terminal to the fixture’s hot lead with matching wire gauge, ensuring polarity matches the neutral return path. For multi-location control, substitute the single-pole switch with a three-way variant and run a pair of 14/3 or 12/3 cables between switches, keeping the red traveler distinct from the black hot conductor.
Use twist-on wire nuts listed for the conductor size–yellow for 14-16 AWG, red for 12-10 AWG–and wrap each connection clockwise with electrical tape to prevent loosening under thermal cycling. Ground all metallic components via a continuous bare copper or green-insulated conductor, bonding the switch yoke, fixture housing, and junction boxes to the panel’s grounding bus. Verify connections with a non-contact voltage tester before energizing.
For LED installations, confirm the driver’s output voltage matches the lamp’s requirements (typically 12V or 24V DC) and bypass any included ballast unless specified otherwise by the manufacturer. Parallel connections work for most fixtures; series arrangements risk voltage drop exceeding 3% per NEC 210.19(A) Informational Note, degrading lumen output across long runs.
Label every conductor at both termination points–phase (L), neutral (N), ground (G), and travelers (T1, T2)–using heat-shrink tubing or self-laminating tags. Photograph completed schematics before closing junction boxes to document compliance with NEC Article 404.2(C) for future maintenance.
Core Elements of Electrical Layouts in Illumination Systems
Start by identifying the power source on your schematic. For residential setups, this is typically a 120V or 240V AC supply from the main distribution panel. Mark the live (hot), neutral, and ground connections clearly–use L, N, and ⏚ symbols respectively to avoid confusion. Label the voltage and amperage ratings directly on the line to prevent overload errors later.
Select switches based on their intended function. Single-pole variants are standard for single-location control, while three-way or four-way types enable multi-point access. Represent these on the layout with distinct symbols: a small gap for single-pole, and two or three gaps with connecting lines for multi-way setups. Specify the switch type in annotations to guide installation.
Use the following symbols consistently for lamps and bulbs:
| Light Type | Symbol on Schematic | Key Details |
|---|---|---|
| Incandescent | Circle with “X” inside | Note wattage; higher draws may require thicker cables |
| LED | Solid circle | Include driver specs if separate from fixture |
| Fluorescent | Tube shape | Mark ballast requirements |
| Halogen | Circle with diagonal line | Label transformer needs for low-voltage models |
Include protective devices in every schematic. Place circuit breakers or fuses near the power source, sized to handle the total load plus a 25% safety margin. For example, a 15A breaker protects a circuit drawing 12A maximum. Mark these with standard breaker symbols–a rectangle with a diagonal slash.
Cables must be sized according to current draw. Refer to these minimum gauges for copper conductors:
14 AWG: Up to 15A
12 AWG: Up to 20A
10 AWG: Up to 30A
8 AWG: Up to 40A
Annotate cable paths to avoid routing near potential hazards–moisture, sharp edges, or heat sources. Use dotted lines for hidden runs behind walls or ceilings, and solid lines for exposed conduits or surface-mounted channels.
Connect ground wires directly to metal junction boxes and fixtures. Omit ground symbols only if working with plastic enclosures, which require no earthing. Double-check polarity: live wires (often black or red) must never connect to neutral terminals on switches or lights. Verify all connections with a multimeter before energizing the system.
How to Sketch a Basic One-Control Illumination Setup
Gather these components before sketching: a 2-core live/neutral cable (1.5mm² cross-section), a single-pole control device, a 10A fuse, and a bulb rated ≤ 60W. Arrange them left-to-right in the order: power origin → protective fuse → control device → luminaire. Keep spacing uniform–50mm between adjacent symbols–to avoid clutter.
Mark connection points with precise dots, not circles. Live conductors terminate at brass screws (control device’s common terminal, luminaire’s center contact). Neutral conductors link directly to the lamp’s screw base. Label every conductor segment: L (supply), L1 (switched output), N (return path). Use uppercase for clarity.
- Trace the live path: fuse → control common (ON terminal) → control output (OFF terminal) → lamp center contact.
- Trace the neutral path: fuse → lamp screw base (direct connection).
- Indicate an earth conductor (if metal fittings are used) with a dashed line, terminating at the luminaire’s mounting bracket.
Verify circuit logic: flipping the control toggles current between ON and OFF states. No parallel paths should exist–each segment carries uninterrupted current in series. Check for unintended loops; stray marks obscure function and troubleshooting.
Annotate voltage drop: ≤ 5% across the entire run. For runs > 30m, increase cable cross-section to 2.5mm² or splice a junction box mid-span. Record cable length beside each segment in millimeters.
Finalize the sketch with these symbols:
- Straight lines = conductors (horizontal only).
- Right-angle jogs = crossovers (avoid diagonal lines).
- Small filled circle = permanent splice.
- Open circle = removable terminal.
- Arrowhead = control toggle direction.

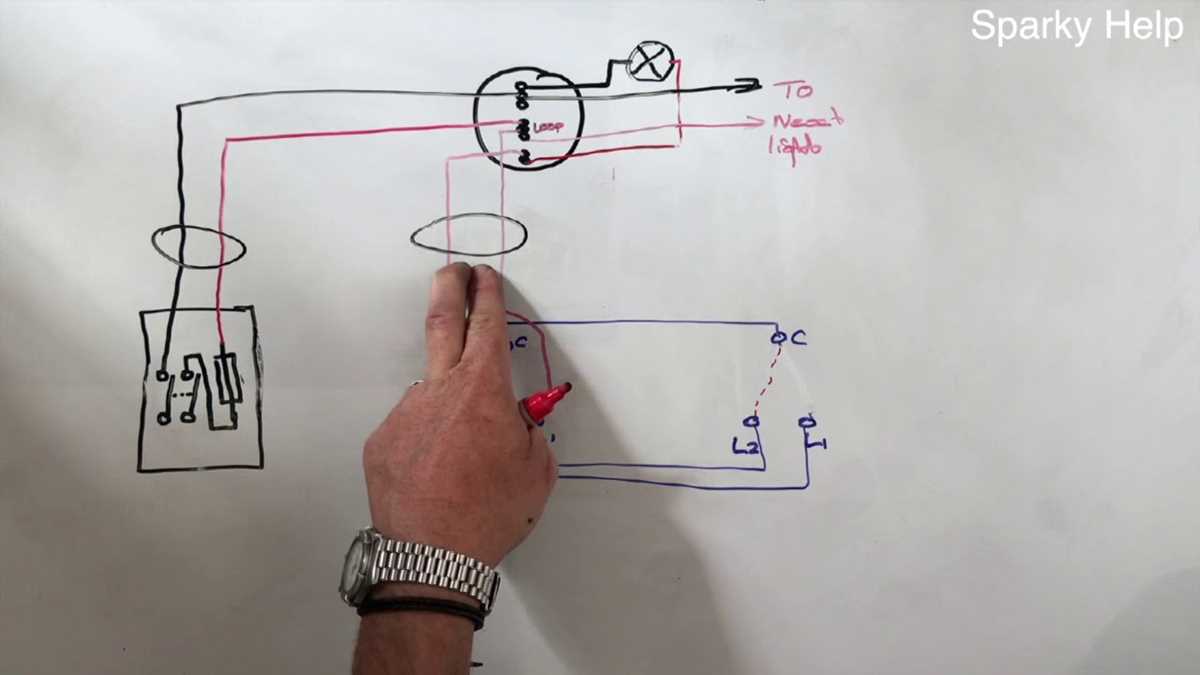

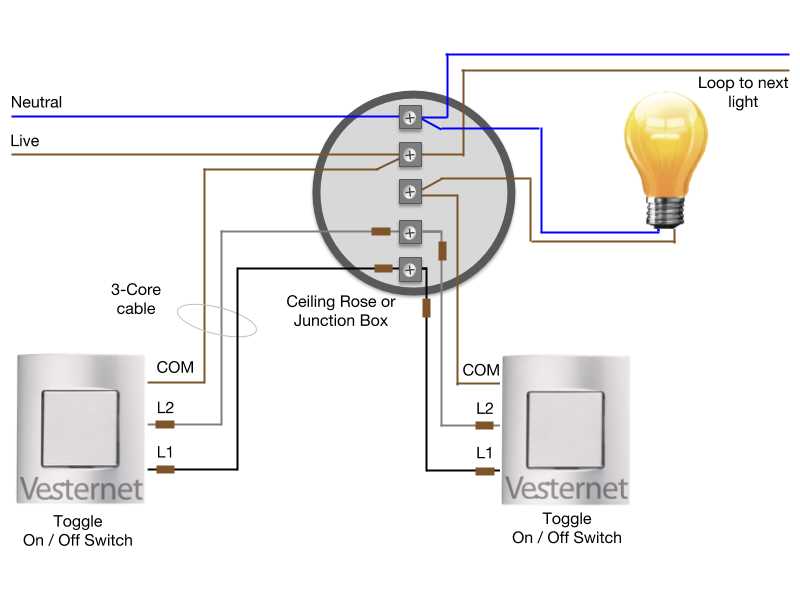

Installing Dual-Control Switches for Corridor Illumination
Identify the power source and connect the live conductor directly to the common terminal of the first switch. Use 1.5mm² copper cable rated for 10A to ensure safety under standard residential loads. The neutral and earth wires bypass the switches and run straight to the luminaire, maintaining a direct path to avoid unnecessary junctions that could increase resistance.
Link the L1 and L2 terminals of both switches using a three-core-and-earth cable (typically brown, black, grey, plus bare earth). These traversing conductors must be the same gauge as the supply line–mismatched thicknesses create potential failure points due to uneven current distribution. Secure connections with terminal blocks tested for 20A, even if the expected load is lower; overheating at loose joints is a common fault.
Test polarity before energising: use a multimeter to verify that the voltage across the luminaire terminals toggles between zero and line potential when either switch is toggled. If the lamp remains energised when both controls are off, swap the traversing conductors at one switch–they’ve been reversed. Never assume colour coding; miswired corridors ignite annually due to incorrect terminal pairing.
Earth continuity is non-negotiable–bond the circuit protective conductor (bare or green/yellow) to the switch back-box earth terminal and extend it uninterrupted to the luminaire’s frame. A missing or broken earth path exposes metallic parts to lethal touch potentials if insulation fails. Use crimp sleeves or approved connectors instead of twisted joints for all underground connections; corrosion in exposed strands escalates resistance exponentially within months.
After finalising connections, apply 1 mm² sleeving over every bare conductor at terminals and feed the cables into shallow trunking along the ceiling architrave to maintain a tidy installation that still allows future access. Label each switch clearly with its function–“Hall Up” and “Hall Down”–directly on the wall plate to prevent later confusion. Toggle both switches twenty times under load to confirm mechanical endurance; switches rated for 10,000 cycles fail early if internal springs weaken from repetitive stress.
