Step-by-Step Guide to Creating a House Lighting Wiring Diagram

Begin by isolating the circuit breaker feeding the area. Use a non-contact voltage tester to confirm power is off before handling any connections. Each 15-amp circuit typically supports 12-14 LED fixtures or 8-10 incandescent bulbs–calculate load limits to avoid tripping. For rooms over 120 sq. ft., split power sources to prevent overloading.

Run 14-gauge copper wire for 15-amp setups, 12-gauge for 20-amp circuits. Keep runs under 50 feet to minimize voltage drop; longer distances require thicker wire or intermediate splicing. Label wires at both ends–mark hot wires black, neutrals white, and ground bare or green. Neutrals must never be daisy-chained; connect each fixture directly to the panel.

Install a junction box every 12 feet or where wires change direction. Secure connections with wire nuts rated for the gauge; twist clockwise before capping. For toggle switches, loop the hot wire through the switch and back to the fixture. Three-way switches need an extra traveler wire (red or black) between switch terminals. Test continuity with a multimeter before restoring power.

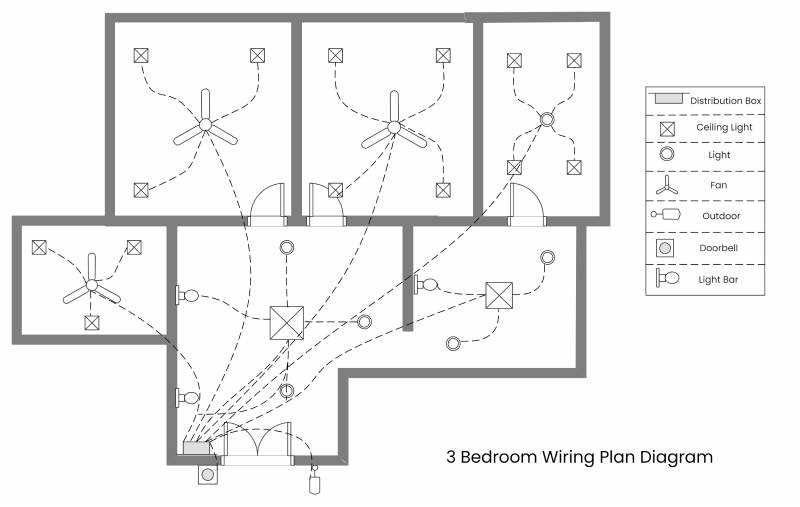

Use GFCI outlets within 6 feet of sinks or outdoor access points. Replace standard receptacles with tamper-resistant models in living spaces. For dimmable setups, pair compatible drivers with LED bulbs–check manufacturer specs to match wattage. Mount fixtures at least 12 inches from insulation to prevent overheating. Mark circuit paths on a floor plan for future reference.

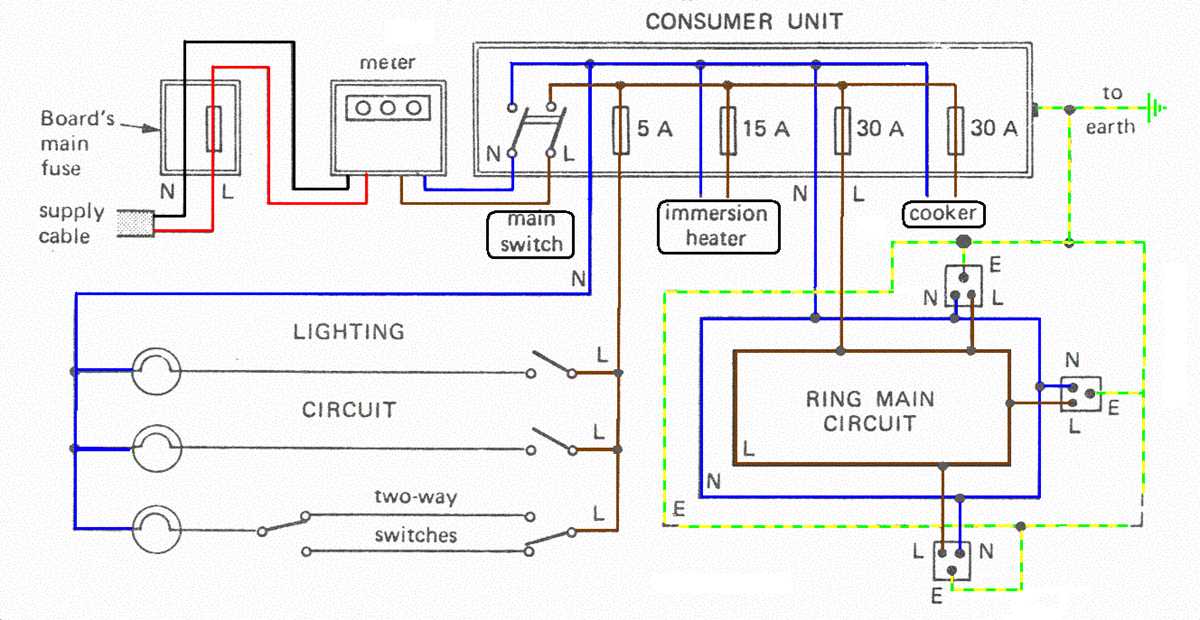

Constructing a Home Illumination Circuit Blueprint

Begin by mapping the power source to the main panel. Use 12-gauge copper conductors for standard circuits, ensuring they handle 20-amp breakers. Label each wire at both ends: black for hot, white for neutral, green or bare for ground. Avoid daisy-chaining more than three fixtures to prevent voltage drop–calculate resistance using Ohm’s law if runs exceed 50 feet.

• Single-pole switches: Connect the hot (black) wire to the switch terminal, then run a separate black wire from the switch to the fixture. Secure neutrals at the fixture box, never through the switch.
• Three-way switches: Install travelers (red and black) between switches. The common terminal (darkest screw) connects to the hot source or fixture. Test continuity before securing terminals.
• Four-way setups: Insert between three-way switches using travelers only. Confirm all terminals are matched before energizing.

For recessed fixtures, use approved junction boxes rated for the luminaire’s wattage. Seal unused knockouts with UL-listed caps to prevent drafts or pests. LED drivers require compatible dimmers–verify compatibility charts from manufacturers like Lutron or Leviton.

Outdoor circuits demand GFCI protection. Run UF cable underground in conduit for runs over 18 inches deep. Weatherproof boxes rated NEMA 3R or higher prevent corrosion. Test GFCI outlets monthly by pressing the “Test” button; reset by pressing “Reset.”

1. Trace each circuit from panel to endpoint. Verify amperage matches breaker ratings (e.g., 15-amp for 14-gauge, 20-amp for 12-gauge).
2. Strip wires to ½ inch of exposed copper; use wire nuts rated for the gauge and twist clockwise before capping.
3. Secure cables every 4.5 feet in exposed areas, 12 inches from boxes. Leave 6 inches of slack in boxes for repairs.
4. Affix cover plates and labels before energizing. Snap photos of connections for future reference.

Smart fixtures integrate via Wi-Fi or Zigbee–allocate a dedicated 2.4GHz channel to avoid interference. Pair devices before mounting to ensure signal strength. Backup configurations via manufacturer apps (e.g., Philips Hue, Samsung SmartThings) to avoid reset loops during outages.

Optimal Conductor Thickness for Residential Illumination Networks

For standard 15-amp lighting circuits, use 14 AWG copper conductors. This gauge handles up to 15 amps at 120V without exceeding temperature limits, ensuring compliance with NEC Table 310.16 and providing a 25% safety margin for continuous loads. Verify local amendments, as some jurisdictions mandate 12 AWG for all branch circuits regardless of load.

LED luminaires with low power demands (under 0.5A per fixture) may temporarily use 16 AWG for short runs under 20 feet, provided voltage drop stays below 3%. Measure actual drop with a multimeter–manufacturers’ specs often understate resistance. Solid core outperforms stranded for fixed installations due to lower thermal expansion under cycling loads.

Incandescent clusters exceeding 100W require 12 AWG at minimum. A 5-light chandelier drawing 600W on a 20-amp circuit needs this thickness to prevent insulation degradation at terminations. Thermal imaging reveals hotspots above 60°C within hours if undersized conductors are used, even if ampacity appears sufficient.

Dimmable circuits introduce harmonic currents that increase resistive heating. A 14 AWG conductor carrying 8A of fundamental frequency may experience 10.5A RMS with 30% third harmonics. Upgrade to 12 AWG if dimmers control more than 600VA total load. Verify dimmer compatibility–some TRIAC-based models require dedicated neutrals regardless of gauge.

Specialized Circumstances

Aluminum conductors demand one size larger than copper equivalents. A 10 AWG aluminum branch serves the same load as 12 AWG copper, but requires 1350-h19 alloy specifically–cheaper 8000 series alloys corrode at terminations within 12 months under damp conditions. Use antioxidant paste rated for 90°C on all connections.

Multi-voltage systems (277V commercial fixtures adapted for residential use) require voltage drop calculations using precise resistance values: 2.525 Ω/1000ft for 12 AWG copper at 75°C. Online calculators often use 20°C base values–manually adjust for operating temperatures. Keep total drop under 2% for electronic drivers to prevent flickering in digital ballasts.

Above-ceiling runs in plenums necessitate teflon-jacketed conductors if local fire codes require plenum-rated materials. 14 AWG plenum-rated cables have higher strand count (19 vs 7) for flexibility but identical current capacity–mismatch terminations cause arcing under vibration from HVAC systems.

For circuits exceeding 50 feet, calculate drop using R = ρL/A and verify with a clamp meter during peak load. A 12 AWG run at 80% capacity shows 5% drop over 75 feet–install 10 AWG if neutral carries imbalance current from shared feeds. Label all distribution panels with conductor size and load characteristics to avoid future overloading.

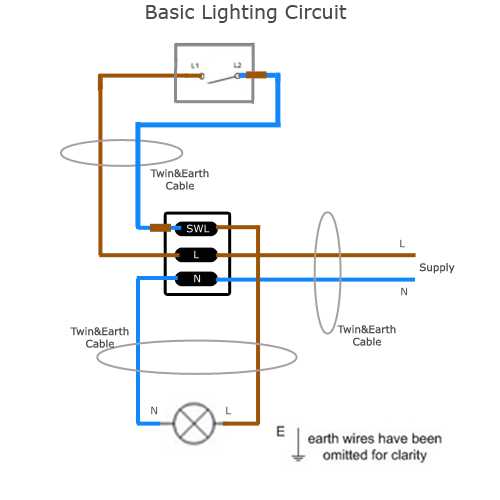

Step-by-Step Guide to Sketching a Basic Circuit for a One-Way Toggle

Gather symbols for the power origin, conductor lanes, the switch itself, and the fixture. Standard schematics use a circle with a wavy line for the source, straight lines for paths, a break in the line with a diagonal slash for the toggle, and a letter “L” or a loop for the load. Check local codes to confirm if additional markers–like grounding symbols–are mandatory.

Start at the upper left corner of your sketch. Draw the source symbol first, then extend two parallel lines downward. The left lane carries the live conductor, while the right represents neutral. Keep lanes spaced evenly–roughly 10mm apart–to avoid accidental overlap when adding components later. Label the live lane “Hot” and the neutral “Common” in small, legible print.

Place the toggle symbol roughly one-third down from the top. Ensure the break in the live lane is clean, with the diagonal slash intersecting the lane at a 45-degree angle. Extend the live lane beyond the toggle to the load symbol, maintaining the same spacing. Add a short perpendicular stub from the neutral lane to the fixture symbol to complete the loop. Verify no stray marks touch unintended lanes.

Indicate grounding if required. Attach a third lane from the source to the toggle’s mounting bracket, ending with the standard grounding symbol–a downward-pointing triangle or a horizontal line with three descending strokes. Use a green or bare conductor in your legend to match physical installations. Double-check all symbols align vertically to prevent misreading during implementation.

Measure twice, mark once. Before finalizing, trace each lane with a contrasting colored pencil. Live paths should be red, neutral blue, and grounding green. Confirm every connection terminates at the correct symbol with no loose ends. Add voltage labels–e.g., “120V” near the source–if schematic clarity demands it. Print the date and revision number in the bottom right corner.

Common Pitfalls to Sidestep

Overcrowding symbols forces errors. Keep fixtures at least 30mm apart; toggle symbols should never share a lane. Avoid drawing lanes at acute angles–use only horizontal, vertical, or 45-degree lines for clarity. Omitting the grounding stub risks non-compliance; always include it unless local codes explicitly waive it. Persistent sketches usually trace back to inconsistent lane spacing–use graph paper or a ruler.

Connecting a Three-Way Switch for Corridor or Multi-Level Illumination

Begin by shutting off the circuit breaker controlling the power source to prevent electrical hazards. Identify the two switches–primary and secondary–and label the cables: one common (dark screw) and two traveler wires (brass screws) at each switch location. Use a voltage tester to confirm all wires are de-energized before handling.

Attach the common wire from the power source to the dark screw terminal on the first switch. Connect the two traveler conductors to the brass screws on both switches, ensuring they match color-for-color (e.g., black to black, red to red) to maintain continuity. Secure all connections with a screwdriver, avoiding over-tightening.

The neutral conductor (typically white) must bypass both switches and connect directly to the fixture’s neutral terminal. If the existing setup lacks a neutral at the switch box, reroute it from the nearest junction box or power source to comply with modern electrical codes. Failure to include a neutral may prevent smart switches from functioning.

A ground wire (green or bare) should be fastened to the ground screw on each switch and the fixture’s grounding terminal. If the switches are in metal boxes, bond the ground to the box using a grounding pigtail. For plastic boxes, connect the ground directly to the switch’s grounding terminal.

Common Pitfalls and Solutions

• Misidentified common wire: Swap suspected traveler wires at one switch to isolate the correct common conductor–if the circuit works in only one configuration, the common wire is mislabeled.
• Loose connections: Tug-test each wire after securing to ensure it doesn’t pull free; frayed ends should be trimmed and re-stripped.
• Incorrect cable gauge: 14 AWG wire is standard for 15-amp circuits, but use 12 AWG for 20-amp circuits. Verify the breaker rating matches the wire size.
• Non-functional smart switches: Confirm a neutral wire is present at both switch locations before installation.

Final Verification Steps

1. Restore power at the circuit breaker and test each switch position–the fixture should toggle on/off from both locations.
2. Use a multimeter to check voltage between travelers (should read ~120V when one switch is on, 0V when both are off or on).
3. If flickering occurs, inspect for loose connections or improperly seated wires in terminal screws.
4. Replace switch plates and secure any exposed cables with NM cable clamps to prevent damage.

For installations in older structures, replace outdated switches with UL-listed models rated for the circuit’s voltage and amperage. Avoid backstab connections–use side screw terminals for reliability. If travelers cross walls or ceilings, protect them with conduit in unfinished spaces to meet NEC guidelines.
