Complete Potentiometer Wiring Guide with Step-by-Step Circuit Diagram
Begin by identifying the three terminals on your adjustable resistance component–typically marked as input, wiper, and ground. The input terminal connects directly to your voltage source, while the ground terminal links to the circuit’s reference point. For clarity, label these connections on your schematic before making physical links to avoid misalignment.
Use a multimeter to verify voltage distribution across the terminals. Set the component to its maximum resistance position and measure between input and ground–this should match your supply voltage. Next, check the wiper’s output; it should read halfway when positioned centrally. If readings deviate, reassess your connection paths for loose or incorrect placements.
For smooth control, ensure the wiper’s track is clean and free of debris, as contaminants can cause erratic behavior or noise. Secure all joints with solder if permanent integration is required–otherwise, breadboard-compatible connectors work reliably for prototyping. Adjust the resistance gradually while monitoring circuit response to confirm linear or logarithmic scaling, depending on your design needs.
Avoid exceeding the component’s power rating; many standard units handle 0.25W or less. If higher power is necessary, select a heat-resistant variant and add a current-limiting resistor in series to protect sensitive downstream elements. Always double-check polarity if using polarized components near the adjustable element.
Incorporate a bypass capacitor (0.1µF) between input and ground to filter high-frequency noise, especially in audio or sensor applications. For precision adjustments, consider pairing the component with a fixed resistor to fine-tune the effective range without overcomplicating the setup.
Connecting a Variable Resistor: Practical Setup Guide

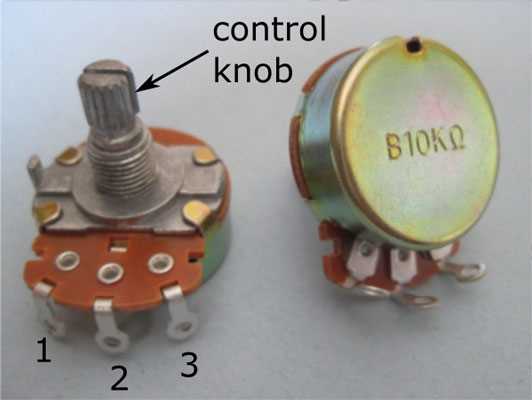

For a standard rotary adjustable resistor, connect the outer terminals to your power source (e.g., 5V and ground). The middle pin acts as the signal output–run a wire from it to your microcontroller’s analog input. Verify voltage levels at each pin with a multimeter to confirm smooth resistance transition across the entire rotation range before finalizing connections.
Use this reference table for common resistor values and their ideal applications:
| Resistance Range (kΩ) | Typical Use Case | Max Current (mA) |
|---|---|---|
| 1–5 | Audio volume control | 10–20 |
| 10–50 | LED brightness adjustment | 5–15 |
| 100–500 | Motor speed regulation | 1–5 |
| 1000 | High-impedance sensor calibration | <1 |
Avoid exceeding the rated wattage–most panel-mount adjustable resistors handle 0.1W to 0.5W. For 10kΩ units powered at 5V, the current draw is 0.5mA, well below limits. Overloading risks heat buildup and degradation.
Twist or solder wires directly to terminals; avoid loose connections to prevent intermittent signal drops. For breadboard setups, insert short solid-core jumpers into the adjustable resistor’s leads before placing into sockets. Shield sensitive setups with a 0.1µF decoupling capacitor between the signal pin and ground to filter noise.
Test rotation direction: clockwise should correspond to increasing voltage at the wiper. If reversed, swap the outer pins. Mark the starting position (e.g., fully counterclockwise) as your zero-reference point for consistent readings in code.
Selecting the Ideal Adjustable Resistor for Your Setup
Opt for a linear taper rotary control if precision matters–its uniform resistance change simplifies calibration in audio mixers, voltage dividers, or sensor conditioning. For logarithmic applications like volume knobs, choose an audio taper model; its stepped resistance mimics human hearing sensitivity (≈10% rotation equals ≈50% output). Carbon composition types suit low-cost prototypes, while conductive plastic or cermet variants endure 10K+ cycles in industrial use. Match tolerance (±1%, ±5%) to your circuit’s accuracy needs: ±20% units work for non-critical trims, but oscillators demand tighter specs. Calculate power rating (typically 0.1W–1W): exceeding it degrades performance or destroys the component.
Key Factors to Evaluate
Check shaft style (knurled, splined, or smooth) for mounting compatibility–panel-mount models need nuts, while PCB-mounted types use through-hole or SMD pads. Shaft length must clear enclosure thicknesses (standard lengths: 6mm, 12mm, 20mm). For high-vibration environments, select sealed units with rubber O-rings to block dust and moisture. Verify travel range: single-turn types cover 270° rotation, multi-turn (10–25) enable fine adjustments in precision circuits like laser drivers. Avoid wirewound types for high-frequency applications–their inductance distorts signals in RF designs. Test noise levels with an ohmmeter: quality models show
Step-by-Step Guide to Connecting a Variable Resistor to a Power Supply
Select a rotary knob with a resistance range matching your circuit’s requirements–typically 1kΩ to 100kΩ for most low-voltage applications. Verify the component has three terminals: two outer pins for the full resistance span and a middle wiper pin for adjustable output.
Examine your power source specs: DC voltage (3.3V, 5V, 12V) and current limits. Exceeding these risks damaging the resistor or overheating traces. Use a multimeter to confirm stable voltage before connecting.
- Attach the positive (+) lead of the power supply to one outer terminal of the resistor.
- Connect the negative (–) lead to the opposite outer terminal–this completes the resistor’s full path.
- Leave the wiper terminal unconnected initially; test later for correct voltage adjustment.

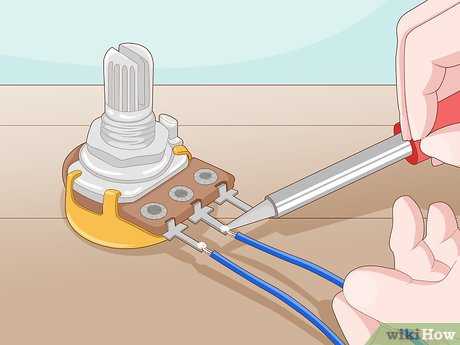

Solder joints with 60/40 rosin-core solder to prevent cold joints. Keep the iron tip at 350°C for lead-based solder. Insulate exposed connections with heat-shrink tubing or electrical tape to avoid short circuits.
Gradually rotate the knob while measuring output voltage between the wiper and ground with a multimeter. The voltage should sweep smoothly from zero to the supply voltage. Erratic jumps indicate a faulty component–replace if needed.
For high-power applications (over 1W), mount the resistor on a heatsink or use a wirewound model. Standard carbon-film types tolerate up to 0.5W; exceeding this causes distortion or failure. Calculate power dissipation: P = V²/R.
Avoid placing the resistor near heat sources or in humid environments. Store unused units in anti-static bags at temperatures below 40°C to prevent drift in resistance values over time. Periodically recalibrate if precision is critical.
If integrating into an Arduino or microcontroller circuit, add a 0.1µF decoupling capacitor between the wiper and ground to filter noise. For audio applications, pair with a 100nF capacitor to block DC offset. Test all connections under load before final assembly.
Configuring a Trimpot as an Adjustable Resistance Element
Connect one outer terminal of the trimpot to your 5V or 3.3V supply rail and link the wiper directly to the second outer terminal. This converts the component into a single-value resistor whose ohmic span ranges from zero to the trimpot’s full-scale rating–20 kΩ, 50 kΩ, or 100 kΩ–while eliminating the third floating leg.
Current-limiting applications demand exact values; trace the selected resistor’s path on a breadboard, then solder a tight bend of solid-core wire from wiper to the adjacent lug so the circuit sees only the resistance between the remaining two pins. Keep leads shorter than 8 mm to cap parasitic inductance.
LED dimming circuits benefit from logarithmic tapers; match the taper code–typically “B” for linear, “A” for audio/log–to the datasheet before insertion, ensuring 5 % tolerance or better to prevent flicker at low intensities. Power ratings rarely exceed 0.125 W, so ensure ambient currents stay below 3 mA for prolonged stability.
Voltage-divider setups can still use two terminals when only one adjustable node is needed: wire the slider straight to the bottom lug, then the input voltage across both; this anchors the slider at ground potential while simplifying measurement to a single-ended reading.
Dynamic bias circuits require temperature-stable carbon-film or conductive-plastic types; avoid cermet if ambient swings exceed 25 °C. The slider travel can be restricted with a small dab of UV-cure adhesive after calibration, preventing accidental drift during handling.
Motor-speed control demands pulse-width modulation rather than steady-state resistance; employ a 2 kΩ trimpot paired with a power MOSFET whose gate threshold is compatible with the slider’s voltage swing–typically 0 V to 5 V–ensuring minimal heat buildup at the slider contact.
Precision analog sensors often pair a trimpot in rheostat mode with a decoupling capacitor–10 µF across the slider and fixed lug–to attenuate high-frequency noise; position the capacitor physically closer than 3 mm to the legs to maintain responsiveness.
When prototyping, mark the calibrated slider position with a fine-tip Sharpie before desoldering; this preserves the trim point for future evaluation without requiring full recalibration. Always confirm slider continuity at both extremes with an ohmmeter before final insertion to catch open circuits from oxidized contacts.
Connecting a Variable Resistor to Arduino for Sensor Data
A 10 kΩ rotary control element should be paired with Arduino’s analog input for stable readings. Attach the outer pins to 5V and ground, then route the center pin to an analog pin–preferably A0 for initial tests. Keep wire lengths under 15 cm to prevent voltage drop and signal noise.
Use a 0.1 µF ceramic capacitor between the wiper terminal and ground as close to the Arduino pin as possible. This shunts high-frequency interference while preserving the DC voltage level generated by resistance adjustment.
Before energizing, set the Arduino IDE serial monitor to 9600 baud. A simple sketch reading analog voltage with `analogRead(A0)` and printing to serial verifies connectivity: values should span 0–1023 across the sweep range. Unexpected jumps indicate loose connections or incorrect resistor value.
If fine precision is required, calibrate by recording min/max readings at physical endpoints and map the raw analog scale to application-specific intervals–for motor speed 0–255 or servo angle 0–180. Avoid floating-point divisions inside tight loops; pre-compute constant coefficients instead.
Enclose the entire assembly inside a grounded metal shield if operating in high-EMI environments like near stepper motors. Without shielding, substitute a plastic knob for potentiometer shafts longer than 30 mm to reduce antenna effect picking up mains hum.
For battery-powered applications, disconnect the 5V line when idle using a logic-level MOSFET gate driven by a digital pin; this preserves charge while maintaining instant-read capability when toggled back on. Remove pull-up resistors on the analog pin to prevent phantom leakage paths.
Test extreme environmental conditions–temperature swings of ±30°C and humidity 20–80% RH–before deployment. Film-resistant resistive tracks degrade faster under condensation; verify long-term drift by logging daily readings over 72 hours and checking for drift exceeding ±2%.
