Complete Guide to Creating Accurate Wiring Schematic Diagrams Step-by-Step

Start by labeling every component with a unique identifier–R1, C3, Q2–and match these tags exactly in your layout and parts list. Even minor inconsistencies between references create errors that propagate during troubleshooting. Use thin, single-weight lines for signal paths; reserved thick traces or double lines should highlight power rails and ground connections only. Highlight critical nodes–power inputs, outputs, and sensitive feedback loops–with distinct colors (red for voltage, black for ground, blue for data) to prevent misrouting.

Adopt a strict grid system: position components at 0.1-inch intervals for breadboard compatibility, ensuring every pin aligns perfectly without manual adjustments. For microcontrollers or dense ICs, offset adjacent traces by 45 degrees to avoid shorts; verify spacing meets manufacturer clearance specs (typically 8–12 mils for standard copper). Include a complete bill of materials section listing exact part numbers, values, and tolerances–even for passive components; a 5% resistor behaves differently than a 1% in analog circuits.

Implement test points at key junctions–near IC outputs, voltage regulators, and high-current nodes–using labeled vias or through-hole pads. These allow scope probing without damaging traces. Add a separate layer for annotations: mark signal flow direction, expected voltage levels, and component orientation (e.g., diode cathode, transistor pinout). If using multilayer designs, clearly separate analog, digital, and power layers to minimize interference.

Validate your layout against the design rules check (DRC) early and often. Most tools flag issues like overlapping traces, insufficient clearance, or unconnected pins–fix these before fabrication. For high-frequency designs, include a ground plane on a dedicated layer; stitch it to the primary ground with multiple vias to reduce noise. Export final files in Gerber and drill formats, but also generate a PDF with layer visibility toggles for manual reviews and team collaboration.

Electrical Blueprint: Step-by-Step Practical Techniques

Begin by labeling every conductor with a unique identifier–use L1, N, PE, or custom tags like SIG_A for signal lines–to eliminate ambiguity. Group related circuits (e.g., power, control, data) in vertical clusters, separating high-voltage and low-voltage paths by at least 2 inches on the layout to prevent interference. For AC systems, maintain consistent phasing colors: brown/black (hot), blue (neutral), green/yellow (ground). DC setups demand strict polarity marking–red (+), black (-)–to avoid reverse-connection hazards.

Use standardized symbols for switches (⏻ NO, ⊏⊐ NC), resistors (─[─), and microcontrollers ( ), but override defaults with custom notes if default icons obscure intent. Example: Replace a generic breaker symbol with CB-20A and append voltage/current ratings. List all components in a bill-of-materials table adjacent to the layout–include part numbers, gauge (AWG), and derating factors (e.g., 75°C insulation for 12 AWG). Trace conduit paths before drawing; align runs with structural supports to avoid sagging.

Simulate load distribution before finalizing the plan: apply Ohm’s law (I = V/R) to verify wire gauge suffices for expected current (e.g., 14 AWG handles 15A at 60°C). For inductive loads (motors, solenoids), oversize conductors by 25% to compensate for inrush currents. Document splice points with thermal cameras in mind–label junctions prone to overheating (e.g., SPLICE-BATTERY-POS) for future inspections. Cross-reference each connection with a legend noting function (e.g., TH: Thermostat, PROX: Proximity sensor).

Embed QR codes linking to datasheets next to critical components–scan triggers instant access to torque specs for terminal blocks or dissipation curves for resistors. For modular designs, split the layout into sub-sheets using hierarchical ports: circle connections with identical labels (e.g., PORT-PWR-IN) on each sheet. When routing signal lines, avoid parallel runs longer than 6 inches with power lines–introduce shielding or use differential pairs (TX+/TX-) to mitigate crosstalk. Include a revision history table: date, change description, and approver initials.

Test the blueprint with a continuity checker: trace each path digitally (Ctrl+click in design software) or physically (multimeter probe) to confirm logical flow. For PLC-integrated plans, stagger I/O symbols horizontally by signal type–digital inputs left, outputs right–for rapid debugging. Save archives in PDF/A format with layers intact; disable “hide empty layers” to preserve hidden annotations. Record torque values for terminals (e.g., 2.5 Nm for M12 connectors) and wire preparation distances (e.g., strip 7 mm for ferrules), preventing loose connections or short circuits.

How to Read and Interpret Circuit Symbols in Electrical Blueprints

Begin by memorizing the five most common symbols: resistors (zigzag line), capacitors (two parallel lines), batteries (unequal-length lines), switches (break in a line), and LEDs (arrow-pointing triangle). Use a reference chart that pairs each symbol with its real-world component–this speeds up recognition. For resistors, note the value marked in ohms (Ω), kilohms (kΩ), or megohms (MΩ) directly beside the symbol. Capacitors often include microfarad (µF) or picofarad (pF) values; verify polarity for electrolytic types, where the positive terminal is marked with a plus sign.

• Identify terminal direction by arrows or polarity marks–incorrect alignment causes short circuits.
• Recognize ground symbols: a single downward line for chassis ground, three descending lines for earth ground.
• Transistors (BJTs/FETs) have three leads: collector/base/emitter or drain/gate/source–label them on the plan before tracing connections.
• Integrated circuits (ICs) show as rectangles with numbered pins–refer to the datasheet for pin functions.
• Diodes conduct in one direction (arrow = flow), while Zener diodes regulate voltage in reverse bias.

Advanced Interpretation: Tracing Signal Flow

Start at the power source and follow the path to the load, noting every junction. Use colored pens to differentiate supply (red), ground (black), and signal (blue) paths. For digital circuits, track logic gates (AND, OR, NOT) by their standardized shapes–rectangles for AND/OR, triangles for NOT. Measure voltage drops across components in sequence: a 5V drop across a resistor opposite a 9V supply suggests a 4V drop elsewhere. Cross-reference unknown symbols with IEEE Std 315-1975 or manufacturer datasheets.

Creating Electrical Blueprints: A Practical Guide

Begin by sketching the primary power sources at the top of the layout. Label each component with its exact voltage and current ratings–AC systems require phase markers (L1, L2, L3 for three-phase), while DC elements need polarity symbols (+/-). Use standardized symbols from IEC 60617 or ANSI Y32.2 to avoid ambiguity; for example, a resistor appears as a zigzag line, an inductor as a series of loops. Maintain consistent spacing–reserve 1.5x the height of symbols between parallel lines to prevent clutter.

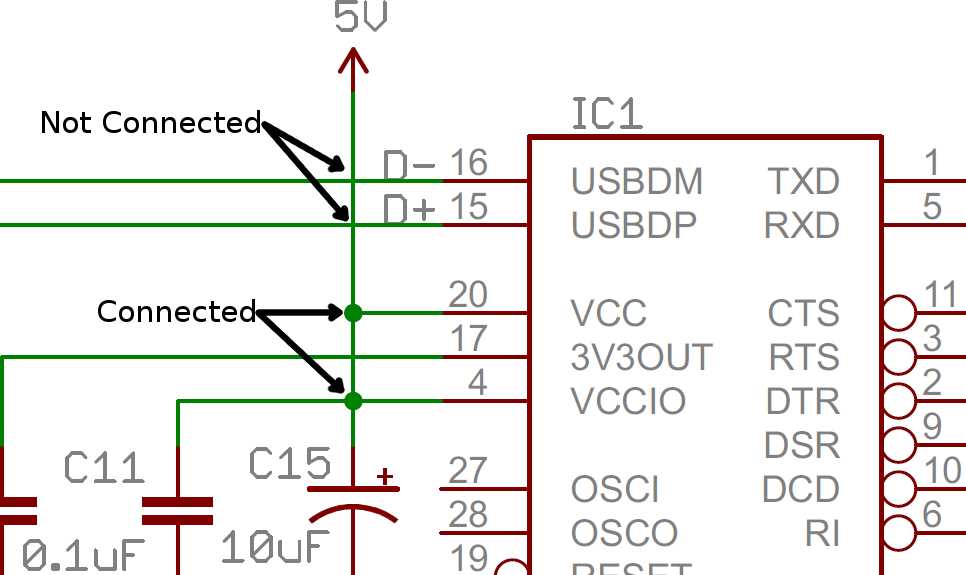

Trace connections from sources to loads in a hierarchical structure. High-power lines (e.g., 400V trunk lines) should appear thicker than signal wires (0.5mm vs. 0.2mm). For multi-branch circuits, angle splits at 45 degrees to distinguish junctions from crossings–mark intersections with a dot (ø2mm) only where connections exist. Assign each line a unique identifier (e.g., W101, C202) and reference these in a separate legend with conductor gauge (AWG) and insulation color.

Component Integration and Verification

List all devices–switches, relays, motors–in a logical sequence reflecting real-world placement. Position sensors near controlled loads, control circuits above power lines. For relays, draw coil terminals (A1, A2) and contacts (NO/NC) separately but link them with dashed lines labeled with the relay’s reference (K1, K2). Verify pinouts against datasheets–mistakes here propagate through the entire layout. Use grid paper (5mm squares) or CAD templates to enforce precision.

Add protective elements–fuses, breakers, surge suppressors–immediately downstream of power sources. Specify trip curves (e.g., B16 for breakers) and fuse ratings (gG or aM types) directly on the layout. Ground symbols must connect to a central grounding bus, avoiding loops. For modular systems, group related circuits in dashed rectangles with labels like “Motor Control Block” to simplify debugging. Include test points–marked TP1, TP2–at critical junctions for troubleshooting.

Finalize with cross-checks: validate every connection against a physical prototype or manufacturer diagrams. Print at 100% scale and overlay on a lightbox to spot misalignments. Export in DXF or PDF/A for archives; include layer data for future edits. Add revision history–date, changes, approver–at the bottom right corner to track iterations.

Critical Errors in Electrical Blueprint Design

Avoid inconsistent component naming conventions across documentation. Assigning identical symbols to different parts–such as labeling all resistors as “R” without sequential numbering (R1, R2) or functional suffixes (R_IN, R_FB)–leads to miswirings during assembly and complicates diagnostics. Use a standardized reference designator system: resistors (R), capacitors (C), inductors (L), semiconductors (Q/U), connectors (J/P), and ICs (U). For complex circuits, append descriptive suffixes (e.g., R_SENSE for current-sensing resistors). Maintain a master list in the document’s legend to prevent orphaned or duplicated references.

Signal Path Confusion Risks

Omitting directional arrows on data, power, or control lines obscures flow logic, especially in multi-layered systems. High-current paths (e.g., power rails, ground returns) must be visually distinct from low-level signals using thicker strokes (≥2pt) or color coding (red for VCC, blue for GND). Confusing analog and digital grounds–merging them at a single point instead of star-grounding–introduces noise coupling. Separate ground planes for sensitive circuits (amplifiers, ADCs) from noisy components (switching regulators, motors) using dedicated vias to a common reference only at the power source.

Error	Impact	Fix
Undefined net names	Manual tracing required; increases debug time by 40-60%	Label all nets (e.g., “VCC_5V”, “CLK_24MHz”) using 8pt font minimum
Missing decoupling caps	Power rail ripple (>50mVpp), IC latch-up, false triggering	Place 0.1µF caps
Incorrect pin numbering	Short circuits, reversed polarity, component damage (common with MOSFETs, diodes)	Verify pinouts against datasheets; add silkscreen annotations for critical pins (e.g., “GATE”, “ANODE”)

Neglecting thermal constraints in high-power layouts causes thermal runaway. Specify copper pour areas for heat dissipation–minimum 50mm² per watt for surface-mount devices on 1oz copper. For TO-220/TO-247 packages, allocate pad sizes double the recommended footprint and add thermal vias (1.2mm diameter, ≥4 per pad) connecting to inner layers. Use PCB designators like “HEAT_SINK” or “THERMAL_PAD” instead of generic labels to ensure manufacturability. Ignoring clearance rules around high-voltage nodes (>60V) risks arcing; maintain ≥1.5mm spacing between traces on standard FR4, increasing to 3mm for 230VAC lines.
