Complete WLED Wiring Guide for RGB LED Setup and Configuration

Begin by identifying the power source requirements for your lighting setup. Most addressable LED strips operate on 5V, 12V, or 24V DC. Verify the voltage rating printed on the strip–mismatches can lead to overheating or failure. For a 5-meter 5V RGB strip drawing 60 LEDs per meter, expect a current draw of approximately 18A. Use a power supply with a 20% higher capacity (22A) to account for inefficiencies and voltage drop. Always fuse the supply line within 30cm of the power source to protect against shorts.

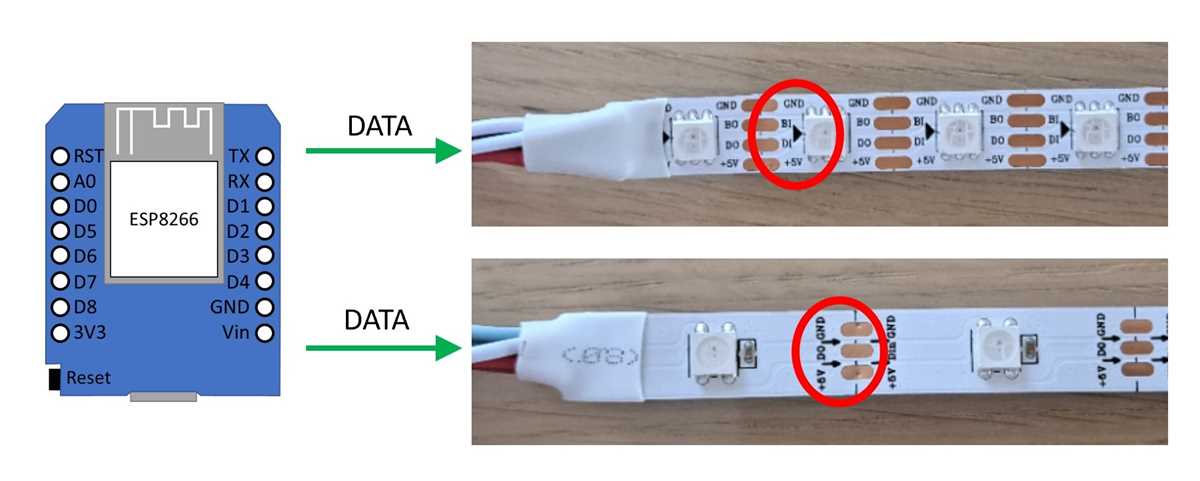

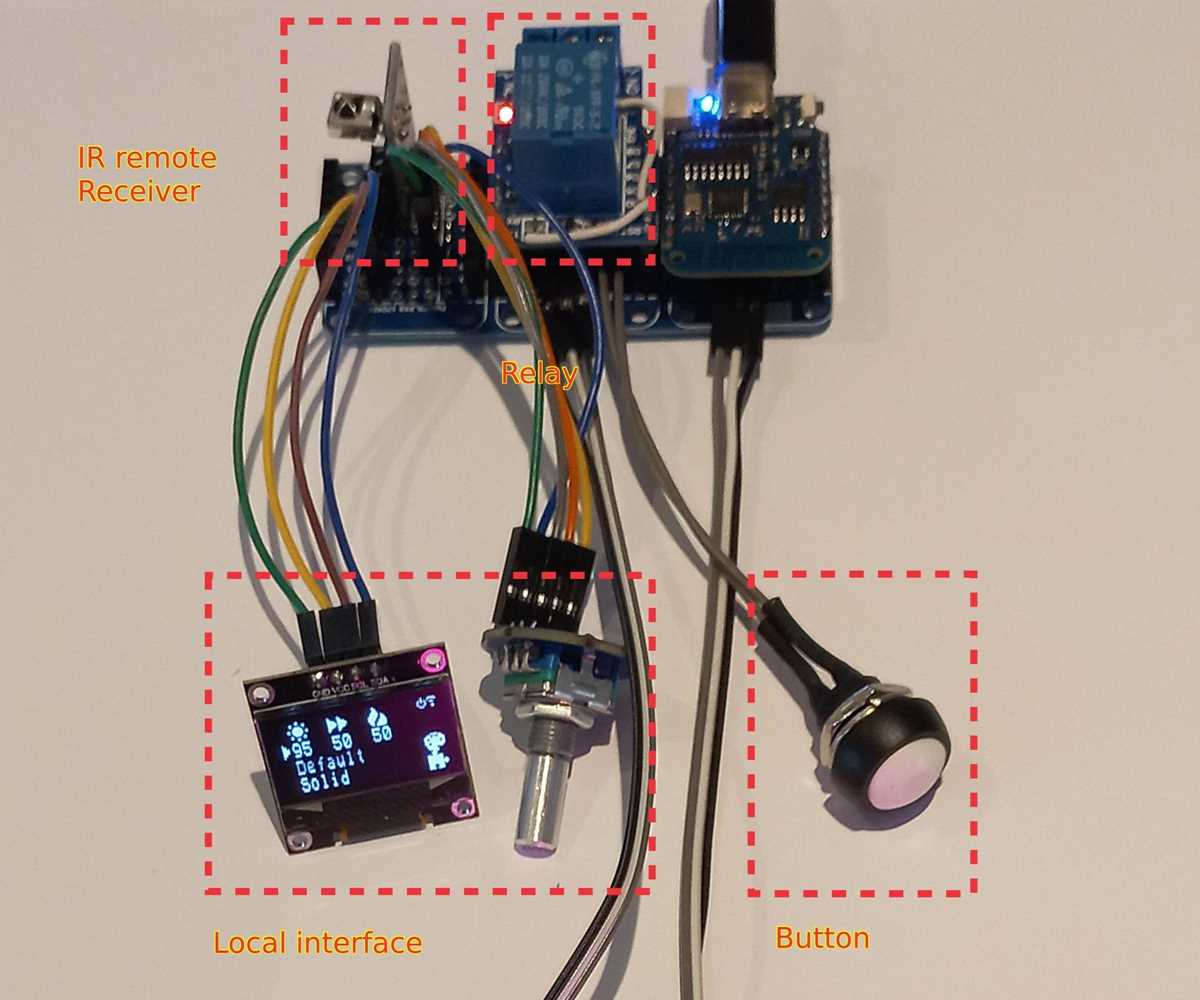

Connect the data line directly from the microcontroller’s designated output pin–ESP8266, ESP32, or Arduino–to the LED strip’s data input. Maintain a clean signal path: avoid running data cables parallel to high-current wires for more than 10cm. If interference occurs, insert a 330Ω–470Ω resistor between the controller and the first LED to prevent signal reflection. For setups exceeding 5 meters, inject power at both ends of the strip and consider a level shifter if using 3.3V logic on 5V LEDs.

Ground the power supply and controller to a common point near the first LED. Floating grounds cause flickering and erratic behavior. Use 18AWG or thicker wire for power distribution; thinner gauges introduce voltage drop over distance. Test each segment with a multimeter before finalizing connections–ideal voltage at the far end of a 5-meter 12V strip should remain above 11.2V. For outdoor installations, seal all connections with heat-shrink tubing and silicone to prevent corrosion.

Mistakes during hookup are costly. Double-check polarity before applying power–reverse connections destroy most LED chips immediately. When in doubt, reference the datasheet for pinouts: the first LED’s data-in pad is often marked “DI” or “DIN,” while power pads may use color-coding (red for +, white for -). Keep a backup of your configuration file; improper settings can trigger overcurrent conditions. If LEDs fail to illuminate, begin troubleshooting with power delivery, then data integrity, and lastly, the strip’s physical condition.

LED Strip Connection Schematics: Key Configurations

Start with a 5V or 12V power supply matching your strip’s voltage to prevent overheating or underperformance. For strips longer than 5 meters, inject power at multiple points–typically every 3–4 meters–to maintain consistent brightness and avoid voltage drop. Use thick-gauge wire (18 AWG or thicker) for power lines, especially over longer distances, while signal wires (data/clock) can use thinner 22–24 AWG.

For single-channel setups, connect the data pin of your controller (e.g., ESP32, ESP8266) directly to the strip’s DIN pad. If using addressable LEDs like WS2812B or SK6812, ensure the controller’s ground is tied to the strip’s ground to stabilize signal integrity. For multi-segment installations, splice the data line with a 330–500 ohm resistor between segments to dampen signal reflection.

Power Injection Techniques

When extending strips beyond recommended lengths, power injection requires precise sizing. Calculate current draw: WS2812B consumes ~60mA per LED at full brightness. For a 5-meter strip with 60 LEDs/meter (300 LEDs total), use a 20A supply (300 × 0.06A = 18A). Split power delivery by connecting the supply’s positive and ground wires to both ends of the strip, or use intermediate injection points with t-connectors.

For outdoor or high-power setups, add a 1000µF capacitor across the strip’s power input to smooth voltage spikes. Pair this with a 1N4007 diode on the positive line to protect against reverse polarity. If dimming or pulsing occurs, increase wire gauge or shorten injection intervals–voltage drop exceeding 0.5V per meter will distort color accuracy.

Signal Integrity and Troubleshooting

Use shielded cable (e.g., CAT6) for data lines longer than 2 meters to prevent interference from nearby electronics. For SPI-based LEDs (e.g., APA102), separate clock (CLK) and data (DAT) lines, as noise on CLK causes flickering or color shifts. Terminate long data lines with a 470 ohm resistor to the strip’s ground to reduce ghosting effects.

If LEDs exhibit random colors or partial lighting, check solder joints for cold connections–reflow with rosin flux for reliability. For flickering at high brightness, reduce PWM frequency (typically 400Hz–1kHz is optimal) or add a level shifter (e.g., 74AHCT125) if the controller outputs 3.3V logic to a 5V strip.

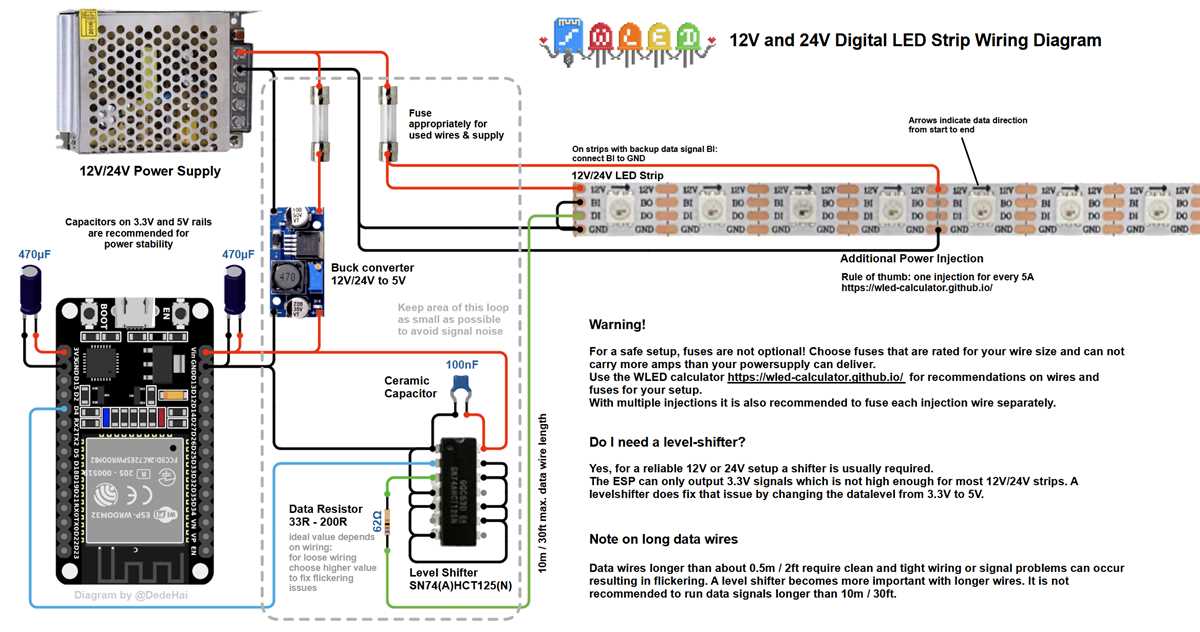

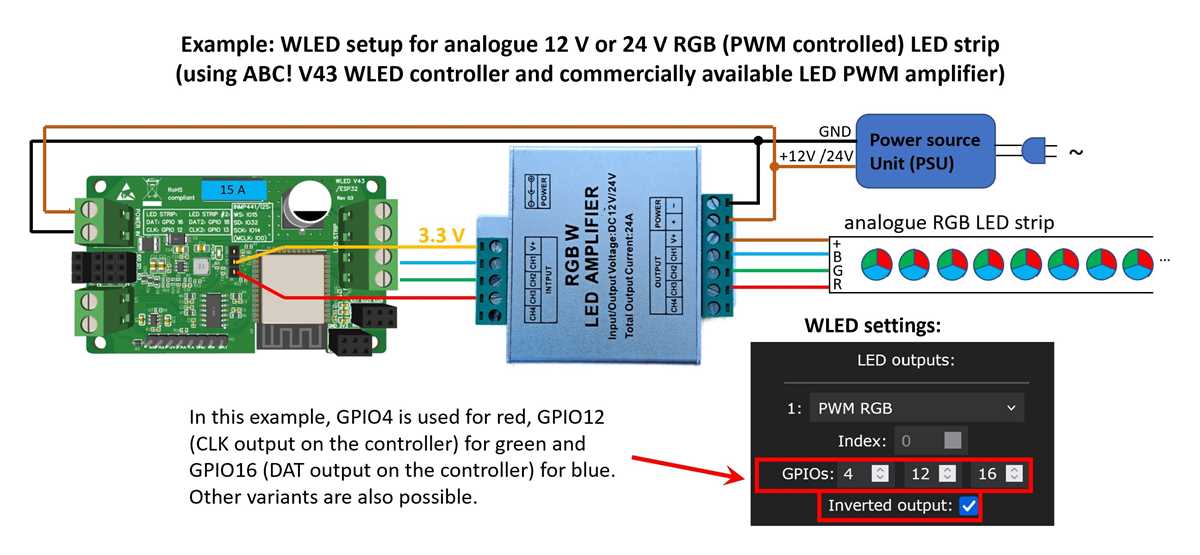

Powering an Addressable RGB Strip with a Microcontroller Configuration

Use a 5V or 12V LED strip–match voltage to the microcontroller’s output to avoid voltage drop. For strips under 5 meters, a single power supply is sufficient; calculate consumption at 60mA per LED (white/bright effects). Example: 300 LEDs × 60mA = 18A–require a 20A PSU to account for startup surges. Directly solder the power lines to bypass fragile connectors, reducing resistance.

Connect the data line to a GPIO pin (e.g., D4 on ESP8266) with a 300–500Ω resistor for signal integrity. Ground both the microcontroller and LED strip to the same PSU; floating grounds cause flickering. For strips longer than 5 meters, inject power at both ends to prevent brightness loss. Use 16AWG wire for primary power, 22AWG for data–thicker wire minimizes voltage sag.

Power Supply Placement and Noise Reduction

Place the PSU within 1 meter of the strip’s start to avoid voltage drops. Add a 1000μF capacitor across the PSU’s output to smooth current spikes–critical for color accuracy. For multiple strips, isolate power feeds; shared lines risk crosstalk. Use a Buck converter if powering from a higher-voltage source (e.g., 24V to 12V).

Test segments before full installation–verify each 50-pixel block at 100% brightness for heat buildup. Strip adhesive fails at 60°C; mount on aluminum channels if exceeding 4A/foot. For outdoor use, seal connectors with silicone dielectric grease to prevent corrosion. Avoid daisy-chaining multiple strips to a single data line–split signals with a level shifter if blending 5V/12V components.

Connecting Multiple LED Strips to Controllers: Parallel vs. Series Setups

For parallel connections, ensure each strip’s power lines tap directly into the controller’s main power supply rails–never daisy-chain them from strip to strip. A 5V strip drawing 3A per meter (10W) requires a power injection every 2 meters if using 18AWG wire, or every 3.5 meters with 16AWG. Calculate total current: four 2m strips at 3A/m demand 24A–a single 30A PSU won’t suffice; split into two 15A units instead.

Power Distribution Pitfalls

• Measure voltage drop at strip ends: >0.3V loss per meter on 12V strips causes color shifts;
• Use fused distribution blocks–10A per strip segment–to prevent cascading failures.
• Ground loops emerge when combining strips with disparate power sources; solve by sharing a single earth point.

Series circuits mandate exact length matching–adjacent strips’ voltage drops accumulate, straining the farthest LEDs. A 60-LED/m profile tolerates +1.2° Celsius per 10cm of untoleranced excess length; exceeds 30cm and flicker appears. For series RGBW chains, pair strips with identical bin codes or bin within one McAdam ellipse grouping from the manufacturer’s datasheet.

Direct attaching to ESP-based controllers without buffers risks signal degradation past 2m. Insert a 74HCT125 level shifter between the controller and first strip, lowering impedance from 50Ω to 25Ω–this extends range to 10m on 5V logic. For longer distances, switch to differential signaling with RS-485 modules, which carry signal 100m error-free at 2 MHz clock rates. Terminate lines with a 120Ω resistor only if reflections exceed -20dB on the oscilloscope.

1. Identify strip class: addressable WS2812B or constant-voltage 2835.
2. Addressables: inject data at strip middle if length exceeds 5m to halve propagation delay.
3. Non-addressables: split into ≤ 16-20 segments, each wired back to a separate channel on a MOSFET array–this sidesteps PWM cross-talk.

Thermal management dictates longevity: a 10°C rise halves LED lifetime. For outdoor installations, derate strip current by 20% during daylight. Use conduction cooling with aluminum U-channels; forced convection via 12V micro-fans extends life another 40%. Monitor junction temperature with a K-type thermocouple on the PCB–keep below 85°C for 90% lumen maintenance over 50,000 hours.

Power Injection Techniques for Extended LED Installations

For strips exceeding 5 meters, inject power at both ends to prevent voltage drop. Use 18 AWG or thicker wire for connections, ensuring resistance stays below 0.1 ohms per meter. Avoid daisy-chaining power beyond two segments–parallel feeds are mandatory for lengths over 10 meters.

Locate injection points every 3 to 4 meters on single-color setups, or every 2 meters for RGB/RGBW strips. Calculate wire gauge using the formula: I = P/V, where I is current (amps), P is power (watts), and V is voltage (12V/24V). For a 12V strip drawing 6 amps, a 10-meter run demands 14 AWG wire minimum.

• 12V systems: Inject every 2.5 meters at 5A load.
• 24V systems: Extend to 5 meters before reinjection.
• High-density strips (60+ LEDs/meter): Reinject at 1.5-meter intervals.

Solder injection wires directly to copper pads, then seal with heat-shrink tubing. Never rely on connectors alone–vibration or oxidation will degrade contacts over time. For aluminum channels, bond wires to the housing with thermal adhesive to dissipate heat and improve grounding.

Use separate power supplies for sections exceeding 20 meters. Synchronize control signals via level-shifting buffers if combining multiple feeds to a single controller. For long-distance signal transmission, deploy RS-485 adapters with 120-ohm termination resistors at both ends.

Test voltage at injection points with a multimeter before finalizing connections. Target 11.8V–12.2V (for 12V setups) or 23.5V–24.5V (for 24V) at the farthest LED. If readings fall below thresholds, reduce segment length or upgrade wire gauge.

1. Disconnect all power sources.
2. Attach injection wires to the strip’s +V and GND pads.
3. Route wires through conduit for outdoor installations.
4. Connect wires to a dedicated power feed, not the controller.
5. Secure wiring with cable ties every 30 cm.
6. Restore power and validate brightness uniformity.

For underwater or high-moisture applications, use marine-grade silicone wire and IP68-rated connectors. Apply dielectric grease to all terminals to prevent corrosion. In cold climates, select wires with a -40°C temperature rating to avoid embrittlement. Always fuse injection lines at 1.25× the expected current draw.
