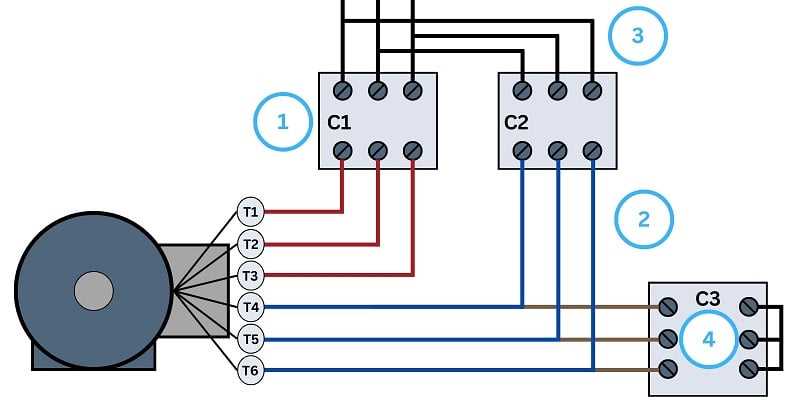

Wye Delta Motor Control Circuit Schematic and Practical Implementation Guide
Use a three-phase starter configuration with paired contactors for star and mesh connections to reduce inrush currents by 66% compared to direct online starting. Install a time-delay relay calibrated to 5–10 seconds–long enough to allow acceleration but avoid prolonged star operation that risks winding overheating. Ensure the star contactor handles 33% of the mesh contactor’s current rating; undersizing will cause premature failure.
Wire a 120° phase shift between coils in mesh mode, maintaining balanced voltages within ±5% tolerance. Verify phase sequencing with a dedicated test before energizing; reversed phases can reduce torque output by 40% and increase startup vibrations dangerously. Ground each winding terminal individually through 10 Ω resistors to limit ground fault currents below 10 A, preventing insulation breakdown.
Place thermal overload sensors on each phase–not just one–set to trip at 115% of full-load current within 30 seconds. Overload relays should interrupt both the star and mesh circuits simultaneously; failure to do so risks single-phasing damage. Use copper cables sized for 75°C ambient; overloaded conductors degrade contact integrity faster than heat dissipation can compensate.
Mount the switching assembly vertically to improve airflow; horizontal installations trap heat, raising internal temperatures by 12–15°C. Interlock the star and mesh contactors mechanically to prevent simultaneous engagement–such an error creates a dead short, damaging coils instantaneously. Test interlocks under simulated failures monthly; contact welding from power surges is the primary cause of failed transitions.
Apply a voltage drop analysis across each lead: drops exceeding 3% indicate corroded terminals or loose connections, increasing resistance losses exponentially. Clean contact surfaces every 500 cycles with non-conductive abrasives; silver-plated contacts last 30% longer than bare copper under identical loads. Replace contactors after 80% of their expected lifespan; symptom-based replacement risks unpredictable failures.
Star-Triangle Starter Circuit Visualization: Key Components and Best Practices
For a 3-phase induction drive rated above 5 HP, implement a star-triangle transition delay of 4–7 seconds to prevent overcurrent spikes. Use a timer relay (e.g., Omron H3CR-A8) set to this interval–shorter delays risk phase imbalance, longer delays reduce protection benefits. Ensure the contactor sequence follows this order: main → star → triangle. Bypass thermal overloads in the star configuration to avoid false trips during inrush; relocate them to the main or triangle circuit path instead.
Critical Component Selection Matrix
| Component | Minimum Rating | Recommended Model | Failure Risk |
|---|---|---|---|
| Main Contactor | 125% FLC* | Schneider LC1D32 | Welded contacts (1 in 1,000 cycles) |
| Star Contactor | 2x peak inrush | ABB AF09-30 | Mechanical wear (50ms closing time) |
| Timer Relay | 8A resistive load | Siemens 7PU6203 | Thermal drift (±10% over 10k cycles) |
| Overload Relay | 110% FLC* | Eaton PKZM0-4 | Ambient sensitivity (2%/°C) |
*FLC = Full Load Current. Verify against NEMA MG 1-2018 for derating factors (e.g., 80% at 40°C ambient).
Mount the star contactor above the triangle unit with a vertical gap ≥100mm to minimize inductive coupling–proximity induces circulating currents between coils during transition, degrading insulation by up to 18% over 5 years. Ground the chassis at two opposing corners to equalize potential differences; omit single-point grounding to prevent stray current loops. For drives above 20 HP, insert a surge arrester (e.g., Siemens 3RV1921-1AB0) directly across the star contactor coils to clamp transients exceeding 1.5kV, measured at 5% duty cycle.
Key Elements for a Three-Phase Starting Configuration
Select contactors with a current rating at least 1.5 times the full-load amperage of the application to prevent premature failure under inrush conditions. Main, auxiliary, and run units must match the system’s voltage–typically 230V, 400V, or 690V–while ensuring coil voltages align with the control circuit, often 24V AC/DC or 110V-240V AC. Verify each contactor’s make-and-break capacity to handle transient peaks during phase transitions.
Thermal overload relays must be calibrated to the exact load current, with Class 10 or Class 20 tripping characteristics depending on operational demands. Choose relays with adjustable ranges, preferably digital, to accommodate minor fluctuations without false trips. Ensure compatibility with the contactor’s terminals and verify whether the relay supports delta or star configurations if opting for a combined unit.
Fuses or circuit breakers rated for short-circuit protection should be sized per IEC 60947 standards, with a tripping curve matched to the contactor’s endurance. Time-delay fuses (gG or aM type) are essential for withstanding brief surges during phase shifts. Verify coordination between protection devices and upstream breakers to prevent nuisance tripping during normal operation.
Pushbuttons and selector switches must be rated for industrial environments, with IP65 or higher ingress protection if mounted in dusty or wet locations. Maintain separate NC/NO contacts for start, stop, and auto/manual modes to avoid accidental activation. Use illuminated buttons for critical functions to provide immediate visual feedback during sequences.
Timers responsible for phase transitions should support adjustable delay settings, typically between 2 to 15 seconds, programmable via dial or digital interface. Solid-state timers are preferred for durability, with a minimum switching capacity of 5A resistive load. Ensure the timer’s supply voltage matches the control circuit to prevent malfunction or premature wear.
Busbars or terminal blocks must handle continuous current without overheating, with copper cross-sections calculated per IEC 60364 guidelines. Use insulated terminals for phase conductors and bare terminals only for grounding. Label all connections clearly to streamline troubleshooting and reduce errors during installation or maintenance.
Auxiliary control wiring should be stranded copper, with a minimum 1.5 mm² cross-section for signal paths and 2.5 mm² for power circuits. Shielded cables are necessary near variable-frequency drives to prevent interference. Color-code conductors per local standards (e.g., brown/black/gray for live, blue for neutral, green/yellow for earth) and use ferrules to terminate ends securely.
Step-by-Step Assembly of Star-Mesh Phase Switching Circuit
Begin by isolating the power source and verifying zero voltage with a multimeter. Connect the incoming three-phase lines (L1, L2, L3) to the main contactor’s upper terminals, ensuring tightening torque of 2.5–3 Nm for M6 screws. Route these lines to the star contactor’s lower terminals, labeling each wire with heat-shrink tubing (red for L1, black for L2, blue for L3). Install the mesh contactor downstream, linking its upper terminals to the star contactor’s outputs via 6 mm² copper conductors. Add thermal overload relays set to 70% of the drive’s full-load current, placing them between the mesh contactor and the load terminals.
- Attach a 12 AWG ground conductor from the chassis to the nearest grounding busbar, securing with a crimped ring terminal and torque of 1.8 Nm.
- Wire the control circuit: connect the start pushbutton to the star contactor coil (24V AC, 50 Hz), the stop pushbutton in series, and the timing relay (adjust to 5–10 seconds) as a bypass for the start signal.
- Jump the common mesh contactor coil terminal to the timing relay’s NO contact; link its NC contact to the star coil to prevent simultaneous engagement.
- Validate phase rotation with a phase sequence indicator before energizing. Test run:
- Press start–star contactor should pull in, current should drop after 3–4 seconds.
- Mesh contactor engages; verify voltage between all phases (400V ±5%) with a true RMS meter.
- Check that overload relays do not trip under 1.2× rated load for 30 minutes.
- Seal all connections with nylon cable ties (100 mm spacing) and apply warning labels (“High Voltage 400VAC”) adjacent to each contactor.
Diagnosing Faults in Three-Phase Transition Starters
Check for voltage imbalance at the terminals before engaging the secondary configuration. Use a multimeter to measure line-to-line voltages in the initial star arrangement. Values differing by more than 3% indicate a supply issue or faulty contactor. Verify connections at L1, L2, and L3 terminals–corrosion or loose terminals are frequent culprits. If imbalance persists, inspect the feeder cables for partial breaks or insulation damage.
Silent failure after switching to mesh operation often traces to open coils in the run contactor. Test coil continuity with an ohmmeter; readings above 10 kΩ suggest a burnt coil. Replace the contactor if resistance exceeds specifications. For intermittent failures, examine the auxiliary contacts–oxidized surfaces can prevent proper engagement. Clean contacts with fine-grit sandpaper or a dedicated contact cleaner, ensuring no debris remains.
Overheating and Nuisance Tripping
Thermal overload relays tripping prematurely may signal incorrect current settings. Refer to the equipment’s full-load amperage rating; adjust the relay to 105-110% of this value. If overheating persists, inspect the enclosure for ventilation blockages–dust accumulation forces components to operate at elevated temperatures. Ensure clearance around the starter matches manufacturer guidelines, typically 10-15 cm for passive cooling.
Delayed transition between configurations points to timing relay misconfiguration. Measure the transition delay using a stopwatch or oscilloscope; standard intervals range from 30 to 120 milliseconds. Adjust the relay’s potentiometer or replace the timing module if deviations exceed 15%. For mechanical timers, verify the dashpot’s oil level and viscosity–contaminated or degraded oil alters timing behavior.
Humming or vibration during operation often originates from loose contactor mounts. Tighten all fasteners to manufacturer-specified torque values, typically 8-12 Nm for M6 bolts. Check for misaligned contactor plungers–even minor misalignment causes uneven wear and noise. Lubricate moving parts sparingly with silicone-based grease, avoiding petroleum products that degrade rubber seals.
Phase loss protection triggers falsely if auxiliary contacts fail to close properly. Test each contact using a low-voltage continuity tester (5VDC) while manually engaging the contactor. If a contact fails to register, replace the entire auxiliary block–individual repair is rarely cost-effective. For electronic starters, confirm the phase-loss module’s firmware is updated; older versions misinterpret transient voltage dips as phase loss.
