Complete Yamaha Golf Cart Solenoid Wiring Diagram Guide for Troubleshooting
Check the primary relay connections first if the drive system fails to engage–most models use a four-post configuration with designated input and output terminals. The upper left post (when facing the unit) typically handles battery voltage, while the upper right transmits power to the motor controller under load. Verify continuity across these contact points with a multimeter set to 200 ohms; resistance should drop to near zero when the pedal is depressed. If readings exceed 0.5 ohms, clean the contacts with fine-grit sandpaper or replace the assembly entirely.
Trace the control circuit path next–thin red and green wires exit the pedal switch and terminate at the relay’s coil terminals. These low-current lines (14-18 AWG) often degrade near the chassis entry point; inspect insulation for cracks that allow moisture ingress. Use dielectric grease when reconnecting splices to prevent future corrosion. A single broken strand in this circuit will interrupt the entire sequence, leaving the vehicle unresponsive.
Examine the grounding pathway last–locate the black wire running from the relay’s frame-mounting tab to the vehicle’s main ground lug. Poor grounding causes erratic behavior, including intermittent operation or slow acceleration. Test ground integrity by measuring voltage drop between the relay housing and battery negative; anything above 0.1 volts indicates corrosion requiring immediate attention. Replace all damaged ring terminals with crimped and heat-shrinked replacements, never relying on solder alone at high-vibration points.
Follow the voltage map in reverse when troubleshooting: start at the main power source, move through each activation point, and confirm signal strength at every junction. Ignoring the low-current control lines leads to prolonged diagnostics–dedicate equal focus to both heavy-gauge power cables and the smaller switch circuits. Document every connection with labeled photographs before disassembly to ensure accurate reassembly.
Understanding Electrical Relay Connections in Utility Vehicles

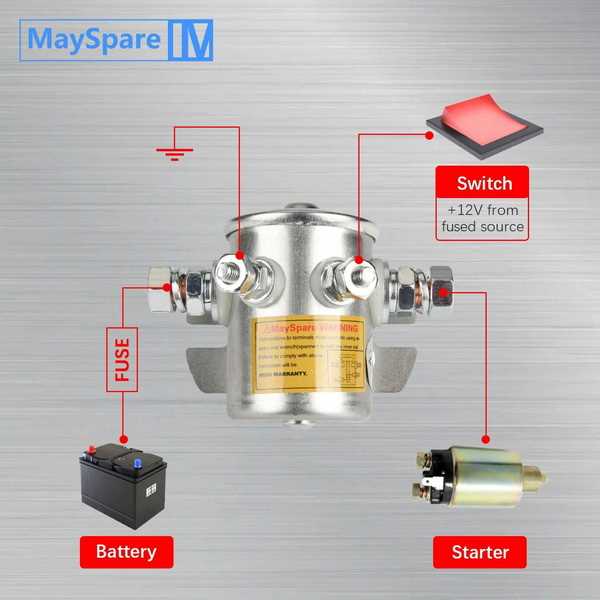

To troubleshoot or modify the starter relay circuit, begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Locate the relay–typically mounted near the motor controller or beneath the vehicle’s front panel–and note its four primary terminals: two large posts for high-current flow and two smaller spade connectors for control signals. The larger posts correspond to the battery input (from the main power source) and the motor output (leading to the drive system).
Verify relay integrity by testing for continuity between the control terminals while applying 6–12V to the coil. A functional unit will produce an audible click and show near-zero resistance across the high-current contacts. If testing fails, check the coil’s resistance (usually 10–50 ohms); values outside this range indicate coil degradation. Replace the relay if the coil or contacts are compromised, as intermittent failures disrupt starting reliability.
| Terminal Type | Wire Gauge | Typical Voltage | Expected Function |
|---|---|---|---|
| Battery Input (Large) | 4–6 AWG | 36–48V | Direct power feed from main battery |
| Motor Output (Large) | 4–6 AWG | 36–48V (when engaged) | Delivers power to drive motor |
| Control Coil (+) | 18–20 AWG | 6–12V | Activates relay when key is turned |
| Control Coil (-) | 18–20 AWG | Ground | Completes control circuit for coil |
For rewiring, use marine-grade tinned copper wire to resist corrosion. Splice connections with adhesive-lined heat-shrink tubing, ensuring all crimps are secure and sealed against moisture. If integrating accessories (e.g., lights or a winch), tap into the relay’s battery-side terminal using an appropriately rated fuse (minimum 20A for 36V systems) to prevent overload. Avoid connecting directly to the motor-side terminal, as this bypasses critical safety protections.
Common failure symptoms include erratic engagement (chattering) or silent operation. Chattering often stems from low control voltage–test the ignition switch and wiring for resistance or voltage drop. Silent operation suggests a failed coil or open circuit; probe the control wires with a multimeter while turning the key to isolate faults. Clean battery terminals annually with a wire brush to maintain low-resistance connections, as oxidized contacts reduce relay efficiency.
Advanced Modifications for Reliability
Upgrade the factory relay to a heavy-duty automotive unit with silver-alloy contacts if frequent engagement is expected (e.g., in hilly terrain). Ensure the replacement’s voltage rating matches the system; a 12V-rated coil will fail prematurely in a 48V setup. For smart charging systems, add a diode across the coil terminals (cathode to +12V) to suppress voltage spikes when the relay disengages, protecting sensitive downstream electronics.
Install a dedicated relay for auxiliary systems like headlights or a compressor using a separate 10–15A circuit breaker. Route all new wiring through a central fuse block, labeling each circuit clearly. Document modifications with a simple schematic–hand-drawn sketches are sufficient–showing wire colors, gauge, and terminal locations to simplify future diagnostics. Replace all zip ties with spiral wrap for improved wire organization and heat dissipation.
Periodically inspect the relay’s mounting hardware. Vibration loosens bolts over time, causing intermittent contact failures. Use lock washers or thread-locking compound to secure fasteners. If the vehicle exhibits sluggish starts, check the relay’s contact gap; excessive wear increases resistance, reducing motor performance. Realign contacts if necessary or replace the unit–the labor cost of repeated adjustments outweighs a $20–$40 component swap.
Finding the Control Relay in Your Electric Utility Vehicle
Begin by identifying the battery compartment–typically located beneath the seat or at the rear of the frame. The relay box is mounted adjacent to the power source, often secured with a single bolt or clip. Models G1, G2, and G5 cluster the component near the right-side wheel well, while later G9 and G14 versions relocate it closer to the motor for shorter cable runs. Check for a black plastic or metal housing with two large threaded posts and several smaller connectors; this matches the relay’s profile.
Use a flashlight to inspect under the body panel if the relay isn’t immediately visible. Dust, mud, or factory paint may obscure the housing, especially on older vehicles. Some versions include a protective rubber boot over the main terminals–gently peel this back to verify the relay’s presence without disconnecting anything. If the vehicle uses swing-arm rear suspension, the relay may sit slightly higher to avoid interference during travel.
Measure the voltage across the relay’s larger terminals to confirm its identity. With the ignition switch turned to the “on” position, a multimeter should read full battery voltage (typically 36V, 48V, or 72V depending on series). If readings fluctuate or show zero, the relay may be positioned elsewhere–consult the specific guide for your vehicle generation. Note that pre-2000 models often integrate the relay within a combined power module, separate from the battery feed.
Trace the thickest cables from the motor to locate the relay on later models. The 6-gauge (or thicker) wires terminate directly into the relay’s main posts; follow them visually to pinpoint the housing. Avoid confusing the relay with smaller fuse blocks or diode assemblies, which appear similar but serve different functions. On vehicles equipped with regenerative braking, the relay may share housing with a secondary controller–look for paired components within 15 cm of each other.
Tools for Accurate Identification
Equip a 10 mm socket and ratchet before disassembly. Many relay housings use metric fasteners, even on North American vehicles; a mismatched tool risks rounding the bolt heads. Include insulated pliers or a non-conductive pry bar–exposed terminals carry live current even when the vehicle is powered off. A circuit tester or probe helps distinguish active relay terminals from ground connections without dismantling wires.
Mark each wire with masking tape before removal if testing requires detachment. Relay connectors often use unique tab configurations to prevent misinstallation–document their original positions to avoid cross-wiring during reassembly. If factory labels are faded, photograph the relay before touching anything. Certain European-market versions employ locking clips instead of screws; release these gently to avoid snapping plastic tabs.
Troubleshooting Hidden Locations
If standard locations yield no relay, examine the underside of the dash panel or beneath floor mats. Some manufacturers route the relay behind sound-deadening material or protective plating, necessitating partial disassembly. Vehicles with onboard chargers may obscure the relay under a larger access cover–remove any adjacent screws holding auxiliary components before checking deeper layers. Always disconnect the negative battery terminal before probing near live circuits to prevent short-circuits or component damage.
Step-by-Step Guide to Testing Electrical Relay Contacts with a Multimeter
Set your multimeter to continuity mode (symbol resembling a sound wave or diode). Touch the probes to the relay’s input and output terminals–listen for a beep or check for a zero-resistance reading. If the meter remains silent or shows infinite resistance, the contact points are faulty and require replacement. Repeat this process for all terminal pairs to confirm consistent operation.
Checking Voltage Activation
Switch the multimeter to DC voltage mode (typically 20V range). Connect the relay to its power source while keeping the probes on the large terminals (if applicable). Have an assistant activate the starter switch–observe the voltage drop. A functional relay should show near battery voltage at rest and an instant drop to below 0.5V when engaged. No change indicates a failed activation coil.
- Ensure the battery is fully charged before testing–low voltage can skew readings.
- Use insulated probes to avoid short circuits–accidental contact can damage components.
- If testing outdoors, avoid wet conditions–moisture can cause false continuity readings.
For relays with multiple small terminals (typically 4 or 5), identify the coil terminals by referencing the schematic or measuring resistance–coil pairs will read between 10-100 ohms. Place one probe on each coil terminal and verify resistance. If the reading is zero or infinite, the coil is shorted or open, respectively. Replace if defective.
- Disconnect all wiring before resistance tests–parallel paths will distort readings.
- Compare coil resistance to manufacturer specs–varies by model (e.g., 20-40 ohms is common).
- Check for burned odors or discoloration–physical damage confirms failure.
