Complete 11 Pin Timer Relay Wiring Diagram Explained Step by Step

Start with terminal 10 for the power supply–this is your primary input for the control circuit. Use terminal 9 as the ground reference if the device operates on a single voltage source; for dual-voltage setups, pair it with terminal 8 for the secondary input. Verify the voltage rating of your source against the switch’s label–most industrial models support 12V, 24V, or 120V AC/DC, but misapplication will damage the coil or delay mechanism.

The load connection requires terminal 4 as the output to your actuator, motor, or solenoid, while terminal 5 serves as the return path. For adjustable delays, locate the onboard potentiometer–typically marked near terminals 2 and 3, where the resistance range (e.g., 10kΩ to 1MΩ) dictates the timing span. A 1MΩ setting yields the longest delay, often exceeding 10 minutes, while lower values shorten it proportionally. Test the delay with a multimeter in continuity mode to confirm operation before integrating into the circuit.

For momentary triggering, route the start signal to terminal 6 or 7, depending on whether the switch is configured for on-delay or off-delay. On-delay models energize the load after the preset interval, while off-delay variants de-energize it post-trigger. If using terminal 1 for a manual reset, ensure it’s wired through a normally closed pushbutton to avoid an accidental latch. Avoid daisy-chaining high-current loads–exceeding the switch’s amperage limit (usually 10A at 250V AC) will fuse the contacts. For inductive loads, add a flyback diode across the coil to suppress voltage spikes.

Standard configurations include:

• Instantaneous operation: Bridge terminals 6 and 7 directly to bypass the delay.
• Repeat cycle mode: Connect terminal 11 to the triggering circuit to restart the timer upon completion of the delay.
• Latching function: Use a bistable switch between terminals 9 and 10 to maintain power after the initial trigger.

Always refer to the manufacturer’s datasheet for terminal-specific variations–some models reverse the numbering for input/output pairs. Measure the coil resistance before powering the circuit; a value below 10Ω suggests a short, while an open circuit (infinite resistance) indicates a faulty coil. For troubleshooting, probe terminal 4 with an oscilloscope to observe the delay waveform–clean transitions confirm proper timing, while erratic spikes reveal interference or unstable voltage.

Step-by-Step Connection Layout for 11-Contact Time-Based Switch

Start by identifying the control circuit terminals: connect the triggering source to sockets 2 (start) and 10 (common). For delayed-on operation, route power from the supply to socket 5, then link the load to socket 8–this configures the NO contact path. Use a 24V DC or 120V AC coil rating matching your system; incorrect voltage will prevent actuation. Label each conductor to avoid reversing inputs during troubleshooting.

For off-delay sequences, apply voltage directly to socket 11 (instantaneous NO), then attach the switched circuit to socket 7 (timed NC). Keep transient suppression diodes or snubbers across inductive loads to prevent arcing–ignoring this risks pitting contact surfaces. Test continuity on each path post-assembly; digital multimeters should read 0 ohms across active routes when energized.

• Socket assignments differ by brand–verify datasheets for G55F, H3Y, or Omron subtypes before crimping.
• Polarity matters on DC coils: reverse polarity can demagnetize windings irreversibly.
• Allow 5-minute cooldown between tests if operating near coil rating limits.

Secure connections with ferrules for stranded wire–bare copper strands cause shorting under vibration. Isolate unused terminals (1, 3, 4, 6, 9) with heat-shrink tubing or tape to prevent accidental grounding. Store spares in sealed bags with silica gel; ambient humidity above 70% corrodes contact plating. Replace units if chatter persists after adjusting timing pots–consistent buzzing indicates worn coils.

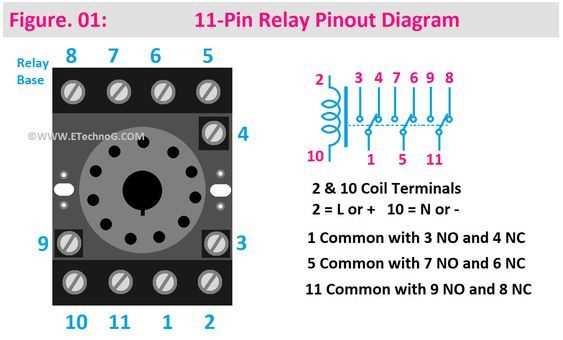

Identifying the Contacts on an 11-Contact Time-Based Switch

Begin by locating the numbering scheme etched onto the housing–most manufacturers label positions clockwise from the notch or keyway. Positions 1, 3, 5, 7, 9, and 11 typically serve as the common, normally open, or normally closed terminals for the control circuit, while slots 2, 4, 6, 8, and 10 handle auxiliary functions like coil excitation, external adjustments, or power supply inputs. Confirm these assignments against the manufacturer’s datasheet, as some devices use alternate numbering conventions, especially in dual-voltage or latching configurations.

Trace the coil inputs to slots 2 and 7; applying voltage here energizes the mechanism. On some models, slot 10 acts as a neutral return for AC-powered units, while DC variants may use it as a ground. Avoid assuming polarity–verify with a multimeter set to continuity mode, probing between the coil slots and a known reference point such as a metal chassis or designated ground lug.

Distinguish load contacts by their thicker metal construction; primary switching terminals occupy adjacent positions (e.g., 1/3, 5/7, or 9/11). In delay-on-make setups, position 3 closes after preset duration when power reaches slot 2, whereas delay-on-break circuits open position 5 when voltage is removed from slot 7. Cross-reference these behaviors with LED indicators–some relays illuminate near active circuits.

For auxiliary outputs, check slots 4, 6, or 8–some models repurpose these for signal feedback or synchronized outputs. In dual-configuration units, slot 6 might toggle between momentary pulse or maintained output based on jumper settings hidden beneath a cover plate. Remove the cover carefully; some internal adjustments require precise screwdriver alignment to avoid damaging calibration mechanisms.

When testing, isolate the device from live circuits–use a 9V battery or low-voltage bench supply to simulate inputs. Attach probes to suspected common terminals and observe mechanical movement or audible clicks. Document each terminal’s function before wiring; mixing coil and load connections risks damaging sensitive electronics or creating unintended feedback loops.

Observe voltage ratings silkscreened near each contact–some channels support 250VAC, while others handle only 30VDC. Exceeding these limits causes arcing or premature failure. For high-current applications, verify whether slots 1/3 or 5/7 include suppression components; if absent, add external flyback diodes or RC snubbers to protect adjacent circuitry.

Step-by-Step Assembly for Standard Control Module Setups

Identify the power input contacts first–typically marked L and N for mains connections. Connect the live conductor directly to L, ensuring insulation integrity with heat-shrink tubing or terminal boots. For 230V AC applications, verify compatibility with the module’s voltage rating; derating may apply for extended duty cycles above 80%. Neutral should terminate at N, but leave this disconnected until final safety checks are complete. Confirm no exposed copper extends beyond the terminal clamp to prevent accidental shorts during operation.

Attach the load circuit next by routing the switched conductor from the module’s output contact–usually labeled COM (common) and NO (normally open). For momentary triggering, wire a pushbutton switch between the trigger terminal and neutral, using 18-22 AWG solid wire for reliable signal transfer. If retentive operation is needed, substitute the pushbutton with a maintained switch and pair it with an auxiliary holding contact wired in parallel to sustain activation after release. Use a multimeter in continuity mode to validate correct switch behavior before energizing the circuit.

Grounding and Signal Integrity

Secure a direct earth connection to the designated grounding lug if present. Modules with metal housings require an additional bonding jumper between the housing and a verified ground bus–failure to do this can introduce transient noise during switching events. For sensitive loads like solenoids or inductive coils, wire a flyback diode or varistor across the output contacts to suppress voltage spikes exceeding 100V. Test spike suppression with an oscilloscope set to 50V/division, triggering on rising edges above 20V.

Adjust the time interval using the onboard dial or digital preset, referencing the manufacturer’s calibration chart for exact values. Rotary encoders often provide coarse and fine adjustment ranges; confirm the setting by measuring the delay with a stopwatch during a dry run. For multi-stage configurations, cascade outputs by connecting the NO contact of one module to the trigger terminal of the next, ensuring staggered intervals with at least 200ms overlap to prevent race conditions. Document each stage’s delay in milliseconds for troubleshooting later.

Final Validation Sequence

• De-energize all conductors and perform an insulation resistance test between each contact and ground using a 500V megohmmeter–minimum acceptable reading is 1MΩ.
• Verify terminal tightness with a torque screwdriver to 0.8Nm for screw-type clamps or follow the datasheet for crimp-spec terminals.
• Energize the circuit and monitor load current with a clamp meter; expected inrush should not exceed 20% of steady-state rating for resistive loads.
• Observe the delay accuracy under load–repeatable timing within ±5% is typical for mechanical modules, while solid-state variants achieve ±2%.
• Isolate the unit and inspect for abnormal heat buildup within 5 minutes of continuous operation; temperatures above 60°C warrant derating or heat sinking.
