Complete Ford Upfitter Wiring Diagram Guide for Custom Vehicle Builds

Begin by locating the OEM auxiliary fuse panel–typically situated behind the driver-side kick panel or beneath the dashboard in most modern chassis models. Verify the panel’s capacity (usually 20–30A per circuit) before connecting any aftermarket loads. Use a multimeter to confirm voltage stability at the bus bars; fluctuations beyond ±0.5V indicate potential corrosion or insufficient grounding. Prioritize direct connections to the battery’s positive terminal for high-draw components like refrigeration units or hydraulic pumps, bypassing factory relays to reduce voltage drop.

Select wire gauges based on sustained current draw: 12AWG for loads under 15A, 10AWG for 15–25A, and 8AWG for anything above. Crimp terminals must be soldered and heat-shrunk to prevent oxidation; avoid twist-and-tape splices in engine bays or under-vehicle applications. Route all new circuits through existing loom channels or protective conduit, securing with zip ties every 12 inches to prevent chafing against sharp edges. Label each circuit at both ends with heat-resistant tags, including amperage rating and intended function.

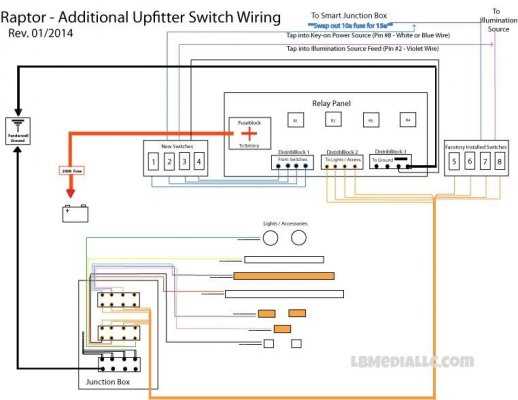

Integrate a secondary fuseblock near the load center, dedicating one 30A circuit to each major aftermarket system (e.g., work lights, air compressors). Install a single-pole, double-throw relay for intermittent loads to isolate the switch from high current. Test all connections with a load tester before finalizing covers–resistance readings should not exceed 0.1 ohms from bus bar to device ground. Document the complete schematic in a vector-based format, noting wire colors, terminal types, and tie-in points for future diagnostics.

For lithium auxiliary batteries, use a dual-battery isolator with a 100A solenoid, ensuring the starter system retains priority. Ground all negative terminals to a single, unpainted chassis point near the battery, no farther than 3 feet to minimize noise in sensitive electronics. If adding a power distribution module, confirm its input range (typically 9–16V) aligns with the vehicle’s idle voltage. Avoid daisy-chaining modules; each should have a dedicated feed from the main harness.

Custom Vehicle Electrical Integration: A Hands-On Approach

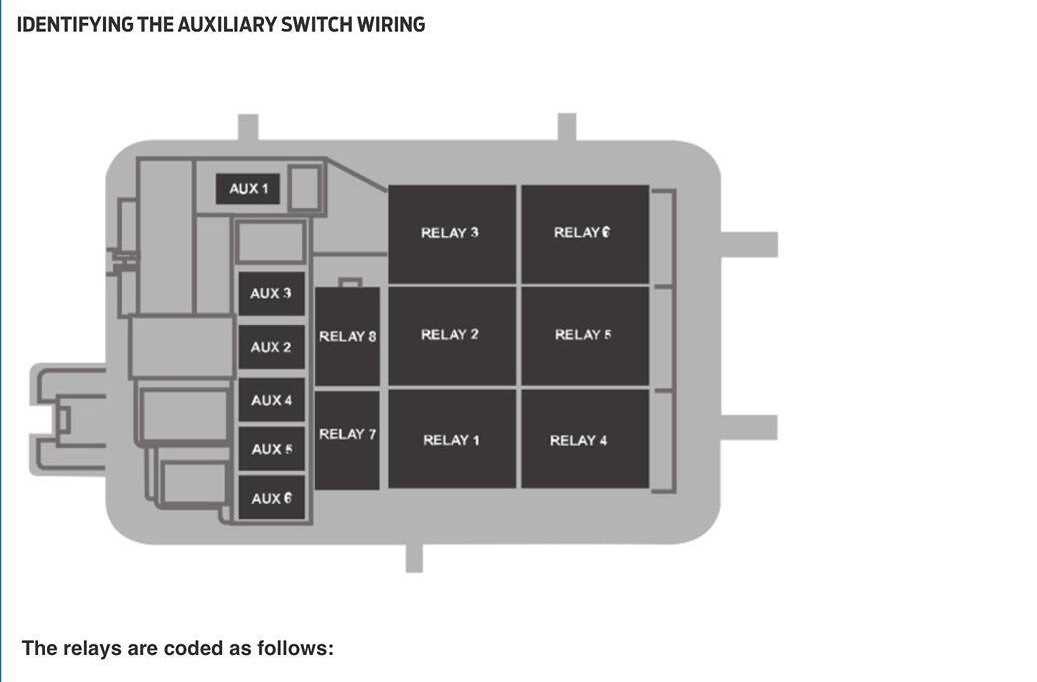

Locate the auxiliary fuse box under the driver’s side dashboard–these pre-wired circuits are your primary targets. Pinouts for connectors C1038 (gray) and C1039 (black) detail 12V constant power feeds, switched ignition sources (I/P), and ground terminals. Use a multimeter to verify voltages: pin 1 (C1038) should read battery voltage at all times, while pin 2 (C1039) drops to zero when the key is off. Label each wire with heat-shrink tubing marked in metric (AWG 14 for power, 16 for signals) to prevent misrouting.

Key Connection Points and Load Limits

• Battery positive (+): accepts 20A continuous, 30A peak–add a 25A fuse within 7 inches of the connection.
• Ignition-switched (I/P): 10A max–ideal for relays powering accessories like cameras or alarms.
• Ground studs behind the cab: scrape paint to bare metal, apply dielectric grease before securing with #12 ring terminals.

Exceeding these values risks overheating the factory harness; splice into existing wires using Posi-Taps only for signals (never for power draws above 5A).

Route all added harnesses away from moving parts, sharp edges, and exhaust components–secure every 12 inches with nylon zip ties or loom tape. For high-current circuits (e.g., light bars exceeding 5A), run dedicated cables directly to the battery, bypassing the vehicle’s built-in systems entirely. Include a 60A ANL fuse holder within 18 inches of the battery terminal. Test each circuit three times before final assembly: once with accessories off, once at idle, and once at 2,500 RPM.

1. Disconnect the negative battery terminal before beginning work.
2. Strip wires using a calibrated tool (1/4″ exposure for splices).
3. Crimp connectors with a ratcheting tool–no solder for field repairs due to vibration risks.
4. Waterproof all connections with adhesive-lined heat shrink (minimum 3:1 shrink ratio).
5. Reconnect the battery, then verify no dashboard warning lights appear.

Finding the Custom Electrical Interface Points on Your Vehicle

Begin by identifying the primary fuse box, typically located beneath the dashboard on the driver’s side or inside the engine compartment. Look for a secondary panel–often marked with a label indicating auxiliary connections–or a separate modular plug concealed behind a protective cover. Models from 2018 onward frequently include a dedicated 16-pin or 24-pin adapter near the rear cargo area, recessed behind trim panels adjacent to the taillights. Use a flashlight to inspect for color-coded leads: orange (switched power), black (ground), blue (data signals), and purple (accessory feeds).

For chassis-based variants, trace the main chassis harness along the frame rail–it usually branches near the rear crossmember into smaller connectors. These outputs are designed for aftermarket integrations and may require removing a section of interior trim or rubber grommets to access. Verify the presence of waterproof seals on any exposed ports, as these indicate intended connection points for external devices.

Refer to your model’s technical guide for exact pinouts; some vehicles include pre-wired stubs ending in bullet connectors tucked behind kick panels or under seats. If no visible interface exists, probe the existing loom for unused terminals using a multimeter set to continuity mode while activating the relevant circuit.

Decoding Connector Terminals and Conductor Hues in Vehicle Electrical Schematics

Locate the legend box adjacent to the schematic’s primary visual representation–this section lists alphanumeric pin identifiers alongside their respective circuit functions. Terminal labels typically follow a consistent format: single-letter prefixes denote primary module interfaces (e.g., “C” for chassis ground, “B” for battery-fed sources), while numeric suffixes indicate position or subgrouping. Cross-reference these with the physical connector housing: cylindrical connectors often use sequential numbering, whereas blade-style terminals may employ alphabetic rows (A-F) paired with numeric columns (1-12).

Color Code Hierarchies

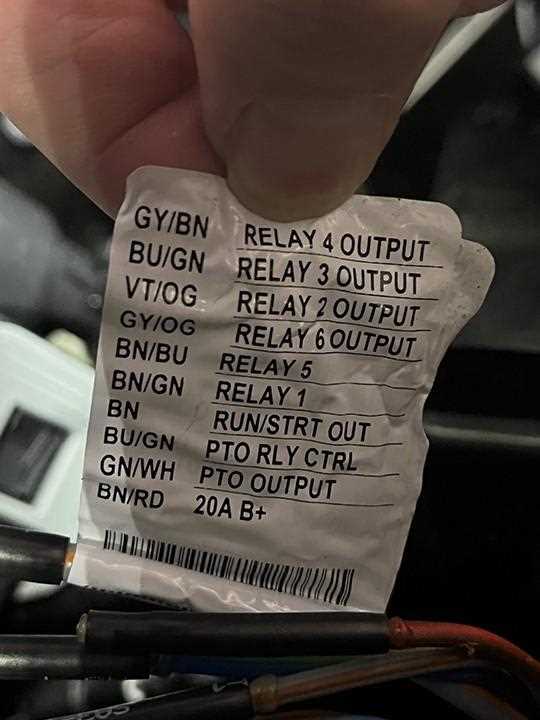

Conductor insulation colors adhere to a manufacturer-standardized system, though regional variations exist. Primary power conductors utilize solid red (fused +12V), orange (switched ignition), or dark green (starter relay control). Ground paths are consistently brown or black with a white stripe for chassis-specific returns. Secondary circuits–such as signal inputs or illumination feeds–employ striped or tracers: light blue for generic signal, violet for CAN high, and gray/white for fuse-sensed outputs. When multiple stripes appear (e.g., yellow/orange), the base color dictates primary function, while the tracer indicates a subclass (e.g., sensor power).

Trace conductors from source to load by matching hue patterns across splices and junction points–schematics demarcate these transitions with small circular nodes labeled “S” followed by a numeric suffix. Verify continuity using a multimeter set to ohms: a resistance below 1Ω confirms proper connection between identically colored segments. For modules sharing common power or ground rails, prioritize testing the furthest point from the source first, as corrosion or loose terminals typically manifest at connector interfaces rather than mid-harness.

Label Anomalies and Subsystem Variations

Certain auxiliary systems–particularly those subject to regional compliance–may deviate from standard labeling conventions. Trailer module outputs, for instance, use “TR” prefixes with numbers ascending from the brake controller (TR-1) to auxiliary circuits (TR-7). Climate control interfaces substitute alphanumeric codes for pictograms (e.g., snowflake icon for A/C clutch relay). When encountering unfamiliar notation, isolate the subsystem by identifying its power relay or control module–schematics typically group related circuits within dashed-line boundaries, accompanied by a header describing function (e.g., “Body Control Module – Lighting Subset”).

For multi-way connectors exceeding 24 positions, schematics segment terminals into quadrants using thin partition lines; verify physical connector orientation by matching the silkscreened arrow or notch on the housing with the corresponding indicator on the diagram. When documentation conflicts with observed conductor colors–particularly in aftermarket integration–prioritize tracing the circuit physically rather than relying solely on color codes, as post-production modifications may introduce non-standard hues without updated documentation.

Step-by-Step Electrical Adaptations for Third-Party Add-Ons

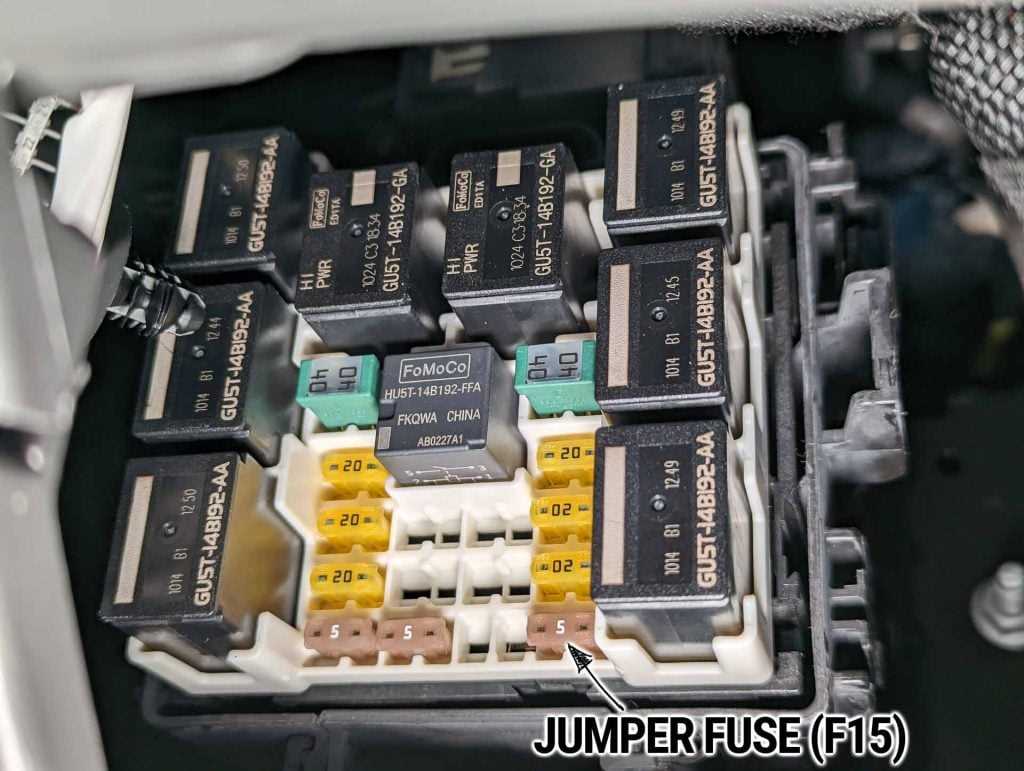

Locate the auxiliary fuse box beneath the dashboard on the driver’s side–remove the lower panel by unfastening two 8mm bolts and one 7mm screw near the kick plate. Identify relay slot #87a (12V constant) and #30 (ignition-switched) as primary tap points for low-draw devices under 10A. Use a multimeter to confirm voltage polarity before connecting any aftermarket component; red probe on terminal, black on chassis ground. For high-amperage units (winches, compressors), splice directly into the battery positive with 4AWG marine-grade cable, integrating an inline 100A fuse within 7 inches of the terminal.

• Strip ¼ inch of insulation from both the vehicle circuit and accessory lead, twist strands clockwise, then crimp with a ratcheting butt connector.
• Avoid soldering near plastic housings–heat gun at 400°F can warp adjacent components.
• Secure all splices with adhesive-lined heat shrink tubing, overlapping edges by at least ½ inch to prevent moisture ingress.
• Route cables away from moving parts, sharp edges, and exhaust manifolds; use polyethylene loom in high-abrasion zones.

For CAN bus-compatible systems, connect the accessory’s data line (typically a twisted pair: yellow/white and green/white) to the OBD-II port behind the glove compartment using a Deutsch DT04-6P connector. Pin 6 (CAN-H) and pin 14 (CAN-L) must match polarity–reversal will trigger a U0100 code. Ground the device’s negative lead to a factory stud on the frame rail, not a painted surface; sand the contact area to bare metal, apply dielectric grease, and torque the M8 fastener to 15 Nm.

Verify functionality in three stages:

1. Key-on/engine-off: confirm accessory powers up without error codes.
2. Idling at 800 RPM: check for voltage drop exceeding 0.2V across any connection.
3. Under load (e.g., compressor cycling): monitor temperature of splices with an infrared thermometer–readings above 140°F indicate a poor crimp.

Store schematics in a labeled waterproof envelope taped inside the driver’s door jamb; include a handwritten note with the exact wire gauge, circuit origin, and fuse rating for future servicing.
