Complete Wiring Diagram Guide for 110cc ATV Electrical Systems

Start with the main power distribution points–identify the battery terminals and trace the thickest cables first. These high-gauge lines handle the core current flow to the starter, ignition, and lighting systems. Label each connection with waterproof heat-shrink tubing or color-coded sleeves to prevent misidentification during reassembly. Ignoring this step leads to cross-wiring risks, especially in models with dual-battery setups where 12V and 24V circuits overlap.

Focus on the charging system’s alternator output. Locate the voltage regulator (often integrated into the alternator assembly) and verify its three-wire connector: excitation input, ground reference, and B+ output. Use a multimeter to confirm 13.8–14.4V across the B+ terminal and ground while the engine runs at 2,000 RPM. Readings outside this range indicate a failing regulator–replace it immediately to avoid damaging the battery or sensitive electronics.

Inspect the lighting circuit’s relay boxes before diving into individual components. Most four-wheel utility vehicles use fused relays for headlights, brake lights, and turn signals. Bypass the relay temporarily with a jumper wire to isolate faults–if lights function, the relay is defective. For LED upgrades, ensure resistance matches the stock incandescent bulbs (3–5 ohms) to prevent hyperflashing in the turn signal circuit.

Map the instrument cluster connections early. Disconnect the main harness plug and examine the pin assignments in the service manual. Pay special attention to tachometer and speedometer inputs–these often share a dedicated communication line (e.g., CAN bus protocol). A single corroded pin here triggers false readings or total gauge failure. Clean contacts with electronic-grade contact cleaner and apply dielectric grease to prevent future oxidation.

For aftermarket accessories, wire them through an auxiliary fuse block rated for the device’s continuous amperage draw. A winch pulling 45A under load requires at least a 50A fuse–undersized protection risks melting the harness during peak demand. Route cables away from moving parts (steering columns, suspension travel zones) and secure with adhesive-backed loom clamps every 6 inches to prevent chafing. Ground all add-ons directly to the chassis using star washers to ensure a low-resistance path.

Step-by-Step Electrical Layout for Off-Road Vehicles

Begin by removing the vehicle’s seat and side panels to expose the central harness. Identify the main fuse block–typically a black rectangular module near the battery–using a multimeter to verify constant 12V power from the positive terminal. Label each connector with masking tape: “ignition,” “headlamp,” “taillight,” and “starter relay” to avoid misconnections. Trace the harness toward the handlebar controls, noting splices where corrosion often occurs; replace damaged sections with 16-gauge marine-grade wire.

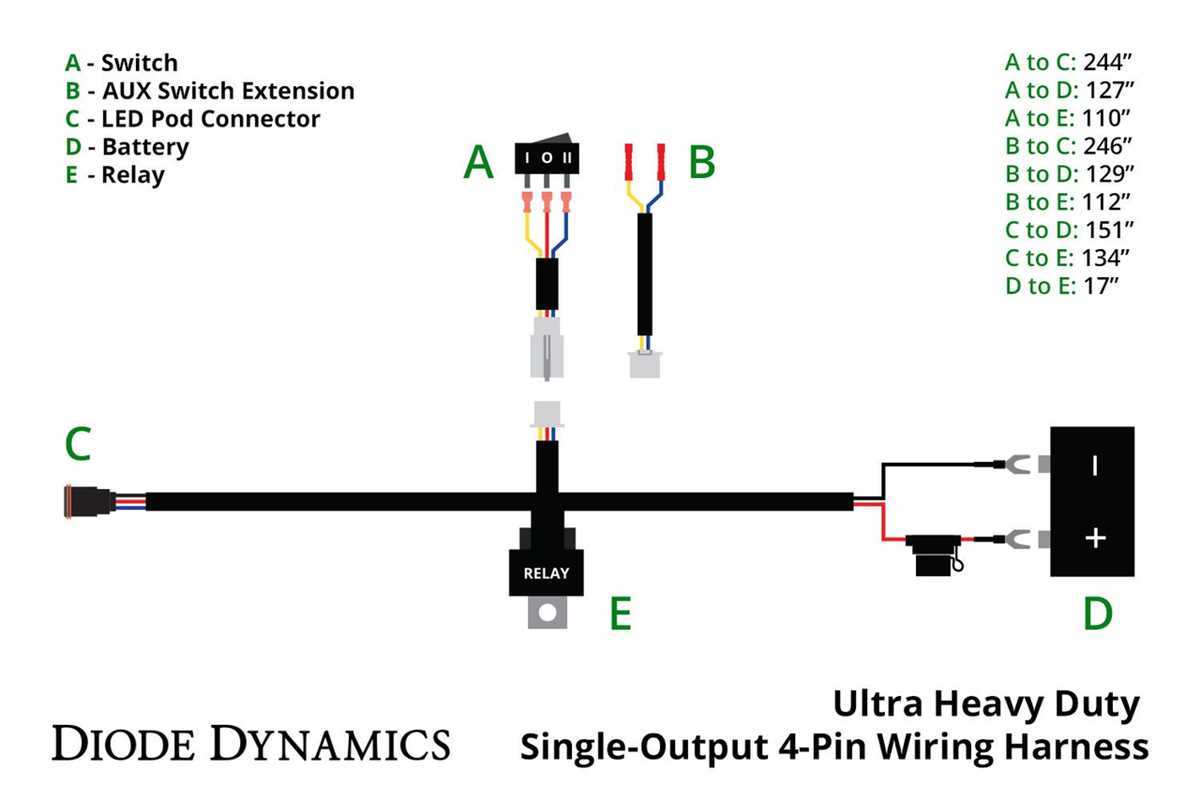

Install a relay for high-draw accessories like winches or auxiliary lights. Connect the relay’s 85 terminal to a switched ignition source, 86 to ground, 30 to the accessory, and 87 to the battery via a 30A fuse. For LED upgrades, secure a 6-ohm resistor between the bulb’s positive lead and ground to prevent hyper-flashing caused by reduced current draw. Test each circuit with the vehicle running–voltage should stabilize between 13.8V and 14.5V.

Color-code replacements: red (power), black (ground), yellow (lights), green (signals), and blue (gauges). Use solder and shrink tubing for splices; crimp connectors risk vibration failure. For the CDI unit, ensure the pickup coil resistance reads 180–240 ohms; deviations indicate stator damage requiring replacement. Route wires away from exhaust manifolds and moving parts, securing them every 6 inches with zip ties.

Diagnose intermittent faults with a wiggle test: turn on each system and flex connectors while monitoring voltage drops. A 0.5V drop or flickering indicates a weak connection. For electric start issues, measure solenoid resistance (typically 5–20 ohms); if infinity, the coil is open and must be replaced. Ground the frame with a 4-gauge cable to the battery’s negative post to eliminate voltage leakage through control circuits.

Finalize by coating terminals with dielectric grease and reinstalling panels in reverse order. Document all modifications in a schematic using circuit symbols (e.g., circle for bulbs, zigzag for resistors) and store a copy under the seat. Periodically inspect splices for green oxidation, especially in humid climates–clean with baking soda and reapply grease every 2,000 miles.

Locating Critical Elements in Compact Off-Road Vehicle Circuits

Begin by isolating the ignition control module–the rectangular unit with multiple spade connectors, usually mounted near the battery tray. Trace the thick red cable leading from the positive terminal; it splits into two primary paths: one enters the main fuse block (rated 30A for the ignition system), while the other powers auxiliary relays. Verify the fuse integrity with a multimeter set to continuity mode–any reading above 0.3 ohms indicates corrosion or a blown link requiring immediate replacement. The ground distribution point, typically a bolt securing the frame to the engine block, must show zero resistance; clean any surface oxidation with 80-grit emery cloth to ensure optimal conductivity.

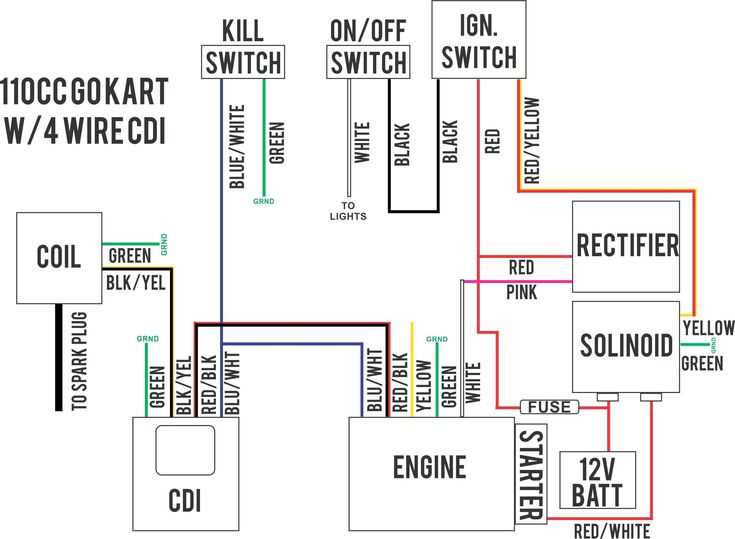

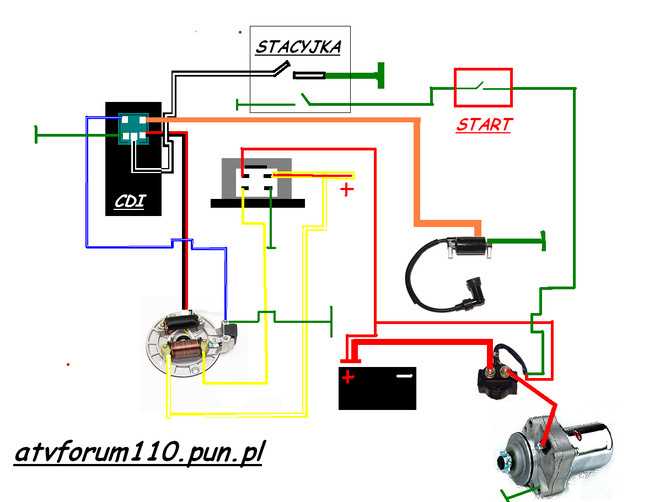

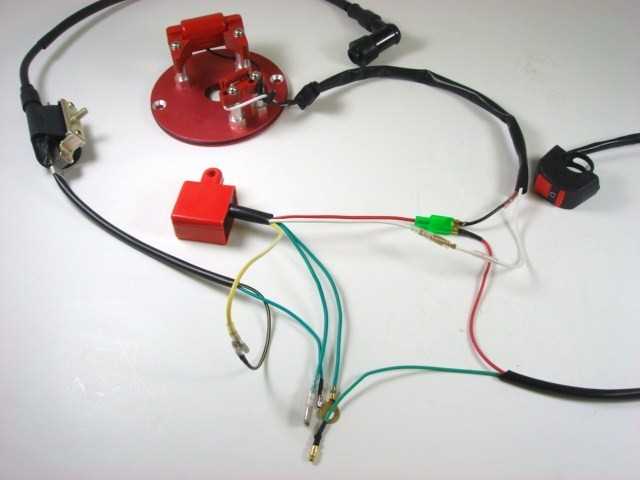

Inspect the CDI box–identifiable by its finned aluminum casing and four small-gauge wires (orange for pickup coil, black/white for kill switch, blue for ignition coil, and green for ground). Disconnect the battery before probing; use a digital tester on the 20V DC scale to confirm the pickup coil generates 0.4–0.8V AC when the engine is cranked. The stator, a circular component behind the flywheel, should output 12–14V AC across its three yellow wires at 3000 RPM–deviations suggest a faulty stator or damage to the flywheel magnets.

How to Systematically Map and Identify Electrical Connections in Your Off-Road Vehicle

Begin by disconnecting the battery to prevent short circuits or accidental shocks. Use a multimeter set to continuity mode to trace each conductor from its origin to destination–this eliminates guesswork and reveals hidden splices or corroded junctions. Label every connection with heat-shrink tubing markers or colored adhesive tape, ensuring each tag displays a unique alphanumeric code matching a hand-drawn schematic. This methodical approach prevents misidentification during reassembly and simplifies future diagnostics.

Inspect the harness for brittle insulation, greenish oxidation, or melted sections–these indicate overheating or moisture intrusion. Replace compromised segments with automotive-grade wire of identical gauge; mismatched thickness alters current flow and risks electrical fires. Secure excess length with zip ties spaced every 10 centimeters to prevent vibration damage, particularly near suspension components or exhaust manifolds where movement is frequent.

Verify each circuit’s function by powering the battery and probing with the multimeter while toggling switches one at a time. Note voltage drops across connectors–any reading above 0.2 volts suggests poor contact requiring cleaning or replacement. For complex routes, like those behind the instrument cluster or under the seat, use a flexible inspection camera to confirm labels without dismantling plastic panels.

Store the annotated schematic in a waterproof sleeve taped to the frame, alongside a backup digital copy uploaded to cloud storage. Include close-up photos of connection points, especially for rare or manufacturer-specific terminals, to avoid reliance on memory during repairs. Recheck every tagged conductor after 50 hours of operation to catch early loosening or wear before it escalates into intermittent failures.

Troubleshooting Electrical Faults with Basic Testing Tools

Set your meter to continuity mode before probing connectors. A beep confirms an intact circuit, while silence indicates a break, corrosion, or disconnected terminal. Check both sides of splices and crimped joints–these are common failure points, especially in vibration-prone systems.

Measure voltage at key junction points under load. For 12-volt setups, expect 11.5V or higher when the system is active. Readings below 10.5V suggest excessive resistance, often caused by frayed conductors or poorly soldered connections. Compare readings across parallel branches–uneven voltages reveal weak links.

• Flickering lights? Test the output side of switches and relays with the meter in DC voltage mode. A drop greater than 0.3V signals internal contact wear or arcing.
• Non-responsive components? Probe the power feed wire where it enters the unit. Zero volts means the issue lies upstream–trace backward until voltage reappears.
• Intermittent failure? Tap connectors lightly with a tool handle while monitoring the meter. Sudden voltage swings pinpoint loose or oxidized terminals.

Resistance Checks for Hidden Flaws

Switch to resistance mode (200Ω scale) and measure across suspected faulty sections. Healthy copper paths read near zero ohms; any value above 0.5Ω usually means degraded wire, a faulty splice, or corrosion. Test with the circuit powered off–active testing risks damaging the meter.

Compare identical circuits. For instance, if twin tail light assemblies differ by more than 0.2Ω, inspect the higher-resistance side for compromised insulation or thin gauge wire. Focus on pinch points where wiring bends or passes through tight spaces–these areas fatigue first.

1. Insulation failure often starts invisible. Peel back protective sleeving to expose conductors. Use the meter’s high-resistance (20MΩ) setting to check for current leakage between wires and chassis ground.
2. Leakage readings below 1MΩ indicate compromised insulation–replace the affected segment immediately to prevent shorts.
3. Ground paths deserve equal scrutiny. Poor grounding creates erratic behavior. Probe from component ground to battery negative–zero ohms is ideal; anything above 0.3Ω demands cleaning or rerouting.

Log measurements across multiple sessions. Electrical faults worsen over time; patterns in voltage drops or rising resistance reveal progressive degradation before outright failure occurs. Document each test point–labels on the harness save hours of retracing steps later.
