Step-by-Step Guide to Mass Spectrometer Schematic Construction

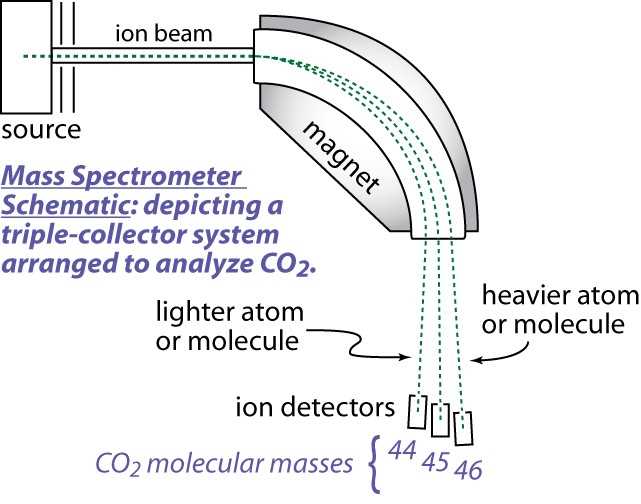

To construct a functional ion detection system, begin with an ionization source. Electron impact ionization remains the most reliable method for converting neutral molecules into charged particles. Position the filament approximately 2 mm from the repeller plate to ensure optimal electron acceleration at 70 eV, a standard energy level that balances fragmentation and signal intensity. Pair this with a magnetic sector or quadrupole analyzer–each offers distinct advantages. Magnetic sectors provide superior resolution for isotopic analysis, resolving peaks separated by as little as 0.001 m/z units, while quadrupoles excel in rapid scanning, processing up to 20 spectra per second.
Direct the ion beam through a flight tube maintained at
Calibration demands precision: use perfluorotributylamine (PFTBA) for low-mass range (50–600 m/z) and cesium iodide clusters for high-mass validation (>1000 m/z). Inject reference compounds at 10⁻⁸ M concentration to avoid signal saturation while maintaining baseline stability. When tuning, adjust the ion optics voltages in 0.1 V increments–excessive voltage causes beam divergence, while insufficient voltage weakens transmission efficiency. Store all parameters in method files segmented by application: proteomics requires distinct settings from small-molecule quantification.
For maintenance, replace filaments every 500 operating hours to prevent tungsten deposition on lenses. Clean the quadrupole rods with methanol-saturated swabs if peak broadening occurs; avoid abrasives as they damage the gold coating. Vacuum pump oil should be changed after 2000 hours or if the ion gauge reads above 10⁻⁵ Torr during operation. Log all adjustments–even minor voltage shifts–alongside sample data to troubleshoot reproducibility issues.
How to Read and Interpret Ion Analysis Blueprints

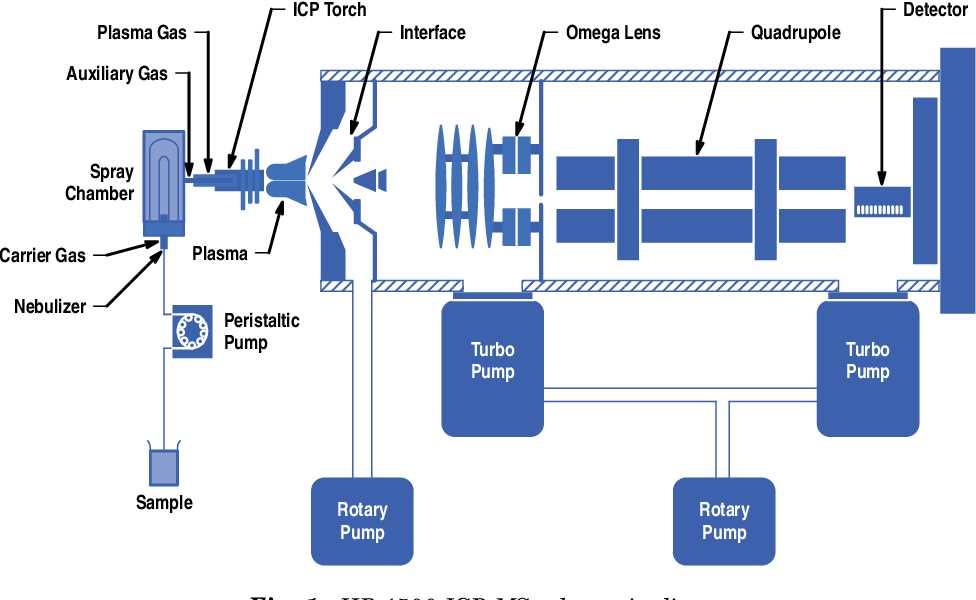

Begin by identifying the ion source at the left edge–the entry point where samples undergo vaporization and ionization. Common methods include electron impact (EI) or electrospray ionization (ESI), each producing distinct fragmentation patterns critical for later identification. If the blueprint labels voltages (e.g., 5–70 eV for EI), note these ranges: lower energies preserve molecular ions, while higher values generate diagnostic fragments. Compare the labeled charge polarity (+/-) for consistency; mismatched polarity downstream can neutralize ions before detection.
- Quadrupole filters: Verify the RF/DC ratio markings (typically 100:1 to 1000:1) to confirm mass-selective stability zones. Check if the blueprint specifies scan modes (e.g., full scan vs. SIM); SIM enhances sensitivity for targeted analytes by skipping irrelevant mass-to-charge (m/z) windows.
- Time-of-flight (TOF) tubes: Measure the labeled flight path length (often 0.5–2 meters) and acceleration voltages (1–20 kV). Calculate theoretical resolution using R = t/(2Δt); longer tubes improve resolving power but may reduce throughput.
- Detector configurations: Note whether the blueprint uses electron multipliers (EM) or Faraday cups. EMs amplify single ions but saturate at high fluxes; Faraday cups handle higher currents but require longer integration times.
Cross-reference the blueprint’s vacuum levels (e.g., 10-5–10-8 Torr) with pump capacities listed near turbomolecular or diffusion pumps. Inadequate vacuum causes ion-molecule collisions, distorting m/z values. For hybrid instruments (e.g., Q-TOF), ensure ion transfer optics between stages are labeled with lens voltages (±50–500 V) to prevent signal loss during transmission.
Core Elements of an Analytical Instrument Blueprint
Prioritize the ion source configuration based on sample volatility. Electron ionization (EI) suits gases and volatile compounds below 500 Da, while electrospray ionization (ESI) handles thermally labile molecules up to 150,000 Da with minimal fragmentation. For liquid samples, maintain flow rates between 1–10 μL/min to prevent droplet instability in ESI. Solid samples benefit from matrix-assisted laser desorption/ionization (MALDI), where selecting the right matrix–α-cyano-4-hydroxycinnamic acid for peptides, sinapinic acid for proteins–directly impacts signal-to-noise ratios. Always ground the ion source housing to prevent electrostatic interference.
Critical Subsystems and Their Operational Ranges
| Component | Function | Optimal Parameters | Failure Indicators |
|---|---|---|---|
| Ion optics | Focus and accelerate charged particles | Voltage: 5–20 kV; Pressure: 10-5–10-7 mbar | Beam divergence >0.5°, current drop >30% |
| Mass analyzer | Separate ions by mass-to-charge (m/z) | Quadrupole: 50–2000 m/z; TOF: 103–105 m/z | Resolution |
| Detector | Convert ion impact to electrical signal | Electron multiplier: 106–108 gain; Daly: 107 gain | Signal decay >15% per hour, dark current >2% of max |
| Vacuum system | Maintain low-pressure environment | Turbo pump: 10-8 mbar; Rotary vane: 10-3 mbar | Pressure rise >1 order of magnitude, pump noise >70 dB |
Integrate a collision cell between the analyzer and detector for tandem experiments. Use argon or nitrogen as collision gas at 0.1–1 mTorr for collision-induced dissociation (CID), adjusting energy (10–200 eV) based on molecular stability. For orbitrap or FT-ICR systems, stabilize cooling gas at 10-10 mbar to extend transient duration–critical for resolving power above 100,000. Regularly calibrate using Pierce ESI calibrant mix (fluorescein, MW 332.31 Da) or PFTBA (perfluorotributylamine) for EI modes, targeting
Step-by-Step Ionization in Analytical Instrumentation

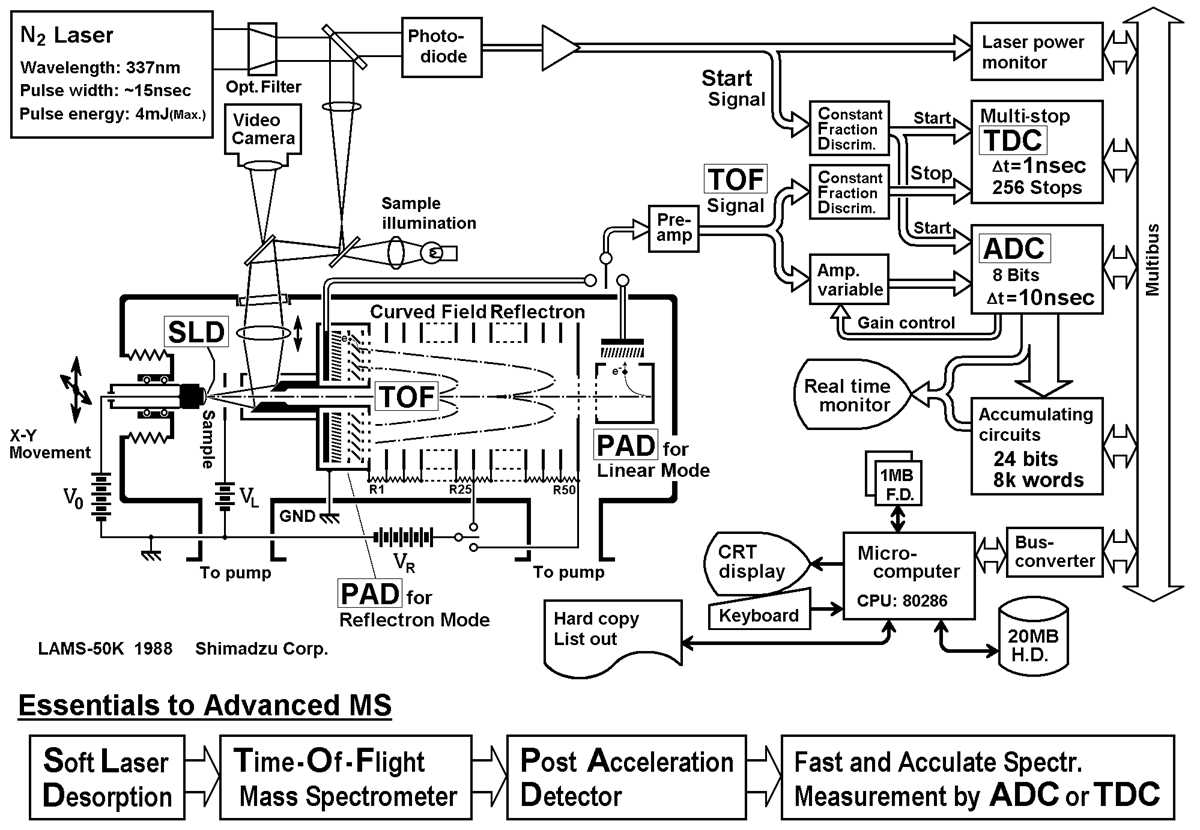

Begin by selecting a sample introduction method tailored to the analyte’s volatility. Gaseous or volatile compounds require a gas inlet system, where the sample flows at 1–10 mL/min into a heated chamber (80–200°C) to prevent condensation. For liquid or solid samples, electrospray ionization (ESI) or matrix-assisted laser desorption (MALDI) are optimal. In ESI, apply a 2–5 kV potential to the sample liquid at 1–10 μL/min, forming charged droplets in a nitrogen curtain gas. MALDI embeds the analyte in a UV-absorbing matrix (e.g., α-cyano-4-hydroxycinnamic acid), then exposes it to a 337 nm nitrogen laser at 10^6–10^8 W/cm² for 3–5 ns pulses, ejecting ions into the vacuum region.
Direct the generated ions into the ion source region under high vacuum (70 eV electrons emitted from a heated filament (2–3 A current), producing radical cations and fragmenting molecules predictably. Soft ionization techniques like chemical ionization (CI) use a reagent gas (methane, isobutane) ionized first; the reagent ions then protonate the analyte. Maintain a reagent gas pressure of 0.1–1 mbar for efficient ion-molecule reactions, ensuring minimal fragmentation and dominant [M+H]⁺ peaks.
Critical Parameters for Ion Transmission
Optimize the ion optics to guide ions into the analyzer with minimal loss. Use a repeller lens (0–200 V) to push ions forward, followed by extraction lenses (adjustable in 5–50 V increments) to focus the beam. For beam-type instruments, set the accelerating voltage between 1–10 kV to define kinetic energy; fluctuations >0.1% degrade resolution. In quadrupole or time-of-flight systems, pre-filters (e.g., Brubaker lenses) remove neutrals and improve signal-to-noise ratios. Ensure the source exit aperture is ≤1 mm diameter to maintain vacuum integrity while allowing sufficient ion flux.
Monitor the ion current using a Faraday cup or electron multiplier to verify ionization efficiency. For EI, expect 10⁻⁷–10⁻⁹ A for pure compounds; ESI or MALDI typically yield 10⁴–10⁶ counts per second. If signal drops, check filament alignment (tolerance ±0.2 mm), reagent gas purity (>99.99%), or matrix-to-analyte ratio (1000:1 for MALDI). Calibrate daily with a reference compound (e.g., perfluorotributylamine for EI, polyethylene glycol for ESI) to compensate for source contamination or voltage drift.
Visualizing Ion Separators in Analytical Blueprints
Start by depicting ion separators as modular blocks with clear, standardized port labels: input (ion source interface), output (detector coupling), and critical control points (voltages, pressures). Use triangular or trapezoidal shapes for sectors like magnetic or electrostatic fields–this instantly signals directional ion deflection. Indicate field strength with scalable arrows; longer arrows denote stronger fields, eliminating need for numerical clutter.
Quadrupole arrays demand precise electrode representation: render four parallel rods in cross-section (two pairs orthogonal), marking opposing rods with identical polarity. Add a dashed boundary line to show the RF/DC field envelope. For time-of-flight tubes, stretch a straight, tapered conduit with flight length measured between ion gate and reflector–avoid curves unless mirror geometry exists. Label drift regions with numeric distance but omit redundant “to” connectors; horizontal arrows suffice.
Contrast Key Components Without Ambiguity
Differentiate static and dynamic analyzers via fill patterns: solid shading for static (magnetic sectors), diagonal hatching for scanning (quadrupoles), and fine stippling for pulsed designs (ion traps). Reserve bold outlines for high-voltage components; thin lines suggest low-power zones. Color-code voltages–red for positive, blue for negative–but ensure grayscale compatibility by pairing colors with distinct line weights (0.75pt for red, 0.25pt for blue).
For Fourier-transform configurations, draw an orbitrap’s central spindle as a vertical, hourglass-shaped electrode pair, encircled by concentric detection rings. Exclude insulation layers unless detailing assembly; show only functional geometry. Include a legend box listing port symbols (e.g., “⚡” for high voltage, “⬇️” for grounding) to prevent misinterpretation across disciplines.
Avoid Common Pitfalls
Never combine adjacent separators into single shapes–cell traps require discrete boxes even if stacked. Keep RF drivers and amplifiers external; represent them as small circles or rectangles pinned adjacent to rods, never inline. Omit vacuum pumps but flag vacuum ports with a funnel symbol orientation-matched to flow direction. Scale separators uniformly: one quadrupole should equal one sector magnet in width to prevent visual bias toward overrepresented designs.
