Complete Guide to Wiring a 12 Volt Switch Panel with Diagram

Start by mapping each 12-amp circuit path to a dedicated rocker or push-button interface before cutting any cables. Label every conductor terminal with heat-shrink tubing printed in contrasting colors–red for positive supply, black for ground, blue for auxiliary feeds–to eliminate miswiring at splice points. Use spade connectors rated for 20 amps on all toggle terminals, even if the load draws only 5 amps; transient surges from inductive loads can melt undersized connectors.

Keep supply and relay circuits isolated: route the power busbar along the top edge of the enclosure, drop fusible links every 15 cm, then branch leads downward to each actuator. Ground returns should funnel into a single star point bolted to the chassis–never daisy-chain returns through switch contacts, as voltage drops across corroded joints can misfire electronics.

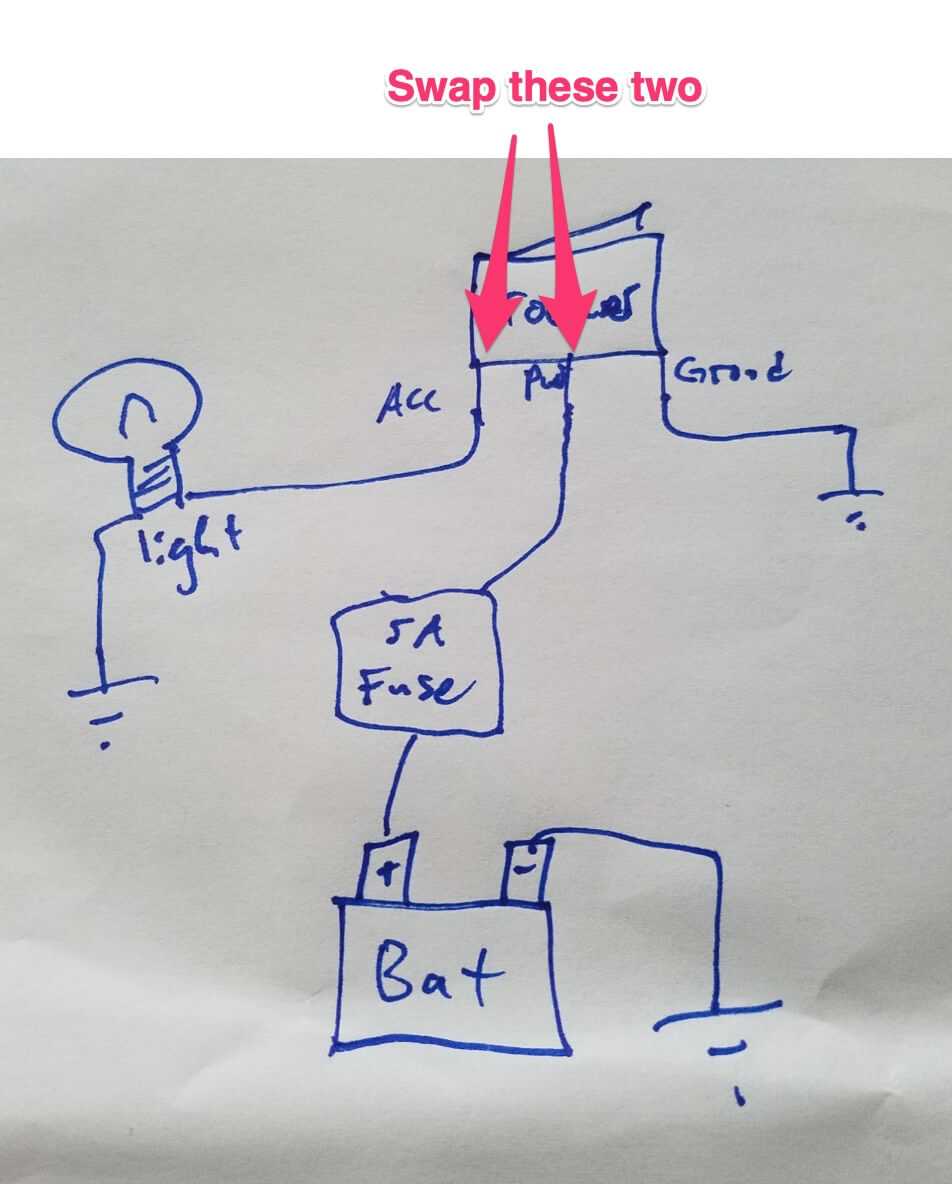

For momentary toggles, wire pin 1 to the positive feed, pin 2 to the load, and bridge the switch’s built-in LED across pins 3 and the negative rail; the 1-kilohm resistor already molded into most interfaces prevents LED burnout without extra components. Toggle-style actuators intended for latching operation require bridging the common and normally-open terminals first, then wiring the coil side of the miniature relay between the switch’s second pole and ground.

Test continuity before closing the enclosure: power the busbar with a bench supply set to 14.2 VDC, verify each circuit energizes under no-load, then measure voltage at the farthest load point–acceptable drop is less than 0.5 volts. If readings exceed tolerance, replace any crimped joint with soldered step-down joints; stranded core conductors strip cleanly, while solid core fractures under twenty-millimeter loops.

Constructing a Low-Voltage Control Board Layout

Begin by selecting a power source rated for 12A continuous load–opt for a deep-cycle battery with AGM or lithium chemistry to prevent voltage drops under sustained use. Route the positive line through a 10A fuse within 7 inches of the battery terminal to comply with ABYC standards. Ground every component directly to the battery’s negative terminal using 12-gauge marine-grade wire to eliminate corrosion-induced resistance.

• Use SPDT rocker toggles for dual-function accessories (e.g., bilge pump with manual override)
• Label each circuit with heat-shrink tubing marked in UV-resistant ink
• Install LED indicators rated at 20mA to monitor active currents without draining reserves
• Terminate all connections with tin-plated crimp connectors–they resist oxidation better than bare copper

For multi-layer boards, isolate circuits using a common bus bar. Dedicate the top layer to high-draw devices (winches, compressors) with 8-gauge wiring; reserve the lower layer for low-amperage items (lights, gauges) using 16-gauge. Test continuity with a multimeter set to 200Ω before securing the board–readings above 0.5Ω indicate faulty joints that demand re-crimping.

Choosing Reliable Parts for Your Low-Voltage Control Board

Opt for rocker actuators with silver contacts rated for at least 20A continuous current. Marine-grade variants resist corrosion in damp environments, lasting 30% longer than standard copper alternatives. Check for built-in LED indicators–4mm single-color models draw only 20mA per circuit, preventing unnecessary drain on small batteries.

Install a 10A fuse immediately after the power source for each circuit path. Blade-style fuses in mini or ATO sizes fit compact layouts; always match the fuse rating to 125% of the expected load. Avoid glass tube fuses–they fragment under vibration, creating short risks in mobile setups.

Use stranded 16-gauge wire for signal paths and 12-gauge for power feeds. Tinned copper strands prevent oxidation, crucial for systems exposed to temperature swings. Secure connections with heat-shrink butt connectors–uninsulated terminals can loosen at just 0.5mm movement under 5G vibrations.

Select a modular design with at least 2mm spacing between entry points. Polycarbonate faceplates withstand 15J impact, while ABS cracks under 8J. Pre-drilled panels save fabrication time–look for templates with 3.2mm holes to accommodate most common actuators.

Include a bus bar for ground distribution instead of daisy-chaining. A 6-point bus bar reduces resistance by 40% compared to individual grounds, critical for sensitive electronics like GPS modules. Anodized aluminum bus bars handle 150A peak currents without overheating.

Test each circuit with a load tester before final assembly. A 3A resistive load simulates realistic conditions–voltage drop should not exceed 0.2V at the farthest actuator. Document all ratings directly on the enclosure using 3mm engraved labels; marker ink fades within 6 months under UV exposure.

Step-by-Step Guide to Connecting Basic Toggle Controls

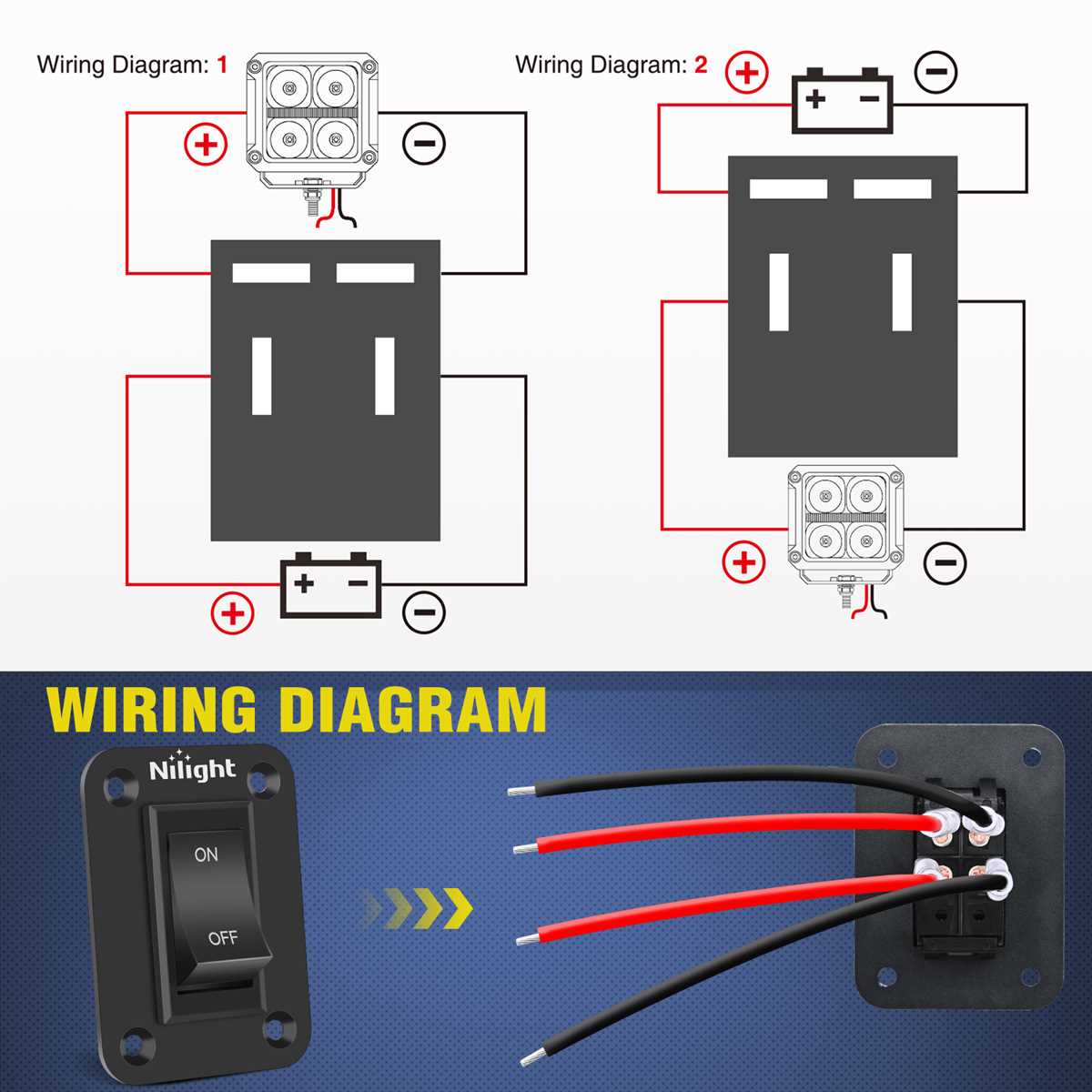

Begin by selecting a 15 cm length of 16-gauge stranded copper cable for each terminal connection–this gauge ensures minimal voltage drop for low-current circuits (under 10A). Strip 8 mm of insulation from both ends using precision wire strippers to prevent fraying. For single-pole, single-throw (SPST) actuators, attach one cable end to the power source’s positive terminal, securing it with a ring terminal crimped at 5 Nm torque. Route the other end through a ⅜” grommet in the mounting plate to avoid chafing, then connect it to the actuator’s top lug. Use a multimeter set to continuity mode to verify the path before applying power.

Safety and Verification Checks

• Fuse all incoming lines: Insert a blade fuse rated at 125% of the expected load (e.g., 10A for a 8A circuit) within 15 cm of the power source.
• Test actuator states: With power OFF, confirm the toggle moves freely; with power ON, measure output with a voltmeter–it should match the input when engaged.
• Label all connections: Use heat-shrink tubing or adhesive markers to denote polarity and function (e.g., “+ POS – ACC”).
• Avoid ground loops: Route negative returns directly to the battery’s negative post, not through chassis components, to prevent interference.
• Final inspection: Tug-test each terminal at 4 kg force to ensure crimp integrity before sealing with electrical tape.

Integrating Toggle Mechanisms with Light Diodes for Immediate Feedback

Begin by mating each 12-ampere control element directly to a low-current light-emitting component rated for 20 milliamperes at 3.2 forward drop. Use a series resistor calculated as R = (supply – Vf) / If, selecting 470Ω for standard red indicators or 330Ω for higher-intensity amber variants. Confirm polarity before soldering–reverse connection risks permanent diode failure.

For multi-position latching types, assign a dedicated diode to each state. Wire the common cathode to the module’s ground bus, splitting the anode leg through individual 1/4-watt resistors to the corresponding actuator pole. Test continuity with a multimeter set to diode mode: expect 0.5–0.7 readings in forward bias and open-circuit reverse.

Reduce wiring bulk by consolidating resistors into a single inline axial pack. Daisy-chain ground returns using 18-gauge tinned copper wire, stripping 5mm per joint and twisting clockwise under heat-shrink. Stagger diode placement to prevent shadowing–position high-brightness units 10mm apart for uniform illumination.

Tactile confirmation matters: pair momentary contactors with blinking diodes driven by a 555 timer in astable mode. Configure pulse width via t = 0.693(R1 + 2R2)C, targeting 1Hz flash rate with R1=47kΩ, R2=47kΩ, C=10µF. Secure the IC on a small perfboard, feeding +12V from the shared bus.

Seal connections with clear epoxy after verifying operation–moisture ingress degrades solder joints within weeks. Label each actuator’s corresponding diode legend on the fascia using 2mm laser-etched acrylic overlays, ensuring symbols align precisely with light sources for intuitive status interpretation.

How to Wire Momentary Push Buttons for Temporary Power

Begin by connecting the common terminal of the pushbutton to the positive side of your 12-volt source using 18-gauge stranded copper wire for flexibility and durability. Use a crimp connector or solder joint to secure the connection, ensuring no exposed strands could cause shorts under vibration.

Attach the normally open (NO) terminal to the load–such as a relay coil, solenoid, or low-power device–using the same wire gauge. For high-current applications (above 5 amps), route the button through a relay or contactor instead of handling the current directly. This prevents overheating and prolongs button lifespan.

Ground the load’s return path to the source’s negative terminal or chassis. Use a star grounding method if multiple buttons share a common ground to avoid voltage drops. Verify continuity with a multimeter before applying power to confirm no accidental shorts exist between terminals.

For multi-button layouts, use a bus bar or terminal strip to consolidate connections. Label each wire at both ends to simplify troubleshooting. Avoid daisy-chaining buttons; parallel connection improves reliability if one circuit fails.

Button Type	Max Current (A)	Wire Gauge	Recommended Load
Miniature (6mm)	2	22-20 AWG	LEDs, signals
Standard (12mm)	5	20-18 AWG	Relays, solenoids
Heavy-duty (16mm)	10	18-16 AWG	Contactors, motors

Add a flyback diode (1N4007) across inductive loads like relay coils to suppress voltage spikes when the button releases. Position the diode cathode to the positive side to shunt current safely when the circuit opens. Omitting this risks damaging button contacts over time.

Test each button under load before finalizing the setup. Press and hold to observe consistent operation; intermittent power suggests loose connections or undersized wiring. For momentary-on functions, consider adding a latching relay if the load must stay active after button release.

Secure all connections with heat-shrink tubing or electrical tape to prevent corrosion in marine or automotive environments. Route wires away from sharp edges and moving parts, using split loom tubing for protection where needed. Document the layout with photos for future reference.
