Complete 12 Valve Cummins Starter Wiring Guide and Diagram

Begin by locating the solenoid terminal–typically marked S–and connect it directly to the ignition switch’s 50 terminal using 10-gauge copper wire. This isolation prevents voltage drop issues common in extended cable runs. For diesel setups with glow plug controllers, splice a relay between the switch and solenoid to avoid excessive current draw through the ignition circuit.

Use a multimeter to verify ground path continuity from the engine block to the battery’s negative terminal. Resistance readings above 0.1 ohms indicate corrosion at connections; clean with a wire brush and apply dielectric grease. For installations in high-vibration environments, secure all connections with heat-shrink tubing and nylon tie wraps spaced every 6 inches.

If the system includes a safety neutral switch, wire it in series with the solenoid circuit to prevent engagement unless the transmission is in park or neutral. Test this by attempting to crank the engine while in gear–it should not respond. For manual transmissions, integrate a clutch pedal switch instead; mount it on the pedal bracket and adjust the plunger gap to 0.25 inches for reliable activation.

For auxiliary batteries, connect the main power feed to a 100-amp circuit breaker before branching to the starter motor. This protects against shorts and allows quick disconnection for maintenance. Avoid tapping into the alternator’s output for accessory loads–this risks overloading the charging system. Instead, run a separate fused line directly from the battery to high-draw components.

Label all wires with heat-resistant sleeves marked B+, G, S, and I (for ignition) to simplify future diagnostics. Store spare fuses and relays in a weatherproof box under the hood, alongside a current-limiting resistor (10W, 0.5 ohms) for testing glow plug circuits without starter activation.

Powering Up a 5.9L Diesel: Direct Connect Guide

Begin by locating the solenoid terminal–it’s the larger post on the motor’s housing. Attach the battery’s positive lead directly to this terminal using 4-gauge cable or thicker. Ensure the connection is clean and tightened to 12-15 ft-lbs; corrosion or loose fittings will cause voltage drop under load.

Run a second heavy cable from the battery’s positive terminal to the smaller trigger post on the solenoid. This path carries the control signal from the ignition switch. Use 10-gauge wire for this leg; thinner wire risks melting under repeated cranking cycles.

Ground the motor housing to the engine block with a dedicated 4-gauge strap. Avoid relying on the factory frame ground; diesel compression demands a low-resistance path. Scrape paint and rust from both contact points, then torque the bolt to 14 ft-lbs.

Connect the ignition switch output to the solenoid trigger terminal via a relay if cranking duration exceeds 10 seconds. A 30-amp relay reduces switch wear and provides consistent voltage. Wire the relay coil to the switch, the relay contacts to the trigger post, and the relay input to battery positive.

Test the circuit with a multimeter before closing the hood. With the key off, measure 0V across the trigger post and ground. Turning the key to crank should show 12.6V at the trigger post. If voltage drops below 10V during cranking, inspect the battery connections or upgrade to a higher-capacity unit.

Route all cables away from moving parts and excessive heat. Use split loom tubing over wires near exhaust manifolds; high-temp silicone tape works for short runs. Secure cables with zip ties every 8 inches to prevent chafing against sharp edges.

For frequent cold starts, install a 150-amp alternator and a dual-battery isolator. The second battery should match the primary in age and capacity. Parallel wiring keeps both units charged while isolating drain during cranking to prevent voltage sag. Set the isolator’s voltage cutoff to 12.5V to avoid deep discharge.

Key Elements of a Diesel Engine Cranking System for 5.9L 24v Powertrain

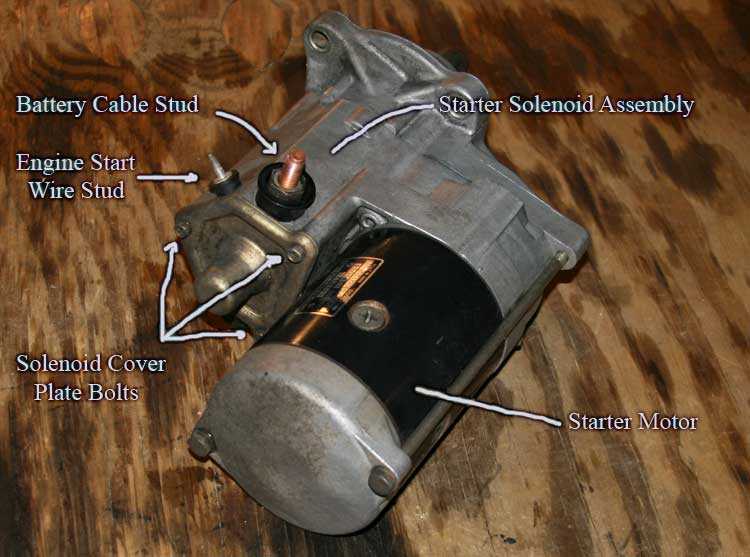

Locate the solenoid on the electric motor assembly–its terminal posts must be corrosion-free and securely fastened. The heavy-gauge battery cable connects directly to the upper post (B+), while the thinner trigger lead attaches to the smaller S-terminal. A loose connection here causes high-resistance arcing, leading to slow cranking or solenoid click without engagement. Verify the integrity of ring terminals on both cables; frayed strands or green oxidation reduce current flow, stalling the flywheel rotation. Use a multimeter to confirm 12.4V minimum at the solenoid during activation.

• Ground strap–trace from the motor housing to the engine block or chassis frame. A missing or corroded ground creates an open circuit, preventing voltage return.
• Magnetic switch relay (if equipped)–check for two small 16-18 AWG wires linking the ignition switch. Failure here results in silent solenoid operation.
• Flywheel ring gear teeth–inspect for missing or cracked segments causing intermittent engagement.
• Starter drive gear clearance–verify 0.02–0.06 inch gap between pinion and ring gear when fully engaged.

Step-by-Step Connections for the Solenoid Relay

Locate the battery’s positive terminal and attach a heavy-gauge cable (4 AWG or thicker) directly to the solenoid’s upper contact. Secure with a bolt and locknut, ensuring no corrosion exists–clean surfaces with a wire brush if oxidation is visible. The opposing lower contact connects to the motor’s engagement terminal via a shorter, equally robust cable. Test continuity with a multimeter; resistance above 0.5 ohms signals a faulty path requiring replacement.

Ground and Signal Paths

Run a ground strap (6 AWG minimum) from the solenoid’s mounting bracket to the engine block, avoiding painted surfaces–bare metal ensures reliability. For the trigger circuit, splice a relay-rated wire (16 AWG) to the ignition switch’s output; route it through a fusible link (15A) before terminating at the solenoid’s smaller control post. Verify the engagement coil draws no more than 40A under load; exceeding this indicates internal wear.

Install a diode (1N4007) across the control post and battery terminal to suppress voltage spikes when disengaging. Label each connection with heat-shrink tubing or wire markers resistant to oils and temperatures above 120°C. Before final tightening, apply dielectric grease to terminals to prevent moisture ingress–recheck torque specs (8-12 Nm) to avoid loosening under vibration.

Solving Electrical Problems in Engine Cranking Circuits

Check the solenoid engagement sound first. If absent during ignition attempts, measure voltage at the solenoid’s activation terminal while turning the key. Expect 10–12 volts; readings below 8 volts signal a corroded trigger lead, faulty ignition switch, or blown fuse. Bypass the switch temporarily with a jumper wire–if the motor spins, replace the switch. For no-crank situations despite proper voltage, disassemble the solenoid and inspect the plunger for wear or carbon buildup; sandpaper grit 400 removes oxidation without damaging internal seals.

Inspect battery cables for resistance. A fully charged 12.6-volt source should drop no more than 0.2 volts across a 1-meter cable under 200-amp load. Replace terminals showing green corrosion or heat discoloration–tin-plated copper resists oxidation longer than bare brass. Route cables away from exhaust manifolds; repeated heating softens insulation and accelerates short circuits. Use a torque wrench on clamp bolts: 15–18 Nm ensures optimal contact without deforming the terminal post.

Common failure points often hide in the neutral safety circuit. On manual transmissions, wiggle the clutch pedal while monitoring voltage at the switch pins; erratic readings mandate switch replacement. Automatic transmissions require a scan tool to verify gear selector position data–codes P0937 or P0705 confirm a faulty transmission range sensor. Jumper the sensor pins as a temporary workaround, but drive cautiously; incorrect engagement can prevent normal starting.

Voltage drop test results dictate repair priority:

Component	Maximum Acceptable Drop	Repair Action
Positive cable	0.3 V	Clean terminal or replace cable
Ground strap	0.1 V	Remove paint, apply dielectric grease
Solenoid contacts	0.2 V	Lightly file contacts or replace assembly
Starter motor brushes	0.5 V	Disassemble, replace brushes if under 8mm length

Heat damage often manifests as melted insulation or brittle wires. Rewire affected sections with 14-gauge silicone-jacketed wire–its 200°C rating withstands engine bay temperatures. Secure wiring harnesses with nylon clamps spaced every 150mm; metal straps cut through insulation over time. Apply protective conduit to sections near sharp edges or moving components.

Parasitic drain tests isolate phantom loads. Disconnect the battery overnight, measure amperage draw with all switches off. Readings above 0.03 amps indicate a stuck relay or faulty ECM. Remove fuses one by one until the drain drops; the last removed fuse identifies the malfunctioning circuit. Replace relays showing continuity between 85 and 86 terminals; even slight resistance causes excessive current flow.

For intermittent no-crank conditions, tap the engagement mechanism sharply with a rubber mallet during key cycling. A sudden start confirms worn internal bushings or faulty armature bearings–replace the unit. Record ambient temperature during failures; hysteresis issues typically worsen below 0°C. Upgrade to gold-plated connectors if corrosion recurs despite regular maintenance; improved conductivity prevents voltage sag under startup loads.
