Complete Guide to Wiring a 12V Battery with Circuit Diagrams
Start with a 1.5 mm² cross-section cable for circuits under 10 amps. For currents up to 20 amps, upgrade to 2.5 mm² to prevent voltage drop and overheating. Use crimped terminals with heat-shrink insulation for all connections–solder alone is insufficient as vibrations can cause joint failure over time. Label each wire at both ends with a permanent marker before cutting to length; this eliminates guesswork during final assembly.
Ground the negative terminal directly to the chassis at a single point to avoid ground loops. If multiple power sources share a common return path, isolate them with individual ground cables leading back to the central grounding point. For dual-power configurations (e.g., auxiliary supply), insert a 20-amp fuse within 15 cm of each positive terminal–this protects against short circuits without affecting system response time.
Route cables away from sharp edges and moving parts. Secure them every 30 cm with adhesive-backed clips or zip ties, ensuring no slack that could snag or chafe. Use corrugated tubing for sections exposed to oil, water, or road debris. Test continuity with a multimeter before applying power; a resistance above 0.5 ohms indicates poor contact requiring retermination.
For parallel setups, balance load by matching cable lengths–differences exceeding 20 cm create uneven current distribution. In series arrangements, verify polarity against the schematic after every connection; reversing a single link can destroy sensitive components. Store unused cables in a cool, dry environment to prevent corrosion of copper strands.
Connecting Power Sources: A Practical Schematic Guide
Install 10 AWG cables for direct parallel connections between storage cells to maintain voltage stability under 20A loads. Use a fusible link rated at 1.5x the expected max current near the positive terminal of each cell–this prevents catastrophic failure in high-drain scenarios like winches or inverters. Avoid daisy-chaining grounds; instead, run individual negative leads from each cell to a single common bus bar to minimize resistance buildup. Test continuity with a multimeter before energizing the system, ensuring each path shows less than 0.1Ω.
Series configurations require strict isolation: combine cells only if their state of charge differs by less than 5%. Connect the negative terminal of one cell directly to the positive of another using 8 AWG cable for loads exceeding 15A. Insert a 100A fuse between the final positive terminal and the load–this protects against reverse polarity and overcurrent conditions. For hybrid systems (parallel-series), balance charging circuits must isolate sections before charging; otherwise, uneven currents will degrade cells within months.
Terminal and Safety Protocols
Secure connections with tinned copper lugs crimped at 8,000 psi–solder-only joints fatigue under vibration. Apply dielectric grease to all terminals to block corrosion in humid or saline environments. Position storage cells vertically in ventilated enclosures; heat buildup from 30W+ loads reduces capacity by 2% per 5°C rise. Implement a manual disconnect switch rated for 200% of total system current to isolate sections for maintenance.
Load distribution matters more than peak capacity: balance high-draw devices across multiple cells to prevent localized voltage sag. For example, distribute a 120W fridge (10A) and a 30W LED array (2.5A) between two parallel paths rather than loading one. Monitor individual cell voltages weekly–divergence beyond 0.1V indicates impending failure. Replace underperforming cells immediately; delayed action cascades into full-system degradation within 50 cycles.
Selecting the Right Conductor Thickness for Low-Voltage Installations
For 1A–5A currents, use 18–16 AWG copper strands; these handle 3–15 W loads over 2–4 m runs without detectable sag. At 10A–20A–the range for most LED strips and small compressors–opt for 14–12 AWG; resistance stays below 5 mΩ/m, capping voltage drop under 0.3 V per 3 m. Push beyond 25A (inverter inputs, winches) and minimum 10 AWG becomes non-negotiable; each meter adds ≈7 mΩ, so a 5 m run on 8 AWG yields only 0.175 V drop at 30A–critical when protecting solid-state relays from phantom switching.
| Continuous Load (Amperes) | Recommended Copper Gauge (AWG) | Max Safe Length (metres) | Estimated Drop (Volts) |
|---|---|---|---|
| 8 | 16 | 4 | 0.25 |
| 15 | 12 | 5 | 0.22 |
| 30 | 8 | 10 | 0.35 |
| 60 | 4 | 15 | 0.40 |
Beyond 100A pack terminals (thick alternators, dual pumps) only stranded 2/0 AWG suffices; solid-core variants introduce skin-effect losses above 5 kHz, sabotaging brushless controllers. Multiply ambient temps above 30 °C by 1.25× derate factors–tinned copper gains 5 % conductivity over plain, offsetting corrosion in marine hulls. Always stress-test runs at 10 % overload for thirty minutes; if insulated sleeving softens, downgrade one gauge size or segment into dual-parallel feeds.

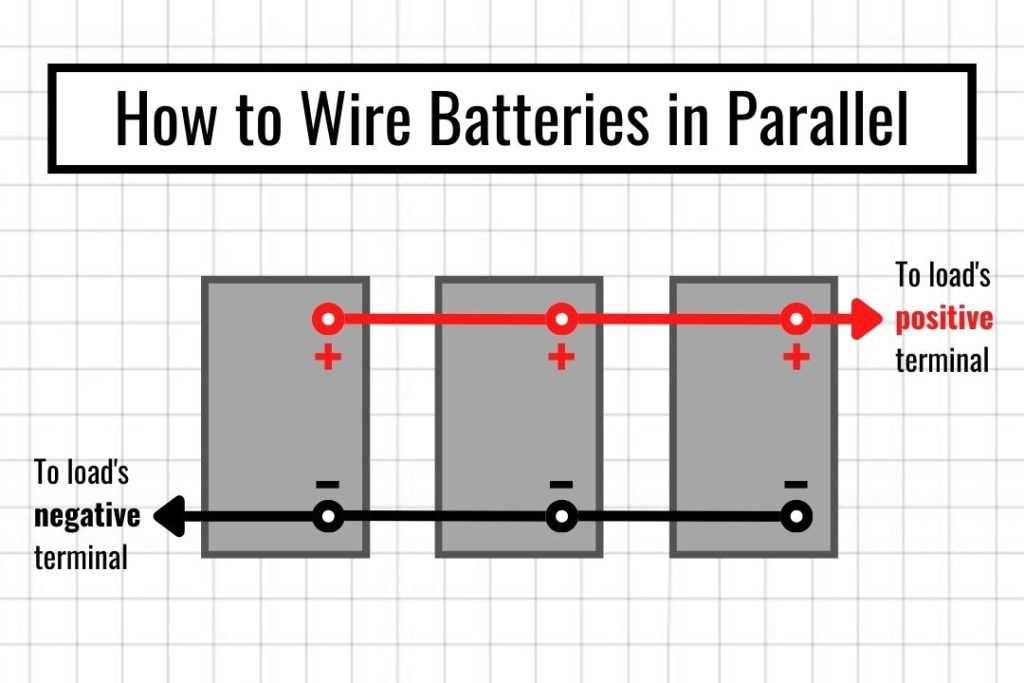

Step-by-Step Parallel Connection Guide for Amplified Storage
Begin by selecting identical energy cells with matching voltage ratings–deviation exceeding 0.1V risks uneven discharge. Use 4 AWG or thicker conductors to minimize resistive losses; anything thinner causes voltage drops under load. Strip 1 cm of insulation from each terminal lead, then attach crimped copper lugs with a hydraulic press–soldering alone weakens joint durability. For marine or automotive applications, apply dielectric grease to connectors before securing.
Connect positive terminals first using a solid copper busbar or a heavy-duty fuse link rated 20% above the combined load current.Verify polarity with a multimeter–reverse connections will bypass the parallel benefit and damage circuitry. Space cells at least 5 cm apart to prevent thermal buildup; forced-air cooling extends cycle life by up to 30%. Route cables away from sharp edges or moving parts, securing them every 20 cm with non-conductive clips.
Test the setup under 50% rated load for 10 minutes, monitoring voltage stability across all units. A drop greater than 0.3V indicates a loose connection or undersized cable–recheck crimps and torque specifications (typically 10-15 Nm for M8 bolts). For lithium-based chemistries, pair cells with integrated balancers to prevent capacity mismatch over time.

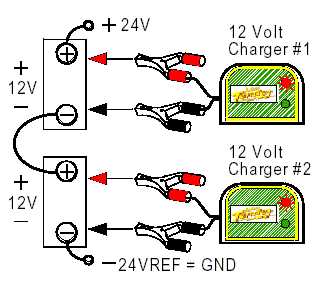

Series Linking for Higher Potential in Low-Voltage Energy Storage
Stack cells end-to-end to multiply output without altering capacity. Two 6-amp-hour units joined in series will still deliver 6 Ah, but their combined potential rises to 24 volts. This method suits applications demanding higher drive, like small electric motors or off-grid inverters, where raw voltage trumps current.
Verify matching amp-hour ratings before pairing. Uneven capacities force the weaker cell to drain first, risking deep discharge and permanent degradation. Check electrolyte levels if using lead-acid types; sealed AGM or gel variants tolerate series linking better than flooded models, which may leak under higher strain.
Fuse each bank separately. Place an inline fuse rated at 125% of the expected load current on the positive lead of every energy cell. Series chains concentrate risk–one shorted unit can cascade failure across the entire string. A 20-amp fuse protects a typical 15-amp setup from overheating.
Keep interconnect cables short and thick. Voltage drop compounds over distance; a 1-meter run with 10 AWG wire loses ~0.4V at 15A, robbing performance. For runs under 30 cm, 8 AWG limits loss to below 1%. Twist wires to minimize inductance if powering sensitive electronics like inverters or charge controllers.
Critical Precautions
- Never mix chemistries–lithium paired with lead-acid creates unpredictable charging cycles.
- Avoid shared grounding with parallel banks, which can induce circulating currents.
- Label polarity clearly; reversed links produce 0V output and risk fire.
- Monitor individual unit voltages weekly–overcharging one cell dooms the entire string.
For lithium-based setups, add a battery management system (BMS). Lead-acid cells tolerate minor imbalance, but lithium cells in series demand precise voltage regulation (±0.1V) to prevent thermal runaway. A BMS disconnects at 3.65V per cell or below 2.5V to avert damage.
Test under load before finalizing connections. Apply a 50% rated current draw for 30 seconds; voltage sag beyond 0.5V per 10 volts indicates weak links. Use a multimeter to check each joint–crimped terminals outlast solder alone, but only if crimped with proper dies to avoid microfractures.
Grounding Best Practices for Safe Low-Voltage Installations
Use a dedicated ground point for each circuit cluster to prevent cross-talk and voltage drop. Connect corroded or painted surfaces directly to bare metal using a star washer or sandpaper to clean the contact area down to 16-20 AWG conductivity. Never rely on chassis bolts, exhaust components, or suspension mounts as primary grounding paths–these introduce resistance and potential interference.
Install ground cables equal in diameter to the positive feed for optimal current return. For example, a 4 AWG power lead requires a matching 4 AWG ground wire. Route grounds in parallel to power cables but maintain a minimum 3-inch separation to avoid magnetic coupling. Secure all connections with crimped ring terminals, soldered joins, and heat-shrink insulation to resist corrosion and vibration.
Critical Grounding Locations
Anchor grounds to the vehicle’s factory grounding bus or a purpose-built copper bar. Avoid attaching to plastic-clad areas, composite panels, or thin-gauge sheet metal–these degrade conductivity under load. In marine setups, bond all ground points to the engine block or a common zinc anode to prevent galvanic corrosion.
For audio systems, isolate signal grounds from power grounds using a separate 8-10 AWG bus or a ground loop isolator. Test resistance between the ground point and the source terminal with a multimeter–readings above 0.1 ohms indicate a weak connection requiring rework. Replace any ground wires showing green/white oxidation immediately, as this increases resistance exponentially.
In off-grid setups, bury a 24-inch copper rod at least 6 feet deep, connecting it to the system ground with tinned copper wire (minimum 6 AWG). Avoid grounding to well casings, gas lines, or buried rebar–these introduce safety hazards and electrical noise. Verify ground resistance annually with a dedicated tester; 5 ohms or lower ensures reliable operation.
Failure Prevention Checks
Inspect all ground connections every 6 months for heat discoloration, loose terminals, or rust. Tighten fasteners to 10-12 ft-lbs torque, applying dielectric grease to inhibit moisture ingress. Replace any wire showing fraying or brittle insulation, as these faults lead to short circuits. Use an infrared thermometer to scan for hotspots–abnormal heating (>10°C above ambient) signals high resistance.
