Step-by-Step Guide to Drawing Encoder Circuit Diagrams
Start with a precision quadrature signal generator at the core of your design. Use two square-wave outputs offset by 90 degrees–this phase relationship ensures direction detection and eliminates ambiguity in motion tracking. A 5V or 3.3V logic-level signal works for most applications; ensure pull-up resistors (1–10kΩ) are in place if open-collector outputs are used, as they prevent floating inputs and false readings.
For optical implementations, pair a slotted disk with an IR emitter-detector pair (e.g., TCRT5000). The disk’s slit width directly affects resolution: 20–50 slits per revolution yields 72–180 pulses per rotation–sufficient for basic speed and position feedback. For higher precision, opt for 200–1024 slits, but account for signal noise; add a Schmitt trigger (e.g., 74HC14) to clean up waveform edges before feeding into logic.

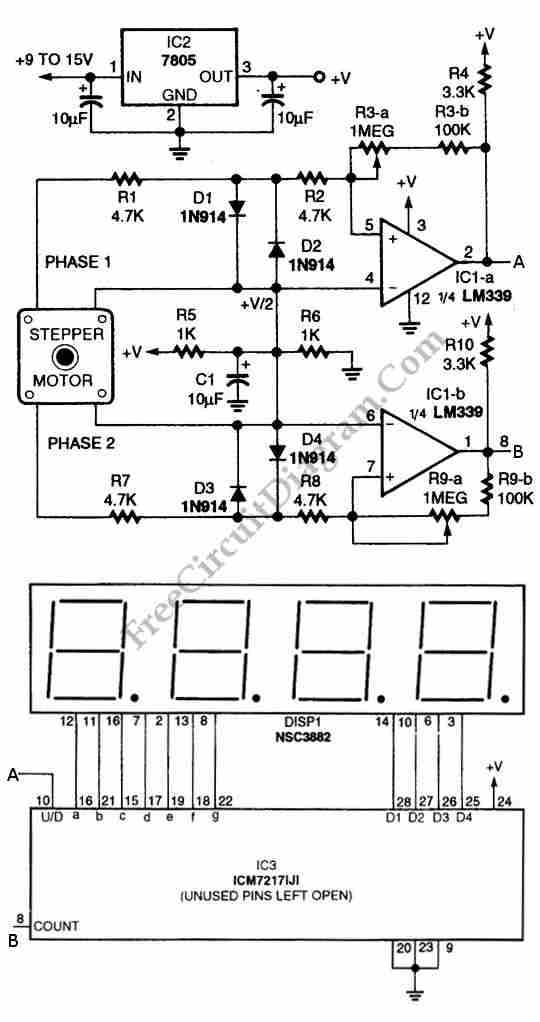

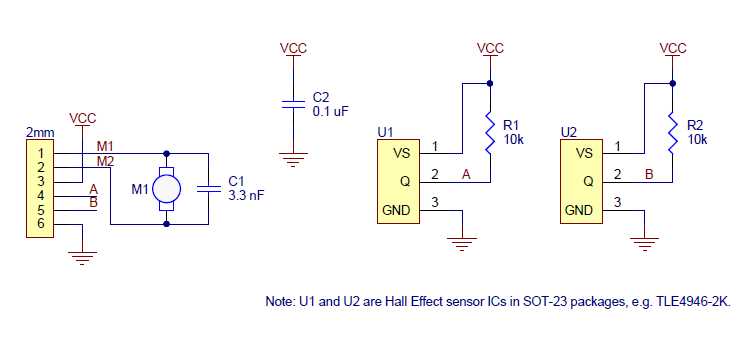

Magnetic variants demand a Hall-effect sensor (e.g., A1302) aligned with a ring magnet containing alternating poles. A 12-pole magnet delivers 12 pulses per revolution; peak detection error remains under ±1° when sensor is positioned within 1mm of the magnet surface. Ensure supply stability–fluctuations above ±5% distort readings. Bypass with a 0.1µF ceramic capacitor close to the sensor’s VCC pin.
Ground isolation is non-negotiable. Separate analog and digital grounds, connecting them only at a single star point near the power source. Noise from switching supplies can couple into signal lines; shield cables with twisted pairs or use a differential receiver (e.g., AM26LS32) to reject common-mode interference up to 10kHz.
Incremental designs need an index pulse–a single reference mark–to establish absolute position. Dedicate a third channel for this; trigger on the rising edge and latch encoder counts for homing sequences. Verify timing with an oscilloscope: pulse width must outlast counter propagation delay (typically 50–200ns). Missed pulses corrupt position data irrecoverably without redundancy checks.
Designing a Robust Signal Conversion Circuit Layout
Start with a clear block representation: separate the signal source, conditioning stage, and processing unit into distinct sections. Use a pull-up resistor (4.7kΩ–10kΩ) for open-collector outputs to prevent floating inputs in quadrature configurations. For incremental designs, route A/B channels with differential pairs (twisted or shielded) if trace length exceeds 20cm to minimize noise coupling. Absolute variants, like SSI or BiSS-C, require strict impedance control (100Ω ±10%) and bypass capacitors (0.1µF ceramic) placed within 5mm of the transceiver IC’s power pins.
Select components based on resolution and interface protocol. Below is a comparison of common interface ICs for high-speed applications:
| IC Model | Max Data Rate (Mbps) | Interface Type | Supply Voltage (V) | Temperature Range (°C) |
|---|---|---|---|---|
| TI SN65HVD75 | 50 | RS-485 | 3.3/5 | -40 to +85 |
| Microchip MCP2551 | 1 | CAN | 4.5–5.5 | -40 to +125 |
| NXP TJA1043 | 1 | CAN FD | 5 | -40 to +150 |
| Maxim DS28E16 | 0.4 | 1-Wire | 3.0–5.5 | -40 to +85 |
Isolate critical paths: power domains for analog (sensor excitation) and digital (communication) must be separated with ferrite beads (e.g., Murata BLM18PG121SN1, 120Ω@100MHz) or a dedicated LDO (e.g., Analog Devices LT3045, 3µVrms noise). For magnetic sensing elements (e.g., Hall-effect), route traces away from switching regulators (minimum 5mm clearance) and use a ground plane cutout beneath the sensor to avoid eddy currents.
Terminate transmission lines for high-speed interfaces: RS-422/485 requires 120Ω resistors at both ends of the bus; CAN/CAN FD needs 60Ω–120Ω at each node. For SPI or SSI, limit trace length to 10cm for 10MHz+ clocks–beyond this, insert series resistors (33Ω) at the driver output to reduce reflections. Validate layout with an oscilloscope: measure rise/fall times (target CC) on A/B/Z signals.
Core Elements of a Pulse-Based Position Sensor Setup
Select a light-emitting diode (LED) with a narrow emission spectrum matching the photodetector’s peak sensitivity. A 940 nm infrared LED paired with a silicon phototransistor ensures optimal signal integrity while minimizing ambient light interference. Verify the LED’s forward voltage (typically 1.2–1.5 V) against the supply voltage to prevent saturation or insufficient brightness.
Position the photodetector at a fixed distance from the LED, aligning the optical axis precisely with the code disc’s transparent and opaque segments. A 2–5 mm gap balances signal strength and sensitivity to misalignment. Use a slotted disc with 200–1024 lines per revolution for incremental counting, ensuring line width equals the space width to maintain a 50% duty cycle.
Integrate a Schmitt trigger circuit to convert the photodetector’s analog output into clean, hysteresis-stabilized pulses. The trigger’s upper and lower thresholds (e.g., 0.8 V and 0.4 V) must be set to reject noise induced by disc imperfections or mechanical vibrations. Add a 0.1 µF decoupling capacitor between the trigger’s power pins to suppress high-frequency switching noise.
For quadrature output, mount two optical pairs 90 electrical degrees apart. The phase relationship between channels A and B determines direction: a leading A indicates clockwise rotation, while a leading B signals counterclockwise. Verify the alignment by rotating the disc manually and observing the oscilloscope traces; the pulses should overlap by 25% of their width.
Include an index track generating a single pulse per revolution to establish an absolute reference. The index pulse should coincide with the rising edge of channel A to simplify homing routines in control systems. Ensure the index’s width matches one full cycle of channels A/B to avoid false triggering during rapid accelerations.
Power the circuit with a regulated 5 V supply, routing separate traces for the LED and logic components to prevent ground bounce. Add a 47 Ω series resistor to the LED to limit current to 10–20 mA, prolonging lifespan and reducing thermal drift. Connect the photodetector’s collector to the supply via a 10 kΩ pull-up resistor to ensure fast rise times.
Test the setup under worst-case conditions: high RPM (up to 5000) and temperature fluctuations (–20°C to +85°C). Use a non-reflective disc coating to prevent stray light from degrading signal quality. For extended cable runs, employ differential signaling (e.g., RS-422) with twisted pairs to reject electromagnetic interference.
How to Select Optical Sensors for Rotary Position Detectors
Prioritize sensors with a signal-to-noise ratio (SNR) above 40 dB to ensure reliable quadrature output in high-speed applications. Cheaper models often drop below 30 dB, introducing jitter at rotational velocities exceeding 10,000 RPM.
Verify the optical emitter wavelength: 850 nm sensors balance visibility with component cost, but 940 nm variants reduce interference from ambient light by up to 30%. Confirm compatibility with your system’s receiver spectral response–mismatches degrade resolution more than outdated interpolation methods.
Evaluate the sensor’s modulation depth. A minimum of 60% ensures clean edge detection in dusty or variable-temperature environments. Industrial-grade sensors maintain this threshold even at -20°C, unlike consumer-grade alternatives that drop below 40% under identical conditions.
Key Physical and Electrical Parameters
Check the gap tolerance between emitter and detector. Standard models allow 0.5–1.5 mm, while precision variants tighten this to 0.2–0.8 mm. Exceeding these limits decreases pulse accuracy, especially in compact assemblies where alignment drift compounds error over time.
Ensure the sensor’s rise/fall time aligns with your target resolution. Signals slower than 1 µs struggle above 1,000 pulses per revolution, whereas sub-200 ns sensors enable 10,000 PPR without waveform distortion. Compare these values against your application’s bandwidth–oversampling without adequate response speed wastes CPU cycles.
Assess the current consumption. Low-power sensors draw 5–10 mA but lack stabilization circuits, causing drift after 5,000 hours. High-reliability models (20–30 mA) integrate feedback loops, extending operational lifespan beyond 50,000 hours under continuous duty.
Connecting an Absolute Position Sensor to a Microcontroller

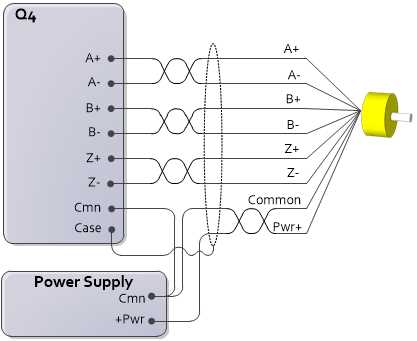

Use a differential line driver-receiver pair like AM26LS31/AM26LS32 for signals exceeding 1 meter. This setup rejects common-mode noise up to ±7 V and handles data rates up to 20 Mbps. Connect the sensor’s A, B, and Z outputs to the driver’s inputs, then route the driver’s complementary outputs (A+, A-, B+, B-, Z+, Z-) through twisted-pair cables to the receiver. Terminate each pair with 120 Ω resistors at both ends to prevent reflections.
Power Supply Decoupling
Place a 10 µF tantalum capacitor and a 0.1 µF ceramic capacitor within 1 cm of the sensor’s VCC pin. For 5 V sensors, add a low-dropout regulator like TLV705 if the microcontroller’s supply fluctuates. Absolute position sensors with 12-bit resolution or higher often require 3.3 V; use a buck converter (e.g., TPS62743) if the board runs on 5 V. Avoid sharing the analog ground plane with digital signals; connect grounds at a single point near the power source.
- SSI interface: Clock signal from microcontroller to sensor at 100–500 kHz, max 2 MHz. Keep trace length under 30 cm; if longer, reduce clock speed to 100 kHz.
- BiSS-C: Requires pull-up resistors (4.7 kΩ) on data and clock lines. Enable the sensor’s BiSS driver with a 2 ms delay after power-up.
- HSP (Heidenhain): Differential pairs must be terminated with 220 Ω resistors. Clock duty cycle: 50% ±10%.
Avoid running sensor cables parallel to motor power lines; maintain 10 cm separation or use shielded twisted pairs grounded at one end. For SPI-based sensors (e.g., AS5600), set the microcontroller’s SPI mode to 3 (clock polarity = 1, clock phase = 1) and sample on the rising edge. Configure the sensor’s zero position via its OTP registers only once–erroneous writes void factory calibration.
- Verify 3.3 V logic compatibility if the microcontroller runs at 5 V. Use a bidirectional level shifter (e.g., TXB0104) for 5 V → 3.3 V conversion.
- Check sensor datasheet for minimum clock pulse width. SSI sensors like the AS5311 require 250 ns minimum clock high/low time.
- Implement a 1 ms delay after initializing communication interfaces before reading the first position value.
- For sensors with UVW signals, treat them as hall-effect outputs: use Schmitt-trigger inputs (e.g., SN74LVC1G14) to clean noisy transitions.
Absolute position sensors with analog outputs (e.g., 4–20 mA or 0–10 V) need a precision ADC. Use the AD7793 for 24-bit resolution with a 32-sample moving average filter. For 0–10 V signals, employ a 1:2 voltage divider (10 kΩ + 20 kΩ) to scale to 3.3 V; add a 5.1 V Zener diode for overvoltage protection. For 4–20 mA signals, use a 250 Ω precision resistor to convert to 1–5 V, then feed into the ADC’s differential inputs.
