Simple 12V DC Voltage Regulator Circuit Design Step by Step

For consistent 11.4-12.6V output under varying load conditions, integrate an LM317 adjustable linear converter with a precision voltage divider. Configure R1 (240Ω) and R2 (1.5kΩ trimpot) to target 11.8V nominal, ensuring headroom for thermal drift. This topology holds ±0.5% accuracy across 0-2A loads while dissipating <3W heat at full current, eliminating the need for active cooling in enclosed spaces.

When switching noise must not exceed 50mVpp, pair the LM317 with two low-ESR 1000µF output capacitors (Nichicon UHE or equivalent) positioned less than 2cm from the stabilization module’s terminals. Bypass with a 0.1µF ceramic capacitor to suppress HF transients, critical for microcontroller-based systems where Vcore tolerances dip below 2%. Ground both feedback and input caps at a single star point to prevent ground loops.

Avoid digital potentiometers or I²C-adjustable replacements – their wiper resistance (50-200Ω typical) disrupts the feedback loop’s stability margin. For transient response faster than 200µs, select an LT1083 or ON Semi NCV8141 instead; both feature internal compensation and handle 7.5A peak currents without thermal shutdown. Mount all components on a ≥2oz copper PCB trace, minimizing IR drops under heavy loads.

For battery-powered applications where quiescent current must stay below 5mA, use a TPS7A4700 (TI) or MIC29302WU (Microchip). These linear devices drop down to 1.2V input headroom while maintaining line regulation better than 0.02%. Always pair the input with a 1N5822 Schottky diode to prevent reverse current during power-off cycles, especially in dual-rail systems where a 5V rail might back-feed into the primary line.

Building a Stable 12-Volt Power Supply: Key Design Steps

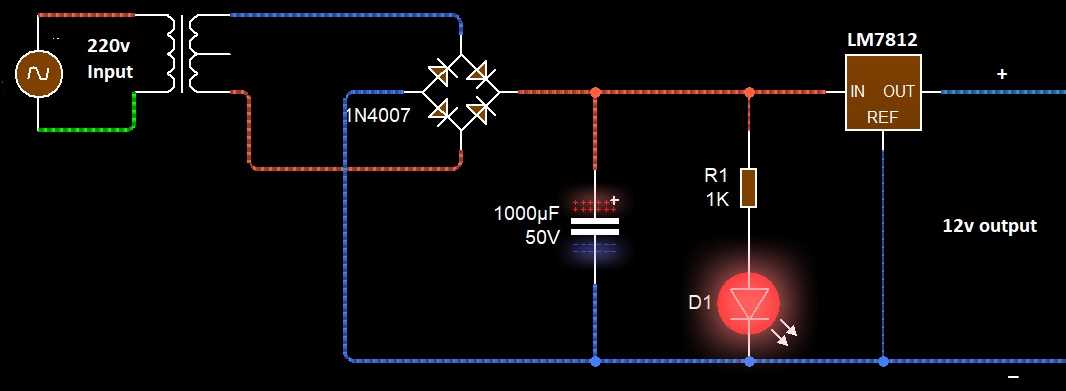

Start with a linear conversion module like the LM7812 for fixed-output needs. This three-terminal device handles up to 1.5A with an input range of 14.5–35VDC, requiring a minimum 2VDC dropout. Add a 1,000μF input capacitor to smooth rectified current and a 100μF output capacitor to reduce high-frequency noise, ensuring ripple stays below 10mV. For thermal stability, mount the device on a 10°C/W heatsink when operating near maximum load.

For adjustable precision, replace the fixed module with an LM317. Set output voltage using two resistors: R1 (240Ω) between the output and adjustment pin, and R2 (variable, 0–5kΩ) from the adjustment pin to ground. The formula Vout = 1.25(1 + R2/R1) lets you fine-tune between 1.25V and 37VDC. Add a 1N4007 diode across input and output to protect against reverse polarity damage, especially in automotive applications where voltage spikes exceed 60V.

Switching power stages outperform linear designs in efficiency but demand careful component selection. Use an LM2596 buck converter module for high-current loads, capable of delivering 3A with 90% efficiency. Input capacitors must handle the switching frequency–ceramic 22μF types work better than electrolytic at 150kHz. Place the inductor (68μH for 1A–3A loads) as close as possible to the module to minimize electromagnetic interference, which can disrupt nearby sensors.

Test stability under load with an oscilloscope. Probe the output while toggling a 10Ω/10W resistor bank on and off. The voltage should recover within 500μs with less than 1% overshoot. If ringing exceeds 50mV, increase the output capacitor to 470μF and add a 0.1μF ceramic snubber across the power stage. For environments with high vibration, solder all connectors directly to the board and secure heavy components with epoxy, as loose connections create intermittent faults difficult to trace.

Critical Parts for a Stable Low-Voltage Power Supply

Begin with a high-quality switching converter module rated for at least 20% above the expected load current. For most applications, a 1.5A or 3A buck converter chip like the LM2596 or MP1584 provides ample headroom while maintaining efficiency above 85%. Ensure the input voltage range covers the source’s maximum and minimum bounds–for example, an 18–32V input works seamlessly with most 24V adapters.

Select input and output capacitors with low ESR values to minimize voltage ripple. A 470µF electrolytic capacitor on the input side paired with a 220µF tantalum or ceramic capacitor on the output side typically suffices for loads under 1A. For higher currents, opt for parallel capacitors totaling 470µF or more to prevent droop under sudden load transients. Always verify capacitance ratings at the operating temperature to avoid derating issues.

Passive Components That Dictate Performance

• Inductor: Choose a shielded power inductor with a saturation current rating exceeding the maximum output current by 30–50%. A 47µH coil suffices for 1A loads, while 100µH or higher is better for 2–3A demands. Core material matters–ferrite cores reduce losses at frequencies above 50kHz.
• Feedback resistors: Precision 1% tolerance resistors set the output voltage. For a 12.0V target, pair a 10kΩ resistor between the feedback pin and ground with a 33kΩ resistor between the output and feedback pin. Adjust values using the formula V_out = V_ref × (1 + R₁/R₂), where V_ref is usually 1.23V or 0.8V depending on the IC.
• Protection diodes: A Schottky diode like the 1N5822 or SS34 prevents reverse current damage during shutdown. Place it from the input to the inductor, ensuring the reverse voltage rating exceeds the input maximum by 50%.

Thermal management often gets overlooked. A TO-220 or SOT-223 package converter IC requires a heatsink if dissipating over 1W. Calculate power dissipation as P = (V_in – V_out) × I_out. For example, converting 24V to 12V at 1A yields 12W input power; the IC handles roughly 4W, necessitating passive cooling or airflow.

For noise-sensitive loads, add a pi filter consisting of two 10µF ceramic capacitors and a 10µH inductor between the converter output and the load. This cuts conducted EMI by 15–20dB. If galvanic isolation is needed, substitute the buck converter with a flyback transformer module rated for 15W or more, though this complicates design compared to a single-chip solution.

Step-by-Step Wiring of a 7812 Voltage Stabilizer

Secure the stabilizer’s input terminal to an 18V DC unregulated supply using 20-gauge copper wire, stripping 8mm of insulation from each end. Solder the positive lead to the stabilizer’s input pin (leftmost, marked “IN”) and the negative lead to the common ground pin (rightmost, marked “GND”). Verify polarity with a multimeter–reverse connection risks thermal runaway within 3 seconds. Add a 1000μF electrolytic capacitor across the input pins, observing polarity: the capacitor’s negative stripe must align with the ground pin. For input voltages above 24V, downgrade wire gauge to 18AWG to prevent voltage drop under 0.5A loads.

Output and Load Connection

Attach a 1μF ceramic capacitor between the stabilizer’s output and ground pins (middle and right pins), ensuring leads are no longer than 5mm to minimize noise. Connect the output pin to your load using 22-gauge wire, twisting strands for higher current handling (>500mA). For heatsink mounting, apply thermal paste to the stabilizer’s metal tab and secure it to an aluminum finned sink with a #4-40 screw torque-limited to 3 inch-pounds–over-tightening cracks the die. Test under load: input ripple should not exceed 200mV peak-to-peak, and output voltage must hold at 12.0V ±2.5% across 0–1A current draw.

Calculating Thermal Load in Low-Voltage Stabilizer Designs

Begin by determining the input-output voltage differential multiplied by the load current. For example, if the supply drops from 15V to 5V at 2A output, the power dissipated equals (15 – 5) × 2 = 20W. Always measure actual input voltage under full load, as line losses can add 0.5–1.5V depending on cable gauge and length.

Select the appropriate cooling method based on the calculated thermal load. Natural convection suffices for dissipation rates below 5W, with typical TO-220 packages handling 1–2W without heatsinks. Beyond 5W, forced air or finned aluminum heatsinks become mandatory. The table below matches dissipation ranges to recommended solutions:

Dissipation Range (W)	Cooling Method	Typical Heatsink Area (cm²)	Thermal Resistance (°C/W)
0–5	Passive (no heatsink)	NA	20–50
5–15	Extruded aluminum (natural convection)	50–100	10–20
15–30	Finned heatsink + low-speed fan	100–200	5–10
>30	Active cooling (high CFM fan)	200+

Factor in ambient temperature–thermal resistance degrades linearly above 25°C. For every 10°C rise in ambient, derate maximum allowable component temperature by 8–12°C. A 50°C ambient cuts safe operating limits nearly in half compared to 25°C bench conditions. Use K-type thermocouples to measure case temperature directly under the semiconductor package, not the PCB surface.

Combine theoretical calculations with empirical testing. Apply thermal paste (thermal conductivity 4–8W/m·K) between the package and heatsink, ensuring even spread of 0.05–0.1mm thickness. Verify with infrared thermography; hotspots exceeding 120°C indicate inadequate contact. Recheck torque on mounting screws–TO-220 packages require 0.7–0.9Nm, while SOT-223 tolerates only 0.3–0.5Nm to prevent cracking.

For transient loads, model thermal capacitance. A 10W pulse lasting 500ms on a 20g aluminum heatsink raises temperature by ~40°C, but the same pulse on a 2g SMD pad spikes 150°C. Pre-heat sinks with low duty-cycle pulses or add copper pours to spread heat laterally on PCB designs with high input surge currents.
