Complete Guide to Cat6 Ethernet Cable Wiring Colors and Connections

Use the T568B standard for terminating high-performance network lines. Arrange conductors in this sequence: orange-white, solid orange, green-white, solid blue, blue-white, solid green, brown-white, solid brown. This layout ensures backward compatibility with older infrastructure while supporting gigabit speeds up to 1 Gbps and 10 Gbps over short distances (under 55 meters). Maintain strict consistency–swapping pairs or reversing sequences degrades signal integrity.

Strip insulation precisely 1.5 inches from the end. Excessive removal exposes vulnerable conductors; insufficient length prevents proper seating in the connector. Untwist each conductor no more than 0.5 inches to preserve pair geometry. Cross-talk escalates exponentially beyond this threshold, especially in environments with high electromagnetic interference.

Terminate with gold-plated RJ45 connectors rated for 8P8C configuration. Insert conductors fully until they bottom out, then verify alignment through the connector’s transparent body. Crimp once with 120-150 psi pressure–over-crimping damages the latch; under-crimping risks intermittent connections. Test continuity with a network tester: verify pinouts and confirm no shorts between adjacent pins.

For PoE applications, use solid copper cores with at least 23 AWG diameter. Stranded variants or thinner gauges risk voltage drops and overheating under sustained loads. Verify current ratings: Class 2 (up to 30W) requires no additional measures, but higher power (Class 4, 90W) demands shielded variants with foil-wrapped pairs and drain wires grounded at both ends.

Avoid excessive bending–maintain a minimum radius of four times the outer jacket diameter. Tighter bends induce impedance variations, particularly on the orange and green pairs. Secure runs with Velcro ties or low-tension straps. Never staple or pinch–compression deforms the internal structure, introducing signal reflections.

Label both ends of every segment. Use heat-shrink tubing or printed sleeves indicating length, installation date, and endpoint identifiers. Document all connections in a centralized inventory–manual verification in large deployments is impractical and error-prone.

Structured Network Connector Guide for High-Speed Links

Use the T568B standard for termination unless project specifications require T568A–both deliver identical performance when used consistently at both ends. Pair orange-white/orange connects to pins 1-2, green-white/blue split across 3-6, blue-white/green spans 4-5, and brown-white/brown occupies 7-8. Keep untwisting under 13mm to maintain signal integrity at 250MHz frequencies.

Solid copper conductors (23-24 AWG) outperform stranded alternatives for permanent installations due to lower attenuation. Ensure foil shielding covers at least 70% of each twisted pair if electromagnetic interference presents a concern–aluminum-polyester shielding adds minimal cost for substantial noise reduction in industrial environments or near power lines.

Termination Tool Selection and Technique

Invest in a ratcheting crimping tool with interchangeable dies for RJ45 connectors–adjustable tension prevents over-compression that deforms contacts. Test continuity with a dedicated network tester immediately after termination; flickering LEDs indicate improper contact while solid illumination confirms correct pin assignments and shielding continuity.

For outdoor runs or environments with temperature swings, use gel-filled outdoor-rated variants with UV-resistant jackets–these resist moisture ingress and maintain flexibility down to -20°C. Avoid excessive bending radii smaller than four times the jacket diameter during installation as sharp turns introduce micro-cracks in the conductor insulation over time.

Document each segment with labeled connectors, recording length, termination date, and tester results–this accelerates troubleshooting during intermittent faults. Replace any segment exhibiting error rates above 0.1% during stress testing with 1Gbps traffic patterns sustained for 30 minutes to ensure long-term reliability under peak loads.

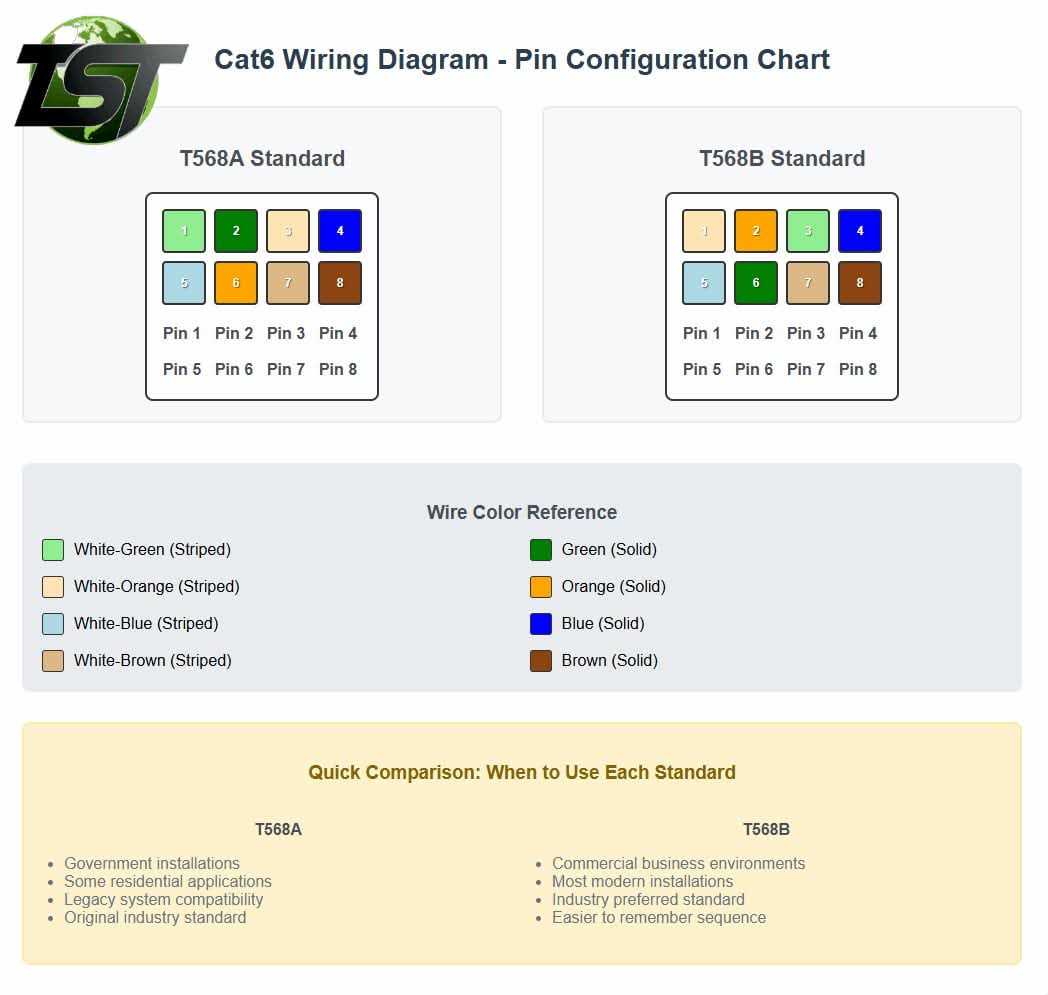

Standard Pinout Configurations: T568A vs T568B Explained

Use T568B as the default scheme for all new installations–it dominates modern infrastructure, aligns with ANSI/TIA-568-C.2 standards, and reduces compatibility issues with North American and European networking hardware. T568A remains permitted but introduces unnecessary complexity unless legacy compatibility demands otherwise.

Both schemes employ eight conductors arranged in four twisted pairs, but their pin assignments differ. T568B assigns orange-white to pin 1, orange to pin 2, green-white to pin 3, and blue to pin 4. T568A swaps the orange and green pairs: green-white occupies pin 1, green pin 2, orange-white pin 3, and orange pin 6. This inversion mandates strict adherence to a single standard within a single installation to prevent signal degradation.

Patch panels and jacks must follow the chosen scheme consistently–mixing T568A and T568B within the same channel creates split pairs, crosstalk exceeding 30 dB above Cat6 limits, and failed certification tests. Test tools report such errors as “wiremap failures” or “split pairs,” requiring retermination before deployment.

For residential or small office deployments, T568B is non-negotiable–most consumer-grade routers, switches, and PoE devices expect its pairing sequence. Deviating introduces connectivity drops over 50 meters, particularly with VoIP or gigabit links. Legacy IBM or Token Ring environments may still require T568A, but these exceptions are rare outside specialized laboratories.

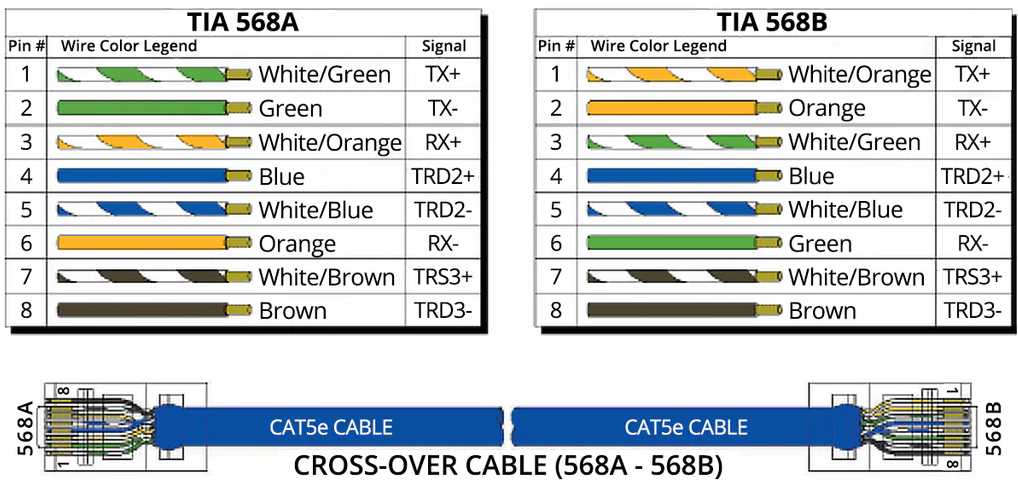

Straight-through links demand identical schemes on both ends; crossover usage is obsolete–auto-MDI/MDIX negates manual pin swapping for modern devices. If forced to interface older hardware lacking auto-negotiation, a crossover cord follows T568B on one end and T568A on the other, but this solution remains temporary and risks intermittent errors under load.

Color-coding conventions simplify field identification: T568B’s blue pair occupies pins 4-5, brown pins 7-8, leaving orange and green pairs for transmit/receive. T568A inverts this, placing green on pins 1-2 and orange on 3-6. Field technicians should memorize these positions–misplacing a single conductor disrupts channel performance below Cat6 thresholds (

Certification requirements dictate scheme uniformity–fluke testers flag mismatches immediately. If patch cables exhibit TDR anomalies, suspect scheme inconsistency before investigating physical damage. Replace rather than reterminate if errors persist–the marginal cost of new connectors offsets troubleshooting time.

Required Tools and Materials for Termination

Begin with a high-quality crimping tool rated for 8P8C connectors, ensuring it exceeds 1000 Mbps specifications. Avoid generic models–opt for those with precision-ground blades and ergonomic grips to prevent conductor damage during compression. Verify compatibility with AWG 23–24 solid copper strands, as inconsistencies here lead to signal degradation.

Use a modular plug tester with immediate fault detection, not just continuity checks. The best units display pair miswires (split pairs, reversals) and shield integrity for foil-wrapped variants in a single scan. Pair this with a network analyzer capable of measuring insertion loss and return loss up to 500 MHz to confirm TIA/EIA-568 compliance before finalizing installations.

Stripping tools must feature adjustable depth stops to avoid nicking inner conductors. Set the blade to expose exactly 19 mm of twisted pairs–excess length increases crosstalk, while insufficient length causes unreliable contact. For mass termination, a punch-down tool with a 66 block adapter reduces termination time by 40% compared to manual insertion.

Item	Critical Specification	Recommended Model
Crimper	Dual ratchet, AWG 22-26	Gardner Bender GS-87L
Tester	TDR capable, PoE detection	Fluke Networks MS2-100
Snips	V-notch blades, anti-fatigue	Klein Tools D210-6

Shielded terminations require EMI-rated boots and boots with integrated strain relief. For outdoor runs, gel-filled boots prevent moisture ingress–standard boots degrade within 18 months under UV exposure. Use a torque screwdriver (0.5 Nm) to secure shield ground screws; overtightening warps connector housings, while undertightening causes intermittent grounding.

Step-by-Step Guide to Terminating Conductors in a Keystone Module

Use a high-quality punch-down tool with a 110-type blade–cheaper tools deform conductors, increasing crosstalk. Strip the outer jacket precisely 25mm from the end; excessive stripping weakens strain relief. Unwind pairs no more than 12mm to maintain twists near the termination point. Align wires in the T568B sequence (orange-white, orange, green-white, blue, blue-white, green, brown-white, brown) before inserting to prevent rework. Press each conductor into its slot until the tool’s audible click confirms full seating; skipped clicks indicate partial contact requiring re-termination.

Verifying and Securing the Termination

Inspect each pin under direct light–misaligned wires create intermittent faults. Use a cable tester with a remote terminator to validate continuity and pair-to-pair isolation; readings above 40dB confirm proper shielding. Secure the strain relief clip to prevent jacket pull-back, which degrades performance over time. Store unused modules in anti-static bags to prevent oxidation of the gold-plated contacts.
