Complete Wiring Diagram Guide for 1746-IA16 Input Module with Installation Steps
Use a 24V DC sourcing supply for the SL-16 input module to ensure stable signal detection. Connect the positive terminal directly to the module’s common (COM) port and route each discrete input–labeled 0 through 15–via individual wires to the corresponding field device. Maintain a minimum wire gauge of 18 AWG to prevent voltage drop during high-current transients.
Isolate high-noise equipment such as VFD motors or relays by separating power and signal conductors. Employ twisted-pair cabling for runs exceeding 3 meters, with a shield grounded at a single point (preferably at the module’s chassis) to suppress EMI. Test continuity between each input terminal and its device before energizing; a resistance below 10 Ω confirms proper contact.
For sink-type devices, invert the wiring: attach the negative terminal of the supply to COM and ground the return side of each sensor. Verify polarity reversal with a multimeter–incorrect connections will yield false positives or shorts. Replace any terminal with corrosion or loose screws; A-B recommends torque of 0.5 Nm for secure clamping.

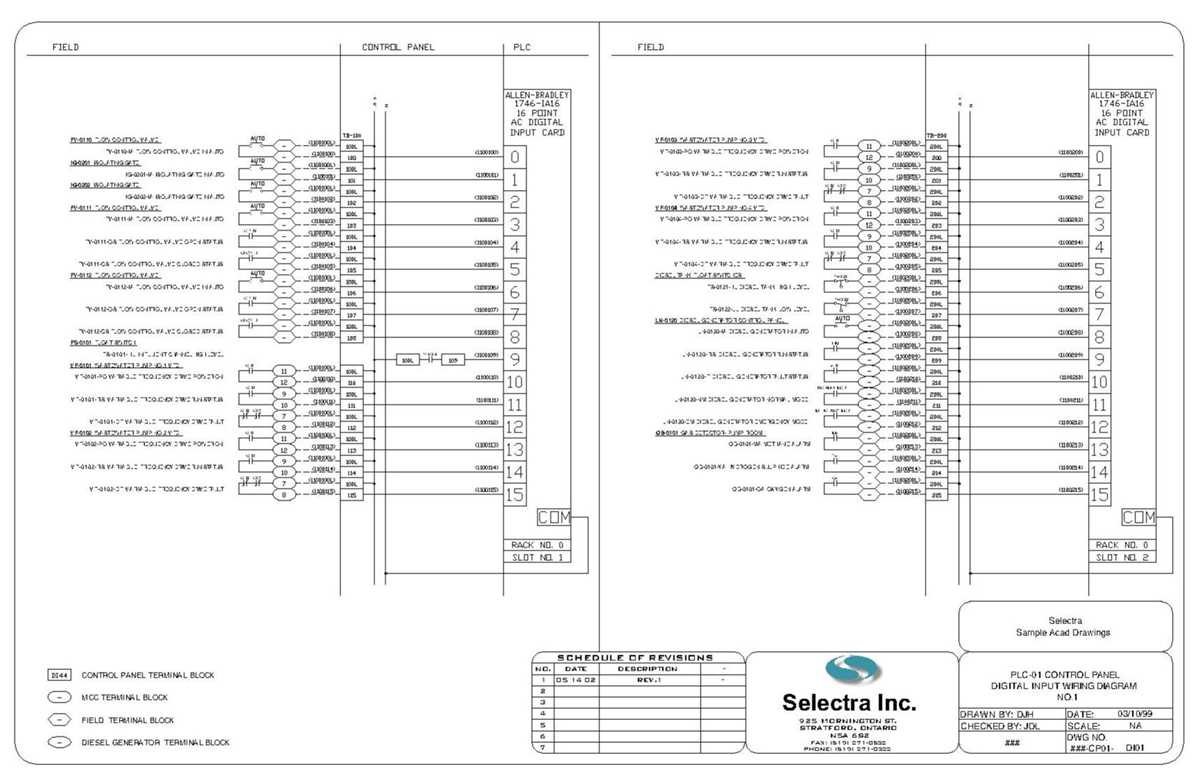

When daisy-chaining multiple modules, never exceed 300 mA total draw on the backplane or address conflicts will arise. Assign distinct rack numbers to adjacent units if using remote I/O. Document every connection in a schematic; label wires directly on both ends with heat-shrink tubing imprinted with input identifier and voltage level.
Connecting SLC 500 Discrete Input Module: Field Instructions
Power the module via the chassis backplane only–external supplies risk damage to internal filtering circuits. Use the 24V DC common terminal (labeled COM) as the return path for all input channels; mixing voltage sources causes erratic readings or module failure.
Wire each sensor to its corresponding channel (0–15) with twisted-pair cable, maintaining consistent polarity: positive lead to the numbered screw, negative to COM. Shield the cable at the module end only, grounding the shield to the chassis ground lug to reduce noise. Avoid looping excess cable near AC motors or drives.
Verify signal integrity with a multimeter before energizing: healthy inputs show 0V when open, 20–30V DC when actuated. Input channels draw ~8.5 mA each; exceeding 150 mA total current trips an internal fuse, requiring module replacement.
Diagnostic Checks and Common Pitfalls
If channels 4–7 show ghost readings, check for backplane noise–separate digital and high-voltage modules by at least one slot. Loose chassis screws can cause intermittent drops; torque to 0.6 Nm using a precision screwdriver.
Resistive loads below 5 kΩ may trigger false positives; add a 1 kΩ pull-down resistor if sensors have high leakage current. Never daisy-chain power–each channel must connect directly to COM to prevent voltage drop on distant inputs.
For sinking configurations (NPN sensors), reverse sensor leads: signal wire to COM, sensor common to the input terminal. Confirm compatibility with the module’s 5 ms ON/OFF filter to avoid missed pulses under 10 ms.
Store unused modules in a static-safe bag with silica gel; humidity above 60% corrodes terminal contacts within three months. Label each cable at both ends with channel number and sensor type for rapid troubleshooting.
Identifying Pin Configuration for SLC 500 Discrete Input Card
Locate the terminal labeling on the front or side of the module–most 16-point variants mark channels 0–15 with numeric indicators alongside a common (-) ground pin. Verify against the manufacturer datasheet: Allen-Bradley’s slot-based analog modules reserve the leftmost connector for DC-positive signals (0+ through 15+) while the adjacent row connects to the negative return (0- through 15-). Field devices–pushbuttons, proximity switches, dry contacts–require sourcing from an external DC supply (typically 24V) wired directly to each channel’s positive terminal, ensuring the negative side routes back to the module’s dedicated common ground pin.
- Check voltage compatibility: 10–30V DC input range.
- Measure continuity between channel terminals before energizing.
- Isolate unused inputs by leaving terminals disconnected–accidental contact risks false triggering.
- Confirm LED indicators align with terminal pairs–steady illumination denotes active state.
Connecting a DC Power Supply to the SLC 500 Discrete Input Module
Begin by identifying the module’s sourcing or sinking configuration. The 16-channel input card supports both methods, but DC voltage sources typically require a sinking setup for 24V signals. Verify the power supply’s polarity–connect the positive terminal to the module’s common (COM) terminal block and the negative to individual input channels. Ensure the DC source matches the module’s voltage rating, which accepts 10–30V DC, but 24V is optimal for noise immunity and proper signal detection.
Isolate the power supply from other circuit elements to prevent ground loops. Use a dedicated DC source with a stable output, avoiding shared supplies with inductive loads like relays or motors. If the source exceeds 24V, add a series resistor to limit current to the module’s 8mA per channel maximum. Calculate resistance using R = (Vsource – 24V) / 0.008A. For example, a 30V source requires a 750Ω resistor per channel.
| DC Voltage (V) | Recommended Resistor (Ω) | Power Rating (W) |
|---|---|---|
| 26 | 250 | 0.5 |
| 28 | 500 | 0.5 |
| 30 | 750 | 1 |
Secure connections with appropriate gauge wire. For 24V DC, use 18–22 AWG stranded copper wire. Avoid solid wire for field wiring to reduce fatigue at terminal points. Strip 6mm of insulation and twist strands tightly before inserting into clamp terminals. Tighten terminal screws to 0.5–0.7 Nm torque–over-tightening damages strands, while under-tightening causes intermittent faults.
Test each channel before full integration. Apply voltage to one input at a time, confirming LED activation on the module’s front panel. Use a multimeter to verify voltage between the input terminal and COM; the reading should drop below 5V when active. If LEDs fail to light, check for reversed polarity, insufficient voltage, or loose connections. For field devices like sensors, ensure their output meets the module’s 10V threshold for reliable switching.
Ground the module’s chassis to the control panel’s earth ground using a 14 AWG green/yellow wire. This prevents static buildup and noise interference. If connecting multiple modules, use a single ground point to avoid creating ground loops. For high-noise environments, add a 0.1µF ceramic capacitor between each input and COM, placed as close to the module as possible, to filter transients.
Resolving Typical Signal Connection Faults in SLC 500 Discrete Input Modules
Verify voltage levels at the source before addressing module behavior. The 16-channel discrete input card expects 24VDC nominal; deviations below 18VDC or above 30VDC will trigger erratic readings. Use a calibrated multimeter to measure across the field device terminals while powered. If voltage is outside tolerance, inspect the power supply, fuses, and shared circuit breakers before proceeding further.
Inspect the common terminal (labeled “COM”) for proper grounding or return path. Each channel shares this point; an open or high-resistance connection forces all inputs to float, generating false positives. Disconnect all field wiring and measure continuity between COM and the system ground bus. Resistance should read below 1 ohm. Replace corroded terminals or damaged PCB traces if found.
- Check for reversed polarity on individual channels. Accidental swapping of +24VDC and signal wires causes the module to register constant ON. Swap leads at the terminal block and observe PLC data table values. Correct polarity restores normal toggling.
- Examine field wiring for induced noise from adjacent high-current conductors. Twisted pair cables reduce interference; untwisted conductors should be rerouted at least 300mm from motors, VFDs, or transformers.
- Confirm channel configuration in ladder logic matches physical connections. Misaligned channel mapping (e.g., addressing channel 3 when wired to physical slot 4) generates false alarms. Cross-check I/O configuration against project schematics.
Test each channel with a momentary switch and load resistor. Apply 24VDC through a 2.2kΩ pull-down resistor; the input should toggle cleanly without chatter. If oscillation persists, replace the resistor with a lower value (1.5kΩ–1kΩ) to stabilize the signal. Avoid solid-state relays without built-in hysteresis–they induce rapid on/off cycles.
Identify backplane communication errors by monitoring module status LEDs. A solid red fault indicator signals a hardware failure; reseat the module in the chassis and inspect backplane pins for bent contacts or debris. If the error persists, swap the module with a known-good unit to isolate the issue.
Examine surge suppression devices. Missing, damaged, or incorrectly rated varistors allow transients to corrupt input states. Install varistors rated for 30VDC across each channel pair. For inductive loads (solenoids, relays), add a flyback diode (1N4007) in reverse bias to clamp voltage spikes.
Logical errors often mimic physical faults. Review PLC logic for incorrect debounce timers or edge-triggered instructions misconfigured as level-sensitive. Temporarily bypass complex logic and test inputs with a direct latch rung to confirm hardware integrity before reintegrating control code.
Use an oscilloscope to capture signal integrity during dynamic events. Probe the input terminal while toggling the field device; clean transitions should show 100µs) indicate capacitive loading–reduce cable length or add a signal buffer module.
