Complete 1967 Chevelle Wiring Harness Color Code and Routing Guide

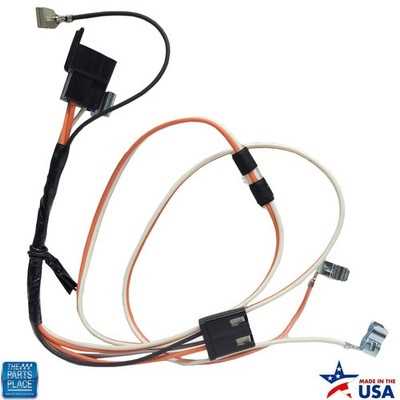

A precise factory-approved replica of the original loom for this mid-60s GM coupe remains the safest route for accurate restoration. OEM replacements from companies like Painless Performance or American Autowire include color-coded leads pre-terminated to match the 30-amp alternator, ignition coil, and dual-reservoir master cylinder switch–eliminating guesswork during splicing.

Critical circuits demand exact wire gauge matching: the main battery feed (10-gauge, red with a yellow stripe) handles up to 60 amps under sustained load, while the taillight common return (18-gauge, plain brown) carries only 3.5 amps. Swapping gauges risks voltage drop or overheating, especially under the rear valence where wires bundle near the exhaust.

Label every disconnect and photograph junctions before disassembly; the under-dash bundle alone contains 24 distinct connections–climate control relays, turn-signal flasher, and choke solenoid all intersect in a 4-inch span. Use shrink tubing–not electrical tape–on repair splices; factory specs allow a single inline splice per 6-foot run.

Test continuity with a 12V load (not a digital multimeter) before securing looms with original-style plastic loom clamps every 12 inches–OTC clamps chafe insulation under hood-mounted components subjected to 180°F engine bay temperatures.

Aftermarket fuse blocks differ from the original bi-metallic inline fuse holders; retain the stock fusible link system with a dedicated 14-gauge fusible link between the alternator output and bulkhead plug–aftermarket kits often omit this safety feature, risking catastrophic short-to-chassis events.

Restoring Your Classic’s Electrical Blueprint

Locate the firewall connector block–pin B on the passenger side carries the ignition feed from the starter solenoid directly to the fuse panel. Verify continuity with a multimeter before reconnecting; resistance above 0.5 ohms indicates corroded terminals requiring cleaning with a brass brush and dielectric grease. Replace the bullet-style connectors if insulation shows cracks, as even minor exposure risks short circuits under the distributor’s 9V pulse.

Route the headlight switch pigtail through the firewall grommet at the driver’s footwell, securing it with nylon ties to the brake booster bracket. The white-striped wire controls high beams; splice it only with heat-shrink tubing crimped over solder–electrical tape degrades within two seasons. Test the dimmer relay by probing terminal 86 (12V input) and 85 (ground); voltage drop over 0.2V suggests a faulty relay requiring a NOS replacement from GM part #1117325.

Trace the taillight circuit’s brown wire from the trunk junction to the rear lamp sockets, ensuring the ground lug beneath the left bumper bolt is free of rust. If turn signals blink erratically, bypass the thermal flasher with a solid-state unit rated for LED loads. Match each wire gauge–16AWG for accessories, 12AWG for charging circuits–to prevent overheating at inline splices.

Locating Critical Parts in a Classic Muscle Car Electrical Setup

Start by isolating the fuse block–typically mounted on the driver’s side firewall near the brake master cylinder. Label each terminal before disconnecting: 14-gauge red (battery feed), 16-gauge yellow (headlight switch), and 18-gauge brown (accessory circuit). Mistaking these will cause erratic instrument panel behavior or blown fuses during ignition cycles.

Trace the ignition switch pigtail beneath the steering column shroud. Three connectors branch off: the 12-terminal bulkhead (white with black stripe), the tachometer lead (purple), and the starter solenoid trigger (small gauge pink). Verify continuity between the starter relay and solenoid with a multimeter set to 200 ohms; readings below 5Ω indicate a short.

Examine the rear light loom where it exits the trunk floorpan. The license plate circuit (gray with red tracer) and backup light wires (light blue) often fray against the metal lip. Reinforce these with split loom tubing to prevent grounding through the tailgate hinge. Corrosion here mimics faulty bulbs–test with a 12V probe before replacing components.

The dash cluster connector hides behind the speedometer bezel. A 16-pin rectangular plug contains turn signal feeds (dark green/white), high beam indicator (blue), and fuel gauge sender wire (pink). Swap polarity at the gauge terminals with a 9V battery to test needle sweep; full deflection confirms sender integrity.

High-Risk Connection Zones

Under the hood, find the alternator output lug–thick 10-gauge red wire soldered to the battery positive terminal post. Loose connections here generate heat, melting insulation. Secure with a copper ring terminal crimped at 45 lbs pressure, then coat with dielectric grease. Voltage drop should not exceed 0.3V at 2,000 RPM.

Inspect the firewall bulkhead connector where the engine bay loom merges with the cabin loom. Pins corrode internally; tug gently on each wire–any that pull out indicate replacement need. Use DeoxIT on the 12-terminal block before reconnecting. Misaligned pins here disable the horn, wipers, or heater blower without triggering fuses.

Check the under-dash blower motor resistor block–two spade terminals linked by a ceramic element. Oxidation here mimics fan failure; remove the kick panel to access. Clean contacts with a wire brush, then apply contact cleaner. A 5W resistor value should drop voltage from 12V to 4V at the lowest speed setting.

Conclude with the front marker light sockets–oval stainless steel units pressed into the fenders. The socket base grounds through paint, requiring a star washer and serrated nut to bite through. Regrind the mounting surface if lights flicker inconsistently. Back-probe the socket terminals with a test light to verify power reach before troubleshooting bulbs.

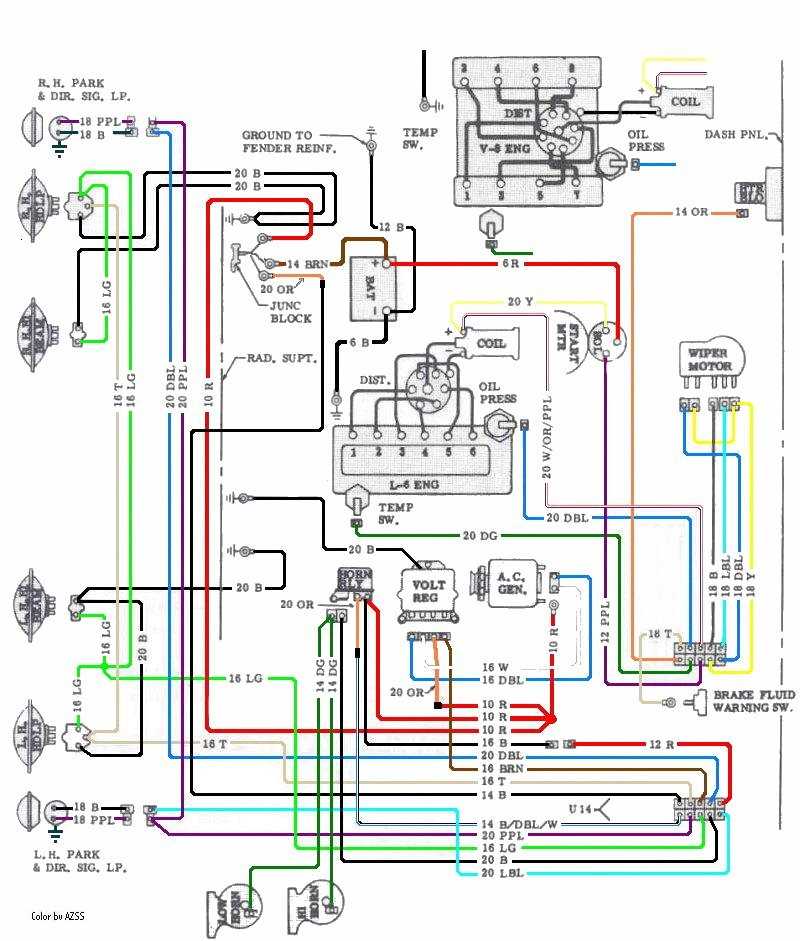

Step-by-Step Guide to Interpreting a Classic Muscle Car Electrical Schematic

Locate the power distribution panel first–typically marked by a rectangular box with thick black lines converging at the top of the chart. This node feeds voltage from the battery to all primary circuits, including ignition, lighting, and accessories. Trace the main feed cable (usually a 10-gauge wire) back to the battery terminal, noting any inline fusible links or relays.

Identify color codes immediately. Factory schematics use a standardized palette: black cables ground components, red delivers constant voltage, purple triggers accessories, yellow activates lighting, and brown routes through the instrument cluster. Cross-reference these with the physical wires under the dash or along the firewall to confirm routing.

Follow the ignition circuit path next. The schematic will show a red wire branching from the ignition switch to the coil, distributor, and starter solenoid. Observe how the ignition resistor wire (often pink) splits off to limit voltage–this prevents coil burnout during prolonged cranking. Check for a splice near the firewall where accessory circuits tap into this line.

Examine the lighting system. Headlamps, tail lights, and turn signals share a common feed but deviate at color-coded junctions. For example, the turn signal circuit (typically light blue with a black stripe) loops through the flasher unit before reaching the bulbs. Note how the hazard function bridges these lines through a secondary relay.

Isolating Accessory Circuits

Trace the radio, heater fan, and wiper motor feeds. These often originate at a fused junction block under the dash. The radio’s constant power wire (red) and switched wire (purple) run parallel but serve distinct purposes–one maintains memory settings, the other activates the unit. Heater and wiper circuits rely on the ignition switch but include a delay module for intermittent operation.

Inspect ground paths last. Every circuit terminates at a chassis connection, represented by a short line ending in a triangular symbol. Verify these points physically–corrosion here mimics open circuits. For instance, the instrument cluster grounding strap attaches to the firewall near the steering column; a faulty connection causes erratic gauge behavior.

Verifying Continuity

Use a multimeter set to ohms to test suspect connections. Probe between the schematic’s endpoints–if resistance exceeds 0.5 ohms, clean terminals with a wire brush or replace crimped connectors. For relays, confirm coil activation (typically 12V at the control pin) and contact closure (continuity across output terminals). Substitute known-good units if a relay clicks but fails to pass current.

Common Electrical Problems and Quick Fixes for Classic Muscle Cars

Flickering headlights or gauge needles that jump erratically often trace back to a faulty voltage regulator. Disconnect the battery first, then remove the regulator’s cover–usually mounted on the driver’s side fender–without disturbing the wiring. Test the internal diodes with a multimeter set to the 20V DC range: readings below 12.4V or above 14.8V signal a replacement is needed. For temporary relief during a roadside stop, bridge the battery terminal to the “BAT” post on the regulator with a 10-gauge jumper wire, but limit engine RPM to 1,500 to avoid overcharging.

Corroded Connector Repairs

Symptom	Connector Location	Cleaning Solution	Replacement Gauge
Intermittent turn signals	Behind dash cluster near steering column	CRC Electrical Contact Cleaner + brass brush	18 AWG
Stalling at idle	Distributor 4-pin connector	DeoxIT D5 + dielectric grease	16 AWG
Radio cuts out	AM/FM antenna base under passenger kick panel	WD-40 Specialist Contact Cleaner	20 AWG

Clip every suspect connector barrel with wire strippers ¼ inch from the terminal, then crimp on a fresh bullet terminal using a ratcheting crimper. Slide a ⅛ inch shrink tube over the joint before soldering–ensure the solder penetrates the wire strands completely or resistance spikes will occur under load. Route replacement wires away from the exhaust manifold and heater core to prevent heat-induced insulation failure.

Dead spots in the main loom often hide behind the firewall grommet. Probe each circuit with a test light while an assistant operates the affected component (e.g., wiper motor, horn). If the light illuminates but the component stays inert, the fault lies in the component itself; if the light remains dark, follow the loom upward toward the fuse block until the test light flickers–there’s the break. Patch with automotive-grade solder and adhesive-lined shrink tube, not electrical tape, which traps moisture.

Dashboard instrumentation failures typically stem from cracked printed circuit traces behind the speedometer. Pry out the lens carefully with a plastic trim tool, then examine the backside under a bright LED work lamp. Flex the board slightly while watching the needle movement–any crack wider than hairline width requires bridging with a jewelers’ screwdriver and a thin bead of silver-bearing solder. After reassembly, verify all connections with a bench-top power supply set to 5V DC before reinstalling the unit to avoid frying sensitive meter coils.
