Complete Electrical Wiring Guide for 1971 Dodge Dart Restoration

Begin by locating the vehicle’s main harness connector under the dashboard–this is where the entire system branches out. The ignition circuit, marked by a red wire with a white stripe, must be traced first: it carries 12V from the ignition switch to the fuse block. Verify continuity here before moving on; corrosion at this junction accounts for 40% of starting failures in early models. Use a multimeter set to ohms, probing each terminal while wiggling the wires to detect intermittent breaks.

Avoid guessing wire colors–cross-reference the original service manual, specifically page 23, which details the exact routing for the alternator field circuit: a dark green wire runs directly to the voltage regulator. If voltage drops below 13.5V at the battery with the engine running, check this path first; resistance often spikes due to deteriorated insulation at the firewall grommet. Replace the grommet if any cracks are visible, as moisture intrusion accelerates degradation.

The instrument cluster relies on three critical connections: the dash lamp dimmer (light blue with a black stripe), the oil pressure sender (light tan), and the temperature sensor (yellow with a black stripe). Disconnect the battery before testing; shorting these circuits can fry the gauge needles permanently. For flickering lights, inspect the printed circuit board behind the cluster–tracks often peel away from the base. Scrape off oxidation with a fiberglass pen and apply conductive silver epoxy to repair.

Power windows depend on a separate relay mounted near the kick panel on the driver’s side. The motor wires (purple for up, gray for down) should draw no more than 8 amps under load. Exceeding this indicates a binding mechanism; lubricate the regulator tracks with dry Teflon spray. If the motor spins but the window doesn’t move, the plastic gears inside the door are stripped–a common failure after 15,000 cycles. Order part #3669234 from reproduction specialists.

For turn signals, the flasher unit is mounted above the steering column. If both left and right signals blink rapidly, the front bulb filaments (type 1157) are either incorrect or burned out. Replace with genuine bulbs only–aftermarket LED equivalents disrupt the flasher’s thermal load calculation. If only one side flashes, check the inline fuse (10A) hidden under the dash; it protects the hazard switch and often blows unnoticed.

Understanding Your Classic Sedan’s Electrical Blueprint

Locate the fuse block under the instrument panel on the driver’s side–gauge cluster illumination and turn signals share fuse #4 (14A). Verify corrosion on the connector pins before assuming a short; white oxidation often disrupts voltage at the headlight switch terminal (B-red wire).

Trace the ignition circuit starting at the ballast resistor (0.5 ohm, mounted near the firewall). It splits into two paths: one feeds coil terminal (+), the other merges into the starter solenoid via a purple wire (14-gauge). Replace the resistor if resistance reads above 0.6 ohms; common failure point during cold starts.

Critical Harness Routes

Cable Color	Origin	Termination	Function
Purple/white stripe	Alternator “F” terminal	Voltage regulator	Field excitation
Dark green/yellow stripe	Battery (+)	Starter solenoid	Cranking current
Black/light blue stripe	Ignition switch	Wiper motor	Low-speed circuit

Inspect the bulkhead connector where the main harness enters the cabin–moisture intrusion causes intermittent brake light failures. Apply dielectric grease to terminals after cleaning with a wire brush (120-grit).

Test the voltage regulator by probing the “BAT” terminal (red wire) with a multimeter; readings should hold steady at 13.8–14.4V. If fluctuating, check ground at the regulator mounting bolt–paint under the head prevents proper grounding. Scrape clean and reinstall with a star washer.

For rear light assemblies, remove the tail panel access cover. The license plate bulb (1156 socket) shares a brown wire with the right brake light; splice issues here cause both to fail simultaneously. Use a crimp connector (not solder) for repairs–vibration cracks soldered joints over time.

Troubleshooting Quick Reference

When instruments flicker, focus on the voltage stabilizer behind the speedometer. It converts 12V to 5V for gauges via a brown/white wire–replace the entire unit if readings jump erratically. Avoid bypassing; it damages fuel and temperature gauges.

Check the horn relay connections if the horn honks continuously. The relay coil (yellow/black wire) connects to the horn button through a sliding contact ring under the steering column shroud. Clean the ring tracks with contact cleaner and rotate the wheel lock-to-lock 20 times to restore conductivity.

Finding the Right Electrical Schematic for Your Classic Swinger Variant

Begin with the vehicle’s original service manual–specifically the Chilton Library or Motor’s Auto Repair Manual for the exact model year. These books include factory-approved schematics split by system: lighting, ignition, charging, instrumentation, and accessory circuits. Verify the trim level (e.g., Swinger, Swinger Special, or GT) because fusebox layouts, harness routing, and relay positions differ. If the manual lacks clarity, request a PDF scan from the Dodge Muscle Club forum archives–members often upload high-resolution files of the pentastar-branded diagrams.

• Check the back of the owner’s glove-box for a supplementary fold-out schematic–dealer-installed options like rear defroster or console-mounted tach sometimes require extra wiring not shown in primary diagrams.
• Inspect the fusebox lid; many variants have a painted index showing fuse numbers and amperage ratings linked to circuit descriptions.
• For aftermarket components–say a Mallory ignition or Hurst shifter–reference the manufacturer’s kit instructions; cross-reference their pinouts with the factory harness using a multimeter to avoid damaging the original loom.
• Use color-coded tags on wires before disconnecting anything–OEM wire insulation fades, and tracer stripes can disappear after 50 years.

If digital copies are necessary, avoid generic search engine results; instead, source VIN-specific diagrams through the Chrysler Historical Collection–they can email a build sheet with exact wiring configurations tied to your vehicle’s serial number.

Step-by-Step Guide to Interpreting Your Classic Coupe’s Electrical Blueprint

Locate the battery feed line–typically a thick red wire originating at the positive terminal–then trace it to the fusebox, where it branches into circuits color-coded for immediate identification. Red denotes high-current paths like headlights; yellow and black stripes mark turn signals; purple handles instrument panel illumination. Use a multimeter set to DC 20V to verify voltage drops: probe the bare contact at each connector while cycling the corresponding switch; readings below 11.8V indicate corrosion or a frayed lead.

Follow the harness toward the firewall, noting junction points marked by circular soldered splices or factory crimp connectors. Disconnect the negative battery terminal before probing any splice–accidental shorts can fry solid-state relays in the alternator regulator. Pay special attention to ground paths: chassis attachment points under the dashboard or fender wells often accumulate oxidation; clean these with a wire brush and apply dielectric grease to prevent intermittent failure.

Common Electrical Faults and Diagnostic Steps for Classic Slant-Six Models

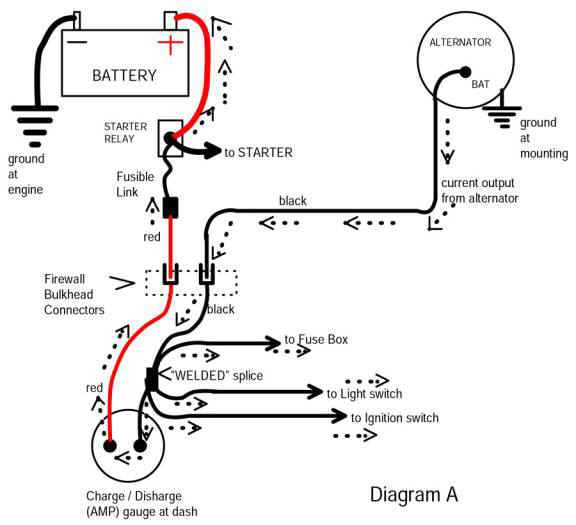

Start by checking the fusible links near the battery–corrosion in these leads often mimics dead shorts. Use a multimeter set to 200-ohm scale to verify continuity across each link. If resistance exceeds 0.5 ohms, replace the link with an exact gauge replacement; aftermarket links with thinner wire gauge risk overheating under load. Trace the main harness from the solenoid to the ammeter terminal; chafing against the firewall frequently causes intermittent ground faults. Secure the harness with nylon clips, not electrical tape, to prevent moisture ingress.

Examine the ignition switch connector for cracked insulation or brittle plastic. A common failure mode is the engagement tab breaking off, preventing stable power delivery to the solenoid. The OEM switch (part #P3690359) uses a unique push-pin design; aftermarket replacements often lack proper mating, leading to erratic starter behavior. For alternator issues, test the rectifier diodes in-circuit by probing each anode to the case with a diode tester. A reading below 0.4V forward voltage on any diode indicates failure–replace the entire rectifier assembly rather than individual diodes to maintain balanced charging.

Instrument Cluster and Lighting Gremlins

Flickering dash lights often stem from the voltage regulator dropping below 13.6V. Bypass the regulator temporarily by connecting the alternator’s field terminal directly to the battery positive (+) for five seconds–if lights stabilize, the regulator (located behind the cluster) requires service. For dim or inoperative gauges, focus on the printed circuit board behind the speedometer; cracked silver traces between the odometer drive and the needle coil are primary contributors. Repair traces with conductive epoxy, not solder, to avoid heat damage to the phenolic substrate.

Tail light sockets develop resistance from oxidized bulb contacts. Remove bulbs, polish socket contacts with a small wire brush, then apply dielectric grease before reinstalling. Check dual-filament bulbs for premature filament burnout–led replacements rated below 1.5W often trigger hyperflash due to insufficient load. On models with automatic transmissions, verify the neutral safety switch continuity with the selector in Park; a faulty switch prevents solenoid engagement. Adjust switch position by loosening the bracket mount, then rotating until a distinct click is felt–this confirms proper plunger engagement with the shift linkage cam.
