Complete 1971 Karmann Ghia Wiring Diagram and Electrical Guide
For owners of the early Type 14 coupé, accurate electrical schematics are non-negotiable when troubleshooting or restoring original wiring. Start by locating the factory-issued Fahrzeug-Elektrik Plan (part number 113-971-0xx), which details circuits for lighting, ignition, and auxiliary systems. If unavailable, reference aftermarket manuals like Bentley Publishers’ VW Service Manual (Vol. 2, Section 9) or Haynes Repair Manual (Model Year-specific edition), ensuring compatibility with the vehicle’s 6V or 12V system.
Begin disassembly by removing interior panels and the rear engine compartment cover to access the main wire harness. Label each connector with heat-shrink tubing and alphanumeric codes–use the original German designations (Zündspule, Lichtmaschine, Batterie) or convert them to English equivalents (ignition coil, generator, battery). Inspect splice points for corrosion; treat with deoxidizing spray (e.g., CRC Electrical Contact Cleaner) before re-soldering with 60/40 rosin-core solder.
Critical components to verify include the voltage regulator (Bosch 0 190 301 071 for 12V systems) and the flasher relay (Bosch 0 335 200 017). Replace brittle insulation with cross-linked polyethylene (XLPE) wire (gauge-matched to original: 1.0 mm² for lighting, 2.5 mm² for high-amperage circuits). Avoid PVC jackets–they degrade faster under heat. Use Deutsch connectors or TE Connectivity terminals for reliable junctions.
Reassemble the harness by routing wires along original paths, securing with adhesive-lined cloth tape (3M #5169) instead of modern plastic zip ties–these chafe under vibration. Test circuits sequentially: begin with the battery-to-ground path, then proceed to starter, ignition, and lights. A multimeter (set to continuity mode) is mandatory for diagnosing intermittent faults in the Klemme 15 (ignition-switched) or Klemme 30 (battery positive) feeds.
For modifications, such as updating to halogen headlamps, retrofit a relay-based harness (e.g., Painless Wiring #30804) to prevent overloading the original fuse block. Never omit the flasher circuit fuse (10A)–early models lacked this safeguard, leading to fire risks. Document every change with hand-drawn schematics or digital tools like Fusion 360 Electrical, noting deviations from stock configurations.
Restoring the Classic Couple’s Electrical Scheme: Key Insights

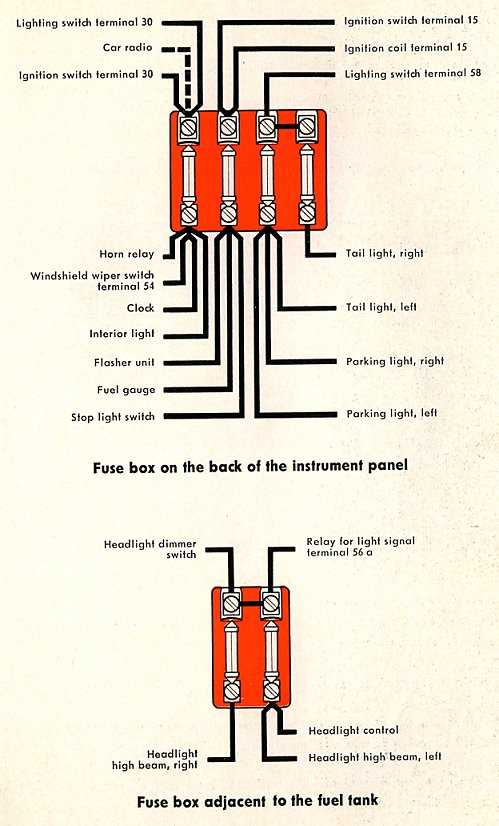

Begin by locating the fuse block beneath the dashboard on the driver’s side–positioned near the kick panel. This central hub houses six primary fuses, each rated at 8 amps for lighting and 16 amps for auxiliary circuits. Label them immediately: headlights, taillights, turn signals, brake lights, horn, and interior illumination. A common failure point is the brake light circuit; inspect the switch mounted on the pedal assembly for corrosion or misalignment.
Trace the loom running along the chassis rail, securing it with original-style clips every 12 inches. The main harness splits behind the instrument cluster; follow the red wire with a green stripe (R/G) to the voltage regulator mounted on the firewall. Voltage readings should stabilize between 13.8–14.2 volts at 2,000 RPM–deviations indicate a faulty regulator or alternator brush wear. Replace the regulator’s internal resistors if output drops below 12.5 volts.
| Wire Color | Function | Recommended Gauge (AWG) | Termination Point |
|---|---|---|---|
| Black (B) | Ground | 10 | Battery negative terminal |
| Red (R) | Ignition feed | 12 | Coil positive |
| Brown (Br) | Lighting common | 14 | Fuse block |
| Yellow (Y) | Alternator output | 10 | Battery positive |
| Green/Black (G/B) | Turn signal | 14 | Flashing relay |
Replace the turn signal flasher relay if blink rate exceeds 90 cycles per minute or falls below 60. The original unit (Bosch FL6) can be swapped for a modern solid-state equivalent (e.g., Hella 009432401) without modifying the socket. Check continuity across the hazard switch–a dead short here will drain the battery within 12 hours.
Inspect the headlight switch for internal carbon buildup; tap it lightly while rotated to full brightness to dislodge debris. If dimming persists, bypass the switch temporarily with a jumper wire to confirm failure. The dashboard rheostat, a common failure, uses a carbon-track potentiometer–clean contacts with 600-grit sandpaper or replace the entire unit if resistance exceeds 50 ohms at full rotation.
The heater fan motor draws 8 amps at maximum speed; if it spins only on high, the resistor block behind the glovebox requires replacement. Internal resistance values: 0.5 ohms (low), 1.2 ohms (medium), 2.5 ohms (high). Verify ground integrity at the motor mount–the bolt must penetrate bare metal, not undercoating.
Solder all splices using 60/40 rosin-core solder; crimp connectors lead to voltage drop under load. Apply heat-shrink tubing over soldered joints–electrical tape degrades within three years. Test each circuit with a multimeter set to continuity mode before reassembling trim panels.
Upgrade the original 6-volt positive-ground system to 12-volt negative-ground by replacing the battery, coil, and voltage regulator. The alternator (Bosch 0190009122) requires a new field wire (blue/red stripe) routed away from exhaust manifolds to prevent melting. Use a dual-resistance coil (e.g., Pertronix 40011) for reliable spark without ballast resistor modifications.
Store original schematics in a sealed plastic sleeve beneath the rear seat–paper versions yellow within a decade. Cross-reference connections with a digital tone probe to avoid chasing phantom shorts. Label every wire at both ends; ambiguity costs hours during troubleshooting.
Finding the Authentic Electrical Blueprints for a Classic ’71 Coupe
Start by requesting the official factory manual from Volkswagen’s heritage division. The part number for the original electrical layout is L110 971 035 E–verify this against your vehicle’s serial plate before ordering. These schematics were printed as fold-out inserts, not bound pages, and often detached over time. Check auction listings for “Type 1 service manual supplements” rather than generic reprints; genuine editions include exact wire gauge notation and color codes like red/black for ignition feeds and blue/white for dash lighting.
Identifying Trusted Secondary Sources
Measure characteristics of the original diagram before trusting reproductions. A legitimate schematic spans 22 inches wide by 16 inches tall, printed on thin glossy paper with a matte reverse. Key identifiers include:
- Microfont text labeling fuse ratings (e.g., “8A” near top-right corner)
- Dashed lines indicating ground points behind the rear seat
- A rectangular stamp reading “Volkswagen Werk” in Fraktur script
Beware of digitally altered scans–authentic versions show slight yellowing along edges and ink bleed-through.
Visit marque-specific forums where enthusiasts upload high-resolution scans from private collections. The Samba forum maintains a thread titled “Original wiring schematics by chassis number,” with verified downloads tagged by variant (convertible vs. hardtop). Download files in .tif format, not compressed .jpeg, to preserve faint circuit traces. For physical copies, attend regional Volkswagen club meets–many long-term owners retain original manuals in garage safes.
Cross-Referencing with Physical Traces
Trace harness routes in your vehicle before relying on paper diagrams. The main loom exits under the rear seat, splitting into three branches: one to the front fuse panel, one to the taillights (via the driver’s-side rocker panel), and one to the engine bay. Tag wires with masking tape labeled in pencil–for example, “Br/Yl (brake light switch)”–matching them to the schematic’s legend. Discrepancies typically surface at splice joints near the generator regulator (yellow/black striped wire) or under the glovebox (brown/red dash feed).
- Photograph each connector with a macro lens–original terminals show stamped numbers like “T3a” or “X3b” that match the schematic.
- Use a multimeter set to continuity mode to confirm circuits; factory diagrams list expected resistance values (e.g., 3.2Ω for dash bulbs).
- Compare your findings with the online Robert Bentley archives–while not identical, their diagrams include torque specs for grounding bolts (18 ft-lb).
If all else fails, source a spare harness from a donor car and reverse-engineer it. The main 6-pin connector behind the speedometer (black housing) is a common failure point; original units feature AMP Superseal terminals, unlike aftermarket replacements. Document every wire path with blue painter’s tape, then transpose notes to graph paper before finalizing repairs.
Locating Critical Circuit Elements in Classic Schematic Blueprints
Start by isolating the fuse block–typically mounted near the driver’s side firewall. On pre-’72 schematics, this cluster holds six primary fuses labeled A through F, each protecting distinct circuits: A for headlights, B for ignition, C for horn, D for turn signals, E for instruments, and F for the backup lights. Verify continuity with a multimeter; corrosion on fuse clips often mimics blown fuses.
Trace the ignition switch harness–a seven-terminal unit beneath the steering column. Terminals 1 (battery), 30 (starter solenoid), and 50 (starter motor) demand immediate attention; brittle insulation here routinely causes intermittent failures. Label each wire before disassembly–factory coding uses thin colored stripes (e.g., black-red, yellow-green) that differ from aftermarket replacements.
Voltage Regulator and Associated Relays
The external voltage regulator, a box-shaped device secured to the inner fender, manages output from the alternator. Three spade connectors–B+ (battery), F (field), and D- (ground)–must show resistance values between 4–6 ohms (field coil) and infinite resistance (ground). If readings deviate, replace the unit; internal carbon brushes wear unevenly over decades.
Examine the flasher relay near the steering box. Type 181 or Hella 3-pin units control turn signals and hazard lights; corrosion at the base terminals frequently disrupts the thermal bimetallic strip. Test by bypassing with a jumper wire–if lights flash normally, the relay requires cleaning or a direct swap.
Locate the dimmer switch on the turn signal stalk–it routes high/low beams through two separate circuits (terminals 56a and 56b). Worn contacts here cause flickering; disassemble and clean with contact cleaner, avoiding abrasives that remove plating. Factory diagrams label this as “code 8” in left-hand drive variants.
Check the instrument cluster voltage stabilizer–a small cylindrical device soldered to the back of the speedometer. It reduces 12V to 7V for gauges; failed units either melt solder joints or produce erratic readings. Desolder and test with a diode checker–forward voltage should read 0.6–0.7V. Cost-effective replacements often lack thermal cutoffs, risking gauge burnout.
