Complete Electrical Wiring Guide for the 1971 Porsche 911 Models

Begin by locating the fuse panel beneath the dashboard on the driver’s side–identical to the layout found in 1969 models but with updated relay assignments for the 2.2-liter engine variant. Use a multimeter set to continuity mode to trace the ignition feed from terminal 30 (permanent power) to the ignition switch. If readings fluctuate below 11.8V under load, inspect the brown/white ground strap connecting the rear tunnel support to the engine compartment firewall; corrosion here mimics intermittent starter failures.

For the lighting circuit, verify the three-prong Bosch H4 headlight connectors–early builds swapped polarity on the low-beam filament, requiring pinout confirmation before bulb replacement. The help circuit (blinker, hazards) routes through a thermal flasher relay rated at 21 watts per side; exceeding capacity with LED upgrades triggers rapid cycling due to insufficient load. Replace with a 55-watt electronic flasher module if modifying bulbs.

Engine compartment wiring harnesses suffer from brittle loom sheathing–focus on bend radii near the alternator and distributor. The black/yellow wire carries alternator field current; abrasion against the upper intake manifold causes intermittent charging. Strip back 20mm of casing, solder with rosin-core flux, and seal with adhesive-lined heat shrink tubing. Avoid crimp connectors on this circuit; they introduce micro-fractures under vibration.

HVAC blower motor resistors degrade at 4,500 ohms–use a decade box set to this value to bench-test suspect resistors before removal. The brown circuit (blower speed control) shares a common ground with the instrument cluster; poor contact here dims gauges proportionally to blower speed. Clean the chassis ground at the steering column bracket with a fiberglass pen; do not sand–this removes the factory zinc plating.

Fuel injection wiring requires special attention–CIS systems rely on precise voltage drops across the fuel distributor’s potentiometer. Measure resistance between pins 11 and 12 on the Motronic connector with the ignition off; readings above 2.1k ohms indicate worn traces. Replace the entire fuel distributor assembly if values exceed tolerance; attempting repairs risks inconsistent idle mapping.

Critical junctions hide behind the left kick panel: the brown/red wire branching to the heater control valve often frays at the firewall grommet. Reinforce this connection with a secondary ring terminal secured to the chassis before routing into the engine bay. For later air-cooled variants, the oxygen sensor circuit (introduced mid-year) requires shielded cable; omit this upgrade if retaining carbureted setups, as ECM interference corrupts analog dash signals.

Restoring the Classic Sportscar’s Electrical Blueprint: A Field Manual

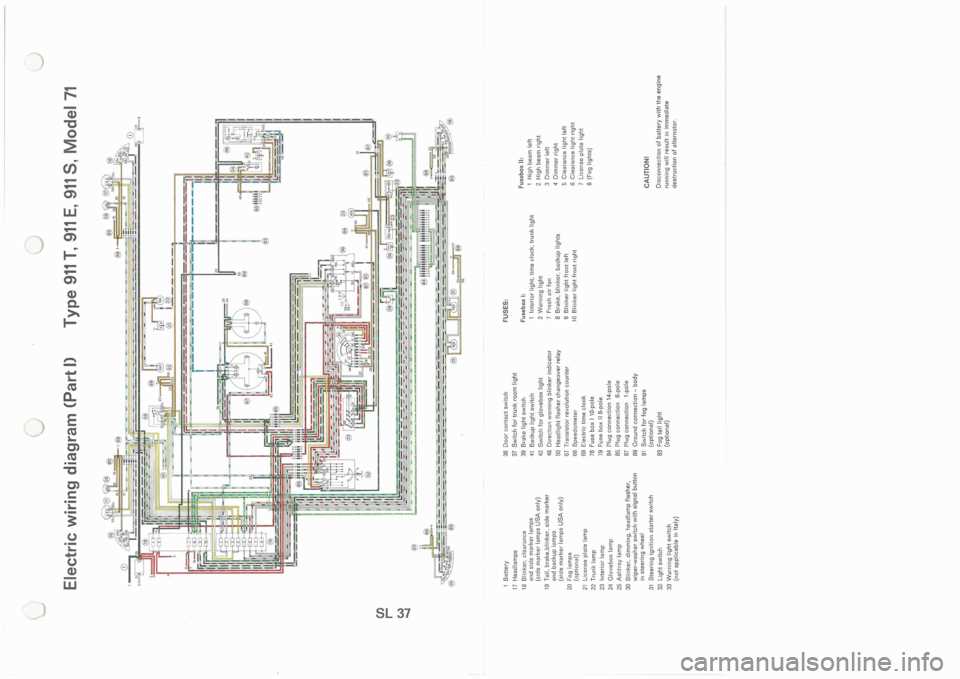

Locate factory-approved schematic sheets labeled PN 611-918-721/01 and PN 611-918-721/02–these contain the unaltered circuit paths. Cross-reference every brown ground strap against chassis points G101, G102, and G103 marked on the rear valence. Ohm readings across these joints should never exceed 0.2Ω; replace corroded terminals with crimped 4 mm^2 tin-plated copper lugs.

Fuse ratings differ by circuit cluster: primary ignition (red-yellow) takes a 16 A blade, lighting cluster (yellow-red) 8 A, and auxiliary (blue-white) 5 A. Swap all aftermarket ceramic blocks with OE-spec blade holders that snap into the fuse block carrier at positions F1–F8. Label each position with heat-shrink sleeves corresponding to the color codes stamped on the original loom.

• Central relay R1 (part #911-612-11301) sits under the driver-side kick panel; test coil resistance at 85–115 Ω and switch contacts under 0.1 Ω when engaged.
• Voltage regulator VR1 (Bosch 0 190 350 043) must maintain 13.8–14.4 V at the battery posts during a 3-minute engine run at 2 500 rpm. Deviations above ±0.3 V indicate internal brush wear–replace unit intact.
• Headlight switch SW2 includes a dual-coil delay module; verify the 47 μF capacitor across terminals 53 and 54 holds charge for 2–3 seconds before filament cool-down.

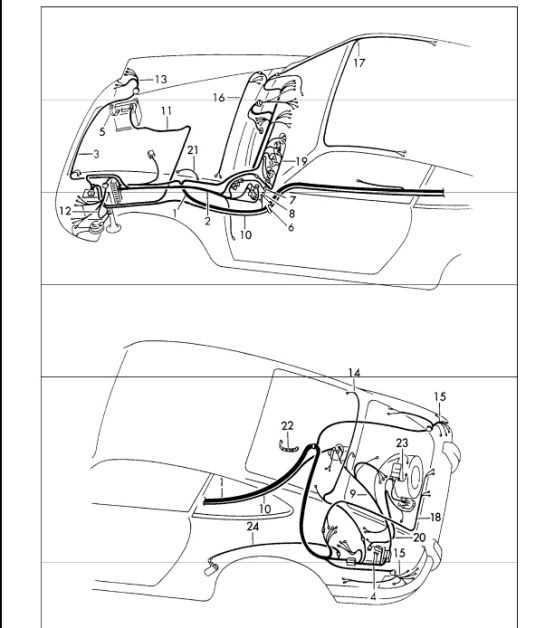

Route the 2.5 mm^2 orange starter cable through the tunnel bracket at bulkhead grommet B-17, securing every 150 mm with spiral wrap. Snip any zip-ties that compress the insulation–cold weather brittleness causes microfractures at clamp points. Confirm the solenoid pull-in windings draw 28–32 A during engagement; readings below 26 A suggest a bad field coil.

Instrument cluster feeds split into two harness branches: the upper branch (green-black) powers tachometer and speedometer via pulse sender PS-1, while the lower branch (purple-white) serves fuel and temperature gauges. Clean sender connectors with contact cleaner and reseal with dielectric grease; intermittent spikes on the temp gauge typically trace to a corroded NTC sensor at the cylinder head port #3.

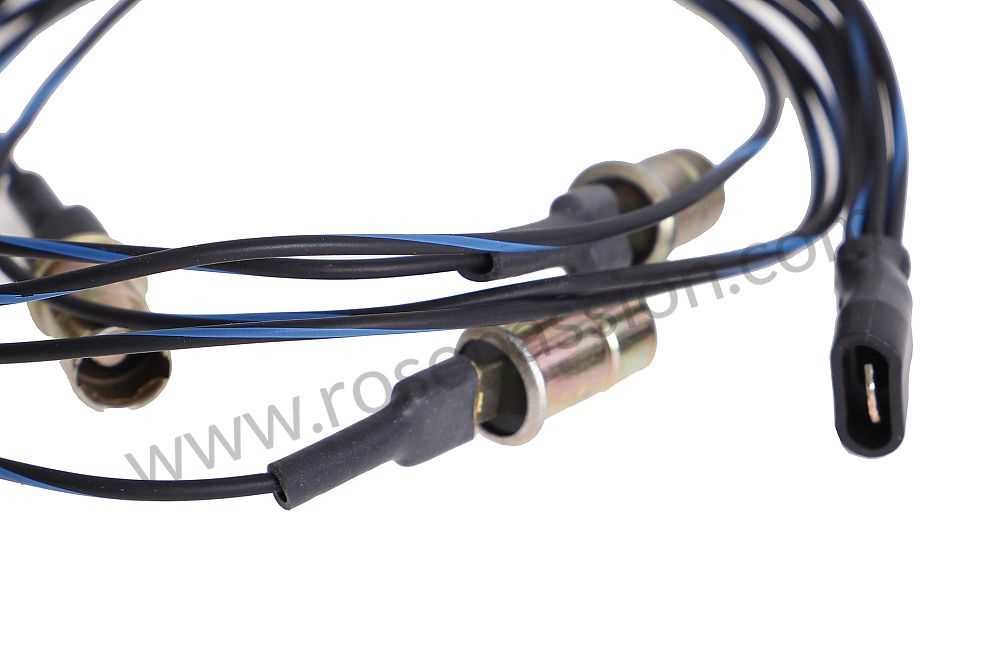

Tail-light sockets integrate dual-filament bulbs; confirm filaments draw 5 W (marking “5W/21W”) at 12.8 V. Replace cracked reflectors with reproduction housings that meet ECE R3 spec–aftermarket chrome substitutes often reflect 25 % less lumens. Check reverse light switch continuity by probing terminal #30 to #87 while engaging gear; a 0.5-second delay confirms correct function of the transmission-mounted microswitch.

1. Disconnect battery negative cable before probing any live circuit.
2. Use a quality multimeter set to 200 mV DC scale for parasitic drain tests–acceptable baseline is under 30 mA.
3. Label each harvested connector crimp with the original pin code etched on the terminal base.
4. Inspect the main alternator output diode trio for reverse leakage exceeding 5 mA at 14 V; replace diode board as a unit if readings surpass threshold.
5. Update the ignition ballast resistor to a sealed ceramic unit (PN 911-602-69100) rated at 0.5 Ω ±10 %–earlier carbon resistors drift under heat and skew advance curves.

Windshield wiper motor cycles are governed by a five-stage cam switch; trace the black-red lead to terminal W on the switch body. Replace worn cams with a repro switch that matches the original 55° park angle. Verify intermittent wipe functionality by timing the delay–cycling should occur every 5 ±0.5 seconds at medium speed setting.

Critical Elements and Terminal Positions in the Classic Sport Coupe Electrical System

Begin restoration by identifying the main fuse block, typically mounted beneath the dashboard on the driver’s side. This unit consolidates primary circuit protection, housing six blade-style fuses rated at 8A each for standard systems, except the headlight and horn circuits which demand 16A. Trace the thick red cable exiting the positive terminal of the battery–this feeds directly into the solenoid before branching to the starter and ignition switch.

Locate the ignition switch harness connector behind the instrument cluster, marked by a six-pin rectangular plug with terminals labeled 30, 15, 50, 53, 54, and 75. Pin 30 delivers constant power from the battery, while 15 supplies voltage when the key is turned to ignition. Mistaking these positions during repair risks damaging the voltage regulator or triggering unintended dashboard warnings.

The rear trunk compartment houses the voltage regulator and alternator connectors. A three-wire plug links the alternator to the regulator–white (W) for field excitation, blue (B+) for output, and brown (D-) for grounding. Ensure the D- terminal maintains a solid connection to the chassis, as corrosion here disrupts charging and may mimic alternator failure.

Inspect the headlight switch near the steering column–it routes through a four-wire harness: red (power), yellow (high beam), green (low beam), and black (ground). The dimmer relay, positioned adjacent to the fuse block, toggles between high and low beams via a small toggle switch on the turn signal stalk. Verify the relay’s coil resistance (400–600 ohms) before condemning the switch.

Crucial ground points include a steel strap beneath the battery tray and another behind the left rear wheel well. These straps link the engine block to the chassis, preventing voltage drop across sensitive circuits like fuel injection control units found in later variants. Sand contact surfaces clean and apply dielectric grease to prevent oxidation that could compromise signal integrity.

The glove compartment light harness terminates in a two-pin connector near the passenger-side A-pillar. Disconnecting this plug disables the cabin lighting but also cuts power to the courtesy light delay module, a detail easy to overlook during interior upgrades. The delay module relies on a capacitor that holds charge for approximately 30 seconds post-door closure.

For electronic fuel injection models, isolate the eight-wire injector harness–three pink wires for cylinder banks, two black for sensor grounds, and three mixed-color for throttle position sensor inputs. Each connector shell includes a locking tab; disengage carefully to avoid breaking the plastic housings, which are no longer produced by suppliers.

Step-by-Step Tracing of the Ignition System Circuit in a Classic Sports Coupe

Begin by locating the ignition coil mounted on the left inner fender, near the battery tray. The primary feed wire (red with a black stripe) connects directly to the coil’s positive (+) terminal, marked “15” on the housing. This wire originates from the ignition switch via the fuse panel, delivering 12 volts when the key is turned to the “on” or “start” position.

Trace the coil’s negative (-) terminal, marked “1,” where a single black wire exits. This wire leads to the distributor’s contact points, routing through a thin condenser mounted adjacent to the points assembly. Verify the wire’s continuity with a multimeter–resistance should read near zero ohms. Any measurable resistance indicates corrosion at the terminals or a broken strand.

Component	Wire Color Code	Terminal Label	Voltage (Key ON)
Ignition Coil (+)	Red/Black tracer	15	12V
Ignition Coil (-)	Black	1	0V (Pulsing)
Distributor Condenser	Black	–	–

At the distributor, the black wire splits into two paths: one entering the condenser, the other terminating at the contact points. The condenser’s role is critical–it suppresses voltage spikes when the points open, preventing arcing. Remove the distributor cap to inspect the points gap; it should measure 0.016 inches. A gap outside this tolerance causes late or erratic spark timing.

From the points, a brown wire exits the distributor base, leading to the engine block ground. This ground path completes the circuit, allowing current to flow when the points close. Check for secure attachment at the engine block–any looseness introduces resistance, weakening spark output. Use dielectric grease on the ground connection to prevent oxidation.

Follow the high-tension lead from the coil’s “4” terminal to the distributor’s center tower. This lead carries the 20,000+ volt pulse generated during each firing cycle. Inspect the lead’s insulation for cracks; replace if brittle. The rotor inside the distributor distributes this pulse sequentially to each spark plug wire based on crankshaft position.

Each spark plug wire connects to the distributor cap towers in a clockwise sequence (1-4-3-6-2-5), corresponding to the engine’s firing order. Verify wire routing–crossed wires cause backfiring. Resistance-test each wire individually; readings should fall between 5,000 and 10,000 ohms. Higher resistance indicates internal breaks, lower readings suggest shorted windings.

Test spark output by disconnecting a plug wire and attaching a spark tester to the wire’s terminal. Crank the engine–healthy sparks appear bright blue with a crisp snap. Orange or intermittent sparks signal weak coil output, faulty condenser, or corroded points. Replace the condenser if arcing is visible at the points when the cap is removed.

For final validation, connect a dwell meter across the points. With the engine running, dwell should stabilize between 48 and 52 degrees. Adjust the points gap as needed; each 0.001-inch change alters dwell by approximately 4 degrees. Recheck timing using a strobe light–initial setting is 8 degrees BTDC at idle.
