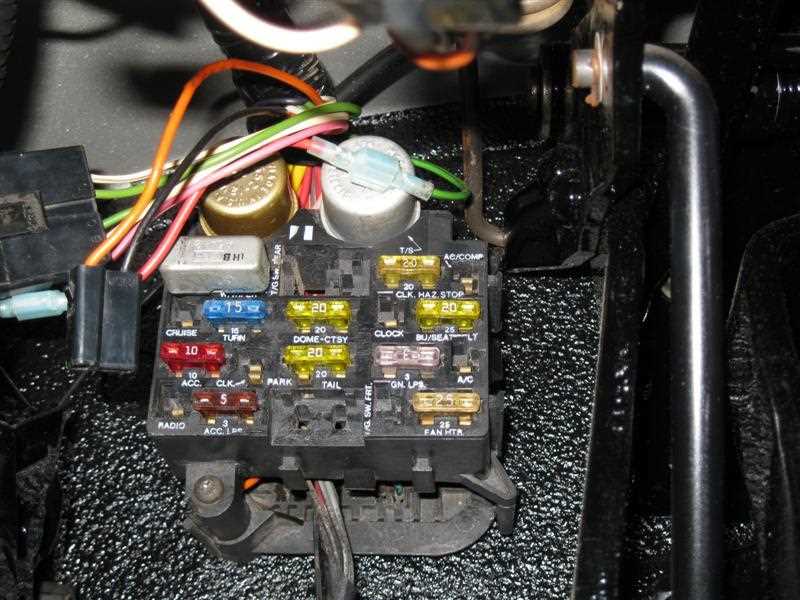

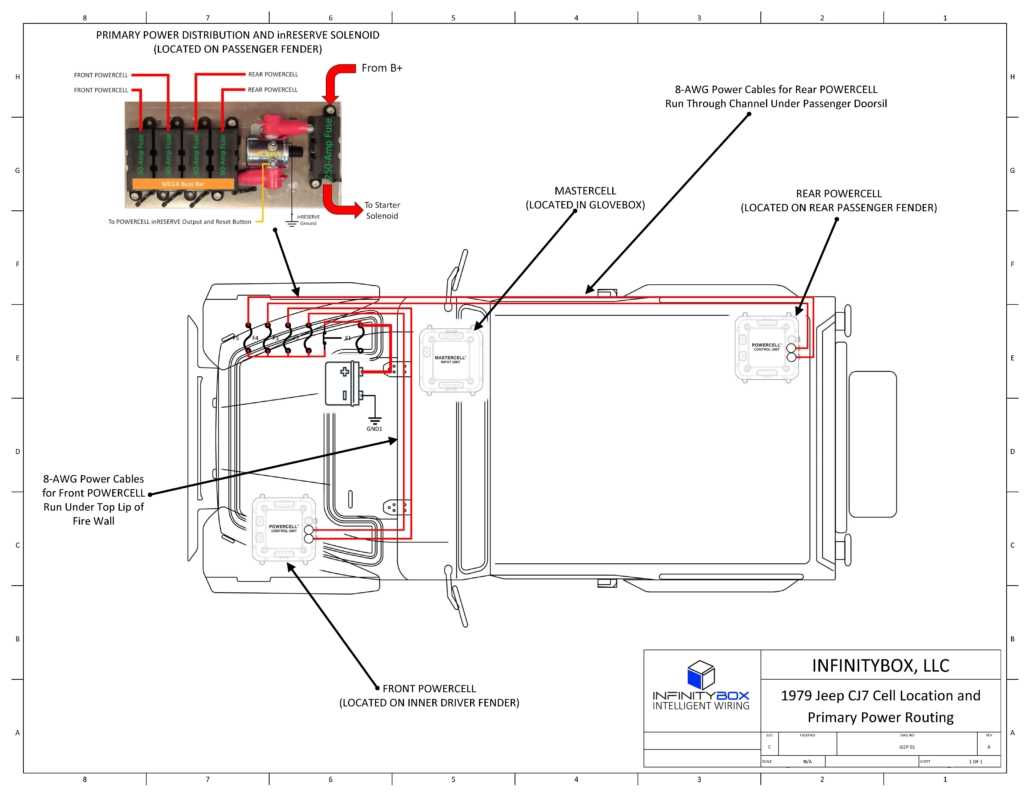

Start by locating the full harness layout under the dashboard–this segment controls critical functions like the ignition, lighting, and instrument cluster. Remove the kick panel on the driver’s side to expose the primary fuse block; trace the red/white-striped wire from the ignition switch to identify power distribution points. If the vehicle exhibits erratic gauge behavior, focus on the voltage regulator connector (a three-prong plug near the firewall), ensuring no corrosion exists at the terminals. For persistent starting issues, inspect the starter solenoid wiring–specifically the purple wire linking to the ignition system–for fraying or shorts.
Headlight malfunctions often originate in the dimmer switch wiring behind the steering column. The dark green/yellow-striped wire carries the low-beam signal; verify continuity with a multimeter before replacing the switch. For turn signals, the flasher unit sits adjacent to the fuse box–bypass it temporarily with a jumper wire (between terminals B and L) to confirm failure before sourcing a replacement. Grounding points near the front bumper demand attention; sand all contact surfaces to bare metal and secure with star washers to prevent voltage drops.
When tackling the alternator circuit, disconnect the battery first to avoid backfeeding. The white wire from the alternator’s “A” terminal should route directly to the ammeter; any deviation suggests a faulty splice. For auxiliary lighting, the AUX fuse block (mounted under the hood) supplies power to aftermarket fog lamps–use 12-gauge wire for all new installations to prevent overheating. If the horn fails, skip the relay test; instead, ground the “H” terminal on the horn itself with a temporary wire to isolate the issue.
Document every modification with photographs before disassembly. Use heat-shrink tubing or dielectric grease on all new connections to prevent oxidation. For circuits tied to the engine bay, route wires through existing loom channels to avoid chafing against sharp edges. Recheck all bullet connectors in the taillight harness–these degrade faster than soldered joints. When splicing, twist strands tightly before soldering and wrap with high-quality electrical tape or liquid rubber sealing compound.
Restoring Classic Off-Road Electrical Systems: A Hands-On Reference
Begin by disconnecting the battery’s negative terminal before examining any circuits. Corrosion on connectors, particularly around the fuse block near the driver-side firewall, often causes intermittent failures. Use a multimeter set to continuity mode to verify wire paths–factory schematics label wires by gauge and color code, but age may alter insulation hues, especially on orange (switched ignition) and dark green (ground) leads.
Trace the charging circuit first: the alternator’s output terminal connects via a 10-gauge red wire to the starter solenoid, then splits to the ammeter. Voltage drops exceeding 0.5V between the alternator case and battery positive indicate corroded connections at either the engine block ground or the voltage regulator plug. Replace the regulator if the alternator fails to maintain 13.8–14.4V at 2000 RPM with lights and accessories off.
| Component | Color Code (Factory) | Gauge | Common Failure Points |
|---|---|---|---|
| Ignition Coil (+) | Orange stripe | 16 | Ballast resistor terminal (melting) |
| Headlight switch output | Light blue stripe | 14 | Multi-pin connector oxidation |
| Fuel sender unit | Dark green stripe | 18 | Tank ground strap corrosion |
Swap the original fusible link (4-gauge, pink) if melted sections appear–slice out the damaged segment and splice in fresh link wire using crimp connectors, not solder. Headlight circuits frequently overload due to worn dimmer switches; if beams flicker, disassemble the switch and clean contacts with 600-grit sandpaper. Tail lights share a ground circuit through the body–inspect the chassis ground near the rear bumper for rusted mounting points.
For turn signals, verify the flasher relay’s 9/16-inch spade terminals are seated firmly–vibration loosens them over decades. If signals flash rapidly, suspect a burned-out bulb on the affected side; if both sides flash fast, check the relay or brake light circuit interference. Dash gauges connect via a printed circuit behind the instrument cluster; peel back the cluster housing and resecure loose solder joints on the temperature and fuel sender traces.
Upgrade the hazard flasher to a modern solid-state unit–original bimetallic flashers burn out frequently and draw excessive current. Route new wires through split loom tubing where they pass through metal firewall holes, using rubber grommets to prevent chafing. Test the backup light switch by jumping its terminals–if lights illuminate, replace the switch; if not, trace the purple wire to the transmission case for shorts.
Document every modification with dated labels on both ends of altered wires. Use heat-shrink tubing instead of electrical tape for splices, especially in areas exposed to moisture like the under-hood fuse block or rocker panel grounds. Keep a spare ignition key in the glove box to prevent lockout–original door switches often short if the key’s circuits fail.

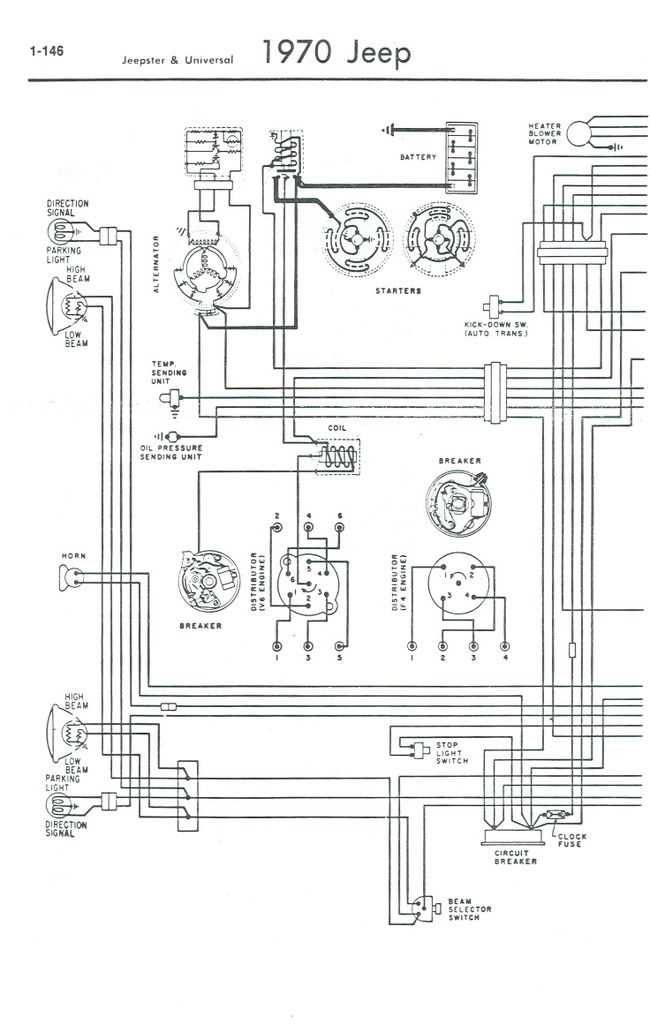

Finding the Factory Electrical Blueprint for a Late ’70s Off-Road Classic
Start with the Official Service Manual (OSM) released by AMC for the 1977–1979 model run. This book, often labeled “Part No. 813370” for the CJ variant, contains the sole authorized reproduction of the vehicle’s original circuitry layout. Copies surface on eBay, Craigslist, and niche forums like CJ2A Page–expect to pay $40–$90 for a clean print.
Check the microfiche collection at your closest AMC-affiliated dealership built before 1990. Many存档 сохранили полные комплекты документов для обслуживания на 35-мм плёнках. Свяжитесь с отделом запчастей напрямую–некоторые дилеры разрешают бесплатное копирование схемы после предоставления VIN.
Key Locations for Digital Repositories
- EarlyCJ5.com hosts a member-only PDF vault containing scans of the OSM circuit drawings in 300 dpi.
- The TheSamba.com Gonzo section keeps a dedicated folder labeled “AMC Jeep Electrical” with indexed schematics.
- Google Advanced Search filtered by filetype:pdf and site:*.edu frequently yields university engineering labs that uploaded vintage manuals as reference material.
Join the International Full Size Jeep Association–annual dues of $35 grant FTP access to their technical archive. Inside you’ll find a subfolder titled “Compact Utility 1970s” with a 23-page schematic split across six high-resolution TIFF images.
If digital scans fail, physical tracing remains reliable. Disconnect the battery, remove the dashboard lower panel, and follow the main harness from the fuse block to the rear tail light connector. Use a multimeter on continuity mode to map each wire–AMC used a consistent color-coding system: solid green for tail lights, orange stripe for ignition, red with blue stripe for headlight switch.
Verification Tips Before Finalizing
- Cross-reference every colored wire against the OSM legend–aftermarket harnesses often swap ground and signal paths.
- Check connector pinouts against the chassis ground post located beneath the driver-side footwell; corrosion here distorts voltage readings.
- Print the schematic at 1:1 scale–lay it over a light table and align it with the actual harness to spot splices.
Local salvage yards that specialize in pre-1986 vehicles regularly stock untouched donor models. Pay $120–$180 for a complete firewall-to-rear wiring loom still attached to its original tape ties; the connectors remain the best reference for terminal orientation.
Step-by-Step Wire Color Coding and Circuit Identification

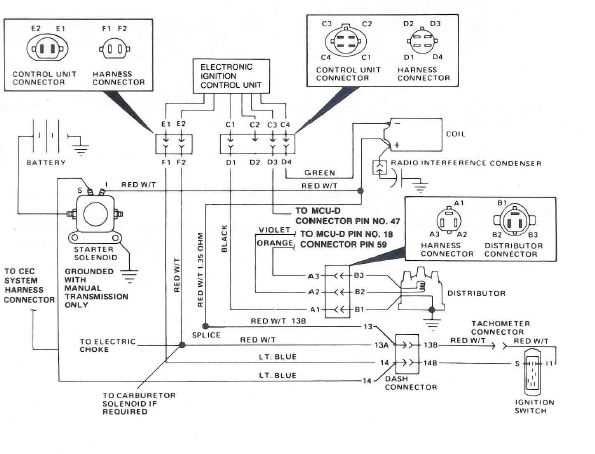

Begin by isolating the main harness at the firewall bulkhead, identifying the twelve-core connector. The primary power feed (red with a white stripe) should measure 12 volts at ignition-on–verify this first with a multimeter before proceeding to downstream circuits. A dead lead here suggests a blown fuse or failed ignition switch, not a wiring fault.
Trace the instrument cluster harness to the speedometer assembly, where the yellow wire (illumination) and pink wire (brake warning) intersect. The pink lead originates from the pressure switch near the master cylinder; test continuity by depressing the pedal while observing resistance–the circuit should close fully under 20 ohms. If readings fluctuate, inspect the switch for corrosion or a frayed lead inside the wheel well.
Secondary Harness Dissection
Focus next on the rear tail harness, distinguishing the brown wire (license plate illumination) from the blue stripe (reverse lights). At the rear crossmember grommet, the blue stripe splits into two leads–one feeds the left light, the other loops to the transmission neutral switch. Probe both sides of this split for voltage during reverse engagement; any drop below 11 volts indicates chafing near the fuel tank skid plate.
Examine the charging circuit at the alternator plug, where the white/black wire delivers field excitation. Clip a test light to the battery positive, then touch the white/black lead–bright illumination confirms coil integrity. Dark output points to a defective rectifier or faulty internal brushes, requiring bench testing with a dedicated diode tester.
Identify the turn signal flasher relay beneath the dash, a three-prong canister marked “SF-21” or equivalent. The dark green wire (right turn) and light green (left turn) should toggle between 0-6 volts when activated; inconsistent toggle signals a bad relay or a short at the steering column cancel cam. Swap the relay with a known-good horn relay–if turn signals now function, replace the flasher unit.
At the fuse block, locate the purple wire feeding the radio memory–this live circuit bypasses ignition and must hold 12 volts independent of key position. A voltage drop here erases presets and suggests a weak battery or parasitic drain if no aftermarket accessories are present. Connect an ammeter inline; normal draw is under 50 milliamps after 20 minutes of inactivity.
Ground Path Verification
Inspect ground strap G102 at the engine block, where the black wire from the main harness terminates. Clean the mating surface until bright metal appears, then retighten with a star washer–poor ground manifests as dim lights, erratic gauge behavior, or starter solenoid clicking without cranking. If symptoms persist, run a temporary jumper from the battery negative to the alternator mounting boss and observe changes.
Check the auxiliary ground near the windshield washer pump, a thin black wire often overlooked. Resistance above 0.5 ohms here disrupts the intermittent wiper circuit; solder a new ground lug directly to the chassis rail if corrosion exists. Ensure the washer fluid sender yellow wire is insulated from this ground–cross-tupping causes false reservoir readings.
