Step-by-Step Pool Pump Motor Wiring Guide with Diagram

Begin by identifying the rating plate on the side of your filtration system’s drive unit. Look for three critical values: voltage (e.g., 115V or 230V), current draw (amperage), and capacitor microfarads (µF). Mismatching these can fry the coil windings or trip breakers instantly. If the label shows dual-voltage capability, the unit likely has split-phase wiring–typically a brown or black terminal block labeled L1, L2, T1, T2, plus a ground post. Verify this with a multimeter set to continuity mode before touching anything.

For a single-speed setup on a 230V circuit, jumper L1 and L2 together, then attach a 12-gauge red or black lead from the breaker’s hot bus. Run a separate white 12-gauge from the neutral to T1, and bare copper from the panel’s ground bar to the unit’s ground lug. Capacitors mount directly on the housing–check polarity (marked “+”) and install with quick-connect tabs clipped firmly over spade terminals. If the run exceeds 50 feet, upsize conductors by 20% to compensate for voltage drop.

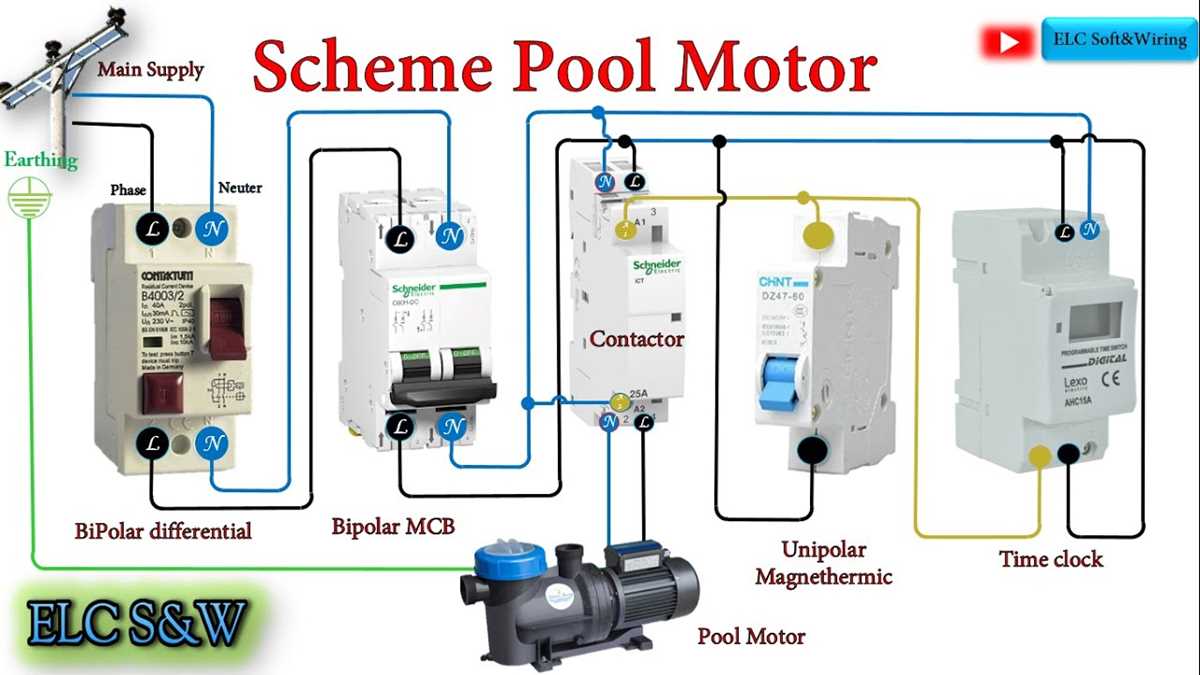

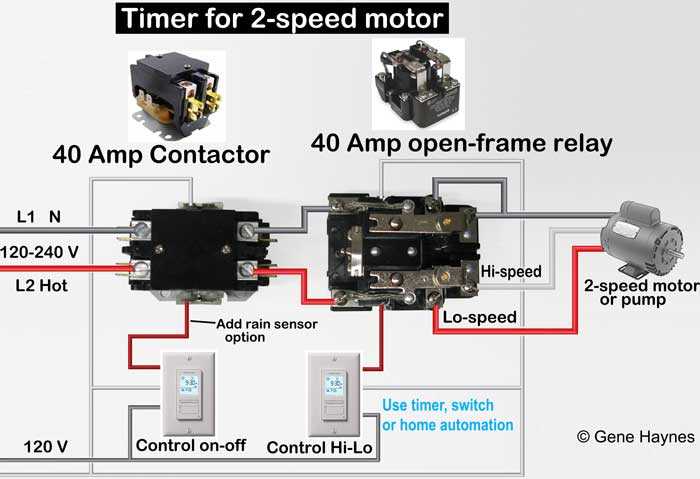

Two-speed models require an additional pair of relays or a dedicated control box. Terminal LOW draws ~2A, HIGH pulls ~6A–wire these to separate breakers sized per NEC Table 310.16. Solid-state switches commonly fail first; probe with a non-contact voltage tester before disassembly. For variable-frequency drives, consult the inverter’s manual–common connectors like MCM or DIN rail-mounted contactors dictate specific torque specs (usually 1.2-1.5 Nm) to avoid overheating.

Label every conductor with heat-shrink tubing: BRKR_HOT, BRKR_NEUTRAL, CAP_POWER, CAP_RUN, GROUND. Use waterproof butt splices if tapping into existing conduit. After final connection, enclose all terminals in a weatherproof NEMA 3R-rated junction box–even mild humidity corrodes untreated copper within weeks.

Understanding Electrical Connections for Aquatic Circulation Units

Begin by verifying the voltage requirements on the equipment’s nameplate–most residential systems operate at 115V or 230V, while commercial setups may use 460V. Connecting a 230V device to a 115V supply will result in insufficient torque and potential overheating, whereas the reverse risks catastrophic failure. Ensure the circuit breaker matches the voltage rating; for 230V, a double-pole breaker (typically 15-20 amps) is necessary, while 115V requires a single-pole 20-amp breaker.

Strip wires to expose 5/8 inch of bare copper for secure terminals–excess length increases resistance, while insufficient contact causes arcing. Use crimp connectors or solder for permanent joints, but avoid twist-on caps; vibration from operation will loosen them over time. For outdoor installations, apply dielectric grease to terminals to prevent corrosion from moisture or chlorine exposure. Ground the frame to a dedicated earth rod using 8-gauge solid copper wire, not the neutral conductor.

Common Hookup Configurations

• Single-phase (115V): Connect L1 (hot) to terminal 1, neutral to terminal 2, and ground to the frame. Verify polarity with a multimeter–reversed lines will spin the impeller backward, damaging seals.
• Single-phase (230V): Both L1 and L2 (hot legs) attach to terminals 1 and 3, skipping terminal 2. Capacitors must match the microfarad rating listed on the chassis; mismatches cause humming or failure to start.
• Three-phase: Follow the wiring schematic stamped on the housing. Miswiring in delta versus wye configurations will burn out windings instantly. Use a phase rotation meter to confirm sequence before energizing.

Replace capacitors every 2-3 years as part of routine maintenance–bulging or leaking cases indicate imminent failure. Test with an analog multimeter (set to ohms) by charging briefly with a 9V battery; a functional capacitor will show a brief deflection before dropping to zero. Never substitute a start capacitor for a run capacitor–start types have higher microfarad ratings but are designed for brief duty cycles only.

Label all wires with heat-shrink tubing or adhesive tags before final assembly. Include voltage, breaker size, and installation date–this prevents guesswork during future service. For variable-speed models, program speed settings after electrical connections are verified, not before; factory defaults often exceed safe RPM ranges for basic filtration needs.

1. Power down the breaker and verify absence of voltage with a non-contact tester.
2. Remove the junction box cover and inspect for moisture or insect nests–common failure points.
3. Reattach wires only after cleaning terminals with emery cloth and applying antioxidant compound.
4. Reinstall the cover with a new gasket if degraded–compression seals prevent water ingress.
5. Energize the circuit and monitor current draw for 30 seconds; excessive amperage indicates binding impellers or misaligned shafts.

Troubleshooting Faults

If the unit hums but doesn’t start, check for seized bearings by rotating the shaft manually–stiffness confirms replacement is needed. For intermittent starts, measure voltage at the terminals while starting; drops below 10% of rated voltage indicate undersized conductors or corroded connections. Replace all wiring if insulation shows cracking or discoloration–thermal degradation reduces dielectric strength over time.

Understanding Equipment Drive Component Terminals and Markings

Locate the metal or plastic plate riveted to the side or rear of the mechanical assembly. This tag displays the schematic identifiers–typically L1, L2, T1, T2, and sometimes U, V, W for three-phase variants. Single-speed units often feature only Line and Load labels, whereas dual-speed models include an additional High/Low switch post. Verify these against the manufacturer’s datasheet–mismatched markings risk incorrect energization or phase imbalance.

Examine the capacitor housing, usually a cylindrical or oval enclosure attached near the windings. Look for stamped symbols like C, CAP, or RUN; these connect to auxiliary winding terminals (T3 or AUX). Multi-speed setups may incorporate a START terminal–this remains unconnected unless advised by the technical manual. Skipping this step can lead to insufficient torque or overheating within minutes of activation.

Decoding Color-Coded Leads and Splice Points

Trace each conductor from its point of origin to the terminal block. Most North American builds adhere to NEC conventions: black for L1, red for L2, blue for T3 (if present), and white or gray for neutral (rare in 240V setups). European models often use brown (phase), blue (neutral), and green/yellow (ground). Cross-reference splice colors with terminal labels–discrepancies indicate prior modifications requiring verification.

Inspect crimp connectors or solder joints at the junction box. Poorly secured copper strands increase resistance, causing voltage drops or arcing. Use a multimeter in continuity mode: probe between the terminal screw and the stripped wire end–zero ohms confirms a solid connection. Anything above 0.5Ω warrants re-crimping with a ratcheting tool or soldering with rosin flux for durability.

Handling Ambiguities and Non-Standard Configurations

Some OEMs deviate from conventional markings–for instance, replacing T1/T2 with 1/2 or A/B. In these cases, measure winding resistance: the highest pair corresponds to Run terminals, while lower values indicate Start or Auxiliary coils. For reversible setups, note directional labels (CCW for counterclockwise rotation); swapping L1/L2 or T1/T2 reverses spin. Always test rotation after securing the cover–exposed live terminals violate safety codes and risk equipment damage.

Step-by-Step Guide to Connecting a Single-Speed Filtration Unit Driver

Disconnect the power supply at the circuit breaker before handling any electrical components. Verify the absence of voltage using a non-contact voltage tester on the wires and terminals to prevent accidental shocks. Label each conductor with masking tape–include the line voltage wire, neutral, and ground–to simplify reassembly.

Locate the manufacturer’s identification plate on the housing; note the voltage rating (115V or 230V) and current draw. For 230V configurations, ensure the dual-pole breaker matches the stated amperage (typically 15–20A). Mismatched voltage will cause immediate failure or fire hazards during operation.

Terminal Connections

• Line voltage (L1/L2): Attach the hot wires from the power source to the labeled terminals. On 115V setups, only one hot conductor is required; for 230V, both L1 and L2 must be connected. Secure with a screwdriver, ensuring no exposed copper extends beyond the terminal clamp.
• Neutral (if applicable): Some 115V models include a neutral terminal. Connect the white wire here–leave unutilized on 230V variants as these operate without a neutral.
• Ground (GND): Attach the bare or green grounding conductor to the designated screw or terminal. This connection must remain unimpeded to safely redirect fault currents.

Mount the thermal overload protector if detached during servicing. Align the device’s contacts with the housing tabs, then press firmly until seated. Overlooking this step will lead to overheating and automatic disconnection within minutes of startup.

Post-Connection Verification

1. Reinstall the protective cover, tightening all fasteners to prevent moisture ingress or vibration-induced loosening.
2. Restore power at the breaker, then observe the initial start. Listen for unusual noises–humming or grinding indicates misalignment or internal damage requiring immediate disconnection.
3. Measure current draw with a clamp meter within the first 30 seconds of operation. Values exceeding the nameplate rating by 10% signal improper wiring or mechanical obstruction.

Recheck all connections after 24 hours of continuous use. Thermal cycling may loosen terminals–tighten if resistance readings exceed 1 ohm between the line conductor and ground. Record voltage at the terminals during operation for future diagnostics; fluctuations greater than 5% necessitate breaker or conductor inspection.
